NETGEAR - Orbi AX4200 Tri-Band Mesh WiFi 6 System with 32x8 DOCSIS 3.1 Cable Modem (2-Pack) - White
Series
AX4200Related Item
Highlights
- Key Specs
- Wi-Fi Range: 5000 square feet (The device will provide a Wi-Fi connection to this approximate area.)
- Wi-Fi Mesh System: true (A single wireless network consisting of a main router (connected directly to a modem) that connects to a series of satellite modules or nodes placed around the home. Routers with this capability promote stronger, faster wireless signals as well as increase Wi-Fi coverage by reducing interference and eliminating dead zones.)
- Number of Wi-Fi Satellites Included: 2 (Quantity of Wi-Fi satellite modules/nodes for a Wi-Fi Mesh System that come with the product.)
- DOCSIS Certification: 3.1 (DOCSIS (Data over Cable Service Interface Specification) is a telecommunications standard that allows high-bandwidth data transfer via a coaxial cable for internet access. Each version updates the previous standard and is backwards compatible with other versions.)
- Wi-Fi Speed: 4.2 gigabits per second (The maximum rate at which data is transferred between a network device and wireless router.)
- Internet Service Provider (ISP) Compatibility: Cox Communications, XFINITY from Comcast, Spectrum (The internet service provider(s) that the device is able to work with and/or connect to with minimal setup.)
- General
- Brand: NETGEAR
- Model Number: CBK752-100NAS
- Product Name: Orbi AX4200 Tri-Band Mesh WiFi 6 System with 32x8 DOCSIS 3.1 Cable Modem (2-Pack)
- Color: White
- Security
- Data Encryption: true
- Encryption Type: WPA, WPA2, WPA2-PSK (The security protocols or certification programs that protect the Wi-Fi network.)
- Firewall Type: NAT, SPI (The method the firewall uses to filter and process data to increase network security, primarily by blocking malicious traffic requests while allowing legitimate traffic through.)
- Security Features: NETGEAR Armor; NAT & SPI firewall; standards-based Wi-Fi Security (802.11i, 128-bit AES encryption with PSK); and more
- Network
- Band Technology: Tri (Refers to the number of frequency bands used to wirelessly transmit an internet signal. For example, dual-band devices may use one 2.4 and one 5 GHz band, while tri-band devices may use one 2.4 and two 5 GHz bands. Multiple bands also provide more flexibility for designating connected devices to specific band use.)
- Ethernet Standard: 10/100/1000 (Each standard is a variation of the IEEE 802.3 set of computer networking technologies known as Ethernet. New versions evolved to include higher bandwidth, different physical media, and other new and improved features. Standards are often denoted by speeds (in Megabits per second). For example, a 10/100/1000 Ethernet port transmits at 10 Mbps, 100 Mbps, and 1000 Mbps (1 Gbps).)
- Number Of Connected Devices: 40
- Frequency Band: 2.4 GHz, 5.0 GHz (Bands may be grouped into categories such as low- and high-band VHF (Very High Frequency), low- and high-band UHF (Ultra High Frequency), or certain frequency channels (measured in MHz or GHz). Generally, higher frequencies transmit information faster but have shorter range than lower frequencies.)
- Wireless Networking Standard: Wi-Fi 6 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: AC, AX, N (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Wi-Fi Range: 5000 square feet (The device will provide a Wi-Fi connection to this approximate area.)
- Input/Output Technology: MU-MIMO (Multi-user Multiple-Input Multiple Output) (Generally, multiple-input multiple-output communication technologies allow for more signals to be transmitted at a single time, which can improve the device's overall performance.)
- Wi-Fi Mesh System: true (A single wireless network consisting of a main router (connected directly to a modem) that connects to a series of satellite modules or nodes placed around the home. Routers with this capability promote stronger, faster wireless signals as well as increase Wi-Fi coverage by reducing interference and eliminating dead zones.)
- Number of Wi-Fi Satellites Included: 2 (Quantity of Wi-Fi satellite modules/nodes for a Wi-Fi Mesh System that come with the product.)
- Number of Wi-Fi Satellites Supported: 5 (Maximum quantity of Wi-Fi satellite modules/nodes that are able to be connected to the main router in a Wi-Fi Mesh System.)
- Ethernet Switch: true (Connects multiple devices to expand the Local Area Network (LAN).)
- Certifications Listings & Approvals
- DOCSIS Compliant: true
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- DOCSIS Certification: 3.1 (DOCSIS (Data over Cable Service Interface Specification) is a telecommunications standard that allows high-bandwidth data transfer via a coaxial cable for internet access. Each version updates the previous standard and is backwards compatible with other versions.)
- Features
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- App Name: Orbi Mobile App
- Beamforming: true (A signal processing technique that enables a router to focus a Wi-Fi signal in a specific direction. The router determines where a connected device in the network is located and projects a stronger signal in that specific direction. This can result in faster and higher quality data transfer as well as reduced signal interference.)
- Integrated Modem: true
- Wireless: true
- Ports
- Port Type(s): Co-Axial, RJ-45 (USB 2.0 connects external drives, gaming controllers, smartphones, MP3 players and other accessories.USB 3.0 transfers data faster than USB 2.0, but only when used with USB 3.0 devices.USB Type-C provides fast speeds and versatile power, featuring connectors with identical ends that plug in upside down or right side up. Adapters allow for video as well as backward compatibility.Thunderbolt provides ultra-high bandwidth for fast data transfer between devices featuring a Thunderbolt or MiniDisplayPort connection.HDMI allows you to connect a projector or display HD media on your HDTV or monitor.Media card slots allow you to transfer photos from your digital camera or camcorder.)
- Speed
- Wired Speed: 1000.0 megabits per second (The maximum rate at which data is transferred between a network device and router using an Ethernet cable.)
- Wi-Fi Speed: 4.2 gigabits per second (The maximum rate at which data is transferred between a network device and wireless router.)
- Gigabit Ethernet Speed: true (Supports the gigabit Ethernet networking standard, which has a data rate of at least one gigabit per second, or 1,000 Mbps.)
- Compatibility
- System Requirements: Windows, Mac, Android and iOS devices (The software that a product must have for it to be able to integrate with another product.)
- Bluetooth Enabled: false (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Internet Service Provider (ISP) Compatibility: Cox Communications, XFINITY from Comcast, Spectrum (The internet service provider(s) that the device is able to work with and/or connect to with minimal setup.)

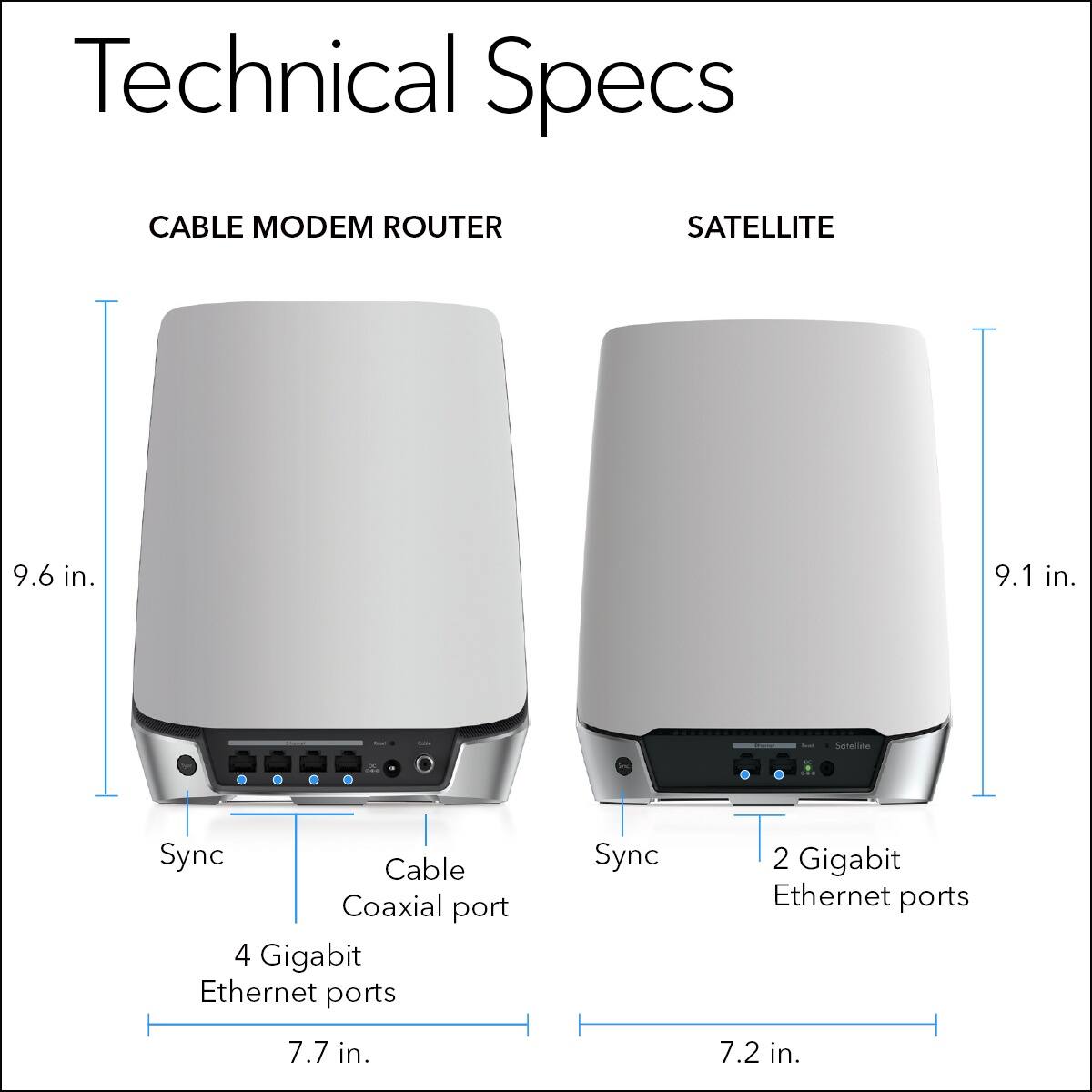

- Dimensions
- Product Height: 9.6 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 3.5 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 7.7 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 3.1 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 90 Days
- Other
- UPC: 606449146295
Personalize your home or office network with this NETGEAR Orbi DOCSIS mesh Wi-Fi system. The NETGEAR Armor provides enhanced cybersecurity, while Wi-Fi 6 network technology connects a variety of devices simultaneously without compromising speed. This NETGEAR Orbi DOCSIS mesh Wi-Fi system features a built-in DOCSIS 3.1 cable modem with up to 10 Gbps for quick file transfers and lag-free gaming.

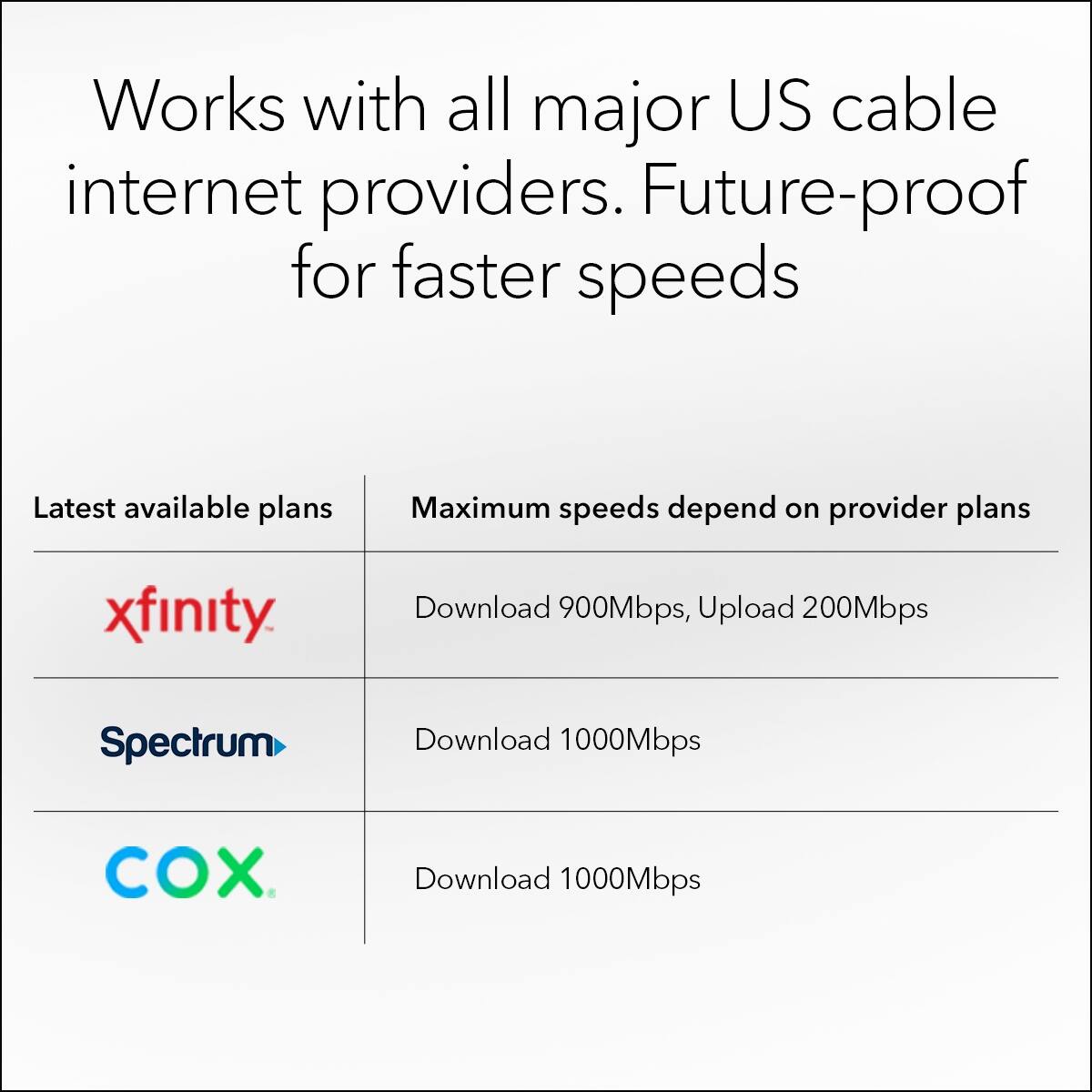

- Compatible with all major US cable service providers: Including Xfinity from Comcast, Cox, Spectrum and more.
- Certified with AT&T and T-Mobile: Not compatible with Verizon Wireless and Sprint.
- Whole-home Wi-Fi system: Powered by the mesh technology, it covers up to 5000 sq. ft. to ensure strong, reliable, and fast Wi-Fi in every corner of your home.
- Built-in DOCSIS 3.1 cable modem: Up to 10x quicker download speeds comparing with the DOCSIS 3.0 technology. Features 32 downstream and 8 upstream channels. Fully backward-compatible with early DOCSIS standards.
- Powerful security: NETGEAR devices come with security measures built in as well as enhanced safety features and updates designed to help protect you and your family.
- Up to 4200 Mbps data transfer rates: Get the ultimate experience for lag-free gaming and smooth streaming.
- Tri-band 2.4GHz, 5GHz wireless frequencies (802.11a/b/g/n/ac/ax compliant): Ensure fast, efficient operation.
- Essential all-in-one internet security: NETGEAR Armor provides a powerful suite of tools to help keep you safe online, including enhanced protection against hackers, malware and identity theft, at home or on the go. Includes 30-day trial.
- NAT and SPI firewall: The advanced security ensures that your private information stays private.

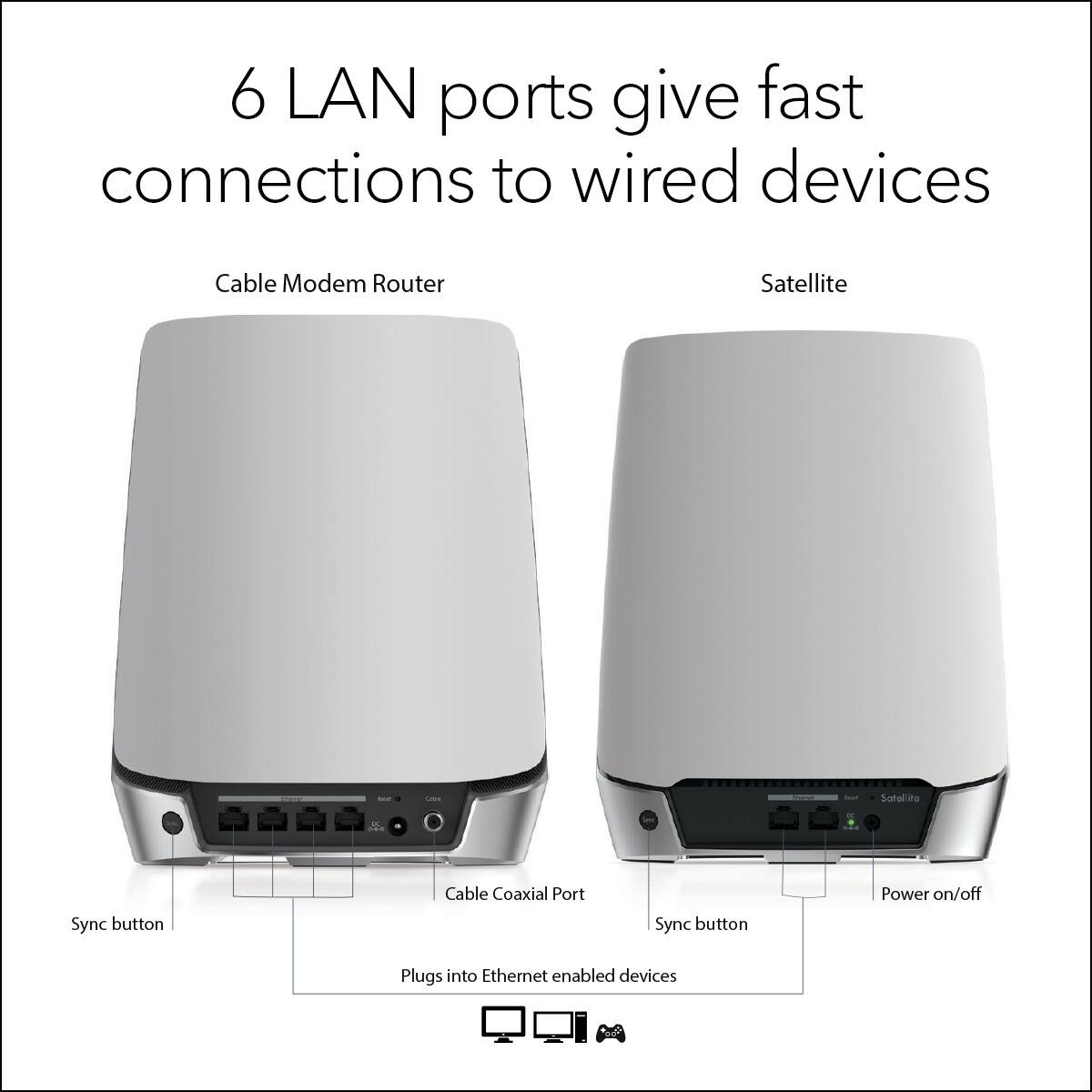

- Six Gigabit Ethernet ports: Enable wired connection of up to six computers. Four ports on cable modem router, two ports on satellite.
- Easy setup with Orbi app: Adjust your Wi-Fi, customize your settings, and enjoy your new system in minutes.
- Works with your PC, Mac, and mobile devices: For a proper fit.
- Automatic firmware updates: You can get automatic Orbi software updates for new router features and Wi-Fi improvements.
- Save on monthly rental fees: Allows saving up to $168 per year by eliminating monthly cable modem rental fees.*
Whats Included
- NETGEAR Orbi Router (CBR750)
- Orbi Satellite (RBS750)
- 2m Ethernet cable
- 19V/3.16A power adapter
- 12V/2.5A power adapter
- Quick start guide
Product Manuals
Q: How many ethernet ports does this Orbi mesh system have?
A: This system has six Gigabit Ethernet ports: four on the cable modem router and two on the satellite.
Q: Does this Orbi mesh system have a feature that improves signal strength to devices?
A: Yes, this system utilizes beamforming technology to optimize the wireless signal for each individual device.
Q: What kind of security features does this Orbi mesh system offer?
A: This system comes with NETGEAR Armor, providing comprehensive antivirus and data theft protection.
Q: What is the coverage area of this Orbi mesh system?
A: This Orbi mesh system, powered by mesh technology, can cover up to 5000 sq. ft.
Q: How many devices can connect to this Orbi mesh system?
A: This system supports up to 40 connected devices.
Q: Which cable providers is this Orbi mesh system compatible with?
A: This system is compatible with all major US cable providers, including Xfinity from Comcast, Cox, and Spectrum.
Q: Does this Orbi mesh system use MU-MIMO technology?
A: Yes, this system utilizes MU-MIMO technology to enhance the network quality for multiple users accessing it simultaneously.
Q: What is the maximum data transfer rate of this Orbi mesh system?
A: This NETGEAR Orbi DOCSIS mesh Wi-Fi system boasts data transfer rates of up to 4200 Mbps.
