NZXT - N9 Z890 LGA 1851 Intel Z890 ATX DDR5 Wi-Fi 7 Motherboard with Full-Metal Cover and RGB - White
NZXT - Kraken Elite 240mm 2024 Radiator Liquid Cooler (2 x 120mm F Fans) with 2.72" IPS Display - Black$149.99$239.99
Specifications
- ChipsetIntel Z890Form FactorATXProcessor SocketSocket LGA 1851Number of PCI-E Slots3Wireless Networking StandardWi-Fi 7Number Of Memory Slots4
- Key Specs
- Chipset: Intel Z890
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1851 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Number of PCI-E Slots: 3 (How many peripheral component interconnect express slots are available.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5, DDR5
- General
- Brand: NZXT
- Model Number: N9-Z89XT-W1
- Product Name: NZXT - N9 Z890 LGA 1851 Intel Z890 ATX DDR5 Wi-Fi 7 Motherboard with Full-Metal Cover and RGB
- Color: White
- Year of Release: 2025
- Compatibility
- Chipset: Intel Z890
- Chipset Compatibility: Intel
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1851 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: Intel Core Ultra 5 Series 2, Intel Core Ultra 7 Series 2, Intel Core Ultra 9 Series 2
- Operating System Compatibility: Windows 10, Windows 11 Home, Windows 11 Home in S Mode, Windows 11 Pro
- Slot
- Number of M.2 Slots: 5 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number of PCI-E Slots: 3 (How many peripheral component interconnect express slots are available.)
- Number Of PCI-E x16 Slots: 2
- Number Of Memory Slots: 4
- Connectivity
- Power Connector: 1 x24 pin, 1x 8+4 pin ATX 12V (The configuration of the connector as it connects the motherboard to a power supply unit.)
- Fan/Cooling System Connector: 1 x 4-pin CPU_FAN connector(1) (The configuration of the connector as it connects a computer component to a fan or cooling system.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: AX (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Ports
- USB Ports: 1 x USB-C 3.2, 6 x USB-A 3.2, 3 x USB-A 3.2 (The number and type of USB ports the product has.)
- Thunderbolt Ports: 2 x Thunderbolt 4 (The number and type of Thunderbolt ports the product has.)
- Audio Ports: 2 x Audio jacks, 1 x Optical S/PDIF out port, 1 x Front panel audio connector
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 305 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 244 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 65.26 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5, DDR5
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 8900 (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 168-pin DIMM
- Features
- RAID Support: RAID 0, RAID 1, RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 810074846240
The NZXT N9 Z890 is a high-performance ATX gaming motherboard with an LGA 1851 socket for Intel Core Ultra (Series 2) CPUs. It features a 20+1+1 power phase design, advanced VRM cooling, and PCIe 5.0 for next-gen GPUs. With five M.2 slots, DDR5 support, dual Thunderbolt 4, Wi-Fi 7, and 5GbE, it delivers ultra-fast storage and seamless networking. A full-metal cover ensures a sleek, modern look along with customizable onboard RGB lighting.
- Intel LGA 1851 Socket: Ready for Intel Core Ultra (Series 2) processors, featuring an RL-ILM design that enhances thermal contact and reduces mounting pressure.
- Superior Power: 20+1+1 power phase design with 110A Smart Power Stages and an 8-layer, 2-ounce copper PCB ensures stable, overclocking-ready power delivery.
- Advanced Cooling: VRM heatsink array with fin stack, heat pipe, thermal pads, and dual PWM fans, plus dedicated M.2 heatsinks.
- PCIe 5.0 Expansion: PCIe 5.0 x16 slot delivers maximum bandwidth for next-gen GPUs, while a PCIe 4.0 slot supports high-speed add-ons like capture cards.
- High-Speed Storage: One PCIe 5.0 and four PCIe 4.0 M.2 slots provide ultra-fast storage speeds for minimal load times and maximum efficiency.
- DDR5 Memory: Four dual-channel DIMM slots support DDR5 RAM speeds of 8000+ MT/s, delivering faster multitasking and improved system responsiveness.
- Next-Gen Connectivity: Thunderbolt 4, Wi-Fi 7 (320 MHz), and 5GbE deliver blazing-fast data transfers and ultra-low latency networking.
- Sleek and Stylish: A premium full-metal cover conceals the PCB for a clean, modern aesthetic, enhanced by onboard customizable RGB lighting.
- Intel LGA 1851 Socket: Ready for Intel Core Ultra (Series 2) processors, featuring an RL-ILM design that enhances thermal contact and reduces mounting pressure.
- Superior Power: 20+1+1 power phase design with 110A Smart Power Stages and an 8-layer, 2-ounce copper PCB ensures stable, overclocking-ready power delivery.
- Advanced Cooling: VRM heatsink array with fin stack, heat pipe, thermal pads, and dual PWM fans, plus dedicated M.2 heatsinks.
- PCIe 5.0 Expansion: PCIe 5.0 x16 slot delivers maximum bandwidth for next-gen GPUs, while a PCIe 4.0 slot supports high-speed add-ons like capture cards.
- High-Speed Storage: One PCIe 5.0 and four PCIe 4.0 M.2 slots provide ultra-fast storage speeds for minimal load times and maximum efficiency.
- DDR5 Memory: Four dual-channel DIMM slots support DDR5 RAM speeds of 8000+ MT/s, delivering faster multitasking and improved system responsiveness.
- Next-Gen Connectivity: Thunderbolt 4, Wi-Fi 7 (320 MHz), and 5GbE deliver blazing-fast data transfers and ultra-low latency networking.
- Sleek and Stylish: A premium full-metal cover conceals the PCB for a clean, modern aesthetic, enhanced by onboard customizable RGB lighting.
Compare similar products
The NZXT N9 Z890 is a high-performance ATX gaming motherboard with an LGA 1851 socket for Intel Core Ultra (Series 2) CPUs. It features a 20+1+1 power phase design, advanced VRM cooling, and PCIe 5.0 for next-gen GPUs. With five M.2 slots, DDR5 support, dual Thunderbolt 4, Wi-Fi 7, and 5GbE, it delivers ultra-fast storage and seamless networking. A full-metal cover ensures a sleek, modern look along with customizable onboard RGB lighting.
Intel Z890 LGA 1851 ATX motherboard, Advanced AI PC-ready, 22+2+1+2 power stages, NPU Boost, DDR5 slots with NitroPath DRAM Technology, DIMM Flex, AEMP III, WiFi 7 with ASUS WiFi Q-Antenna, three PCIe 5.0 M.2 slots and three PCIe 4.0 M.2 slots onboard with ROG M.2 PowerBoost, SlimSAS connector, PCIe 5.0 x16 SafeSlot with PCIe Slot Q-Release Slim, two Thunderbolt 4 ports, USB 20Gbps Type-C front-panel connector with Quick Charge 4+ up to 60W and USB Wattage Watcher, USB 10Gbps Type-C front-panel connector, ASUS AI Advisor, AI Overclocking, AI Cooling II, AI Networking II and Polymo Lighting II
The ASUS ROG Strix B850-A Gaming WiFi pairs powerful performance with sleek design. Featuring 14+2+2 power stages and thick metal heatsinks, it’s ready for AMD Ryzen 9000 Series processors. Enjoy DDR5 with AEMP, PCIe 5.0 M.2, WiFi 7 with Q-Antenna, four M.2 slots, advanced USB connectivity, and Aura Sync RGB.

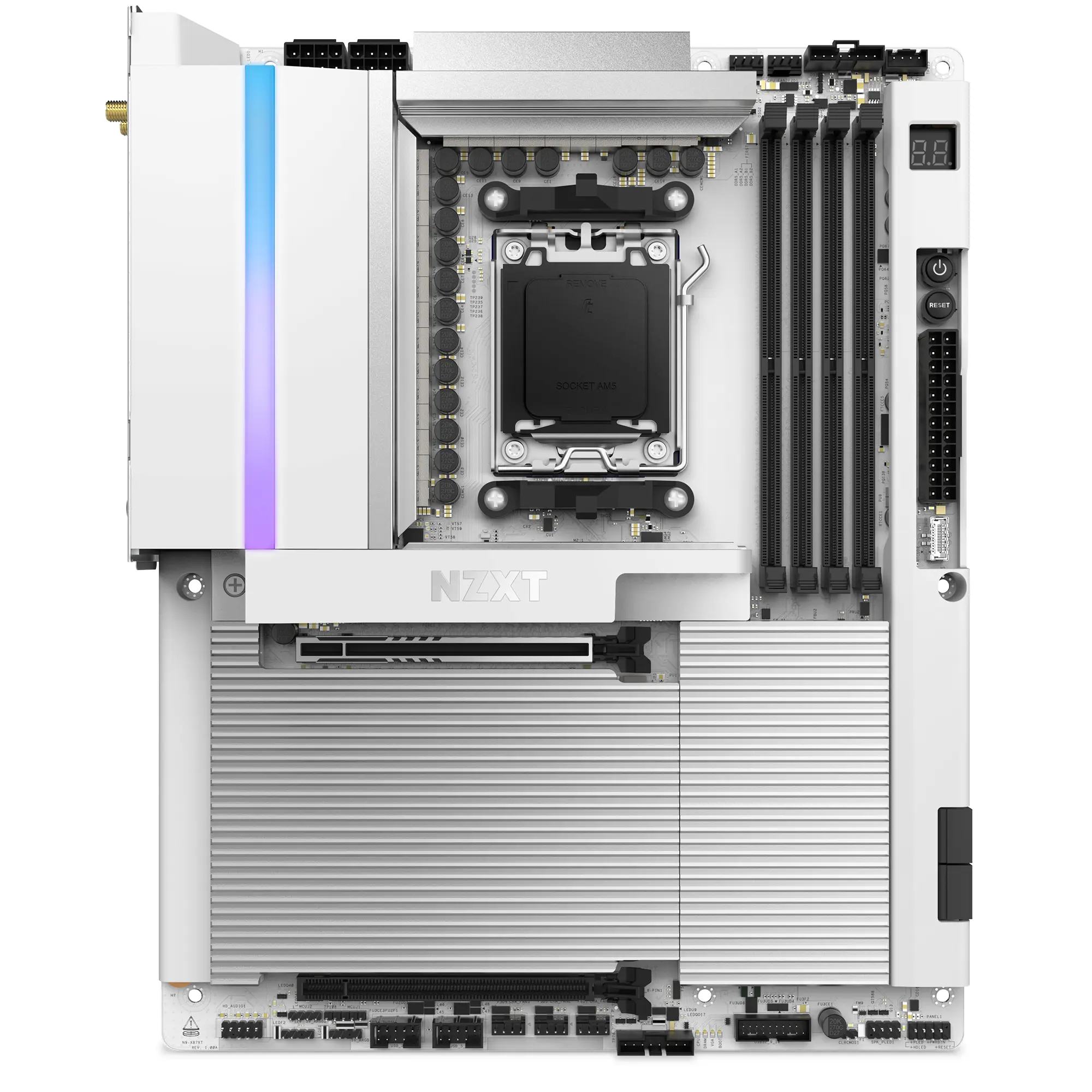

The NZXT N9 X870E is a high-performance ATX gaming motherboard designed for AMD Ryzen 9000, 8000, and 7000 series processors with an AM5 socket. It features a 20+2+1 power phase design, advanced thermal solutions, and PCIe 5.0 for next-gen GPUs. With four quick-release M.2 slots, DDR5 support, USB4, Wi-Fi 7, and 5GbE, it delivers ultra-fast storage and seamless networking. A full-metal cover ensures a sleek, modern look along with customizable onboard RGB lighting.
