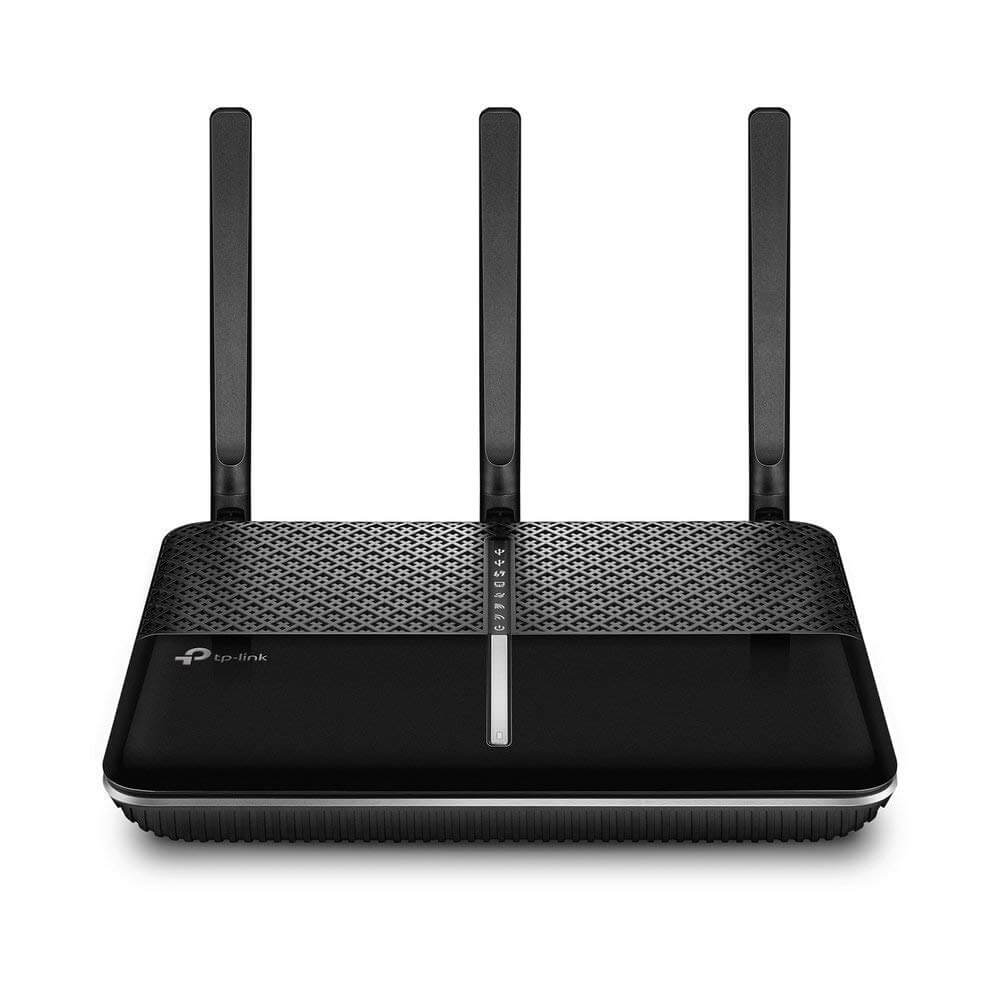

TP-Link - Archer AC2300 Dual-Band Wi-Fi 5 Router - Black
Model: ARCHER C2300
SKU: 5844804
This item is no longer available in new condition. See similar items below
- Key Specs
- Wi-Fi Speed: 2300 gigabits per second (The maximum rate at which data is transferred between a network device and wireless router.)
- General
- Brand: TP-Link
- Model Number: ARCHER C2300
- Product Name: Archer AC2300 Dual-Band Wi-Fi 5 Router
- Color: Black
- Security
- Data Encryption: true
- Encryption Type: WEP, WPA-PSK, WPA2-PSK (The security protocols or certification programs that protect the Wi-Fi network.)
- Firewall Type: SPI (The method the firewall uses to filter and process data to increase network security, primarily by blocking malicious traffic requests while allowing legitimate traffic through.)
- Parental Controls: true (Allows user to block unwanted content, signals, channels, networks, etc. from being received or accessed.)
- Network
- Band Technology: Dual (Refers to the number of frequency bands used to wirelessly transmit an internet signal. For example, dual-band devices may use one 2.4 and one 5 GHz band, while tri-band devices may use one 2.4 and two 5 GHz bands. Multiple bands also provide more flexibility for designating connected devices to specific band use.)
- Ethernet Standard: 10/100/1000 (Each standard is a variation of the IEEE 802.3 set of computer networking technologies known as Ethernet. New versions evolved to include higher bandwidth, different physical media, and other new and improved features. Standards are often denoted by speeds (in Megabits per second). For example, a 10/100/1000 Ethernet port transmits at 10 Mbps, 100 Mbps, and 1000 Mbps (1 Gbps).)
- Number of Antennas: 3
- Frequency Band: 2.4 GHz, 5.0 GHz (Bands may be grouped into categories such as low- and high-band VHF (Very High Frequency), low- and high-band UHF (Ultra High Frequency), or certain frequency channels (measured in MHz or GHz). Generally, higher frequencies transmit information faster but have shorter range than lower frequencies.)
- Wireless Networking Standard: Wi-Fi 5 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: AC, N (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Number of 2.4Ghz Streams: 1 (A router's streams are like lanes on a highway. The more streams a router has, the less traffic congestion. Because the 2.4 GHz band is used to transmit wireless signals to a wide variety of devices, there is often high amounts of traffic on that stream. But with multiple streams, each can be designated to a specific device for optimal performance. For example, if one 2.4 GHz stream is assigned to one device, such as a desktop computer, it leaves the remaining streams open for guest users, devices that use more data, or devices with specific band compatibility.)
- Number of 5.0Ghz Streams: 1 (A router's streams are like lanes on a highway. The more streams a router has, the less traffic congestion. The 5.0 GHz band provides high speed, short-range data transmission and typically has less traffic than the 2.4 GHz band. With multiple streams, each can be designated to a specific device for optimal performance. For example, if one 5.0 GHz stream is assigned to one device, such as a streaming media player, it leaves the remaining streams open for guest users, devices that need less data, or devices with specific band compatibility.)
- Ethernet Switch: true (Connects multiple devices to expand the Local Area Network (LAN).)
- Transport Protocol: PPTP, L2TP, IPSec, PPPoE, FTP, DHCP, DDNS (The protocol used for connection-oriented transmissions, flow control, etc. within the transport layer of the network.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Features
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Integrated Modem: false
- Wireless: true
- Ports
- Number Of WAN Ports: 1 (Number of devices able to be connected to the Wide Area Network (WAN). This type of port may simply be labeled "Internet," and it allows the device to share its internet connection with all devices connected to it via LAN ports.)
- Port Type(s): RJ-45, USB (USB 2.0 connects external drives, gaming controllers, smartphones, MP3 players and other accessories.USB 3.0 transfers data faster than USB 2.0, but only when used with USB 3.0 devices.USB Type-C provides fast speeds and versatile power, featuring connectors with identical ends that plug in upside down or right side up. Adapters allow for video as well as backward compatibility.Thunderbolt provides ultra-high bandwidth for fast data transfer between devices featuring a Thunderbolt or MiniDisplayPort connection.HDMI allows you to connect a projector or display HD media on your HDTV or monitor.Media card slots allow you to transfer photos from your digital camera or camcorder.)
- Speed
- Wi-Fi Speed: 2300 gigabits per second (The maximum rate at which data is transferred between a network device and wireless router.)
- Gigabit Ethernet Speed: true (Supports the gigabit Ethernet networking standard, which has a data rate of at least one gigabit per second, or 1,000 Mbps.)
- Compatibility
- System Requirements: UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows NT, Microsoft Windows 98 Segunda edición / Windows 2000 (The software that a product must have for it to be able to integrate with another product.)
- Bluetooth Enabled: false (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Dimensions
- Product Height: 1.5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 6.5 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 8.5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 1.35 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Other
- UPC: 845973080754
Boost performance of your home Wi-Fi network with help from this Archer router. Its MU-MIMO technology lets you leverage high speeds on multiple network devices that are streaming at the same time. This Archer router comes with a power supply and Ethernet cable for quick installation and an immediate upgrade to 4K gaming and movie sessions.
- Compatible with 802.11ac: Backward compatible with 802.11a/b/g/n networks, so you can easily upgrade.
- Up to 2225 Mbps data transfer speed: For fast, efficient operation.
- 3 high-performance antennas: For enhanced performance.
- MU-MIMO technology: MU-MIMO gives every compatible device its own dedicated full-speed Wi-Fi connection, so that multiple devices can connect at the same time without slowing down the network.
- Beamforming technology: Locates Wi-Fi devices and focuses the router's wireless signal toward them instead of sending it in all directions at once.
- RangeBoost technology: Improves ability to detect and receive Wi-Fi signal from devices that are further away or low-powered, giving your network even greater coverage.
- 1 USB 2.0 and 1 USB 3.0 ports: Allow you to connect a printer and enjoy 3G and 4G file sharing.
- Parental control: Lets you automatically block specific content on connected devices.
- Print and file servers: Along with a guest network to suit a variety of uses.
- Tether app: Allows you to easily adjust network settings or manage your home network from your phone or tablet.
- Complies with a variety of standards: Including FCC and RoHS.
- Gigabit Ethernet connectivity: Offers a high-speed wired network connection.
- Auto detecting and auto sensing: To simplify device connectivity.
- Encryption: Includes 128-bit WEP, 64-bit WEP, WPA, WPA2, WPA-PSK and WPA2-PSK to keep your network secure.
- Plug-and-play operation: Makes setup simple.
- System requirements: UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows NT, Microsoft Windows 98 Second Edition/Windows 2000, and more.
- Compatible with 802.11ac: Backward compatible with 802.11a/b/g/n networks, so you can easily upgrade.
- Up to 2225 Mbps data transfer speed: For fast, efficient operation.
- 3 high-performance antennas: For enhanced performance.
- MU-MIMO technology: MU-MIMO gives every compatible device its own dedicated full-speed Wi-Fi connection, so that multiple devices can connect at the same time without slowing down the network.
- Beamforming technology: Locates Wi-Fi devices and focuses the router's wireless signal toward them instead of sending it in all directions at once.
- RangeBoost technology: Improves ability to detect and receive Wi-Fi signal from devices that are further away or low-powered, giving your network even greater coverage.
- 1 USB 2.0 and 1 USB 3.0 ports: Allow you to connect a printer and enjoy 3G and 4G file sharing.
- Parental control: Lets you automatically block specific content on connected devices.
- Print and file servers: Along with a guest network to suit a variety of uses.
- Tether app: Allows you to easily adjust network settings or manage your home network from your phone or tablet.
- Complies with a variety of standards: Including FCC and RoHS.
- Gigabit Ethernet connectivity: Offers a high-speed wired network connection.
- Auto detecting and auto sensing: To simplify device connectivity.
- Encryption: Includes 128-bit WEP, 64-bit WEP, WPA, WPA2, WPA-PSK and WPA2-PSK to keep your network secure.
- Plug-and-play operation: Makes setup simple.
- System requirements: UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows NT, Microsoft Windows 98 Second Edition/Windows 2000, and more.
Whats Included
- 3 x detachable antennas
- Network cable
- Owner's manual
- Power adapter
- TP-Link Archer AC2300 Dual-Band Wi-Fi 5 Router
- 3 x detachable antennas
- Network cable
- Owner's manual
- Power adapter
- TP-Link Archer AC2300 Dual-Band Wi-Fi 5 Router
Q: Will this router work well with a 4100 square foot home?
A: To ensure the best possible signal, it is important to make sure placement is as optimal as possible. Reducing obstructions and placing the router in a central location will help ensure your signal reaches the areas you need. That being said, for a 4,100 square foot home, we would instead suggest considering one of our Deco Mesh WiFi solutions, such as the Deco M5. Regards, TP-Link Support
Q: WPA3?
A: I didn’t see this option when setting it up. I thought the new wifi security standards were expected alongside WiFi6 hardware, which this is not.
A: If the cause of their speed issues are due to their existing router (i.e. poor WiFi signal), this can potentially help. However, if the source of their slow connection is due to the nature of satellite Internet (high latency), this may be due to the provider/service, not the router. Regards, TP-Link Support
Q: Can I plug in my Samsung S9 to the USB tether to share internet to other devices? (TV, ROKU, etc...)
A: No, the USB port is for a hard drive. Cant think of way you may achieve this. On less you use a usb-c hub with a network port.
Q: Malware protection included?
A: The Archer C2300 includes HomeCare, which provides robust Parental Controls, QoS and Antivirus features for your network.
A: Yes, as long as your Internet connection is provided via Ethernet (from the ONT), it can be used.
Q: Is this router compatible with Windows 8?
A: The router is universally compatible with operating systems.
Q: is this router wall mountable also is it good for an apart ment building
A: There are 2 slots on the back or underside of the router. They are designed to fit over the head of small screws. I have a small wire hooked into each hole at each end of the wire. The wire is then hooked over a screw head in the wall.
