Unique Bargains - KSD301 Thermostat 40°C/104°F 10A Normally Open N.O Adjust Snap Disc Temp Switch 8pcs Bakelite - Silver

Model: s26060900ux2847
SKU: 12730569

Reviews coming soon

Sold & shipped by

About this product

Specification: Product Name : Temperature Control Switch; Model: KSD301; Action Temperature: 40°C; Action Type: N.O (Normally Open); Rated Voltage/Current : 110V/120V/250V 10A; Pin Width : 6.3mm/0.25inch; Contact Life: More than 50,000 times (action times); Electrical Strength: AC50Hz, 2000V/min no breakdown and arc phenomenon; Package Content : 8pcs x Temperature Control Switch

Number Of Switches

1

Features

  • 8Pcs KSD301 40°C NO 10A Thermostat Bakelite

    Type: KSD301 40 degrees Celsius Thermal Control Switch 110V/120V/250V 10A NO (Normal Open)

  • Normally Open: The original state of temperature control switch contact is open, and closed when the temperature sensing exceeds the rated temperature 40 Celsius degree

  • Advantage: Double metal chip, speed dynamic type, sensitive, reliable, stable action temperature, long service life, no arc phenomenon. General purpose, automatic reset, low cost, large capacity, minute current thermostats.

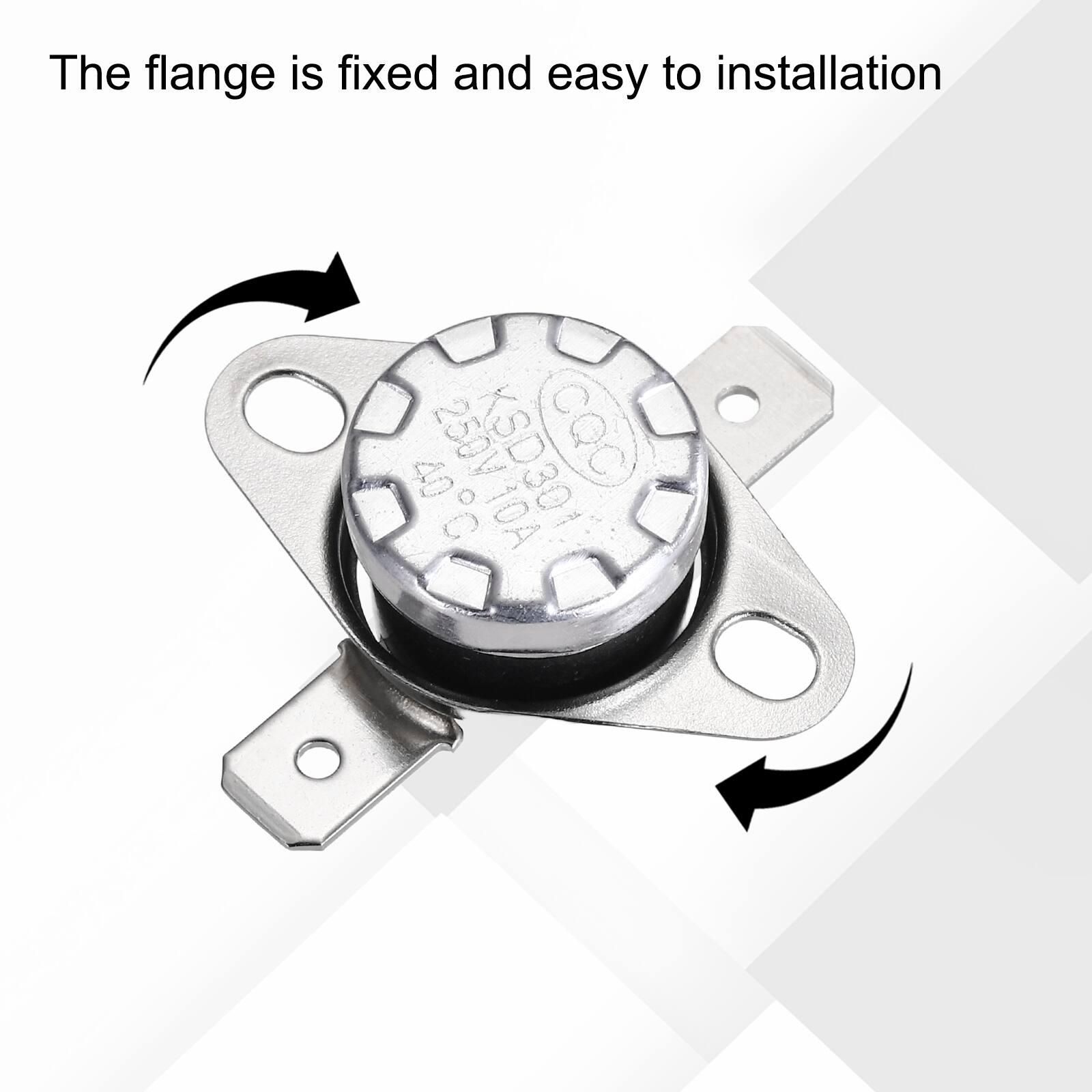

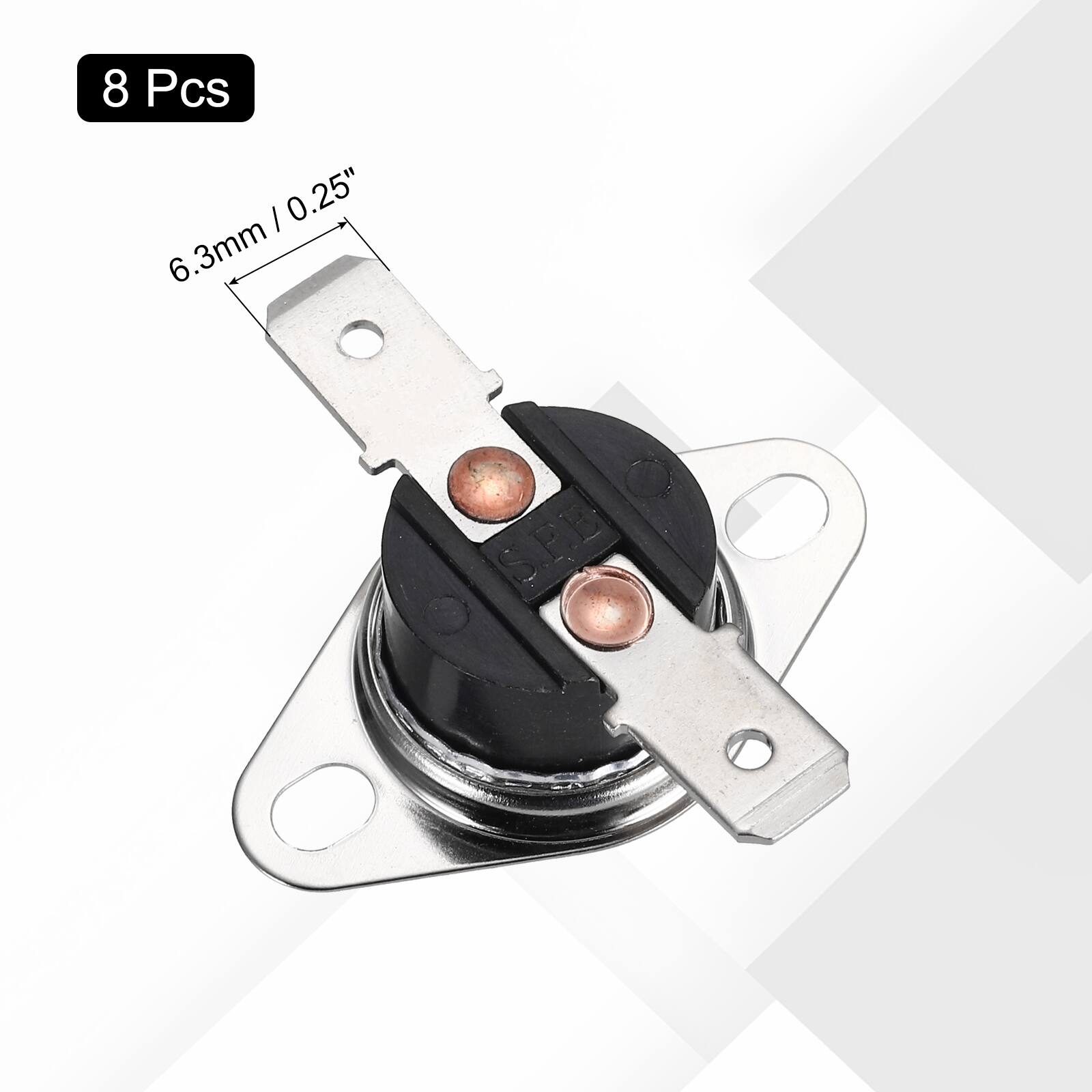

  • Easy to installation : The flange on the switch is float and easy to installation.The pin width is 6.3mm

  • Application: Mainly used for microwave,oven,coffee maker,Speed Cook oven,heater,Dryer,gas furnace,Bath Vent/Heater,wall heater,motor electric heating water dispenser, water bottles, coffee shell, electric iron, dryer, air conditioning, water heater, electronic cooker, heater, motor cleaner

Specifications

  • Brand
    Unique Bargains
    Model Number
    s26060900ux2847
    Product Name
    KSD301 Thermostat 40°C/104°F 10A Normally Open N.O Adjust Snap Disc Temp Switch 8pcs Bakelite
    Color
    Silver
    Switch Type
    Toggle
    Voltage
    250 volts
