Winflo - 36 inches - Externally Vented - Range Hood Insert - Stainless Steel
Winflo - 36 inches - Externally Vented - Range Hood Insert - Stainless Steel
Related Item
Specifications
- Color FinishStainless steelProduct Height12 inchesProduct Width34.4 inchesProduct Depth19.3 inchesExhaust Vent LocationTopVent TypeDucted
- Key Specs
- Color Finish: Stainless steel
- Product Height: 12 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 34.4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19.3 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Winflo
- Model Number: WIR802B36
- Product Name: Winflo 36 inch Ducted 500-CFM Stainless Steel Insert Under Cabinet Range Hood
- Color: Stainless Steel
- Color Finish: Stainless steel

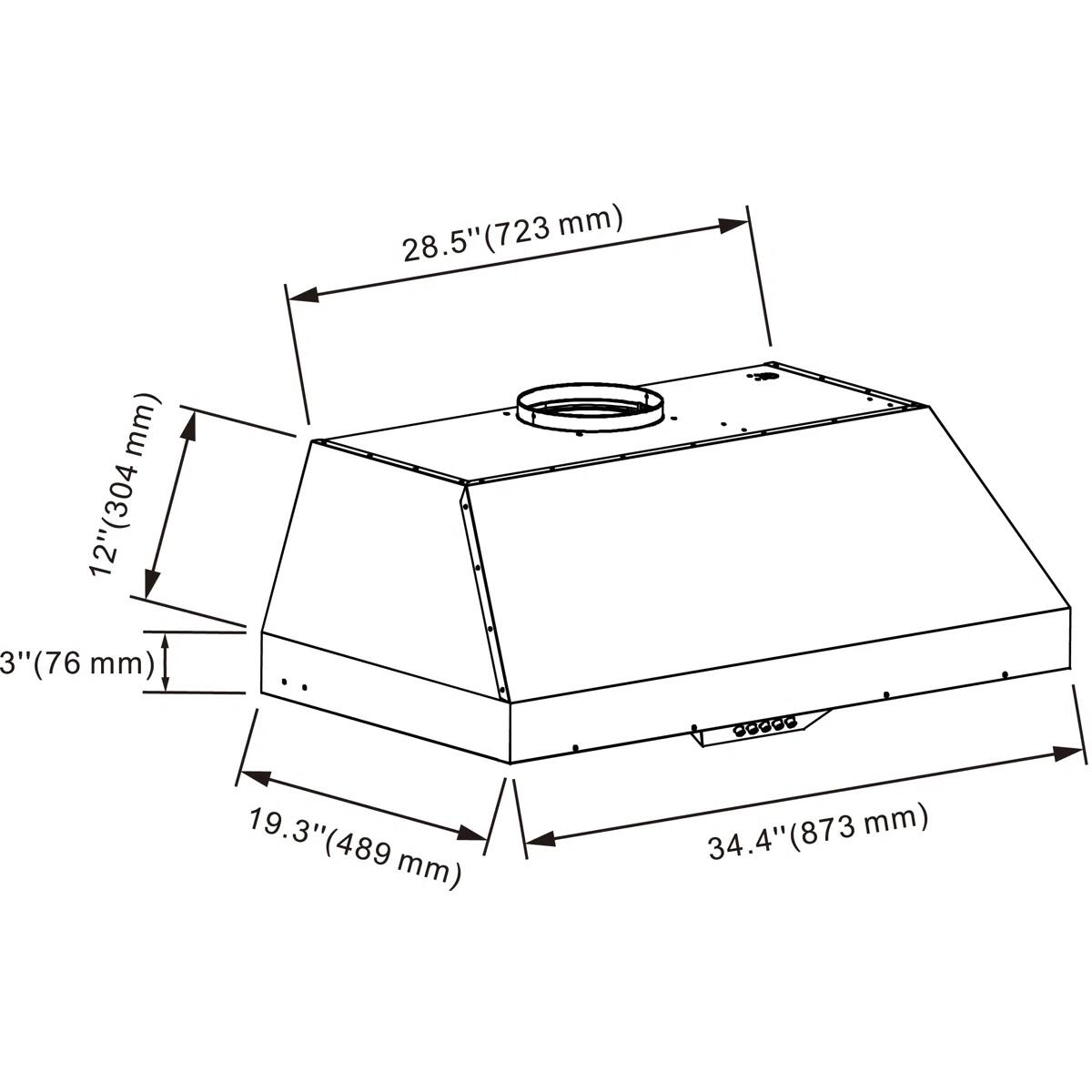

- Dimensions
- Product Height: 12 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 34.4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19.3 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 27.36 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Round Duct Diameter: 7 inches
- Features
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Insert
- Number of Fan Speeds: 3
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Button
- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Remote Control: false
- Damper Included: true
- Integrated Light(s): true
- Number of Lights: 2
- Number of Light Levels: 1
- Bulb Type Required: LED
- Bulb(s) Included: true
- Maximum Bulb Wattage: 2 watts
- Performance
- Maximum Air Flow Capacity: 500 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 150 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Maximum Operating Sound Level: 5.5 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Minimum Operating Sound Level: 2.5 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Filter Material: Stainless Steel
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Number of Filters: 3
- Electrical
- Amperage: 214 amperes (Strength of electrical current.)
- Voltage: 110 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): ETL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Warranty
- Warranty - Parts: 2 years limited on parts
- Warranty - Labor: Not available
- Other
- UPC: 819037027634
This beautiful Insert Range Hood is constructed of premium 430 stainless steel all around. The range hood features a unique design ventilation system to provide powerful suction at 500 CFM airflow, and effortlessly remove smoke, odors, and grease. 2 bright energy saver led lights illuminate the cooking area. An easy to operate push-button control adjusts the 3-fan speeds and the lights. Easy to remove, dishwasher-safe stainless steel baffle filters and greasy collector capture air borne grease particles. Designed for powerful ducted operation, this range hood insert installs easily into decorative canopies or under cabinets.
- 500 CFM air flow: Powerful suction to remove smoke, grease, odors and moisture.
- Push buttons for 3-Speed fan levels: Easy to operate for power, fan speed and light
- Easy Installation: Installation and mounting hardware, damper and plug are all included for easy installation
- Baffle filters and 2 LED lights: Durable, dishwasher safe, easy to remove stainless steel baffle filters; energy saving LED lights (Model# WRHLBY2S2) to illuminate your cooking area
- Quiet Operation: Noise level less than 65 db at high speed
