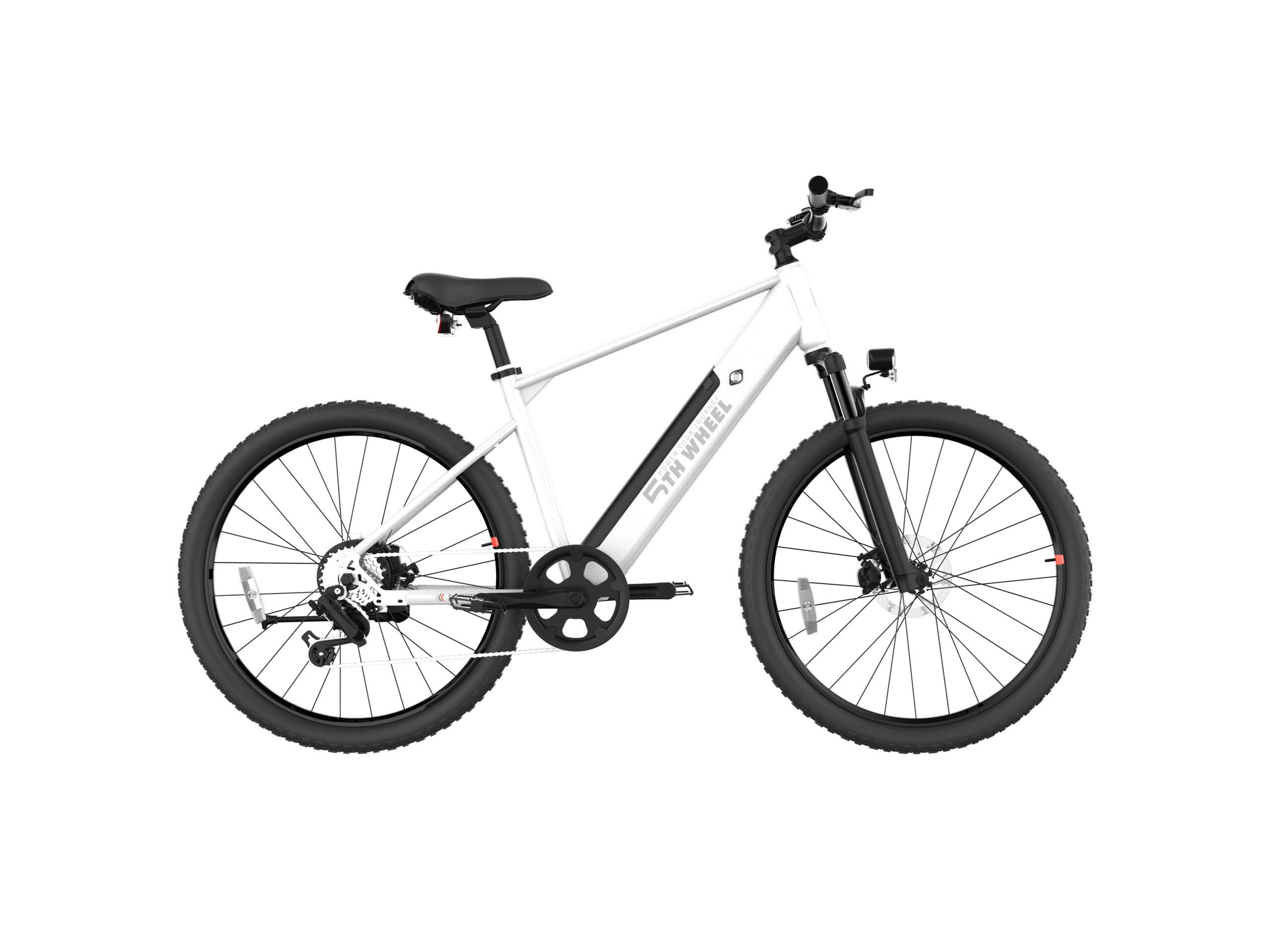

5th Wheel - IMPACT eBike w/ 22 mi Max Operating Range & 20 mph Max Speed - White
- Key Specs
- Color: White
- Product Weight: 55 pounds (The out of box weight of the item.)
- Maximum Operating Range: 22 miles
- Maximum Speed: 20 miles per hour
- Motor Power (Nominal): 350 watts (Also known as rated power, this is the maximum power a motor can produce without damaging itself under normal working conditions for an extended period of time.)
- Throttle Control Mechanism: Half twist
- Product Safety Certifications and Standard(s): UL 2849, UL 2271 (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Electric Bike Classification: Class 2 (Refers to the out of the box classification of the electric bike prior to any additional modifications. The three-tiered classification system is used to define and regulate the operation of the vehicle based on its speed capabilities. The use of these vehicles varies from state to state so it is important to check your local regulations prior to operating. Class 1: The bicycle is equipped with a motor that provides assistance only when the rider is pedaling, which ceases to assist when the e-bike reaches 20 miles per hour. Class 2: Bicycle equipped with a throttle-actuated motor that ceases to assist when the e-bike reaches 20 miles per hour. Class 3: The bicycle is equipped with a motor that provides assistance only when the rider is pedaling, which ceases to assist when the e-bike reaches 28 miles per hour.)
- General
- Brand: 5th Wheel
- Model Number: ZA04FW01US
- Product Name: IMPACT eBike w/ 22 mi Max Operating Range & 20 mph Max Speed
- Color: White
- Electric Bike Classification: Class 2 (Refers to the out of the box classification of the electric bike prior to any additional modifications. The three-tiered classification system is used to define and regulate the operation of the vehicle based on its speed capabilities. The use of these vehicles varies from state to state so it is important to check your local regulations prior to operating. Class 1: The bicycle is equipped with a motor that provides assistance only when the rider is pedaling, which ceases to assist when the e-bike reaches 20 miles per hour. Class 2: Bicycle equipped with a throttle-actuated motor that ceases to assist when the e-bike reaches 20 miles per hour. Class 3: The bicycle is equipped with a motor that provides assistance only when the rider is pedaling, which ceases to assist when the e-bike reaches 28 miles per hour.)
- Bicycle Type: Adults bike
- Bike Style: Electric bikes
- Assembly Required: Partial

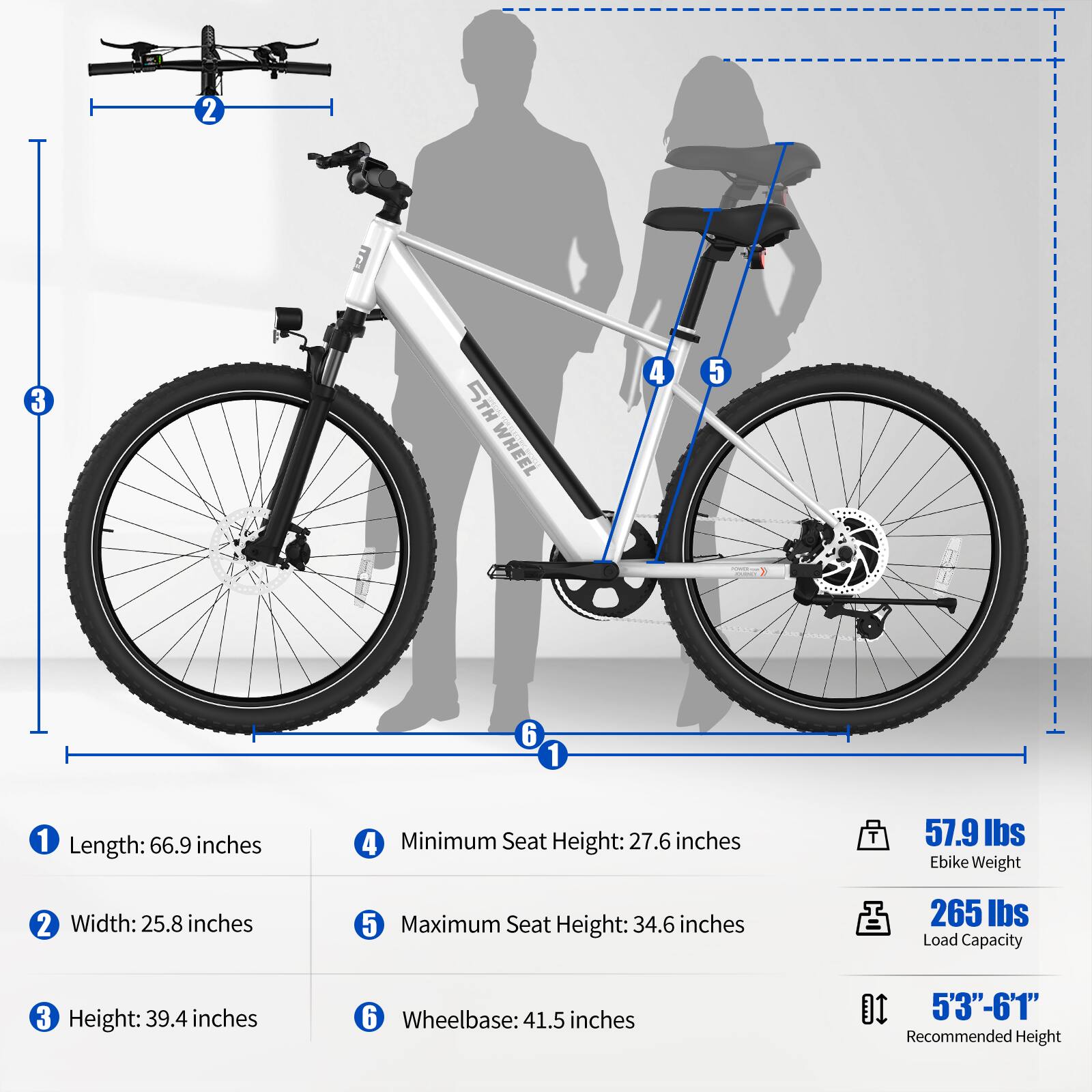

- Dimensions
- Product Width: 25 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Height: 43.5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 64.96 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 55 pounds (The out of box weight of the item.)
- Maximum Weight Capacity: 265 pounds (The maximum load that can be supported by the product.)
- Performance
- Maximum Operating Range: 22 miles
- Maximum Speed: 20 miles per hour
- Motor Power (Nominal): 350 watts (Also known as rated power, this is the maximum power a motor can produce without damaging itself under normal working conditions for an extended period of time.)
- Motor Power (Maximum): 700 watts (Also known as peak power, this is the maximum power a motor can produce for a short period of time under ideal conditions. Used for example when climbing a steep grade.)
- Number of Speed Settings: 7
- Power
- Throttle Control Mechanism: Half twist
- Electric Bike Motor Type: Rear hub motor
- Batteries Included: true (Indicates whether the product comes with the required batteries for its operation.)
- Removable Battery: true
- Battery Charge Time: 6 hours (Battery charge time will vary depending on the product configuration, product model, applications loaded on the product, power management setting of the product and the product features used by the customer. Charging time will likely decrease with time and usage of the battery.)
- Battery Chemistry: Lithium-ion
- Battery Amperage: 10.4 ampere hours
- Battery Voltage: 36 volts
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): UL 2849, UL 2271 (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Meets And Exceeds All UL Safety Standards: Yes (Indicates that the product, as stated by the manufacturer, is required to, or has met and surpassed the standards established by Underwriter Laboratories (UL) for ensuring quality and safety.)
- Ingress Protection (IP) Rating: IPX5 (A 4 to 6 character code classifying a product's degree of protection against intrusion of solid particles and liquids as well as impact. Each number in the IP Code denotes a level of protection, determined through testing and published by the International Electrotechnical Commission (IEC). The first digit represents the degree of protection against solid foreign objects or particles and the second digit represents the degree of protection against water ingress.)
- Features
- Integrated Lights Included: Headlight (Indicates the types of active lighting integrated into the product that actively generates light from a bulb instead of reflecting light from another source.)
- Padded Seat: true
- Rear Rack: false
- Fenders: false
- Design
- Bicycle Frame Design: Step-through (Step-through frames, also known as open-frame or low-step bicycles, have a lower curved horizontal top tube which allow the rider to step through the frame when mounting and dismounting. Step-over frames, also known as diamond frames, have a horizontal top tube that connects to the seat tube and down tube to form a triangle. Riders must step over the frame when mounting and dismounting this style of bicycle.)
- Foldable Design: false
- Frame Material(s): Carbon Steel
- Brakes
- Brake Style: Mechanical disc
- Rear Brakes: true
- Tires
- Suspension Type: Front
- Wheel Diameter: 26 inches
- Warranty
- Warranty - Parts: 1 year limited
- Warranty - Labor: 1 year limited
- Other
- UPC: 850074071099

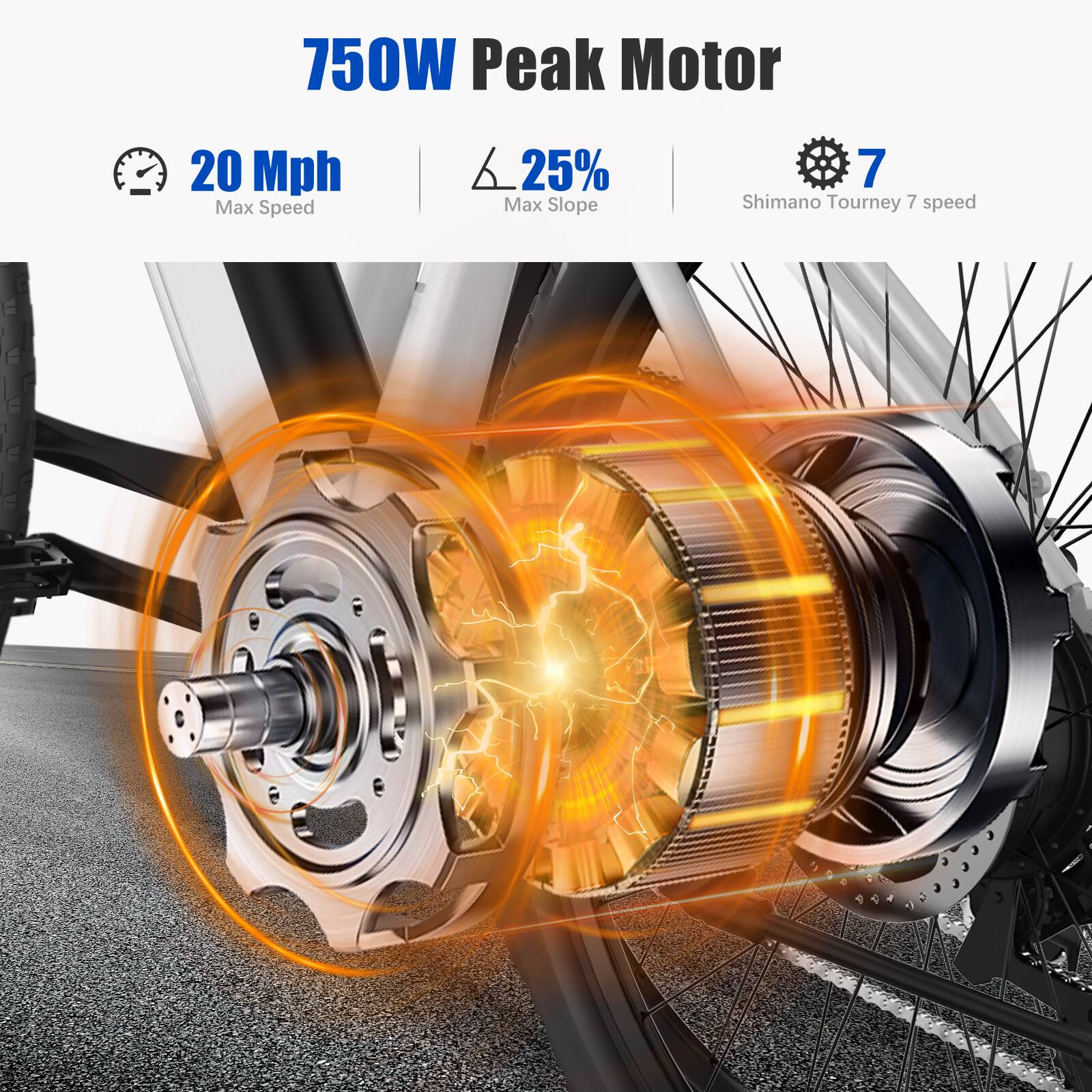

Powered by a 700W peak brushless motor, the IMPACT reaches speeds up to 20 MPH and it's 36V 10.4Ah battery provides up to 22 miles in full throttle mode. Equipped with a dual braking system of E-ABS and dual 160mm disc brakes, a bright 2W head light and tail light, rim and rear reflectors, and a bell, the IMPACT keeps you visible and safe during rides. Air-filled 26" tires absorb shock and the front fork suspension ensures comfort on long rides. Ergonomic silicone grips and a twist throttle offer easy control and lasting comfort. The IMPACT arrives 80% pre-assembled—just attach the seat, front wheel, and pedals. With intuitive controls, a 265 lb max load capacity, and practical features throughout, it’s designed for effortless urban commuting.
- 700W Peak Motor and 350W Rated: IMPACT can hit max speeds of up to 20 mph with a max range up to 22 miles with peddle assist mode.
- Dual suspension with dual disc brakes: Keeps rides smooth and safe.
- A carbon steel frame and a Shimano Tourney 7-Speed shifter: For reliabile performance on any terrain and durability for any trip.

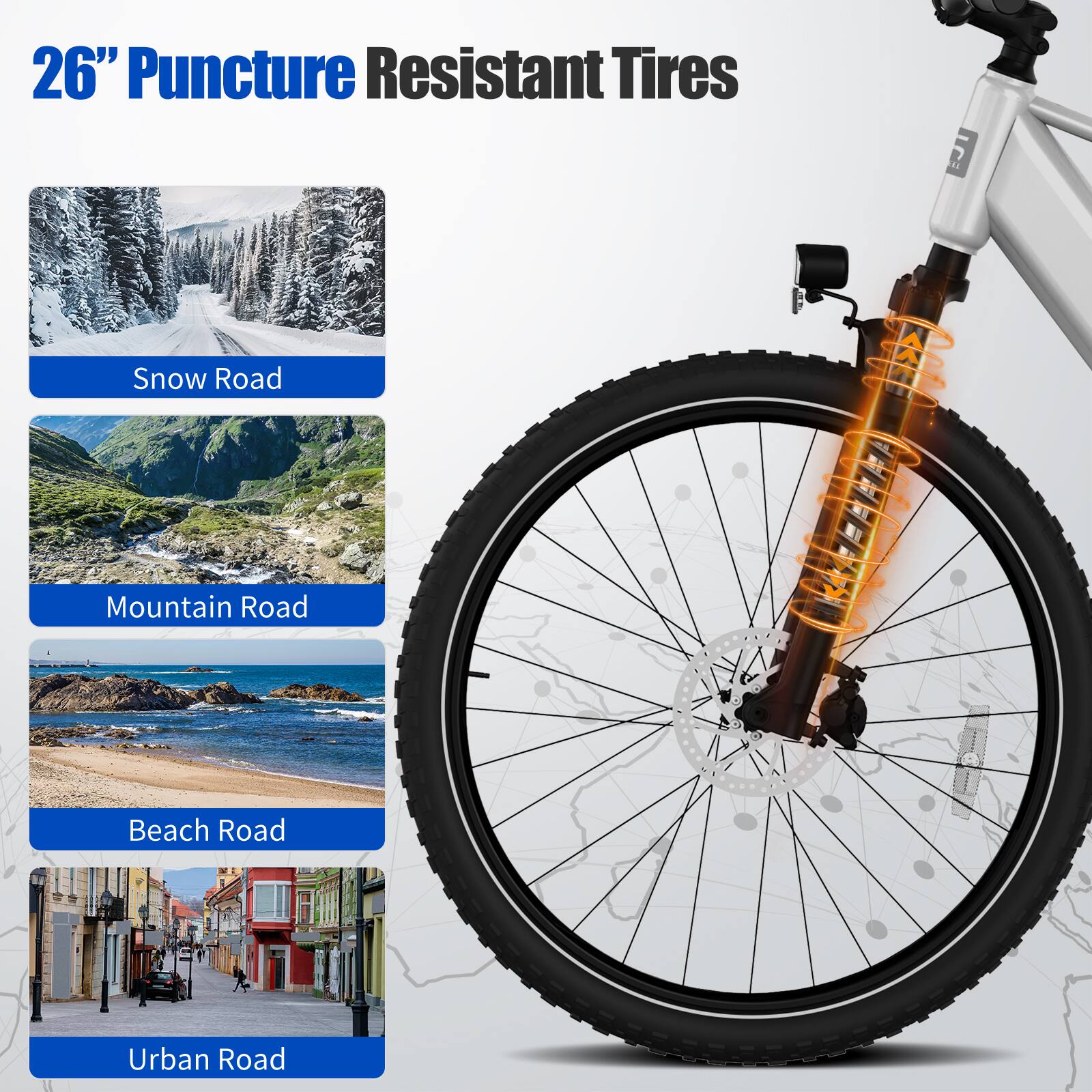

- 26" Wheels and IPX5 Rating: Handles rough terrain and ensures safe handling in all weather.
- UL2849 Compliant: NYC consumers please review fire safety info available here: www.nyc.gov/site/fdny/codes/reference/lithium-ion-battery-safety.page
Disclaimers
- The purchaser and rider of this product are responsible for knowing and obeying all state and local regulations regarding the use of this product. It is highly encouraged that you read and follow the product instructions including all safety precautions and use protective gear.
Q: Does this e bike have petals
A: Hi there! Thank you for your question. We really appreciate you taking the time to learn more about our product. The product does come with pedals, which will need to be assembled along with the seat and front wheel. Please feel free to reach out to us at https://ride5thwheel.com/pages/pre-sales-contact-us if you have any other questions and we’ll be happy to assist you further. Thank you again for choosing 5TH WHEEL!
Q: Can you get a replacement batter and if so where?
A: Hi there! Thank you for your question. We really appreciate you taking the time to learn more about our product. We generally carry replacement parts, including batteries for all of our products. If you would like to replace your battery, please feel free to reach out to us at service@ride5thwheel.com if you have any other questions and we’ll be happy to assist you further. Thank you again for choosing 5TH WHEEL!
A: Hi there! Thank you for your question. We really appreciate you taking the time to learn more about our product. Our IMPACT does come with a detachable battery, along with a battery locking key unique to your specific unit. Please feel free to reach out to us at https://ride5thwheel.com/pages/pre-sales-contact-us if you have any other questions and we’ll be happy to assist you further. Thank you again for choosing 5TH WHEEL!
Q: Does it have pedal assist as well as a throttle, or just a throttle?
A: Hi there! Thank you for your question. We really appreciate you taking the time to learn more about our product. Our IMPACT e-bike has both Peddle Assist Mode (PAS) and full throttle. Additionally it also comes with a Shimano 7-speed shifter for varying road conditions and needs. Please feel free to reach out to us at https://ride5thwheel.com/pages/pre-sales-contact-us if you have any other questions and we’ll be happy to assist you further. Thank you again for choosing 5TH WHEEL!
