Name: ASUS - M5A78L-M PLUS/USB3 (Socket AM3+) USB 3.0 AMD Motherboard
Brand: ASUS
SKU: 6073528
Rating: 4.5 (2 reviews)

Key Specs
- Chipset: AMD 760G
- Form Factor: microATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM3+ (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 32 gigabytes
General
- Brand: ASUS
- Model Number: M5A78L-M PLUS/USB3
- Product Name: M5A78L-M PLUS/USB3 (Socket AM3+) USB 3.0 AMD Motherboard
Compatibility
- Chipset: AMD 760G
- Form Factor: microATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM3+ (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: AMD Sempron, AMD Phenom II X3, AMD Athlon II X2, AMD Phenom II X2, AMD Athlon II X4, AMD Athlon II X3, AMD Phenom II X4, AMD Phenom II X6, AMD FX-Series
Connectivity
- Power Connector: 4-pin ATX12V connector, 24-pin main power connector (The configuration of the connector as it connects the motherboard to a power supply unit.)
Slot
- Number Of Memory Slots: 4
Dimensions
- Product Length: 9 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 9.6 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
Memory
- Maximum Memory Supported: 32 gigabytes
- Memory Slot Type: 240-pin DIMM
Other
- UPC: 889349413081

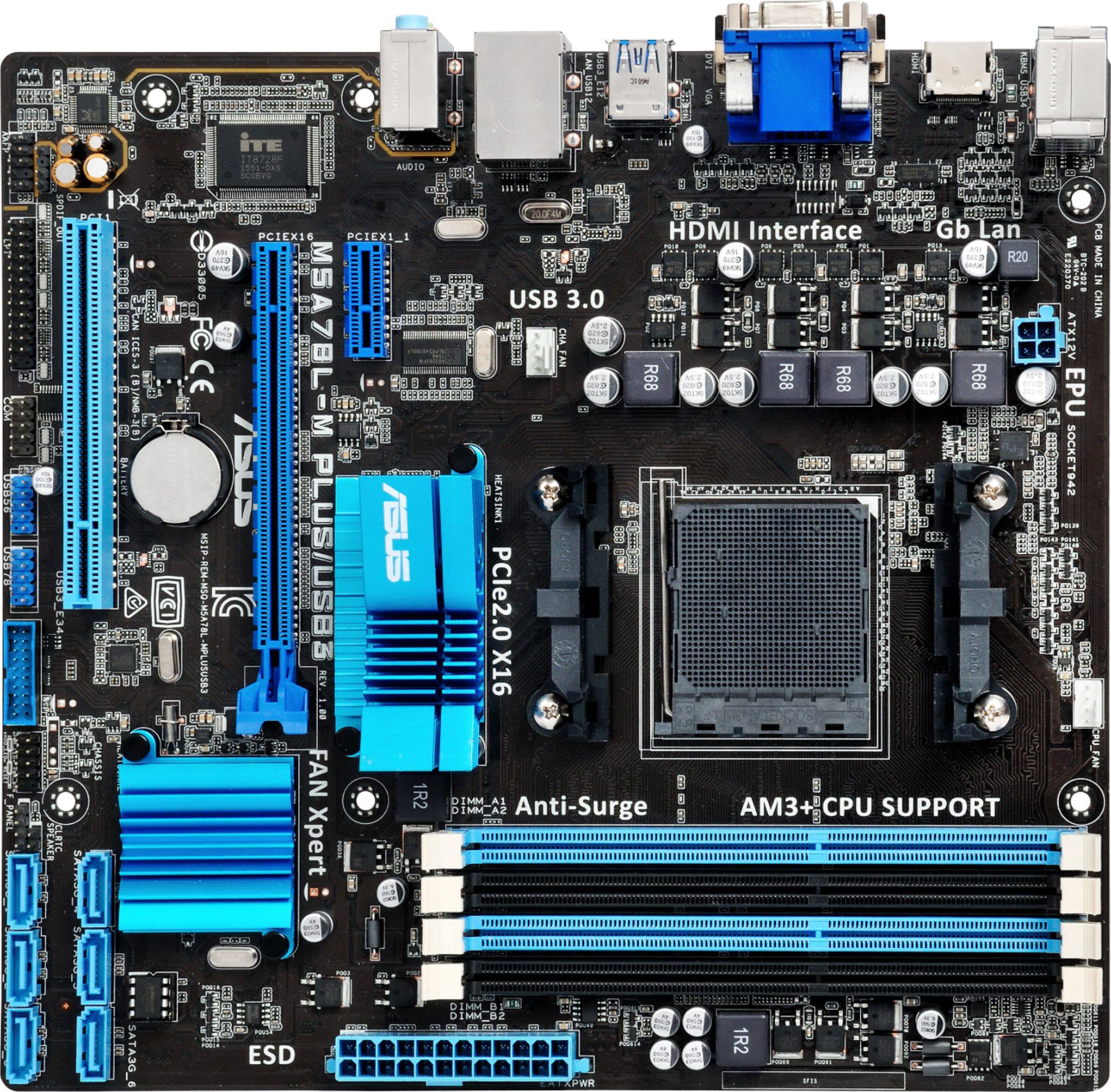

Design an efficient desktop CPU with this ASUS M Plus motherboard. Its AM3+ socket support provides smooth assembly with a multi-core AMD processor, and its four-engine ASUS EPU optimizes power usage to save on energy consumption. This ASUS M Plus motherboard has USB 3.0 support for faster data performance with connected devices.

Supports AMD processors: Including Sempron™, Phenom™ II X3, Athlon™ II X2, Phenom™ II X2, Athlon™ II X4, Athlon™ II X3, Phenom™ II X4, Phenom™ II X6, and other AMD processors in an AM3+ socket.
Up to 2000MHz (OC) system speed: With an AMD 760G chipset for efficient operation.
Built-in ATI Radeon HD 3000 graphics: With AMD Hybrid CrossFireX graphics support.
Four 240-pin DDR3 SDRAM DIMM sockets: Support up to 32GB of system memory.
Supports Realtek 8-channel audio: For an excellent sonic performance.
Peripheral interfaces: Include 1 PS/2 (keyboard), 1 PS/2 (mouse), 1 VGA, 1 LAN (Gigabit Ethernet), 4 USB 2.0, 1 audio line-out, 1 audio line-in, 1 microphone, 2 USB 3.0, and more.
Expansion capabilities: Include 1 PCI Express 2.0 x16, 1 PCI Express 2.0 x1 and 1 PCI.
Supports AMD processors: Including Sempron™, Phenom™ II X3, Athlon™ II X2, Phenom™ II X2, Athlon™ II X4, Athlon™ II X3, Phenom™ II X4, Phenom™ II X6, and other AMD processors in an AM3+ socket.
Up to 2000MHz (OC) system speed: With an AMD 760G chipset for efficient operation.
Built-in ATI Radeon HD 3000 graphics: With AMD Hybrid CrossFireX graphics support.
Four 240-pin DDR3 SDRAM DIMM sockets: Support up to 32GB of system memory.
Supports Realtek 8-channel audio: For an excellent sonic performance.
Peripheral interfaces: Include 1 PS/2 (keyboard), 1 PS/2 (mouse), 1 VGA, 1 LAN (Gigabit Ethernet), 4 USB 2.0, 1 audio line-out, 1 audio line-in, 1 microphone, 2 USB 3.0, and more.
Expansion capabilities: Include 1 PCI Express 2.0 x16, 1 PCI Express 2.0 x1 and 1 PCI.
