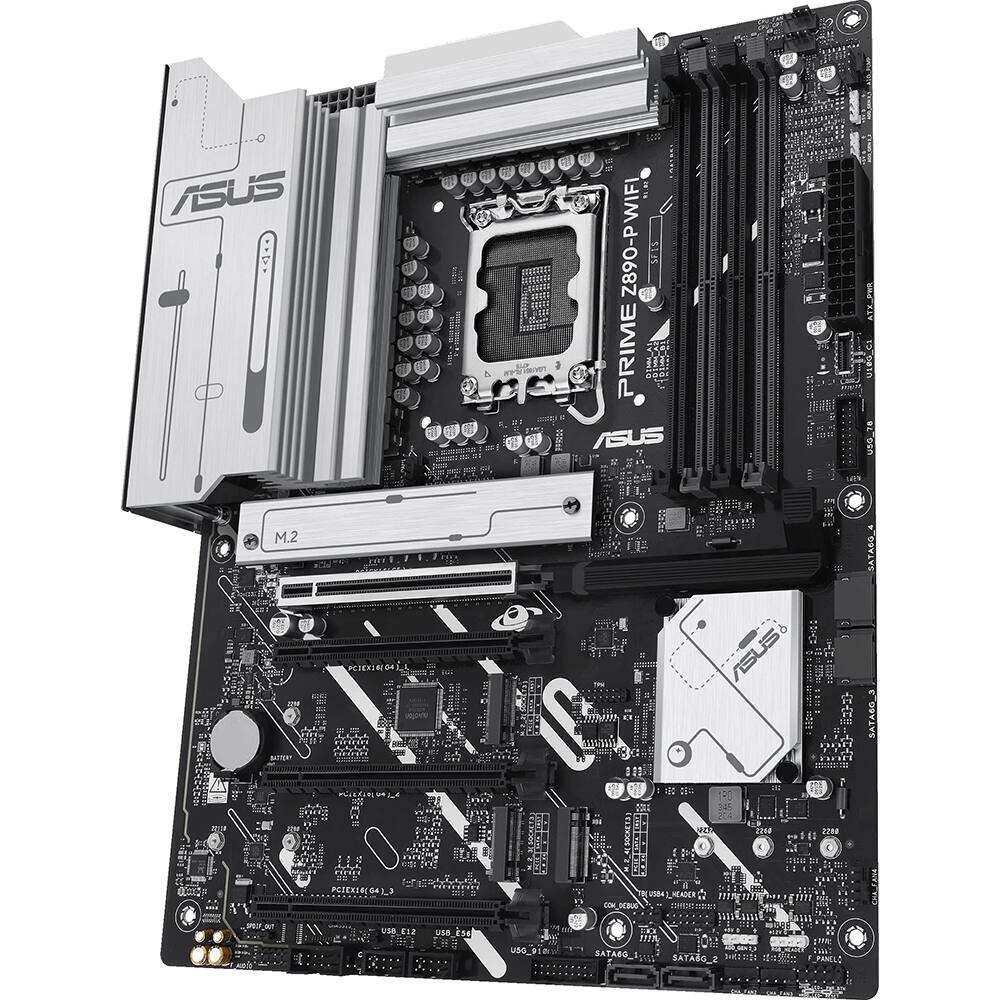

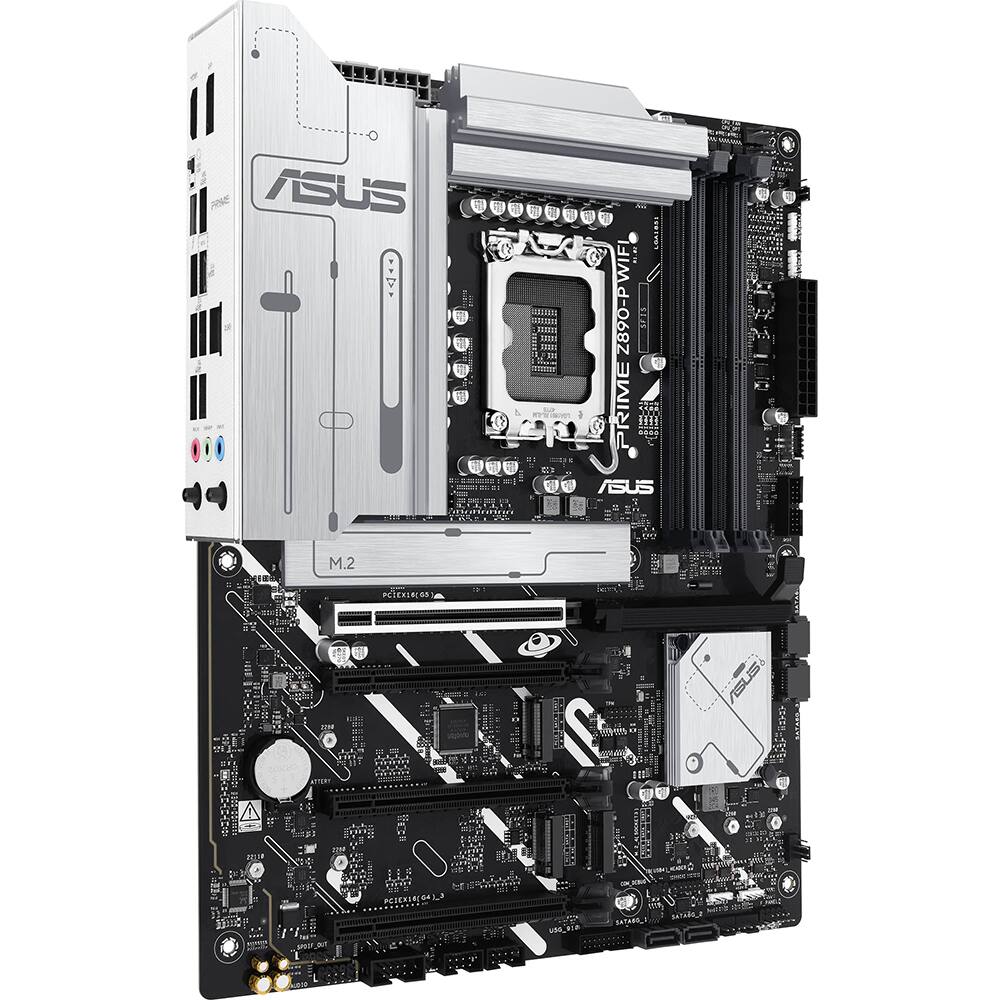

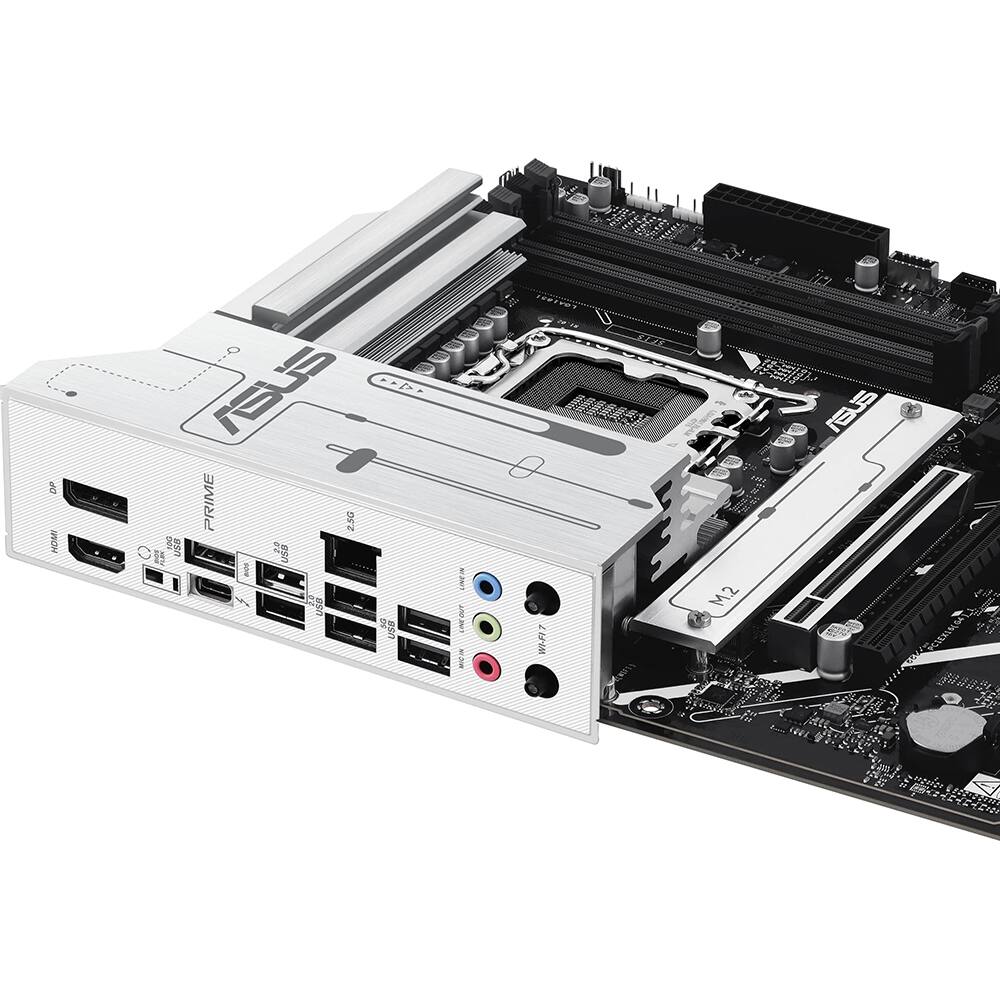

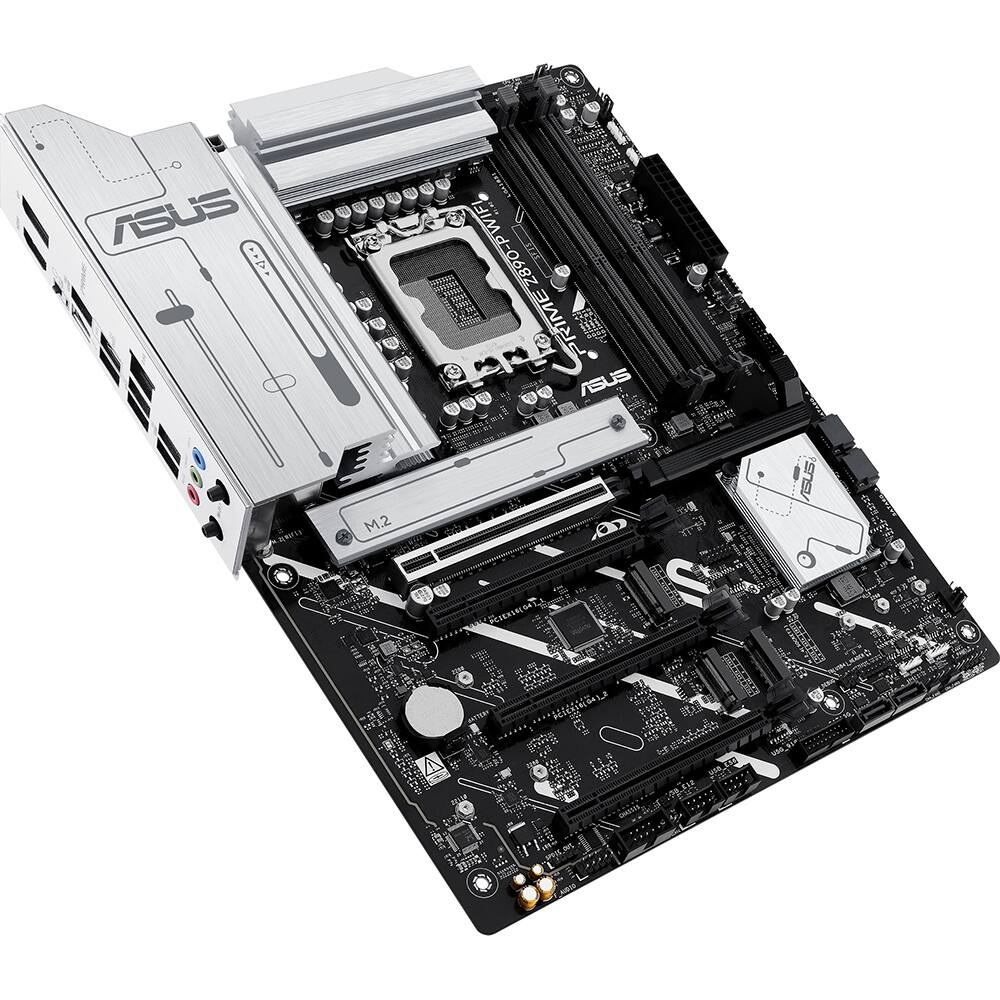

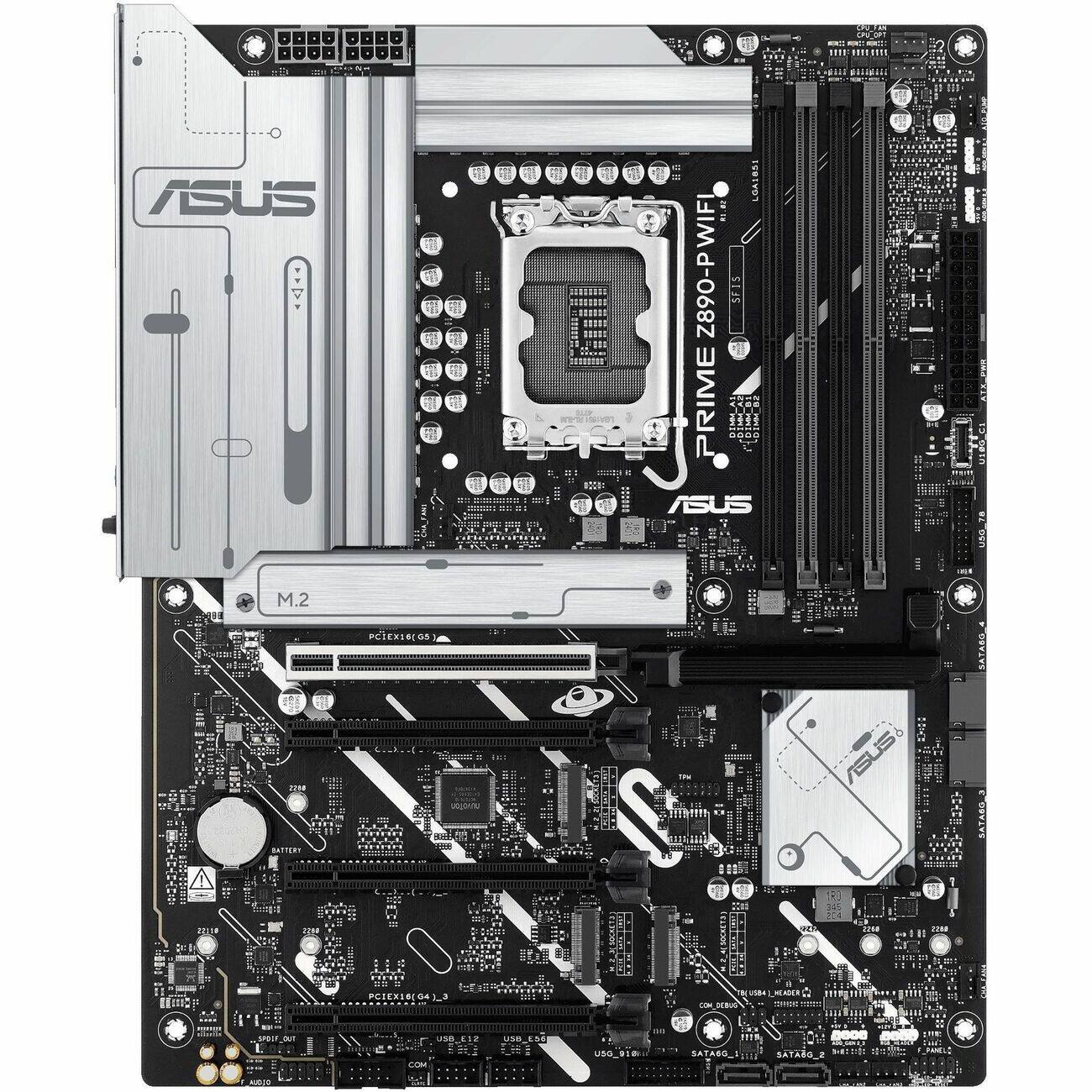

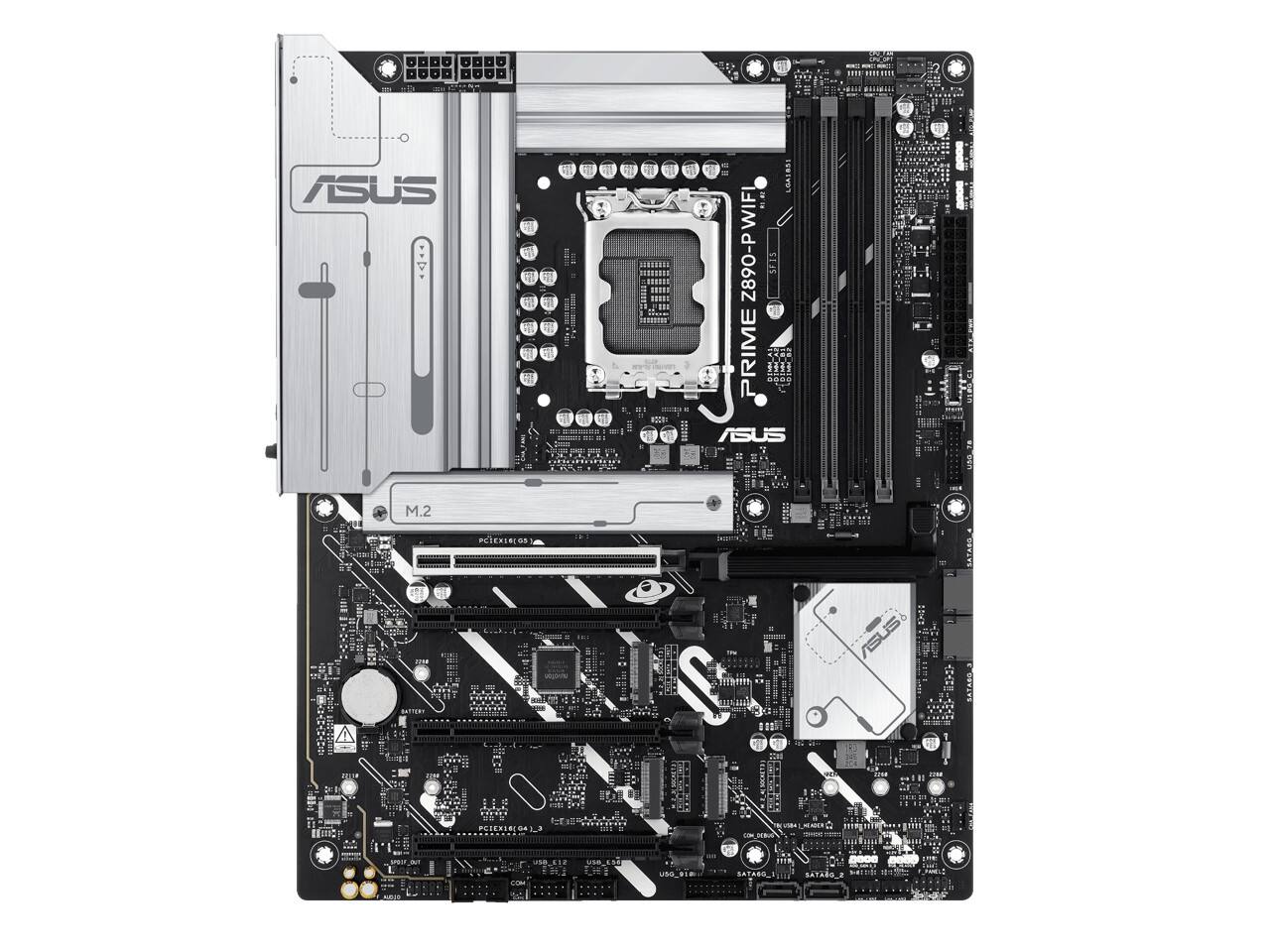

ASUS - Prime Z890-P WiFi LGA 1851 ATX Motherboard PRIME Z890-P WIFI
Key Accessories:
- CORSAIR - iCUE LINK TITAN 360 RX Liquid CPU Cooler with RGB Lighting - Black$199.99
More Buying Options from Marketplace sellers
Specifications
- ChipsetIntel Z890Form FactorATXProcessor SocketSocket LGA 1851Wireless Networking StandardWi-Fi 7Number Of Memory Slots4Maximum Memory Supported192 gigabytes
- Key Specs
- Chipset: Intel Z890
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1851 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 192 gigabytes
- Memory Type Supported: DDR5
- General
- Brand: ASUS
- Product Name: Prime Z890-P WiFi LGA 1851 ATX Motherboard PRIME Z890-P WIFI
- Compatibility
- Chipset: Intel Z890
- Chipset Compatibility: Intel
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1851 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: Intel Core Ultra 5 Series 2, Intel Core Ultra 7 Series 2, Intel Core Ultra 9 Series 2
- Slot
- Number of M.2 Slots: 4 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of PCI-E x16 Slots: 4
- Number Of Memory Slots: 4
- Connectivity
- Wireless Connectivity: Wi-Fi, Bluetooth (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Ports
- USB Ports: 2 x USB-A 2.0, 2 x USB-A 3.2 (The number and type of USB ports the product has.)
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 305 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 244 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 55 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 192 gigabytes
- Memory Type Supported: DDR5
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: up to 7600+MT/s (OC) (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 1, RAID 10 (RAID 1+0), RAID 5 (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: Full Manufacturers Warranty
- Warranty - Labor: Full Manufacturers Warranty
- Other
- UPC: 197105754812
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel Core Ultra Processors (Series 2). Boasting a robust power design; comprehensive cooling solutions and intelligent tuning options; the PRIME Z890-P WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It's designed to be Advanced AI PC-ready; offering the power and connectivity needed for demanding AI applications.
- AI Solutions: ASUS AI Solutions include AI Advisor as your technical expert with expertise in PC performance; AI Networking II for real-time bandwidth optimization and AI Cooling II for automated temperature control.

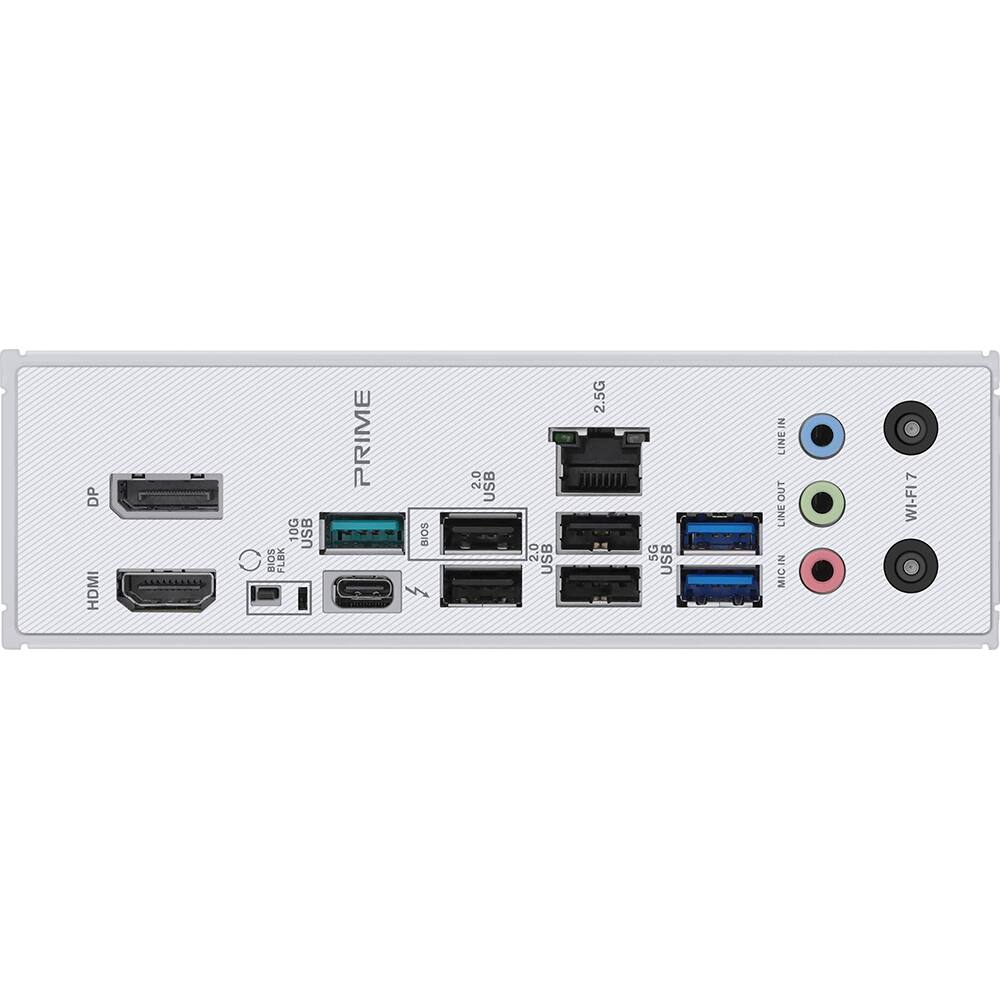

- Comprehensive Connectivity: Equipped with Thunderbolt 4 USB Type-C port, front panel USB 10Gbps Type-C port, and Thunderbolt (USB4) header support.
- High-Performance Networking: On-board Wi-Fi 7 (802.11be) with ASUS WiFi Q-Antenna and Realtek 2.5 Gb Ethernet for superior connectivity.
- Robust Power Design: 14+1+1+2 80A DrMOS power stages with ProCool power connectors, 6-layer PCB, alloy chokes, and durable capacitors ensure stable power delivery.
- Optimized Thermal Design: Large VRM heatsinks, M.2 and PCH heatsinks, hybrid fan headers, and Fan Xpert 4 with AI Cooling II maintain efficient cooling.
Compare similar products
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel Core Ultra Processors (Series 2). Boasting a robust power design; comprehensive cooling solutions and intelligent tuning options; the PRIME Z890-P WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It's designed to be Advanced AI PC-ready; offering the power and connectivity needed for demanding AI applications.
Intel Z890 LGA 1851 ATX motherboard, Advanced AI PC-ready, 22+2+1+2 power stages, NPU Boost, DDR5 slots with NitroPath DRAM Technology, DIMM Flex, AEMP III, WiFi 7 with ASUS WiFi Q-Antenna, three PCIe 5.0 M.2 slots and three PCIe 4.0 M.2 slots onboard with ROG M.2 PowerBoost, SlimSAS connector, PCIe 5.0 x16 SafeSlot with PCIe Slot Q-Release Slim, two Thunderbolt 4 ports, USB 20Gbps Type-C front-panel connector with Quick Charge 4+ up to 60W and USB Wattage Watcher, USB 10Gbps Type-C front-panel connector, ASUS AI Advisor, AI Overclocking, AI Cooling II, AI Networking II and Polymo Lighting II
ASUS ROG STRIX Z890-H GAMING WIFI featuring Intel® Core™ Ultra Series 2 support, Advanced AI PC-ready, 16+2+1+2 power stages, DDR5, AEMP III, 5G LAN, Wi-Fi 7 with Q-Antenna, four M.2 slots, PCIe 5.0 x16, USB 20Gbps Type-C®, ASUS AI Advisor, AI Overclocking, AI Cooling II, AI Networking II, Aura Sync.
TUF GAMING Z890-PRO WIFI ATX motherboard, Advanced AI PC-ready, 16+1+2+1 80A DrMOS power stages, DDR5 slots, PCIe 5.0, DisplayPort, HDMI, two Thunderbolt 4 USB Type-C ports, front panel USB 20Gbps Type-C port, 4 x M.2 slots, Wi-Fi 7 with Q-Antenna, Intel 2.5 Gb Ethernet, M.2 Q-Release, PCIe Q-Release Slim, Pre-mounted I/O shield, BIOS FlashBack botton, Aura Sync
