ASUS - TUF Gaming NVIDIA GeForce RTX 5060 Ti OC Edition 8GB GDDR7 PCI Express 5.0 Graphics Card - Black
ASUS - TUF Gaming NVIDIA GeForce RTX 5060 Ti OC Edition 8GB GDDR7 PCI Express 5.0 Graphics Card - Black
FREE shipping to
More Buying Options
Related Item
Specifications
- GPU Base Clock Frequency2.662 gigahertzGPU Boost Clock Frequency2.692 gigahertzDisplayPort Ports3 x DisplayPort 2.1HDMI Ports1 x HDMI 2.1Maximum Resolution8K (4320p)Maximum Number of Displays Supported4
- Key Specs
- GPU Base Clock Frequency: 2.662 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.692 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- DisplayPort Ports: 3 x DisplayPort 2.1 (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI 2.1 (The number and type of HDMI outputs the product has.)
- Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): DLSS 4 (Deep Learning Super Sampling), Ray tracing (Imaging technology designed to improve graphics rendering.)
- GPU Video Memory (RAM): 8 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR7 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- Slot Size: 3.25-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- PCI Express Version: PCI Express 5.0
- Product Height: 62 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 133.5 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 302 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Graphics Processing Unit (GPU): NVIDIA GeForce RTX 5060 Ti (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- General
- Brand: ASUS
- Model Number: TUF-RTX5060TI-O8G-GAMING
- Product Name: TUF Gaming NVIDIA GeForce RTX 5060 Ti OC Edition 8GB GDDR7 PCI Express 5.0 Graphics Card
- Color: Black
- GPU Chipset Manufacturer: NVIDIA
- Graphics Processing Unit (GPU): NVIDIA GeForce RTX 5060 Ti (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- Year of Release: 2025
- Performance
- GPU Base Clock Frequency: 2.662 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.692 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- Cooling System: Fan (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Connectivity
- DisplayPort Ports: 3 x DisplayPort 2.1 (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI 2.1 (The number and type of HDMI outputs the product has.)
- Power Connector: 1 x 12-pin (The configuration of the connector as it connects the motherboard to a power supply unit.)
- Display
- Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): DLSS 4 (Deep Learning Super Sampling), Ray tracing (Imaging technology designed to improve graphics rendering.)
- Memory
- GPU Video Memory (RAM): 8 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR7 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- GPU Video Memory Base Clock Frequency (RAM): 14 gigahertz
- Compatibility
- Slot Size: 3.25-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- PCI Express Version: PCI Express 5.0
- Operating System Compatibility: Windows
- Features
- Multi-GPU Support: None
- Power
- Total Graphics Power: 250 watts
- Recommended Power Supply: 550 watts
- Dimensions
- Product Height: 62 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 133.5 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 302 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 2.53 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 199291017283
NVIDIA Blackwell architecture is elevated by enhanced cooling and power delivery, fortified with rugged reinforcements for exceptional durability. Lock, load, and dominate with the TUF Gaming GeForce RTX™ 5060 Ti OC Edition, designed to withstand the harshest conditions and deliver unparalleled performance.
- AI Performance: 785 AI TOPS.
- OC Mode: Boosts clock 2692 MHz (OC mode)/2662 MHz (default mode).
- Powered By: NVIDIA Blackwell architecture and DLSS 4.
- Military-Grade Components: Deliver rock-solid power and longer lifespan for ultimate durability.
- Protective PCB Coating: Helps protect against short circuits caused by moisture, dust, or debris.
- 3.1-Slot Design: With massive fin array optimized for airflow from three Axial-tech fans.
- ASUS GPU Guard: Secures the GPU, reducing the risk of cracks.
- Auto-Extreme: Precision automated manufacturing helps ensure higher reliability.
- GPU Tweak III: Software provides intuitive performance tweaking, advanced thermal controls, and system monitoring.
Whats Included
- TUF-RTX5060TI-O8G-GAMING
Q: How many display ports does this graphics card have?
A: This graphics card has 3 DisplayPorts (version 2.1).
Q: What cooling system does this graphics card use?
A: It uses a fan cooling system.
Q: How much video memory does the graphics card have?
A: The card has 8GB of GDDR7 video memory.
Q: Does this graphics card support multi-GPU setups?
A: No, it does not support multi-GPU setups.
Q: What is the boost clock speed in OC mode?
A: The boost clock speed in OC mode is 2692 MHz.
Q: What is the maximum resolution supported by this graphics card?
A: The maximum resolution supported is 8K (4320p).
Q: What is the base clock speed of this graphics card?
A: The base clock speed is 2.662 GHz.
Compare similar products
NVIDIA Blackwell architecture is elevated by enhanced cooling and power delivery, fortified with rugged reinforcements for exceptional durability. Lock, load, and dominate with the TUF Gaming GeForce RTX™ 5060 Ti OC Edition, designed to withstand the harshest conditions and deliver unparalleled performance.
NVIDIA Blackwell architecture is elevated by enhanced cooling and power delivery, fortified with rugged reinforcements for exceptional durability. Lock, load, and dominate with the ASUS TUF Gaming GeForce RTX™ 5070 OC, designed to withstand the harshest conditions, and deliver unparalleled performance.

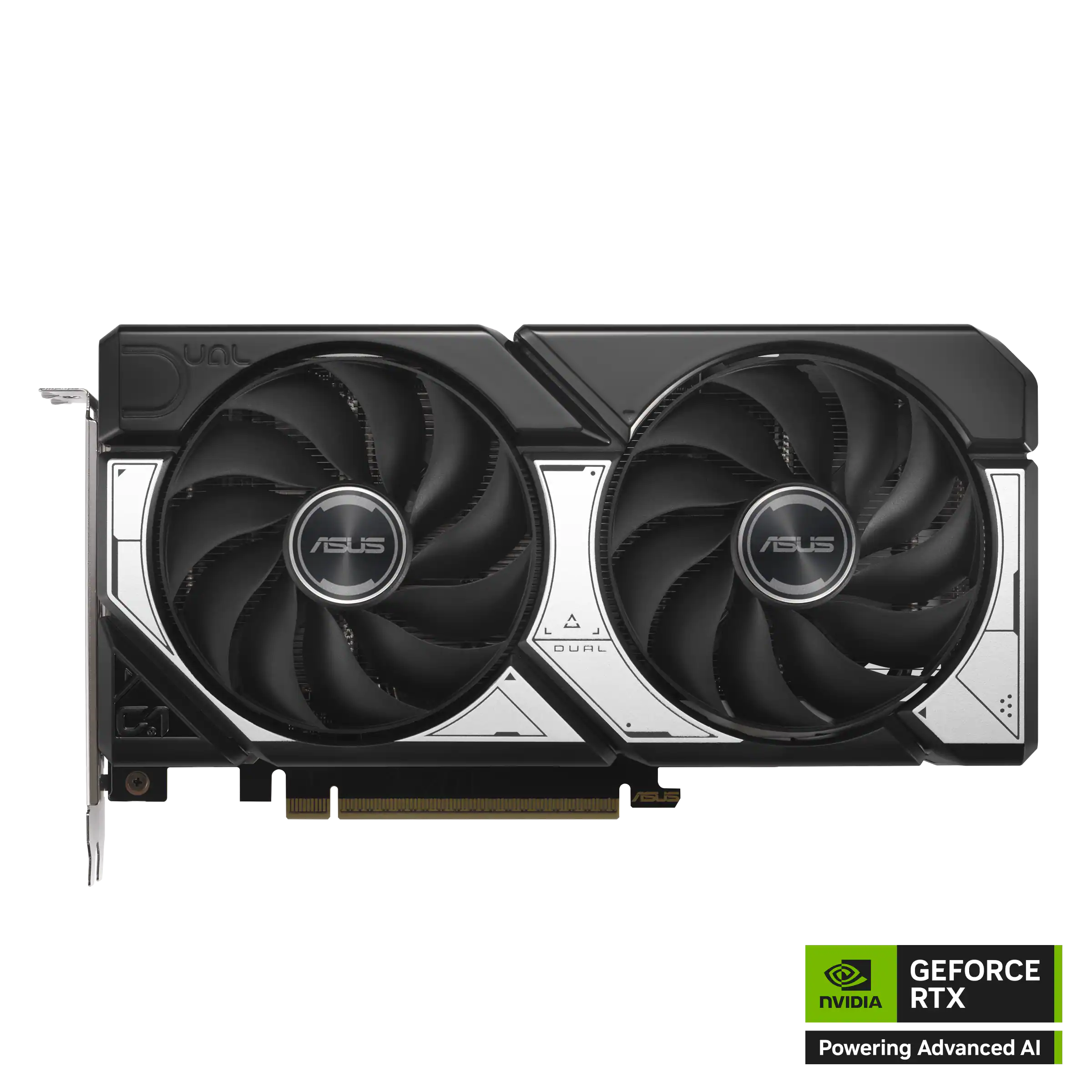

ASUS DUAL GeForce RTX™ 5060 Ti OC Edition combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. ASUS DUAL is a perfect choice for gamers who want heavyweight graphics performance in a compact build.
