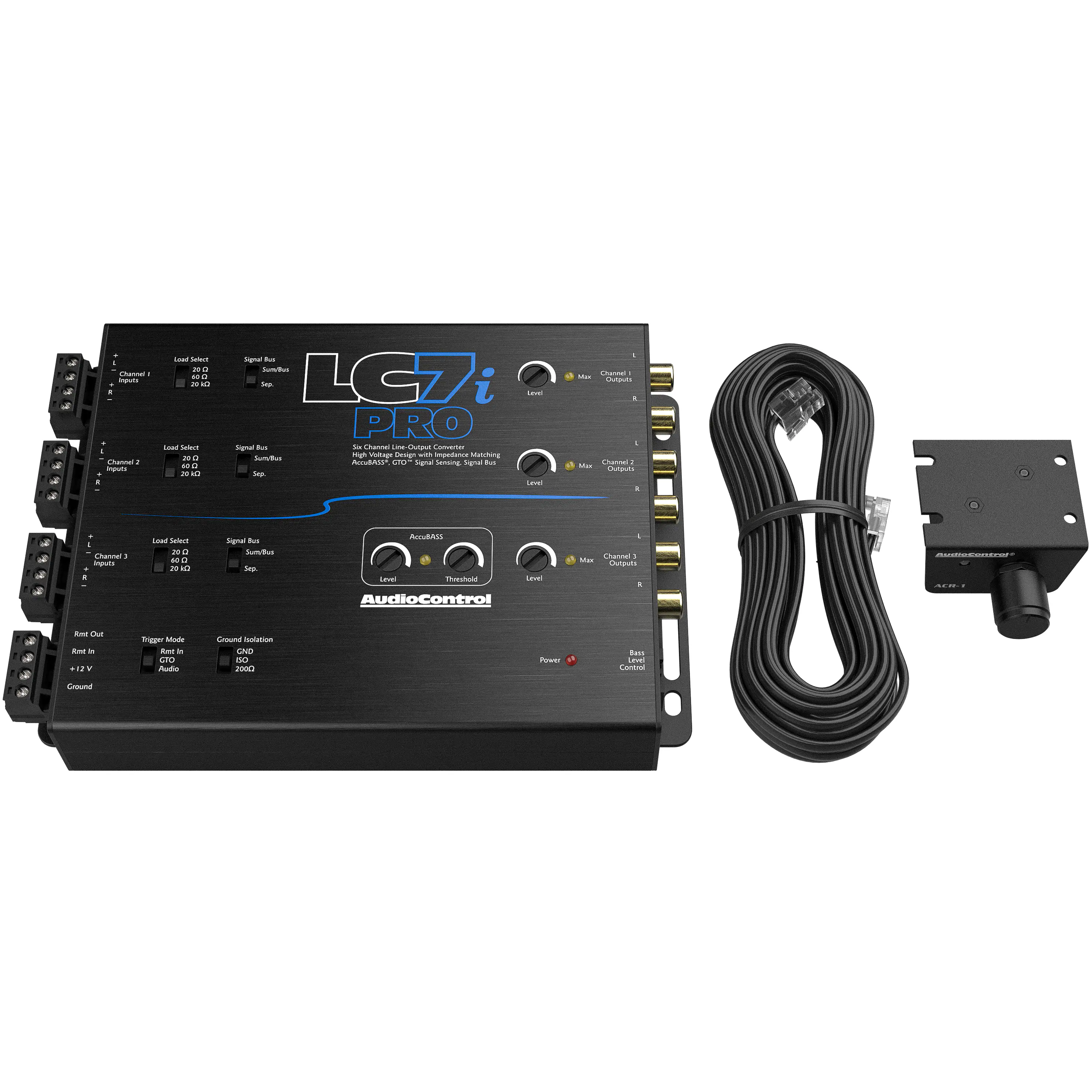

AudioControl - 6-Channel Active Line Output Converter with AccuBASS and Subwoofer Control - Black
- General
- Brand: AudioControl
- Model Number: LC7iPRO
- Product Name: 6-Channel Active Line Output Converter with AccuBASS and Subwoofer Control
- Color: Black
- Compatibility
- Vehicle Compatibility: Universal
- Vehicle Type Compatibility: Automobile
- Product Compatibility: Amplifier, Speaker
- Product Type: Line output converter
- Dimensions
- Product Height: 1.14 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 5.1 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 7 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 1.15 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: None
- Other
- UPC: 850038647216
Easily add an aftermarket amplifier or subwoofer to your vehicle’s factory audio system with this 6-channel active line output converter by AudioControl. The LC7iPRO converts speaker-level (high-level) audio signals to RCA preamp (low-level) signals so you can install an aftermarket amplifier or subwoofer without replacing your factory radio. This six-channel line output converter also features subwoofer control and AccuBASS technology so you can turn up the volume without losing bass.
- Compatible with most vehicles’ OEM audio systems: For use when adding aftermarket amplifiers to car audio systems without RCA preamp outputs.

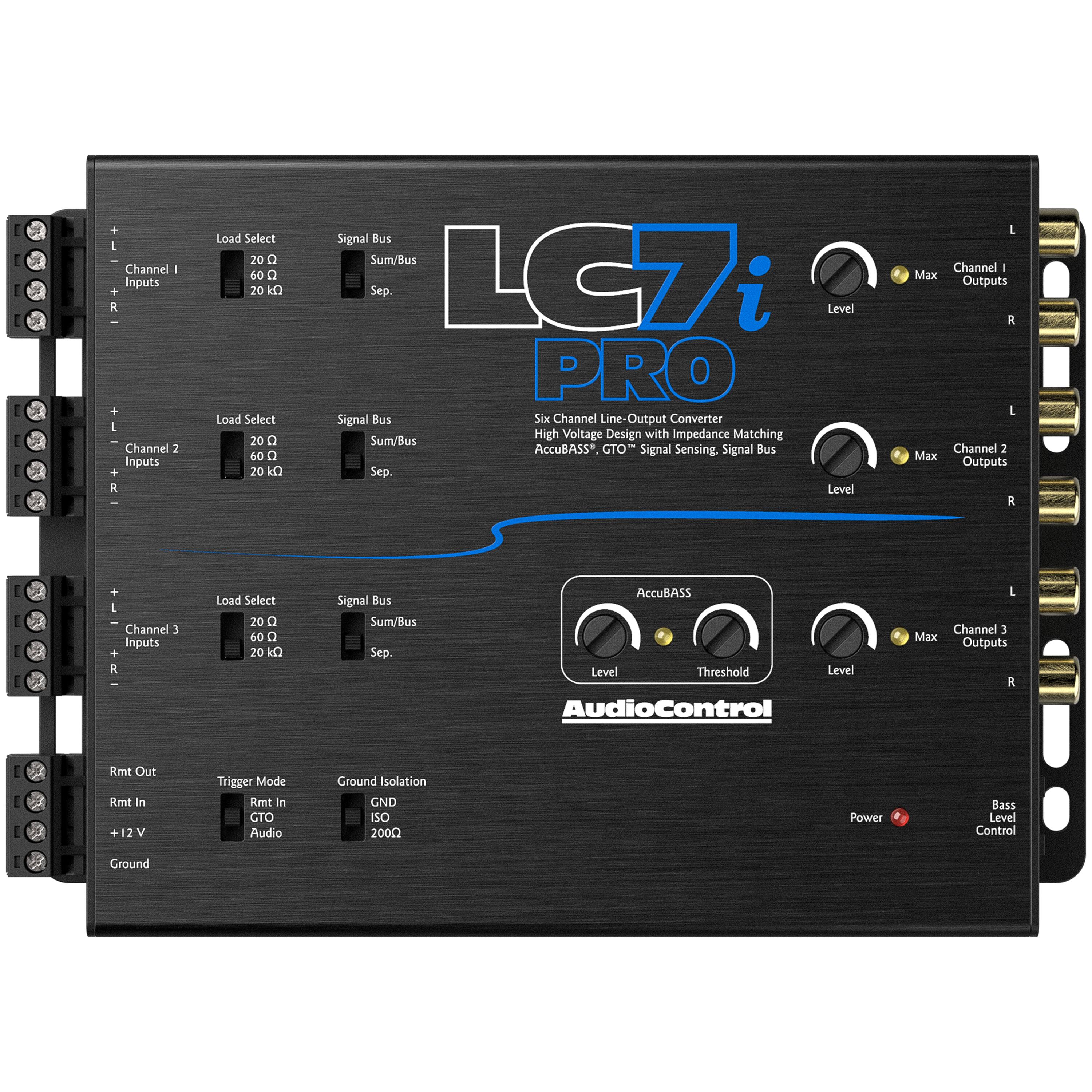

- 6-channel interface with dual amplifier preamp outputs: Features three sets of active speaker-level inputs, three sets of full range main line-level outputs, and one set of low-passed bass line-level outputs for adding an aftermarket subwoofer.
- 400W (40V) peak power input per channel @ 20k ohms: For high-quality sound.
- 9.5V RMS (13V peak) maximum output voltage @ 14.4V: For efficient operation.
- AccuBASS processing: Recovers bass frequencies lost at higher volumes.
- Signal bus switch: Sum multiple input signals into a single channel output when connecting to premium factory systems with crossed-over speaker outputs for various speakers.
- Turn-on trigger mode switch: Choose between GTO Signal Sense (DC offset) and audio sense to automatically power the line output converter or use remote 12V input for manual control.
- Dual variable stereo gain controls with clipping indicator: Allows you to adjust main and bass output signals from -12dB to +12dB and indicates when levels are optimal.
- Selectable on-board load resistors: Including 20 ohms, 60 ohms, and 20k ohms impedance for newer factory-amplified vehicles.
- Selectable ground isolation: Choose from common, ISO (default), or 200 ohms.
- Dash remote level control: Adjust the bass output level for your subwoofer with the included ACR-1 attenuator knob.
- Slim chassis with integrated mounting brackets: Enables quick and easy installation.
- 5-year warranty: To protect against defects in materials and workmanship.
- Compatible with most vehicles’ OEM audio systems: For use when adding aftermarket amplifiers to car audio systems without RCA preamp outputs.
- 6-channel interface with dual amplifier preamp outputs: Features three sets of active speaker-level inputs, three sets of full range main line-level outputs, and one set of low-passed bass line-level outputs for adding an aftermarket subwoofer.
- 400W (40V) peak power input per channel @ 20k ohms: For high-quality sound.
- 9.5V RMS (13V peak) maximum output voltage @ 14.4V: For efficient operation.
- AccuBASS processing: Recovers bass frequencies lost at higher volumes.
- Signal bus switch: Sum multiple input signals into a single channel output when connecting to premium factory systems with crossed-over speaker outputs for various speakers.
- Turn-on trigger mode switch: Choose between GTO Signal Sense (DC offset) and audio sense to automatically power the line output converter or use remote 12V input for manual control.
- Dual variable stereo gain controls with clipping indicator: Allows you to adjust main and bass output signals from -12dB to +12dB and indicates when levels are optimal.
- Selectable on-board load resistors: Including 20 ohms, 60 ohms, and 20k ohms impedance for newer factory-amplified vehicles.
- Selectable ground isolation: Choose from common, ISO (default), or 200 ohms.
- Dash remote level control: Adjust the bass output level for your subwoofer with the included ACR-1 attenuator knob.
- Slim chassis with integrated mounting brackets: Enables quick and easy installation.
- 5-year warranty: To protect against defects in materials and workmanship.
Q: What is the peak power input per channel for this device?
A: The peak power input per channel is 400W (40V) @ 20k ohms.
Q: Does this converter have selectable ground isolation?
A: Yes, this converter has selectable ground isolation with options for common, ISO, or 200 ohms.
Q: Is this line output converter compatible with factory audio systems?
A: Yes, this line output converter is compatible with most vehicles’ OEM audio systems.
Q: Can the bass output level be adjusted on this converter?
A: Yes, the bass output level can be adjusted with the included ACR-1 attenuator knob.
Q: Are there mounting brackets included with this line output converter?
A: Yes, this line output converter has a slim chassis with integrated mounting brackets.
Q: What is the maximum output voltage of this line output converter?
A: The maximum output voltage is 9.5V RMS (13V peak) @ 14.4V.
Q: Does this line output converter come with a warranty?
A: Yes, this line output converter comes with a 5-year warranty for parts.
