Blackmagic Design - Video Assist 5" 12G-SDI/HDMI HDR Recording Monitor
Screen Size
5"More Buying Options from Marketplace sellers
Related Item
Highlights
- Key Specs
- Refresh Rate: 60Hz (The number of frames per second the device can produce natively without enhancement. Higher rates help produce smooth, seamless pictures.)
- Maximum Resolution: 3840 x 2160 (Maximum resolution refers to the highest number of pixels that a screen can process and display. Higher resolution signals produce more detailed images.)
- Screen Size: 5 inches (Size of the screen, measured diagonally from corner to corner.)
- Display Connector(s): 1 x HDMI (The number and type of connectors used to connect to an external display.)
- General
- Brand: Blackmagic Design
- Product Name: Video Assist 5" 12G-SDI/HDMI HDR Recording Monitor
- Display
- Refresh Rate: 60Hz (The number of frames per second the device can produce natively without enhancement. Higher rates help produce smooth, seamless pictures.)
- Maximum Resolution: 3840 x 2160 (Maximum resolution refers to the highest number of pixels that a screen can process and display. Higher resolution signals produce more detailed images.)
- Contrast Ratio: 1000:1 (Measured difference between a displayed image's brightest whites and darkest blacks. The larger the first number, the more detail and color that can be displayed.)
- Display Type: LCD
- Aspect Ratio: 16:9 (The measurement of the width of a screen compared to the height of a screen, expressed as a ratio.)
- Curved Screen: false
- Brightness: 2500 candela per square meter (A measure of the total light output.)
- Screen Size: 5 inches (Size of the screen, measured diagonally from corner to corner.)
- Touch Screen: true (Touch-screen devices make navigating more intuitive. Using a touch-screen display, you can do things such as tap to select, hold and drag to move items, swipe to scroll, and pinch to zoom.)
- Connectivity
- Number of HDMI Inputs (Total): 1
- Display Connector(s): 1 x HDMI (The number and type of connectors used to connect to an external display.)
- Dimensions
- Product Height Without Stand: 3.58 inches
- Product Width: 6.22 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth Without Stand: 1.22 inches
- Product Weight: 0.9 pounds (The out of box weight of the item.)
- Stand Included: false
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Warranty
- Warranty - Parts: 1 Year Manufacturer's Warranty
- Warranty - Labor: 1 Year Manufacturer's Warranty
- Other
- UPC: 9338716006421

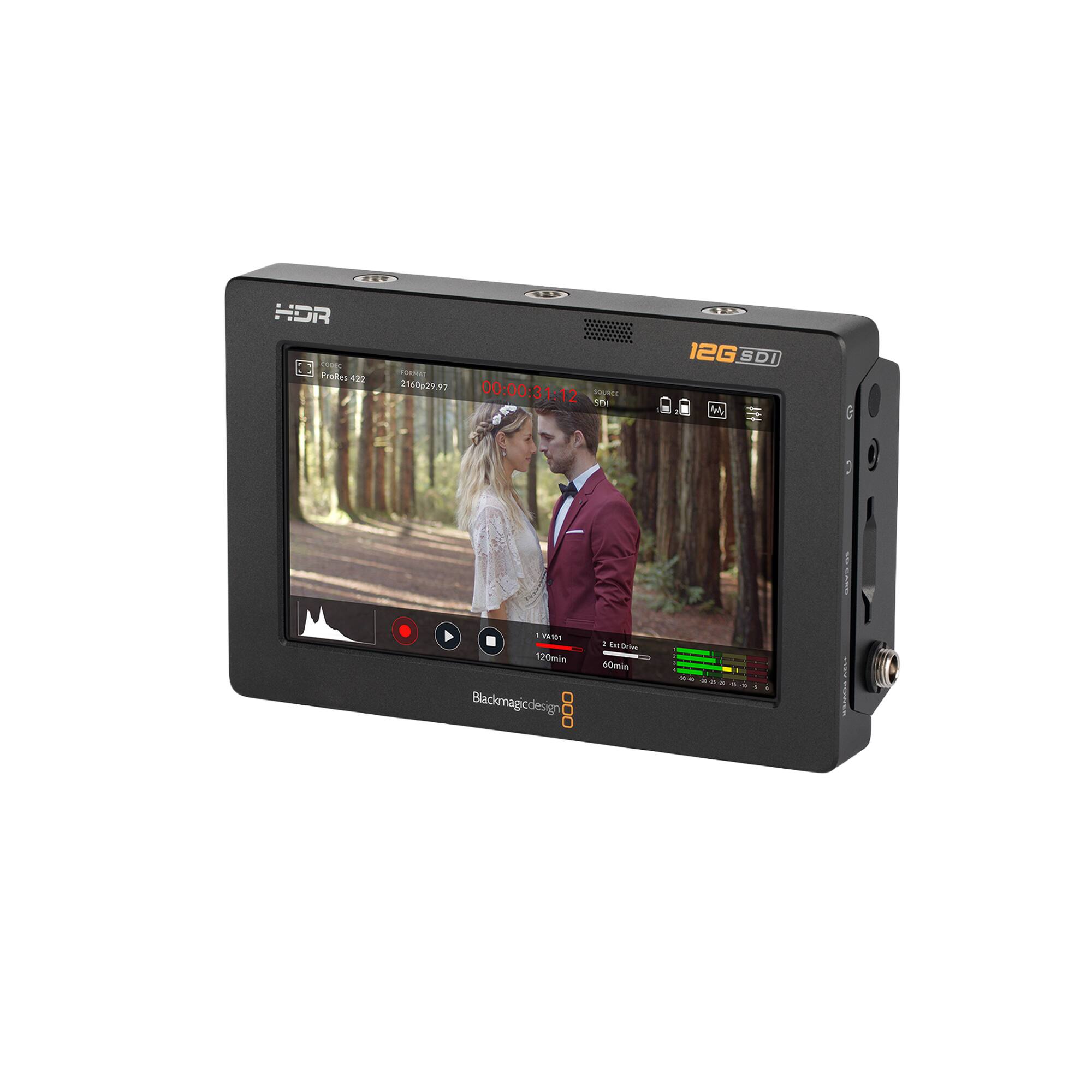

Blackmagic Video Assist 5” 12G HDR adds professional monitoring and recording to any SDI or HDMI camera in all HD, Ultra HD, 2K and 4K DCI formats! The super bright 2500nit 5 inch HDR monitor supports 3D LUTs and features professional scopes along with powerful focus assist and exposure tools that help you accurately set focus, exposure and frame shots. The built in SD card recorder save files in broadcast quality 10‑bit 4:2:2 ProRes or DNx formats. The files are all standard, so you can start editing immediately without having to convert them!
- Professional Monitoring & Recording: Combines a bright 5-inch HDR touchscreen monitor with high-quality recording in ProRes, DNx, and Blackmagic RAW formats.

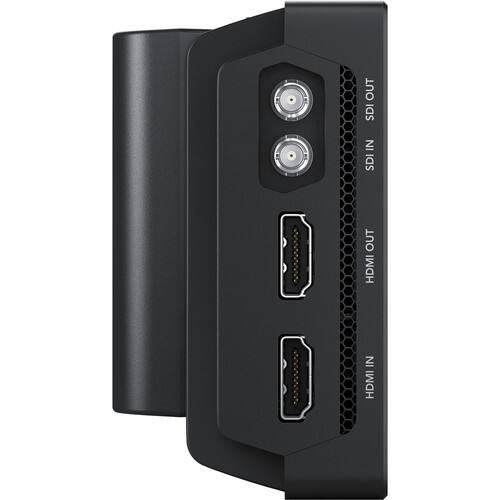

- 12G-SDI & HDMI Connectivity: Supports SD, HD, and Ultra HD up to 2160p60 for flexible integration with cameras and broadcast equipment.
- High-Brightness HDR Display: 2500-nit touchscreen for accurate color and HDR monitoring, even in bright outdoor conditions.

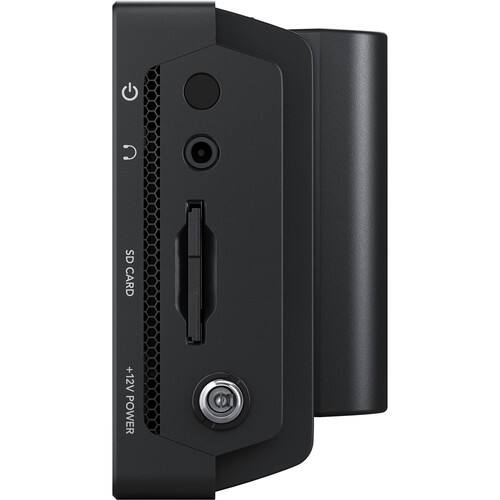

- Versatile Media Options: Records to SD cards or external USB-C drives for extended storage and fast workflow.
- Includes: Blackmagic Design Video Assist 5" 12G-SDI/HDMI HDR Recording Monitor, 12 VDC 36W Power Adapter
Whats Included
- Blackmagic Design Video Assist 5" 12G-SDI/HDMI HDR Recording Monitor; 12 VDC, 36W Power Adapter
