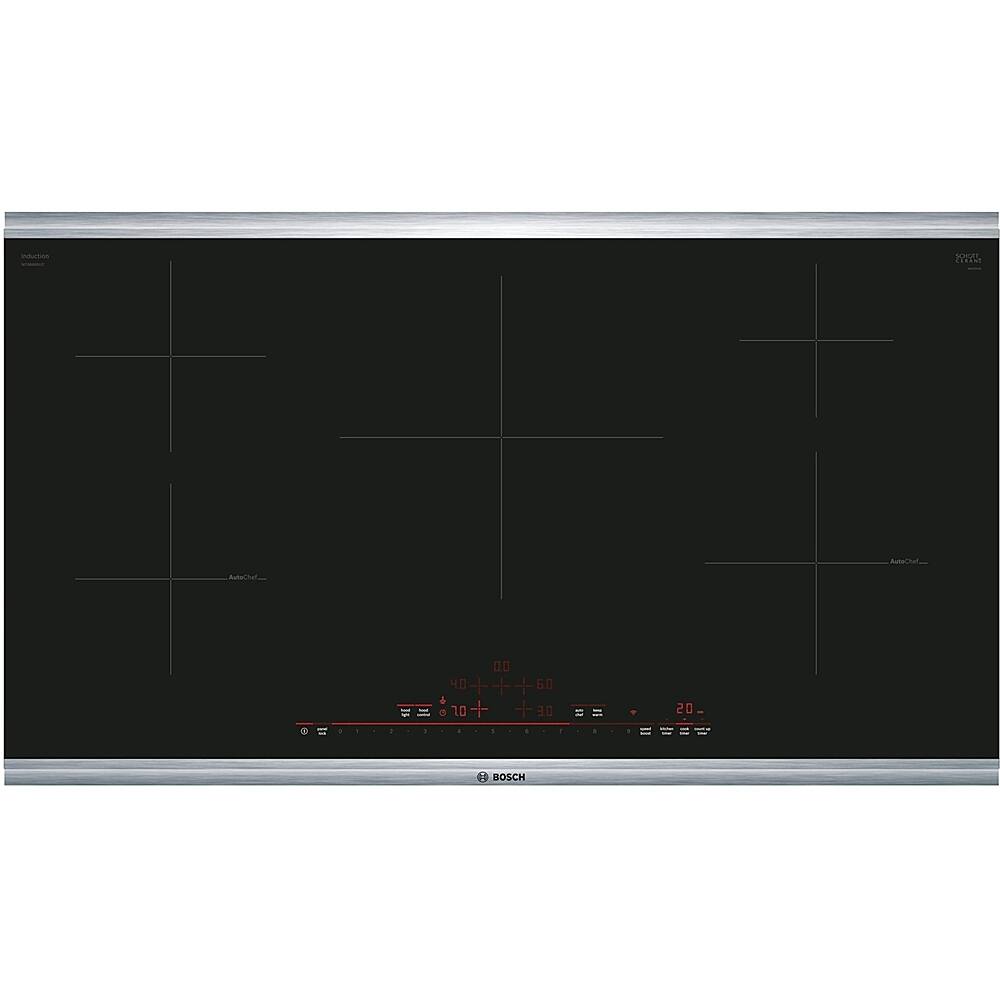

Bosch - 800 Series 36" Built-In Electric Induction Cooktop with 5 elements and HomeConnect, Frameless - Black
Model: NIT8669UC
SKU: 6335119
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: Black
- Product Height: 4 1/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 37 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Cooktop Surface Type: Smoothtop (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Number of Elements: 5
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- General
- Brand: Bosch
- Model Number: NIT8669UC
- Product Name: 800 Series 36" Built-In Electric Induction Cooktop with 5 elements and HomeConnect, Frameless
- Color: Black
- Color Finish: Black
- Vendor Collection: Bosch 800 Series (Part of a line of different product types, like kitchen appliances.)
- Dimensions
- Product Height: 4 1/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 37 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 53 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 4 1/8 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 34 7/8 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 20 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Installs Over Built-In Oven: true
- Control Type: Electronic
- Control Location: Top
- Digital Display: true
- Power-On Indicator Light(s): true
- Hot Surface Indicator(s): true (Visual indicators turn on when the cooktop surface is hot and remain on until it is cooled, acting as a convenient safety reminder.)
- Child Lock: true (Setting that allows appliance to be temporarily locked to prevent use.)
- Form Factor: Cooktop (The size, arrangement, and physical configuration of the product.)
- Portable: false
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Cooktop Features
- Induction: true (Induction cooktops use magnetic currents to heat compatible cookware directly instead of warming the cooktop itself, which can allow for faster and more efficient cooking. There is also an added safety benefit because the surface begins to cool when cookware is removed.)
- Cooktop Surface Type: Smoothtop (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Cooktop Surface Material: Ceramic, Glass
- Number of Cooking Zones: 5
- Number of Elements: 5
- Pan Presence Sensor: true (Sensors detect when a pan comes into contact with the cooking surface and when it is removed. When a pan is removed, the cooktop will automatically shut off as a safety precaution.)
- Bridge Element: false (This feature is an additional heating element located between two individual burners. When this is enabled, the individual burners and the bridge element act as one connected cooktop. This equal heat distribution on the cooktop surface helps accommodate larger cookware, such as roaster pans or griddles.)
- Specialty Element(s): None
- Expandable Element: false (Accommodate large cookware and ensure even heat distribution with this feature, which allows more surface area for the individual heating element.)
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Griddle Included: false
- Power
- Auto Shut-Off: true (Feature automatically turns off the product.)
- Cooktop Power Source: Electric
- Electrical Specification
- Wattage: 9600 watts (Measurement of electrical power.)
- Amperage: 40 amperes (Strength of electrical current.)
- Voltage: 240 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ADA Compliant: true (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Product Safety Certifications and Standard(s): CSA Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Chemical Disclosures: Free of PFAS, PFOA, lead, and cadmium. Libre de PFAS, PFOA, plomo, y cadmio. (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Compatibility
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Other
- UPC: 825225955832
Ensure meals are cooked evenly with this Bosch 800 Series 36-inch induction cooktop. The flat surface makes cleaning up after preparing meals fast and easy, while the large size lets you work on several dishes at once. This Bosch 800 Series 36-inch induction cooktop cooks faster than traditional gas or electric stoves.
- Five induction cooking zones: Includes a 5,400W power boost element for faster boil times.
- 12" dual-ring center cooking zone: For large pots and pans.
- Keep Warm function: Provides a low setting for keeping food warm at the touch of a button.
- ChildLock: Prevents the cooktop from being accidentally switched on, locks temperature settings if in use.
- PreciseSelect® touch control: Offers simple selection of the desired cooking zone with 17 cooking power settings.
- Digital 2-stage residual heat indicator: For each cooking zone.
- Elegant, appealing design with beveled frameless glass: For a premium look.
Whats Included
- Bosch 800 Series 36" Electric Induction Cooktop
A: Hi MrsM, thanks for your question and interest in model: NIT8669UC. The smallest size cookware we recommend is cookware with a diameter of 6 inches. If a pan is placed on the selected element that is not the correct size, the power level displayed on the element indicator will flash.
Q: does this model have a bridge element?
A: Hi loulag, thank you for your question and interest in Model:NIT8669SUC. This cooktop does not have a bridge element.
Q: Does this cooktop require hard wiring? Can you convert it to a 4-prong plug in?
A: Hi Alex, thank you for your question and interest in Model:NIT8669UC. This does require a junction box. Please see page 8 of the Installation Guide, here is the link: https://media3.bosch-home.com/Documents/9001410846_D.pdf
A: Hi BoschStove, thank you for your question and interest in Model:NIT8669SUC. Yes, the Hood Control is a convenient operation of the Home Connect™ enabled ventilation via your cooktop.
Q: Can you use round bottom pots and pans?
A: Hi Victoria, thank you for your question and interest in Model:NIT8669UC. Yes, you can use round bottom pots and pans.
Q: what capacity of the breaker, needed for the Boasch 36" induction cooktop
A: Hi Case, thank you for your question and interest in Model:NIT8669UC. Here are the technical details for this Induction Cooktop: 9,600 watts, circuit breaker 40 amps, 208-240 volts, frequency 60 Hz.
A: Hi YogaMomma. Thank you for your question. Yes the 800 Series Induction Cooktop, model NIT8669UC does require a ventilation system. The Bosch Downdraft Vent that is compatible with that cooktop is model HDD86050UC.
