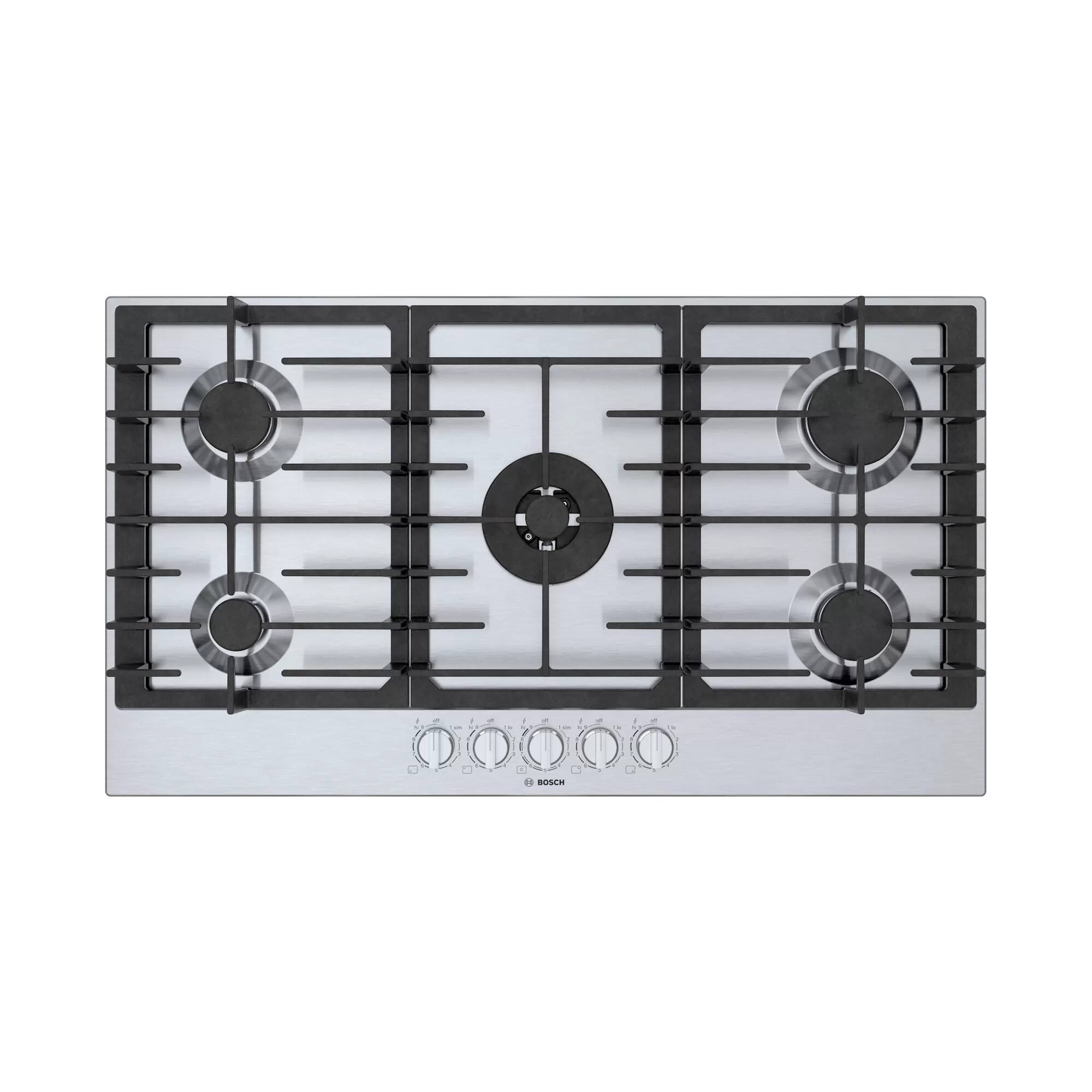

Bosch - 800 Series 36" Built-In Gas Cooktop with 5 burners - Silver
Model: NGM8657UC
SKU: 6359162
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: Silver
- Product Height: 2 3/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 36 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 20 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Number of Burners: 5
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- General
- Brand: Bosch
- Model Number: NGM8657UC
- Product Name: 800 Series 36" Built-In Gas Cooktop with 5 burners
- Color: Silver
- Color Finish: Silver
- Vendor Collection: Bosch 800 Series (Part of a line of different product types, like kitchen appliances.)
- Dimensions
- Product Height: 2 3/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 36 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 20 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 42 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 1 1/4 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 33 1/2 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 19 5/16 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Installs Over Built-In Oven: true
- Control Type: Electronic
- Control Location: Top
- Digital Display: false
- Hot Surface Indicator(s): false (Visual indicators turn on when the cooktop surface is hot and remain on until it is cooled, acting as a convenient safety reminder.)
- Child Lock: false (Setting that allows appliance to be temporarily locked to prevent use.)
- Form Factor: Cooktop (The size, arrangement, and physical configuration of the product.)
- Portable: false
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Gas Type: Natural gas
- Cooktop Features
- Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Cooktop Surface Material: Stainless steel
- Number of Cooking Zones: 5
- Number of Burners: 5
- Sealed Burners: true (A cap covers the internal components of the burner to prevent food spilling into the flame or under the cooktop, allowing for easier cleaning.)
- Specialty Burner(s): OptiSim burner (Do more with your cooktop with burners designed for specific cooking needs and precise control. For example, simmer burners provide consistent, low-temperature heat for melting delicate foods or simmering sauces, while power burners provide high cooking power for quick boiling, searing, or stir-fry cooking.)
- Grate Type: Continuous (Continuous grates allow cookware to be slid from burner to burner, while individual grates require the pot or pan to be lifted when moving around the cooktop.)
- Grate Material: Cast iron
- Dishwasher-Safe Grates: true (Cooktop grates are safe to be washed in a dishwasher if they are treated with a special coating that withstands the high heat, water pressure, and detergent used in a standard wash cycle.)
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Griddle Included: false
- Burner Rating
- Burner 1 Rating: 3400 british thermal units (An average home cooktop burner gives off about 7,000 BTUs of heating power. Burners with higher BTU ratings are better suited for searing or stir-fry cooking, while lower burner ratings are ideal for simmering.)
- Burner 2 Rating: 6000 british thermal units
- Burner 3 Rating: 17000 british thermal units
- Burner 4 Rating: 9000 british thermal units
- Burner 5 Rating: 6000 british thermal units
- Total Maximum BTU Rating: 41400 (The total amount of gas, measured in British Thermal Units (BTU), used by the appliance when operating at its maximum output.)
- Power
- Cooktop Power Source: Gas
- Ignition Type: Electric
- Propane (LP) Convertible: true
- Propane Conversion Kit Included: true
- Propane Kit Model Compatibility: 12028831
- Gas Regulator Inlet Thread Size: 1/2 inch (The internal (female) thread size of the gas inlet connection on the appliance’s gas regulator. Note: this is not referring to the gas line size requirement.)
- Certifications Listings & Approvals
- ADA Compliant: true (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Chemical Disclosures: Free of PFAS, PFOA, lead, and cadmium. Libre de PFAS, PFOA, plomo, y cadmio. (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Compatibility
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Other
- UPC: 825225958444
Cook food quickly with this Bosch 36-inch gas cooktop. Heavy-duty grates withstand heat and remain durable, while five burners offer space for every dish. This Bosch 36-inch gas cooktop features an electric ignition system for convenience, a low-profile stainless steel surface for easy cleaning and five knobs for simplified operation.
- FlameSelect technology: Allows a precise adjustment of the fame size with nine defined power levels.
- Dual-flame power burner with two heat options: Lets you quickly boil water or maintain a precise simmer.
- OptiSim burner: Enables you to simmer delicate sauces and melt chocolate without scorching.
- Sealed cooktop burners: Eliminate the space between the burners and the cooktop to avoid spills and boiling for easy cleaning.
- Heavy-duty grates: Continuous grates are dishwasher safe that makes cleaning fast and simple.
- Five burners: Deliver 3,400 to 17,000 BTUs of power for versatile boiling options that meet a range of cooking requirements.
- FlameSelect technology: Allows a precise adjustment of the fame size with nine defined power levels.
- Dual-flame power burner with two heat options: Lets you quickly boil water or maintain a precise simmer.
- OptiSim burner: Enables you to simmer delicate sauces and melt chocolate without scorching.
- Sealed cooktop burners: Eliminate the space between the burners and the cooktop to avoid spills and boiling for easy cleaning.
- Heavy-duty grates: Continuous grates are dishwasher safe that makes cleaning fast and simple.
- Five burners: Deliver 3,400 to 17,000 BTUs of power for versatile boiling options that meet a range of cooking requirements.
Whats Included
- Bosch 800 Series 36" Built-In Gas Cooktop
- LP conversion kit
- OptiSim cap
- Owner's manual
- Simmer cap
- Bosch 800 Series 36" Built-In Gas Cooktop
- LP conversion kit
- OptiSim cap
- Owner's manual
- Simmer cap
A: Hi NoPowerOperation, thank you for your question and interest in Model:NGM8656UC. Yes, this Cooktop can be used during a power outage by turning on the burner and then lighting with a match.
Q: What are the BTU's with this unit?
A: Hi Linda. Thank you for your question. The total BTU's for this unit are 58,500. The front left burner is 12,000 BTU, back left burner is 10,000 BTU, center burner is 19,000 BTU, back right burner is 5500 BTU and the front right burner is 12,000 BTU.
Q: What size opening is required of the granite counter top to accommodate this cooktop?
A: Hi Buyer. Thank you for your question. Here are the cutout dimensions for this cooktop. Required cutout size: (HxWxD) 3 13/16" x 34 15/16" x 19 1/8".
Q: Are the knobs metal or plastic?
A: The knobs are made of metal.
A: Hi Wondering. Thank you for your question. Here are the cutout dimensions for the 800 Series 36" Gas Cooktop, Model:NGM8646UC: 3 3/16" H x 34 5/16" W x 19 1/8" D.
Q: Does an LP conversion kit come with this Bosch cootop?
A: Hi Mogv. Thank you for your question. Yes, an LP conversion kit is included with the 800 Series Bosch Gas Cooktop.
Q: Can this cockatoo be converted to propane gas?
A: Yes, it can.
Q: are the burners sealed on the NGM8646UC model??
A: Hi, thank you for your review. Yes, this unit does feature sealed burners.
