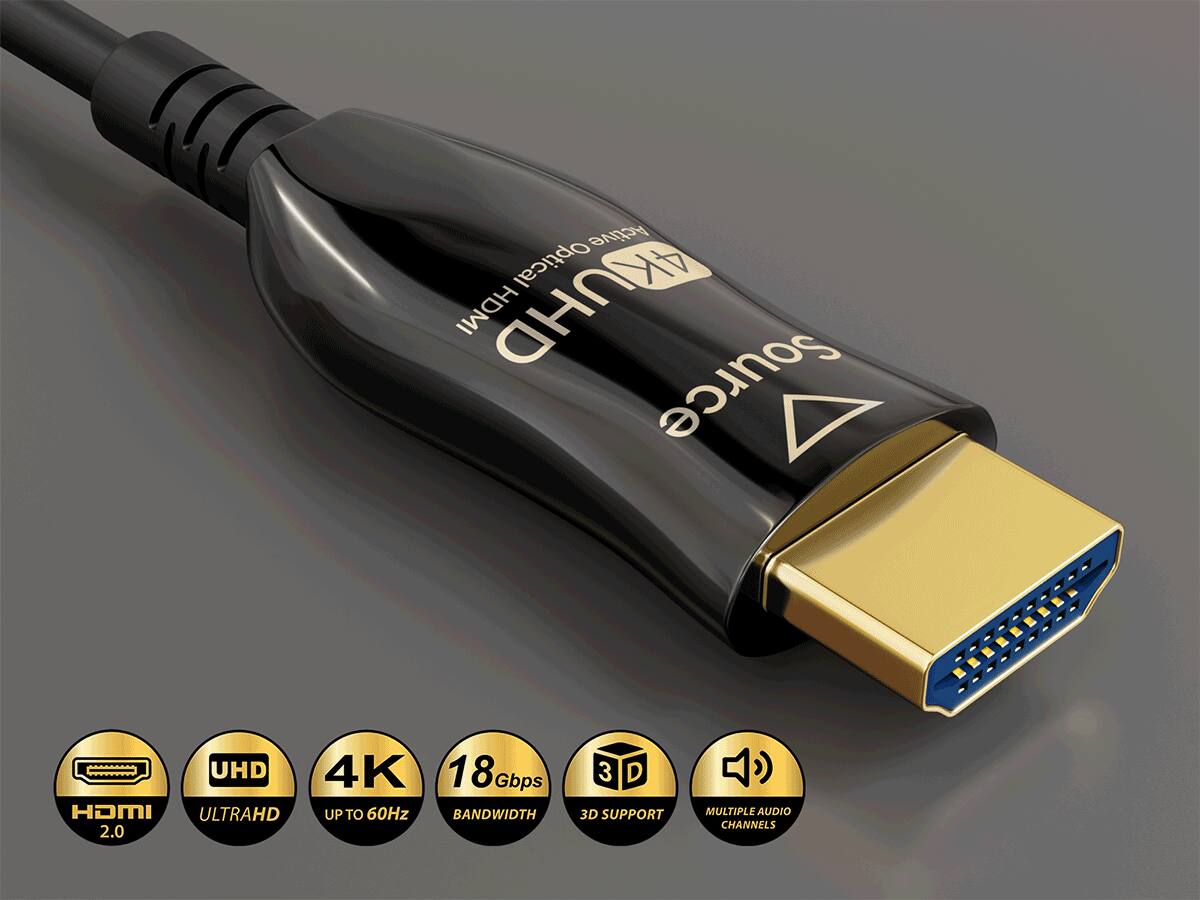

Cable Leader - 4K High-Speed HDMI Fiber Optic Cable AOC, HDMI 2.0 18Gbps CL3-Rated UL for Long In-Wall Home Theater Runs - Black
Reviews coming soon
Cable Length
75'About This Item
- Key Specs
- Cable Length: 75 feet
- HDMI Cable Type: Premium High Speed HDMI Cable with Ethernet
- Connector Type (End 1): HDMI Type A
- Gender (End 1): Male
- Connector Type (End 2): HDMI Type A
- Gender (End 2): Male
- In-Wall Rated: true
- Conductor Material: Copper
- Jacket Material: CL3
- General
- Brand: Cable Leader
- Model Number: HM118-1175
- Product Name: 4K High-Speed HDMI Fiber Optic Cable AOC, HDMI 2.0 18Gbps CL3-Rated UL for Long In-Wall Home Theater Runs
- Color: Black
- Quantity: 1
- Connectivity
- Cable Type: HDMI
- Cable Length: 75 feet
- Product Type: Cable
- HDMI Cable Type: Premium High Speed HDMI Cable with Ethernet
- Connector Type (End 1): HDMI Type A
- Generation/Version: HDMI 2.0
- Gender (End 1): Male
- Connector Type (End 2): HDMI Type A
- Gender (End 2): Male
- Environmental
- In-Wall Rated: true
- Indoor Or Outdoor Use: Indoor (Indicates the appropriate environment product was designed to be used in.)
- Material
- Conductor Material: Copper
- Connector Plating: Gold
- Jacket Material: CL3
- Other
- UPC: 840529927613
Running an HDMI cable 50, 100, or 150 feet from media rack to a wall-mounted TV — and copper cables can't carry 4K@60Hz that far without failing? Pure copper HDMI loses too much signal past about 50 ft for clean 4K@60Hz. This 4K HDMI Fiber Optic Active Optical Cable (AOC) carries video over glass fibers, holding the full 4K@60Hz HDMI 2.0 signal over runs that copper simply can't handle. UL Listed with a CL3-rated jacket for code-compliant residential in-wall installation. Built with multi-fiber optical construction, gold-plated HDMI connectors, and a CL3-rated PVC jacket. Compatible with PS5, Xbox Series X/S, Apple TV 4K, AV receivers, wall-mounted TVs, ceiling-mounted projectors, and home theater installs — directional cable: the SOURCE end must connect to the source device. Supports 4K@60Hz, HDR10, ARC, CEC, and HDMI 2.0 features at up to 18 Gbps. Best for: long in-wall home theater runs to far-wall TVs and ceiling projectors. Not for: plenum spaces (use Plenum AOC), 8K, or 4K@120Hz. RoHS compliant.
- Long In-Wall Runs Where Copper Fails — 4K@60Hz on Fiber: Wall-mounted TV 50, 100, or 150 feet from the media rack? Copper HDMI loses too much high-frequency signal at that range to carry 4K@60Hz. Glass-fiber AOC construction holds the full HDMI 2.0 signal over distance. UL Listed CL3 jacket meets NEC code for residential and light commercial in-wall installation.
- 4K Ultra HD at 60Hz with HDR10 — Full HDMI 2.0 18 Gbps: Rated to HDMI 2.0 with 18 Gbps bandwidth. Carries 4K Ultra HD at 60Hz, 4K@30Hz, 1080p at 120Hz, HDR10 dynamic range, Audio Return Channel for soundbars, CEC remote pass-through, and 4:4:4 chroma sub-sampling for sharp text and PC content.

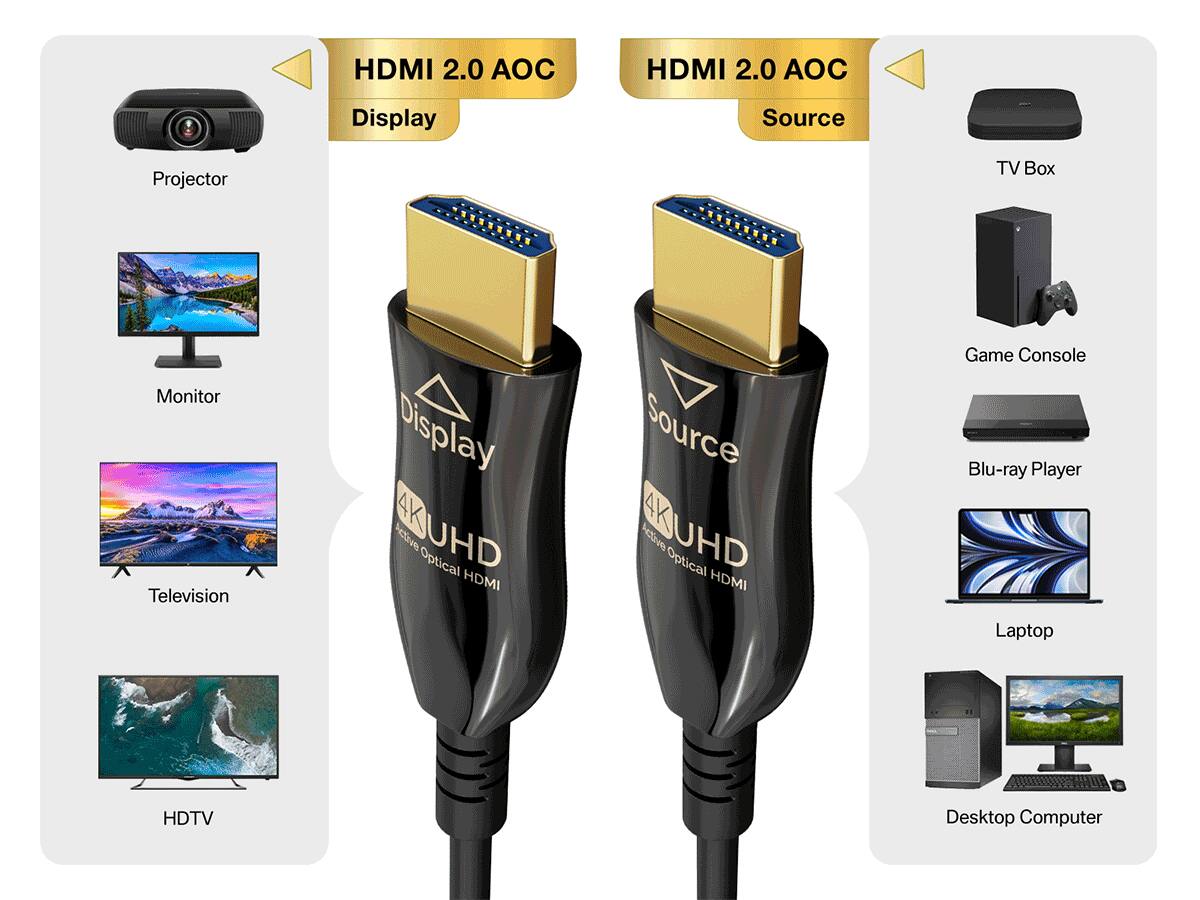

- Works with PS5, Xbox, Apple TV, Wall-Mount TVs — Directional: Compatible with PS5, Xbox Series X/S, Apple TV 4K, AV receivers, wall-mounted 4K TVs, ceiling-mounted projectors, classroom displays, and conference room AV systems. Quick check: 100 ft in-wall residential — Yes; plenum (above commercial drop ceiling) — No, use Plenum AOC; directional — Yes (SOURCE end to source device); 8K / 4K@120Hz — No.

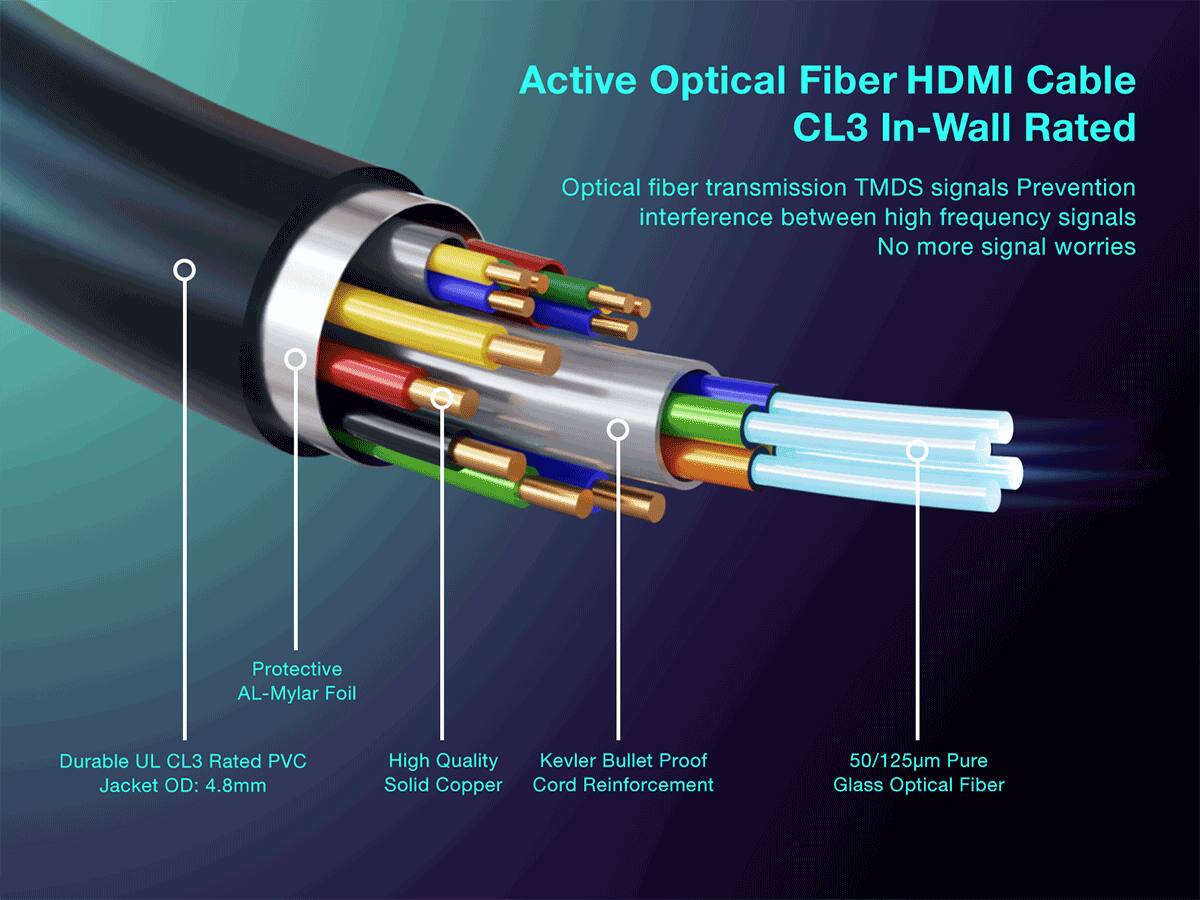

- Multi-Fiber Core, UL CL3-Rated Jacket, Gold Connectors: Multi-fiber optical core carries high-bandwidth video without copper distance loss. UL Listed CL3-rated jacket carries the higher voltage class accepted by NEC for in-wall residential installation. Gold-plated 19-pin HDMI connectors with reinforced strain relief resist pull-through during cable pulls.
- Sample-Tested Production — Cable Leader Direct Support: Each cable is sample-tested during production for fiber continuity, signal integrity, and connector retention. UL Listed and manufactured to RoHS environmental standards. If a cable arrives defective or stops working in normal use, Cable Leader handles replacement requests directly — no manufacturer redirects.
Whats Included
- 1x Cable Leader 4K High-Speed HDMI Fiber Optic Cable AOC, HDMI 2.0 18Gbps CL3-Rated UL for Long In-Wall Home Theater Runs (75ft)
