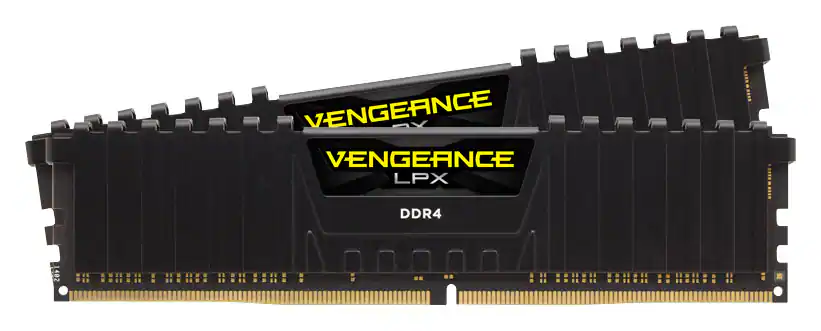

CORSAIR - VENGEANCE LPX 16GB (2x8GB) DDR4 3200MHz C16 UDIMM Desktop Memory - Black
Speed
3200 megahertzMemory Capacity (Total)
16GBRelated Item
Specifications
- Type of Memory (RAM)DDR4Form FactorDesktopSpeed3200 megahertzLatency16-18-18-36CAS Latency16Lighting TypeNone
- Key Specs
- Type of Memory (RAM): DDR4
- Form Factor: Desktop (The type of computer the memory is configured to fit in.)
- Speed: 3200 megahertz
- Latency: 16-18-18-36 (Refers to the amount of time between the moment a memory request is initiated and the moment the request is retrieved by a processor, commonly written as a series of 4 numbers, or timings. Each timing measures the performance of the module according to a specific parameter. Generally, the lower the numbers, the faster the RAM can respond to requests.)
- CAS Latency: 16 (Column Address Strobe (CAS) Latency refers to the number of clock cycles (for synchronous DRAM) or nanoseconds (for asynchronous DRAM) between the moment an instruction or command is initiated and the moment the data result is available. Generally, the lower the numbers, the better.)
- Lighting Type: None
- Performance Profile(s): Intel XMP 2.0
- Memory Capacity (per Module): 8 gigabytes (Refers to the maximum amount of data that can be stored on the memory module.)
- Memory Capacity (Total): 16 gigabytes (Refers to the maximum total amount of data that can be stored on all included memory modules.)
- General
- Brand: CORSAIR
- Model Number: CMK16GX4M2B3200C16
- Product Name: VENGEANCE LPX 16GB (2x8GB) DDR4 3200MHz C16 UDIMM Desktop Memory
- Color: Black
- Memory Capacity (per Module): 8 gigabytes (Refers to the maximum amount of data that can be stored on the memory module.)
- Number Of Modules: 2
- Memory Capacity (Total): 16 gigabytes (Refers to the maximum total amount of data that can be stored on all included memory modules.)
- Compatibility
- Type of Memory (RAM): DDR4
- Pin Configuration: 288
- Memory Format: UDIMM (Memory module size that determines what size device the memory stick will fit.)
- Form Factor: Desktop (The type of computer the memory is configured to fit in.)
- Minimum System Requirements: Not Applicable
- Operating System Compatibility: Windows
- Speed
- Memory Speed Rating: PC4-25600 (The RAM's bandwidth rating. The numbers refer to generation and transfer speed and are typically separated with a hyphen. For example, PC3-12800 would indicate that the module is 3rd generation and has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the second number, the faster the speed.)
- Speed: 3200 megahertz
- Latency: 16-18-18-36 (Refers to the amount of time between the moment a memory request is initiated and the moment the request is retrieved by a processor, commonly written as a series of 4 numbers, or timings. Each timing measures the performance of the module according to a specific parameter. Generally, the lower the numbers, the faster the RAM can respond to requests.)
- CAS Latency: 16 (Column Address Strobe (CAS) Latency refers to the number of clock cycles (for synchronous DRAM) or nanoseconds (for asynchronous DRAM) between the moment an instruction or command is initiated and the moment the data result is available. Generally, the lower the numbers, the better.)
- Features
- Buffered or Registered: Unbuffered (Registered (buffered) memory modules are classified by the addition of a register between the memory controller and DRAM modules. When compared to conventional unbuffered (unregistered) memory, this type provides more stability with less electrical load on the controller, making it a common choice for use in robust applications, such as servers.)
- Data Integrity Check: Non-ECC (Error-correcting code (ECC) memory helps to maintain data integrity within a computer system, protecting it from potential crashes as well as losses or changes to data due to undetected errors. Systems that use ECC have an additional chip on the RAM that acts as the error check.)
- Memory Channels: Quad (Multi-channel memory increases the rate of data transfer between the DRAM memory and memory controller by adding more channels of communication. The more channels, the more memory bandwidth.)
- Lighting Type: None
- Fan Included: false
- Performance Profile(s): Intel XMP 2.0
- Power
- Voltage: 1.2 volts (Amount of power needed to support an electrical current.)
- Warranty
- Warranty - Parts: Limited lifetime
- Warranty - Labor: Limited lifetime
- Other
- UPC: 843591070454
Give your computer a performance boost with this Corsair Vengeance LPX DDR4 DRAM desktop memory, which offers high frequencies and bandwidth with low power consumption. XMP 2.0 support enables simple automatic overclocking.
- Kit of two 8GB DDR4 DRAM memory modules: For improved computer performance. 16GB total capacity.
- High frequency and bandwidth: Along with low power consumption deliver reliable performance.
- Up to 3200MHz operating speed: For fast, reliable multitasking.
- XMP 2.0 support: Enables trouble-free automatic overclocking.
- Pure aluminum heatspreader: Allows fast heat dissipation for cool operation.
- Kit of two 8GB DDR4 DRAM memory modules: For improved computer performance. 16GB total capacity.
- High frequency and bandwidth: Along with low power consumption deliver reliable performance.
- Up to 3200MHz operating speed: For fast, reliable multitasking.
- XMP 2.0 support: Enables trouble-free automatic overclocking.
- Pure aluminum heatspreader: Allows fast heat dissipation for cool operation.
Whats Included
- Vengeance LPX 2-Pack 8GB DDR4 DRAM Desktop Memory Kit
- Owner's manual
- Vengeance LPX 2-Pack 8GB DDR4 DRAM Desktop Memory Kit
- Owner's manual
A: Mine show 4.31. I ordered them about a month ago...
A: Hi Zach, The memory will 1.2V if installed and left at stock 2133 MHz speed, but will then use 1.35V if you enable the 3200 MHz memory profile. -Brian
Q: Im getting a b450 tomahawk max with a ryzen 5 3600 and I'm wondering if this ram is compatible?
A: It'll definitely should work for it, but with 3rd gen Ryzen try to stick with speeds around 3400-3600. 3200 is acceptable, but the other two are preferable.
A: Yes it will. Those motherboards support ddr4 memory. As long as you have ddr4 memory you'll be fine
A: Hi, This would work only in dual channel mode or quad channel mode if a motherboard supports it. Since yours doesn't support triple channel, and in case you add this kit successfully to what your system came with, it would act as single channel. If you have anything else we can help with, please reach out: support.corsair.com -Art
Q: Will this memory work in a HP TP01-2234 Pavilion Desktop computer?
A: Hi Chingu, Based's on that system's motherboard specifications, yes, this memory kit is compatible with that system. If you have any additional questions, please feel free to reach out: support.corsair.com -Albert
A: Hi Nick, According to your motherboard specifications, it should support the speed and capacity of this memory kit. Please be sure to enable the proper speed profile in your motherboard settings. -Brian
Q: will these memory cards fit a del XPS 8700?
A: They should fit but it will depend on your motherboard and cable management all in all, I had an xps also but my took ddr3 for my motherboard
Compare similar products
Give your computer a performance boost with this Corsair Vengeance LPX DDR4 DRAM desktop memory, which offers high frequencies and bandwidth with low power consumption. XMP 2.0 support enables simple automatic overclocking.
Vengeance LPX memory is designed for high-performance overclocking. The heatspreader is made of pure aluminum for faster heat dissipation, and the custom performance PCB helps manage heat and provides superior overclocking headroom. Each IC is individually screened for performance potential. The DDR4 form factor is optimized for the latest Intel DDR4 motherboards and offers higher frequencies, greater bandwidth, and lower power consumption than DDR3 modules. Vengeance LPX DDR4 modules are compatibility-tested across Intel DDR4 motherboards for reliably fast performance.
Create a high-performance system with this two-pack of CORSAIR VENGEANCE LPX 8GB memory sticks. The pure aluminum heat spreader offers quick heat dissipation, and the custom PCB helps deliver ample overclocking headroom. These CORSAIR VENGEANCE LPX 8GB memory sticks are compatible with most motherboards and feature a low-profile design to conserve space.
VENGEANCE LPX memory is designed for high-performance overclocking. The heatspreader is made of pure aluminum for faster heat dissipation, and the custom performance PCB helps manage heat and provides superior overclocking headroom. Each IC is individually screened for performance potential. The DDR4 form factor is optimized for the latest Intel DDR4 motherboards and offers higher frequencies, greater bandwidth, and lower power consumption than DDR3 modules. VENGEANCE LPX DDR4 modules are compatibility-tested across Intel DDR4 motherboards for reliably fast performance. They’re available in multiple colors to match your motherboard, your components, or just your style.
| Pros for CORSAIR - VENGEANCE LPX 16GB (2x8GB) DDR4 3200MHz C16 UDIMM Desktop Memory - Black | |||
|---|---|---|---|
| RAM, Performance, Price, Speed, Ease of use | Performance, RAM, Speed, Price, Ease of use | RAM, Performance, Speed, Price, Ease of use | Performance, RAM, Speed, Price, Ease of use |
| Cons for CORSAIR - VENGEANCE LPX 16GB (2x8GB) DDR4 3200MHz C16 UDIMM Desktop Memory - Black | |||
| RGB, Heatsink, Lag | RGB, Heat, Voltage, XMP | RGB | RGB, Heat, Voltage, XMP |
Specs
Reviews
Customers are saying
Customers commend the VENGEANCE LPX 16GB RAM for its good performance, speed, and overall value. Users appreciate its ease of use and installation, as well as its compatibility with various systems. While some may miss RGB lighting, the RAM's low profile and effective design are generally well-received.

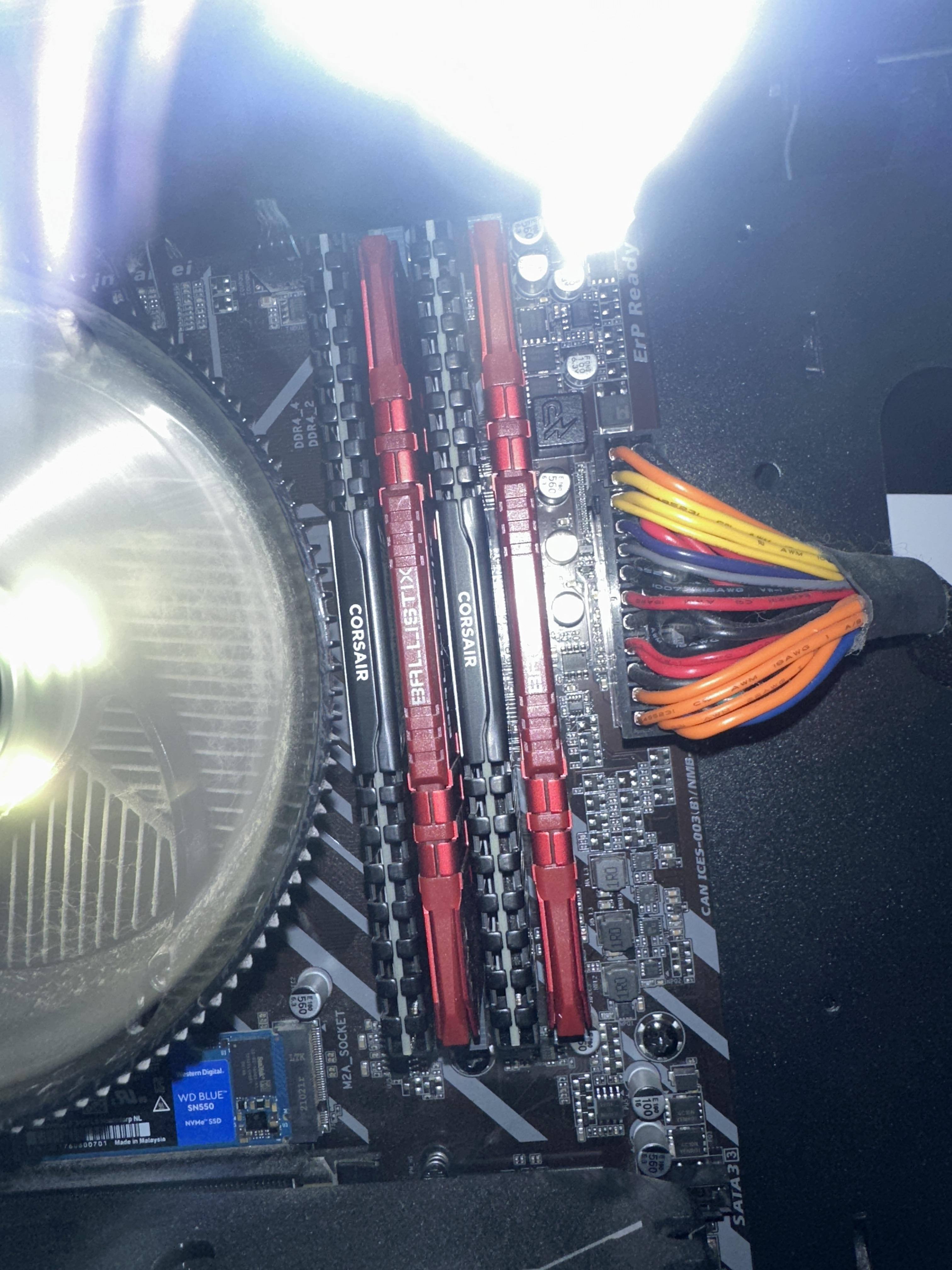

Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
Low profile high performance
Cant go wrong with this RAM. Its cheap, looks good, and performs great.
Posted by Bulldog8716
- Rated 5 out of 5 stars
Easiest Choice for Ram
Install is simple, easy, and from the looks of the XMP profile in videos my process should be easy as well. Best price to performance and Corsair Ram is most reliable, to me.
Posted by MrChrisH
- Rated 5 out of 5 stars
Great RAM for the price and performance excells!
Great RAM for the budget that I was looking for and needed! Performance is great and with the heat spreaders there is little worry about overheating and thermal throttling due to the heat from the RAM chips on the modules.
Posted by JoelE
