Crown - CDi4000 1200W 2 Channel, 2/4/8Ohms, 70V/140V Power Amplifier - Black
Related Item
Specifications
- Continuous Watts x Channel @ Ohms1600W @2 Ohms(Dual-per ch.);1200W @4 Ohms(Dual-per ch.);650W @8 Ohms(Dual-per ch.)Number of Channels2Network Connector(s)1 x LAN, No network connectors
- Key Specs
- Continuous Watts x Channel @ Ohms: 1600W @2 Ohms(Dual-per ch.);1200W @4 Ohms(Dual-per ch.);650W @8 Ohms(Dual-per ch.)
- Number of Channels: 2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Network Connector(s): 1 x LAN, No network connectors
- General
- Brand: Crown
- Model Number: NCDI4000
- Product Name: CDi4000 1200W 2 Channel, 2/4/8Ohms, 70V/140V Power Amplifier
- Color: Black
- Audio
- Continuous Watts x Channel @ Ohms: 1600W @2 Ohms(Dual-per ch.);1200W @4 Ohms(Dual-per ch.);650W @8 Ohms(Dual-per ch.)
- Number of Channels: 2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Amplifier Type: Power amplifiers
- Signal-to-Noise Ratio (SNR): 100 decibels (The ratio of the desired signal's strength to the level of background noise. A ratio higher than 1:1, which equates to greater than 0 decibels, indicates more signal than noise.)
- Inputs
- Video Only Inputs: No video only inputs, No video only inputs, No video only inputs (The number and type of video signal only inputs the product has.)
- Network Connector(s): 1 x LAN, No network connectors
- Line-Level Inputs: true (Also referred to as low-level inputs. Enables the amplifier to receive a sound signal from another device via RCA cables.)
- Outputs
- Speaker Connection Type: Banana Jack/Screw Terminals
- Video Only Outputs: No video only outputs, No video only outputs, No video only outputs (The number and type of video signal only outputs the product has.)
- Features
- Fan Cooled: true
- Bridgeable: true (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Dimensions
- Product Height: 3.5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 19 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 12.25 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 22 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 691991013744
The CDi Series amplifiers are professional tools designed and built for installed sound applications. The series includes four models which are identical except for output power: CDi 1000, CDi 2000, CDi 4000, and CDi 6000. All are rugged and lightweight. CDi-Series amplifiers feature an intuitive front-panel LCD screen to guide installers through their configurations. CDi amplifiers also offer onboard DSP for loudspeaker signal processing. Other features include a switch-mode universal power supply, useful function indicators, pro portional-speed fan-assisted cooling, removable Phoenix-style inputs, barrier strip outputs for low-Z or 70V/140V loads, short-circuit protection and more.
- Versatile: Rated for 2-, 4-, 8-ohm loads and 70V and 140V outputs.
- LCD Panel: Intuitive front-panel LCD screen for quick, easy configuration.
- Output Connectors: 4-position barrier strip with connectors for dual loudspeakers or bridge-mono loudspeaker. Dual connectors work with 2-8 ohm or 70V loads. Bridge-mono connectors work with 4-8 ohm or 140V loads.
- Input Connector: Two 3-pin removable Phoenix-type connectors each accept a balanced line-level input signal.
- DSP: Onboard digital signal processing includes crossovers, EQ filters, delay, and output limiting.
- Presets: Up to 20 user defined DSP presets are available.
- Bridge-Mono Or Stereo: Use this option to set the amplifier to bridge-mono or stereo mode.
- HiQnet USB Connector: Type B, connects to a USB port on a PC.
- Fan: Front-to-rear forced airflow.
- Universal Power Supply: Switch-mode universal power supply.
Whats Included
- CDi4000 Amplifier
Product Manuals
Q: Can the amplifier be bridged?
A: This amplifier can be bridged.
Q: Do the Crown CDi Series amplifiers come in different power outputs?
A: The Crown CDi Series amplifiers are available in a range of power outputs, with four different models offering varying levels of power.
Q: What is the signal-to-noise ratio of the amplifier?
A: The signal-to-noise ratio (SNR) is 100 decibels.
Q: How many channels does the amplifier have?
A: The Crown CDi4000 2X1200W Power Amplifier has two channels.
Q: What is the weight of the amplifier?
A: The Crown CDi4000 2X1200W Power Amplifier weighs 22 pounds.
Q: Is the amplifier fan cooled?
A: The Crown CDi4000 amplifier is fan cooled.
Compare similar products
The CDi Series amplifiers are professional tools designed and built for installed sound applications. The series includes four models which are identical except for output power: CDi 1000, CDi 2000, CDi 4000, and CDi 6000. All are rugged and lightweight. CDi-Series amplifiers feature an intuitive front-panel LCD screen to guide installers through their configurations. CDi amplifiers also offer onboard DSP for loudspeaker signal processing. Other features include a switch-mode universal power supply, useful function indicators, pro portional-speed fan-assisted cooling, removable Phoenix-style inputs, barrier strip outputs for low-Z or 70V/140V loads, short-circuit protection and more.
Find the perfect audio boost for your built-in sound system with this two-channel Crown CDi amplifier. It’s rated for 2-ohm, 4-ohm and 8-ohm loads and 70V/140V outputs for setup versatility, and its onboard digital sound processing lets you add up to 20 user-defined DSP presets. Configure this 500W Crown CDi amplifier easily with its intuitive front-panel LCD screen.

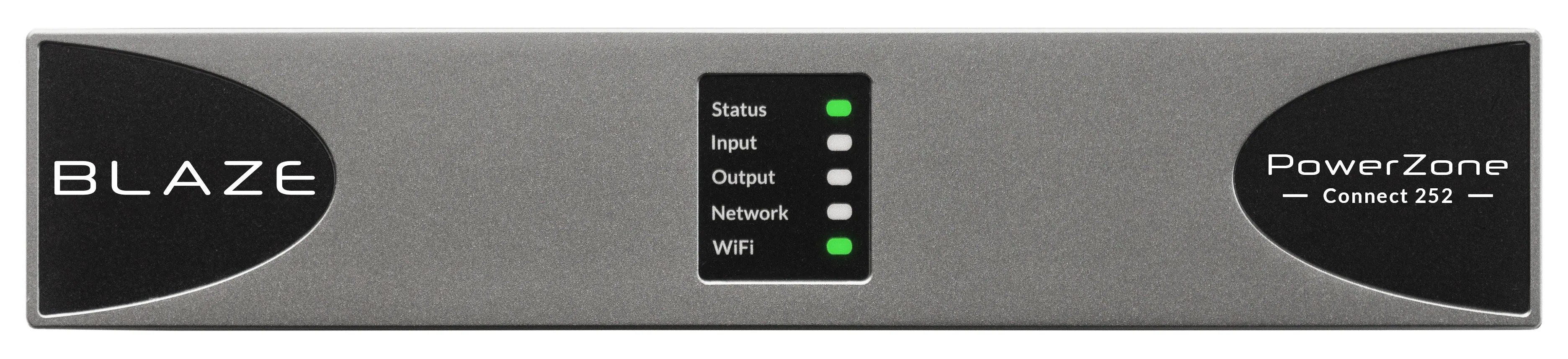

The PowerZone Connect 1U series is a line of DSP-enabled Class-D amplifiers designed to simplify the lives of system installers, providing unmatched reliability, efficiency, and exceptional system configuration. Their compact form factor makes them an ideal choice for audio/voice installation projects with limited space constraints, demanding high-output performance of up to 250 W. The 1U family powers both conventional low-impedance (4 ohms to 16 ohms) loudspeakers and constant voltage (70 V/100 V) transformer-coupled loudspeakers, and features automatic power-sharing technology for proportional distribution. Our intuitive PowerZone Control web app is built into all our PowerZone Connect amplifiers for easy system setup. PowerZone Control facilitates effortless customization of even the most challenging audio/voice systems by delivering many DSP configuration options and tuning features, including multizone setup, input mixing, priority and ducking, restriction, input and output EQ, S/PDIF output routing, high-pass filter, speaker presets, delay, Wall-S1 controller configuration, Sine generator, and much more.
