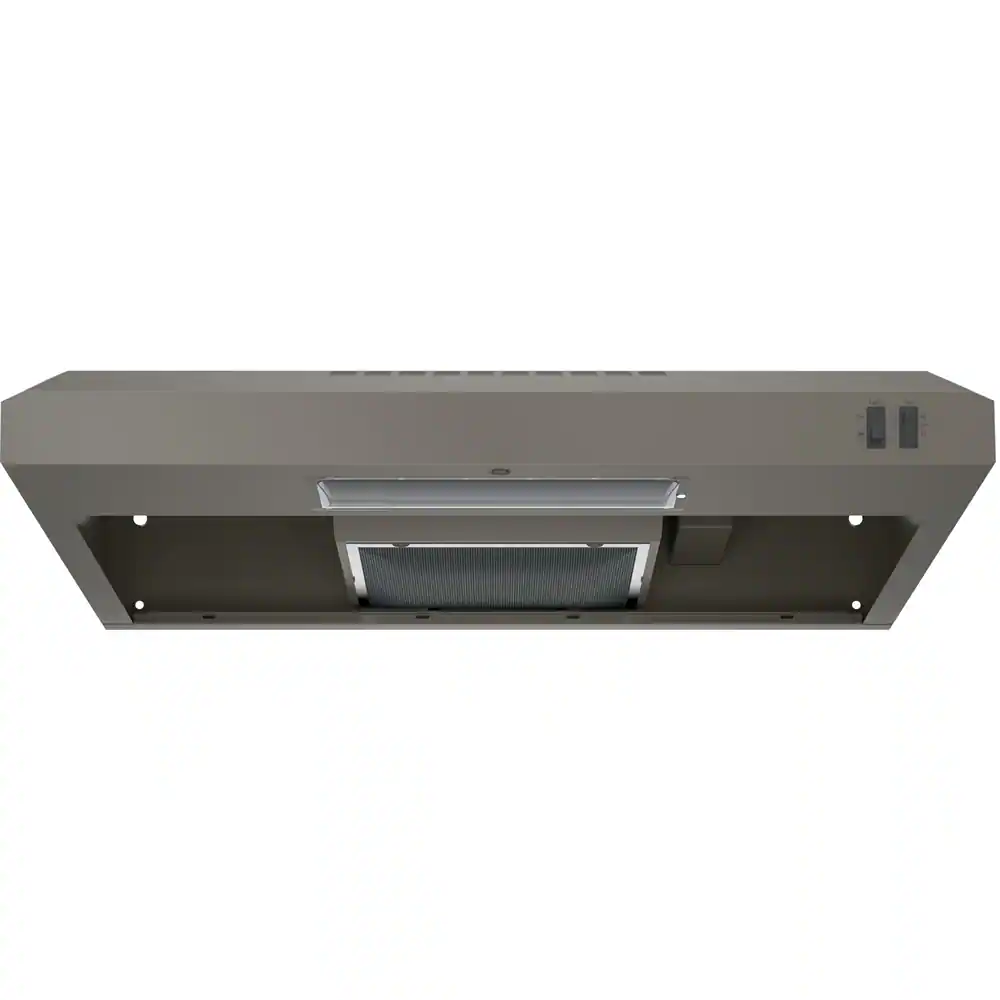

GE - 30 inches - Convertible - Under cabinet Range Hood - Slate
- Key Specs
- Color Finish: Slate
- Product Height: 5 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 20 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: GE
- Model Number: JVX3300EJES
- Product Name: 30" Convertible Range Hood
- Color: Slate
- Color Finish: Slate
- Dimensions
- Product Height: 5 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 24 inches
- Product Width: 29 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 20 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 17 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Round Duct Diameter: 7 inches
- Features
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Under cabinet
- Number of Fan Speeds: 2
- Control Type: Rocker
- Delay Shut-Off: false (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: false
- Remote Control: false
- Integrated Light(s): true
- Number of Lights: 2
- Number of Light Levels: 1
- Bulb Type Required: Incandescent
- Bulb(s) Included: true
- Performance
- Maximum Air Flow Capacity: 200 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 130 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Maximum Operating Sound Level: 6.5 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Minimum Operating Sound Level: 5 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Filter Material: Other
- Dishwasher-Safe Filter: true
- Removable Grease Filter: false
- Number of Filters: 1
- Electrical Specification
- Amperage: 2.5 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 084691816959
Keep smoke out of the kitchen with this GE ventilation system. This under-the-hood unit installs in under 10 minutes, providing your cooktop with lighting and fan to grease, smoke, moisture and odors from your kitchen. This GE ventilation system has easy-access controls on the front of the unit for quick adjustments.
- Easy installation: Ten minutes or less by one person.
- Two-speed, 200-CFM venting system: Removes smoke, grease, odors and moisture.
- Front controls: Enjoy easy access and a subtle appearance.
- Cooktop lighting: Illuminate cooking space and surrounding surface.
- Convertible venting options: Select recirculating or external venting.
- Vertical and rear exhaust: Exhausts from the top or rear of the hood.
- Appearance (Partially enclosed bottom): Enjoy easy access to hood interior.
- Dishwasher safe filter: Filters grease and is dishwasher-safe.
- Easy installation: Ten minutes or less by one person.
- Two-speed, 200-CFM venting system: Removes smoke, grease, odors and moisture.
- Front controls: Enjoy easy access and a subtle appearance.
- Cooktop lighting: Illuminate cooking space and surrounding surface.
- Convertible venting options: Select recirculating or external venting.
- Vertical and rear exhaust: Exhausts from the top or rear of the hood.
- Appearance (Partially enclosed bottom): Enjoy easy access to hood interior.
- Dishwasher safe filter: Filters grease and is dishwasher-safe.
Whats Included
- GE 30" Convertible Range Hood
- Owner's Manual
- GE 30" Convertible Range Hood
- Owner's Manual
Product Manuals
A: The owners manual says that it needs a charcoal filter for recirculation installation. I have only used mine a few times and it still kind of works without the filter. I wouldn’t recommend cooking anything that would let off too much steam or smoke without the filter though.
Q: I need a plug kit. Could anyone tell me which one to get, please?
A: Hi Kate - Thanks for choosing GE® 30" Under The Cabinet Hood JVX3300EJES! GE® Cord Kit JXHC1 is sold separately. It can be purchased online at GEApplianceparts.com. View Range Hood Installation Video: https://www.youtube.com/embed/nrqTMMN9feA?rel=0 - Keep in touch at GEAppliances.com. Sue
A: Hi grandma- Thanks for your purchase! This hood offers convertible venting options- Select recirculating or external venting (Exhausts from the top or rear of the hood). This hood is designed to be vented vertically using a 7" round duct or a 3 1/4” x 10” rectangular duct or horizontally using a 3 1/4” x 10” rectangular duct. The damper/duct connector is included. The metal ductwork is not included. See page 13 of the Installation Instructions: http://products.geappliances.com/MarketingObjectRetrieval/Dispatcher?RequestType=PDF&Name=49-80783-4.pdf - Thanks for checking with us. Enjoy! SUEatGEA
Q: Which is recommended, recirculating or outside venting. Do you have to vent outside? Thanks
A: I’ve always had recirculating which works just fine. Unless you’re already vented for outside seems that would be a big project. Also the light on this unit shines more towards the front, so sometimes it is difficult to see the control panel on my range, which sits to the back
Q: How is the wiring installed? Can this be plugged into an appropriate outlet or must if be hardwired?
A: Hi there - Great question! This range hood can be hardwired or plugged in. If you're wanting to plug the unit in, you will have to purchase the power cord connection kit, model JXHC1. Thanks for checking! -Mikayla@GEA
Q: Hi where do we buy the charcoal filter for this hood or does it come with it. thanks
A: Hi - Thanks for choosing GE® 30" Under The Cabinet Hood JVX3300EJES! Charcoal Filter JXCF53 is included. Optional JXHC1 Power Cord Kit is sold separately. Also, here's a hood installation video: https://www.youtube.com/embed/nrqTMMN9feA?rel=0 - We’re glad to have you in the family. Enjoy! Sue
Q: Is the black option a matte or shiny finish?
A: In between…what do they call it, sort of satin sheen?
