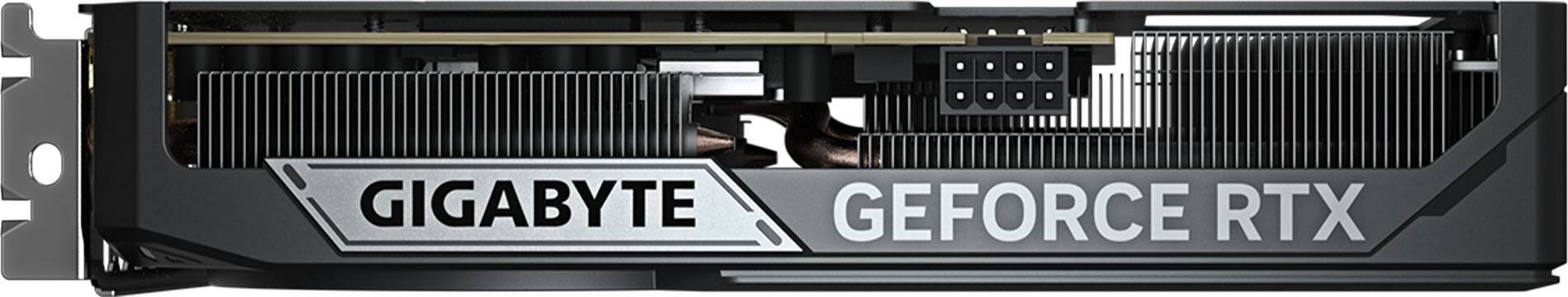

GIGABYTE - GeForce RTX 5060Ti WINDFORCE MAX OC 16GB GDDR7 PCI Express 5.0 Graphics Card - Black
Related Item
Specifications
- GPU Base Clock Frequency2.572 gigahertzGPU Boost Clock Frequency2.587 gigahertzDisplayPort Ports3 x DisplayPortHDMI Ports1 x HDMIMaximum Resolution8K (4320p)Maximum Number of Displays Supported4
- Key Specs
- GPU Base Clock Frequency: 2.572 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.587 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- DisplayPort Ports: 3 x DisplayPort (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI (The number and type of HDMI outputs the product has.)
- Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): Ray tracing (Imaging technology designed to improve graphics rendering.)
- GPU Video Memory (RAM): 16 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR7 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- Slot Size: 2-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- PCI Express Version: PCI Express 5.0
- Product Height: 40 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 120 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 208 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Graphics Processing Unit (GPU): NVIDIA GeForce RTX 5060 Ti (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- General
- Brand: GIGABYTE
- Model Number: GV-N506TWF2MAX OC-16GD
- Product Name: GeForce RTX 5060Ti WINDFORCE MAX OC 16GB GDDR7 PCI Express 5.0 Graphics Card
- Color: Black
- GPU Chipset Manufacturer: NVIDIA
- Graphics Processing Unit (GPU): NVIDIA GeForce RTX 5060 Ti (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- Year of Release: 2025
- Performance
- GPU Base Clock Frequency: 2.572 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.587 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- Cooling System: Fan (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Connectivity
- DisplayPort Ports: 3 x DisplayPort (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI (The number and type of HDMI outputs the product has.)
- Power Connector: 8 Pin (The configuration of the connector as it connects the motherboard to a power supply unit.)
- Display
- Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): Ray tracing (Imaging technology designed to improve graphics rendering.)
- Memory
- GPU Video Memory (RAM): 16 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR7 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- GPU Video Memory Base Clock Frequency (RAM): 28 gigahertz
- Compatibility
- Slot Size: 2-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- PCI Express Version: PCI Express 5.0
- Operating System Compatibility: Windows
- Power
- Total Graphics Power: 180 watts
- Recommended Power Supply: 650 watts
- Dimensions
- Product Height: 40 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 120 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 208 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 1.28 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 889523052341
Ahead of its time, ahead of the game is the GIGABYTE GeForce RTX 5060 Ti WINDFORCE MAX OC 16G Graphics Cards. Powered by NVIDIA's new RTX architecture, the GIGABYTE GeForce RTX 5060 Ti WINDFORCE MAX OC 16G brings stunning visuals, amazingly fast frame rates, and AI acceleration to games and creative applications with its enhanced RT Cores and Tensor Cores, along with a staggering 16GB 128-bit GDDR7 memory.
- NVIDIA Blackwell: Powered by the NVIDIA Blackwell architecture and DLSS 6
- NVIDIA GeForce RTX 5060 Ti: Powered by GeForce RTX 5060 Ti
- Memory: Integrated with 16GB GDDR7 128bit memory interface
- Cooling: WINDFORCE cooling system
- PCIe 5.0: PCIe 5.0 x8
- Additional Features: Protective metal back plate
Whats Included
- GV-N506TWF2MAX OC-16GD
