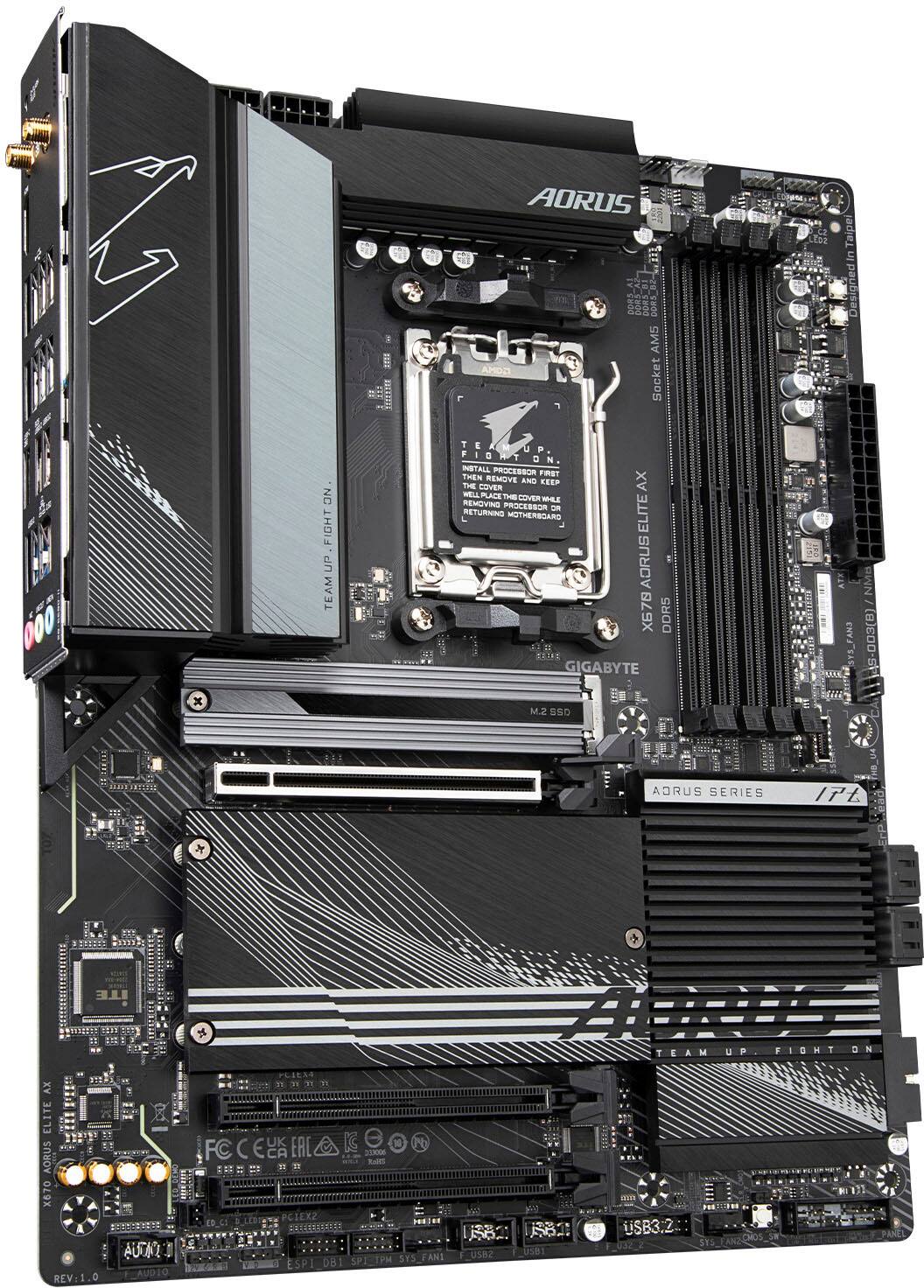

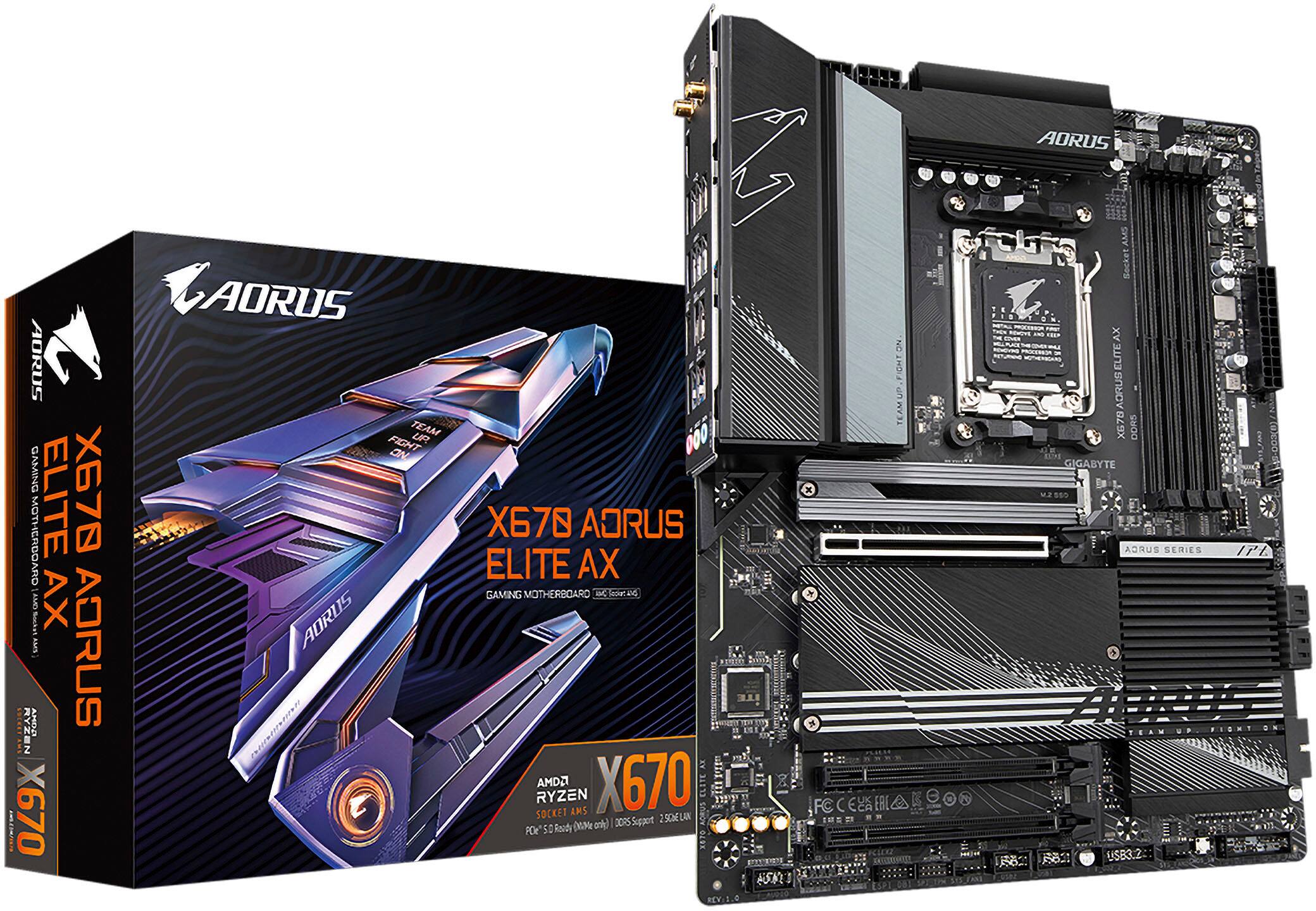

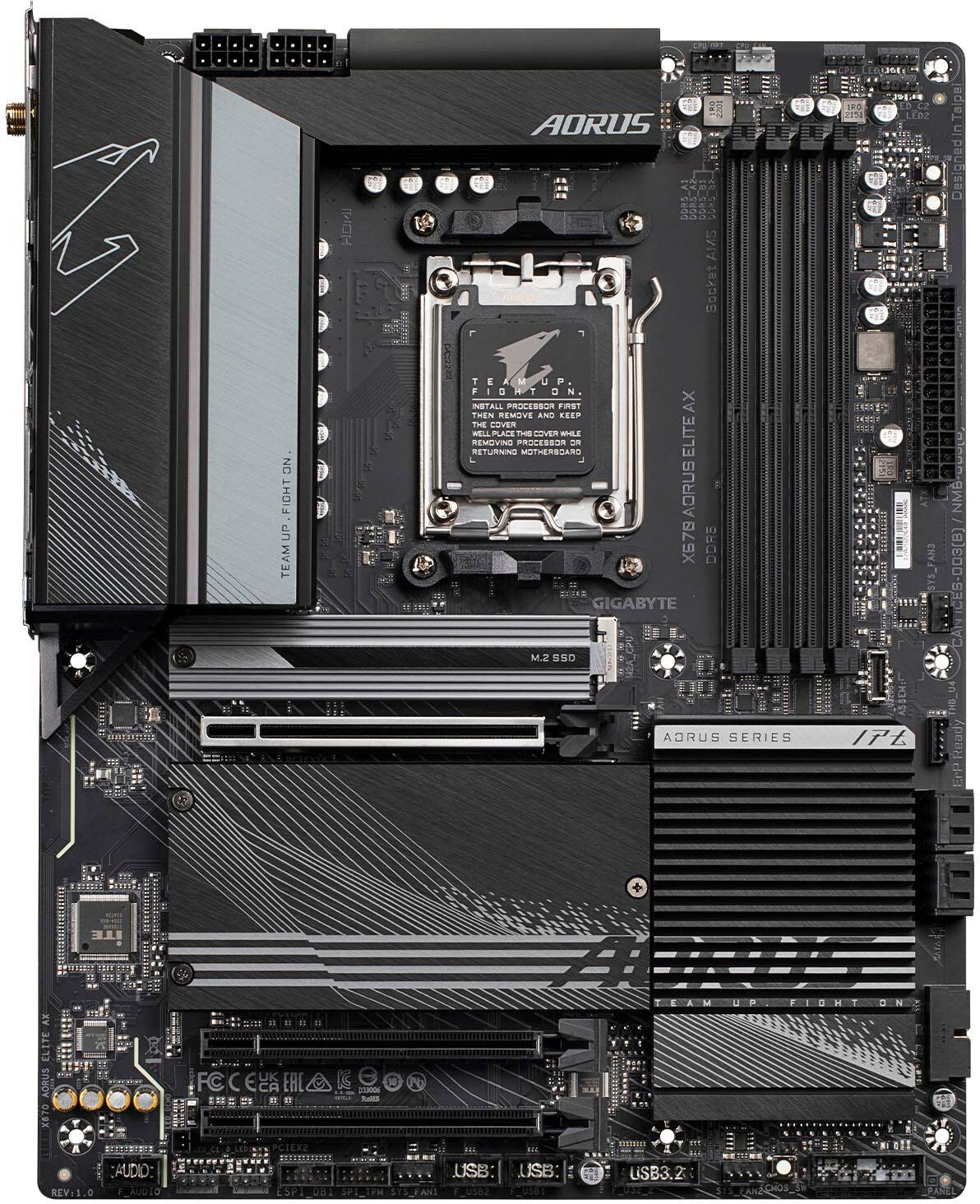

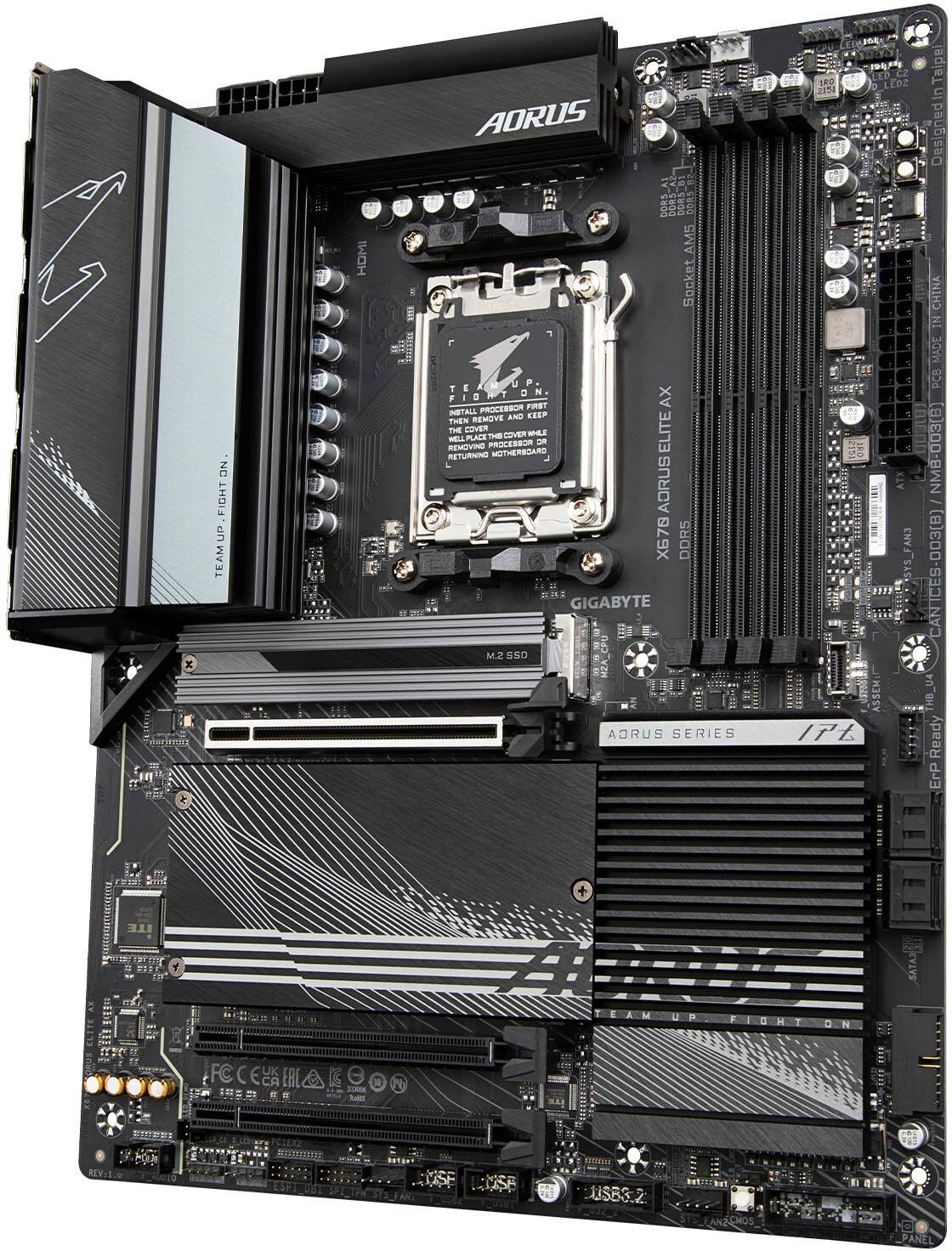

GIGABYTE - X670 AORUS ELITE AX (Socket AM5) AMD X670 ATX DDR5 Wi-Fi 6E Motherboard - Black
More Buying Options
Specifications
- ChipsetAMD X670Form FactorATXProcessor SocketSocket AM5 (LGA 1718)Number of PCI-E Slots3Wireless Networking StandardWi-Fi 6ENumber Of Memory Slots4
- Key Specs
- Chipset: AMD X670
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Number of PCI-E Slots: 3 (How many peripheral component interconnect express slots are available.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 128 gigabytes
- Memory Type Supported: DDR5
- General
- Brand: GIGABYTE
- Model Number: X670 AORUS ELITE AX
- Product Name: X670 AORUS ELITE AX (Socket AM5) AMD X670 ATX DDR5 Wi-Fi 6E Motherboard
- Color: Black
- Year of Release: 2022
- Compatibility
- Chipset: AMD X670
- Chipset Compatibility: AMD
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: AMD Ryzen 5 7000 Series, AMD Ryzen 7 7000 Series, AMD Ryzen 9 7000 Series
- Operating System Compatibility: Windows 10, Windows 11 Home
- Slot
- Number of M.2 Slots: 4 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number of PCI-E Slots: 3 (How many peripheral component interconnect express slots are available.)
- Number Of PCI-E x16 Slots: 3
- Number Of PCI-E x8 Slots: 0
- Number Of PCI-E x4 Slots: 0
- Number Of PCI-E x2 Slots: 0
- Number Of PCI-E x1 Slots: 0
- Number Of Memory Slots: 4
- Connectivity
- Power Connector: 24-pin ATX main power connector, 8-pin ATX 12V power connectors (The configuration of the connector as it connects the motherboard to a power supply unit.)
- SATA Connector: 4x SATA 6G (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Fan/Cooling System Connector: 1 x CPU fan header,1 x water cooling CPU fan header,3 x system fan headers (The configuration of the connector as it connects a computer component to a fan or cooling system.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: AX (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)

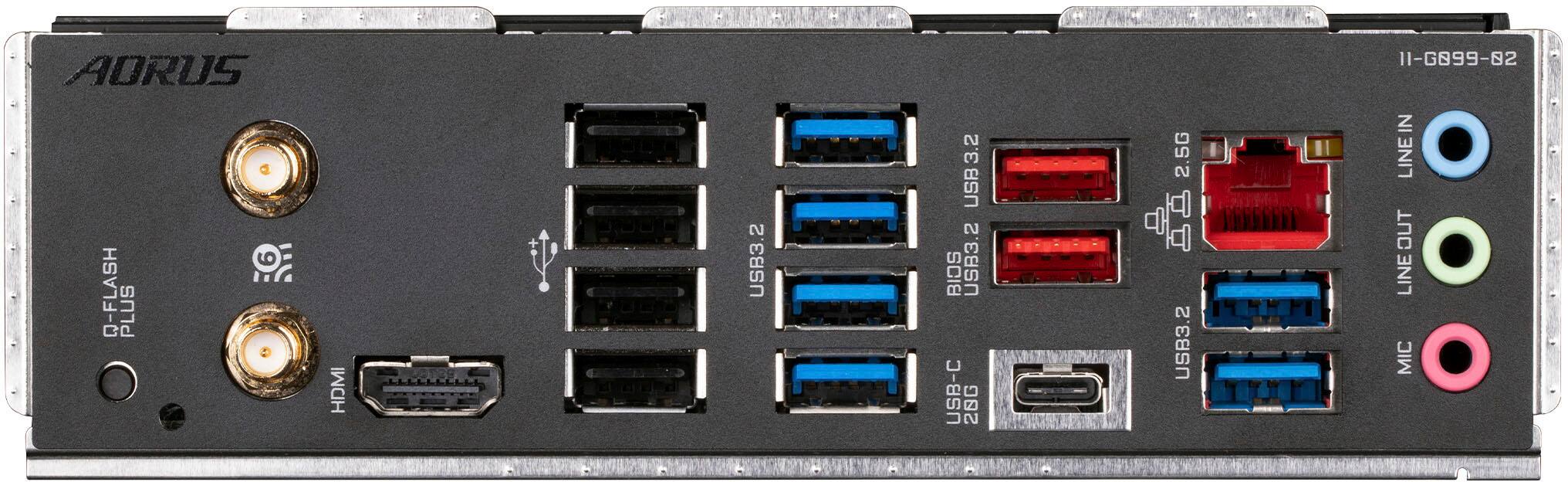

- Ports
- USB Ports: 4 x USB-A 2.0, 8 x USB-A 3.2, 1 x USB-C 3.2, None, None (The number and type of USB ports the product has.)
- Thunderbolt Ports: 0 (The number and type of Thunderbolt ports the product has.)
- Audio Ports: 3 x audio jacks
- Number of Audio Channels: 1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 246.38 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 279.4 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 88 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 128 gigabytes
- Memory Type Supported: DDR5
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 0, RAID 01 (RAID 0+1), RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: 5 Years
- Other
- UPC: 889523033500

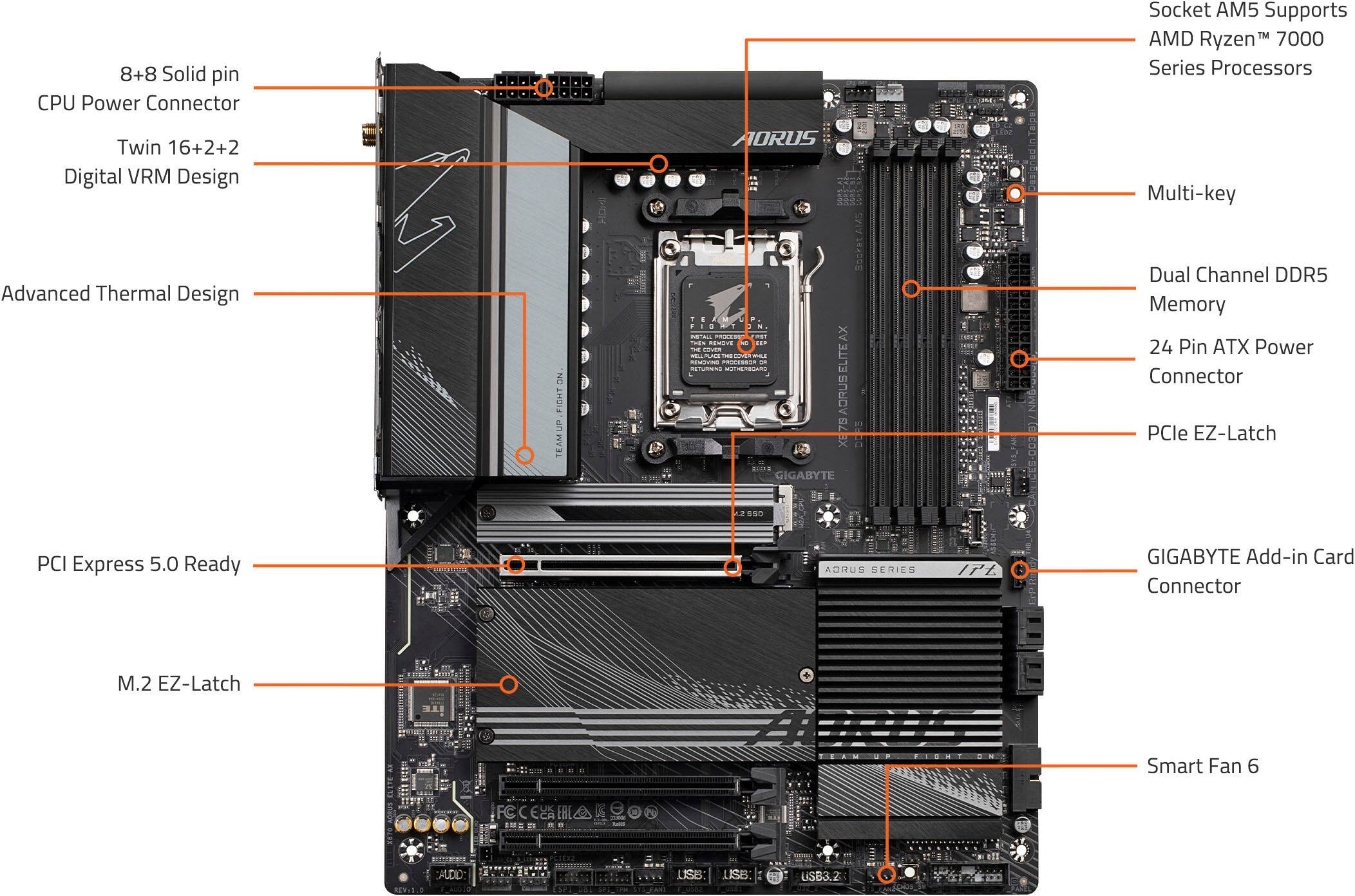

A new era is here. The X670 AORUS ELITE AX supports AM5 Processors and features and unparalleled performance. GIGABYTE X670 motherboards come with upgraded power design, high grade storage standards, and outstanding connectivity that enables you to optimize your performance.
- AMD AM5 Socket:: Supports AMD Ryzen 7000 Series Processors
- DDR5 Compatible:: 4*SMD DIMMs with ECC/Non-ECC Unbuffered Memory
- Dynamic Audio:: 8-Ch HD Audio, Audio Noise Guard, High-End Audio Capacitors
- Commanding Power Design:: Direct 16+2+2 Phases Digital VRM Solution, 8-Layer 2X Copper PCB
- Cutting-Edge Thermal Design:: Advanced Thermal Design, M.2 Thermal Guard, Ultra Durable Armor
- Next Gen Connectivity:: PCIe 5.0, Quad NVMe x4 M.2, USB-C, BT 5.2
- M.2 EZ-Latch:: M.2 Connectors with a Quick Release & Screwless Design
- Fast Networking:: 2.5GbE LAN, AMD WiFi 6E 802.11ax
- Fine Tuning Features:: RGB FUSION, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Multi-key for Reset/RGB Switch/Direct to BIOS/Safe Mode, Q-Flash Plus - Update BIOS without installing CPU, Memory, and GPU
- Extended Warranty:: 5-Year Warranty
Q: Does this motherboard have built-in Wi-Fi?
A: Yes, this motherboard has built-in Wi-Fi 6E.
Q: What is the maximum amount of memory supported by this motherboard?
A: The maximum supported memory is 128 gigabytes.
Q: What processor socket does this motherboard use?
A: This motherboard uses the AMD AM5 socket.
Q: How many M.2 slots are available on this motherboard?
A: This motherboard has 4 M.2 slots.
Q: What type of audio output does this motherboard support?
A: It supports 7.1-channel High Definition Audio output.
A: You are absolutely correct Gigabyte X670 AORUS ELITE AX (Socket AM5) the top PCIe x16 slot is a PCIe 4.0 slot. But I doubt it really matters AMD has confirmed that its next-gen Radeon RX 7000 series "RDNA 3" graphics card will NOT be using the new PCIe Gen5 "12VHPWR" power connector... which is something we kinda knew already, but now 100% confirmed from AMD themselves. Oct 25, 2022 and Nvidia 4000 series GPU's only support PCIe 4.0 So no matter what you see listed Keep in mind there must be a 6 pin power connector on a Motherboard that will be strictly for powering PCIe Gen 5.0 GPU's or any other Gen 5.0 devices. Bottom line = "Forget About It at least for the next 2 generations or about 4 to 5 years for GPU's
Q: Does this motherboard support AMD Ryzen 7 8000 processors?
A: Hello, This motherboard will support AMD Ryzen 7 8000 Series Processors. Be sure to update the BIOS first. - KP
Q: is this mother compatible with AMD - Ryzen 7 8700G?
A: undefined
Compare similar products
A new era is here. The X670 AORUS ELITE AX supports AM5 Processors and features and unparalleled performance. GIGABYTE X670 motherboards come with upgraded power design, high grade storage standards, and outstanding connectivity that enables you to optimize your performance.
ASUS TUF GAMING X670E-PLUS WIFI takes all the essential elements of the latest AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability.
A new era is here. The B650 AORUS ELITE AX supports AM5 Processors and features and unparalleled performance. GIGABYTE B650 motherboards come with upgraded power design, high grade storage standards, and outstanding connectivity that enables you to optimize your performance.
The X870 AORUS ELITE WIFI7 supports AM5 Processors and features unparalleled performance. GIGABYTE X870 motherboards come with upgraded power design, high grade storage standards, and outstanding connectivity that enables you to optimize your performance.
| Pros for GIGABYTE - X670 AORUS ELITE AX (Socket AM5) AMD X670 ATX DDR5 Wi-Fi 6E Motherboard - Black | |||
|---|---|---|---|
| Overall Performance, Motherboard | BIOS, Build Quality, Performance, Compatibility, RAM | Overall Performance, BIOS, Ease of use, Price, Wi-Fi | Build Quality, BIOS, Wi-Fi 7, Connectivity, Installation |
| Cons for GIGABYTE - X670 AORUS ELITE AX (Socket AM5) AMD X670 ATX DDR5 Wi-Fi 6E Motherboard - Black | |||
| There were no cons for this product— | RGB, Wi-Fi | Firmware, Manual | PCIe Bandwidth |
Specs
Reviews
Customers are saying
Customers admire the X670 AORUS ELITE AX motherboard, with many recommending it for AM5 builds. Users are pleased with the overall performance, noting it worked seamlessly right out of the box.
Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
My Ryzen 7900x build
Pound for pound, one of the best, AM5 motherboard on the market for ryzen 7000 series.
Posted by
- Rated 5 out of 5 stars
Gigabyte 670
Great motherboard would recommend to anyone building on AM5.
Posted by Vas25
- Rated 5 out of 5 stars
Great MoBo
Works great! USB 3.2! USB 3.0 can still fit if you vave not upgraded yet. Has all the fan connectors you could want and fits great into my case. Easy install and luckily only had to re route 1 cable to to connect.
Posted by Sillkid
