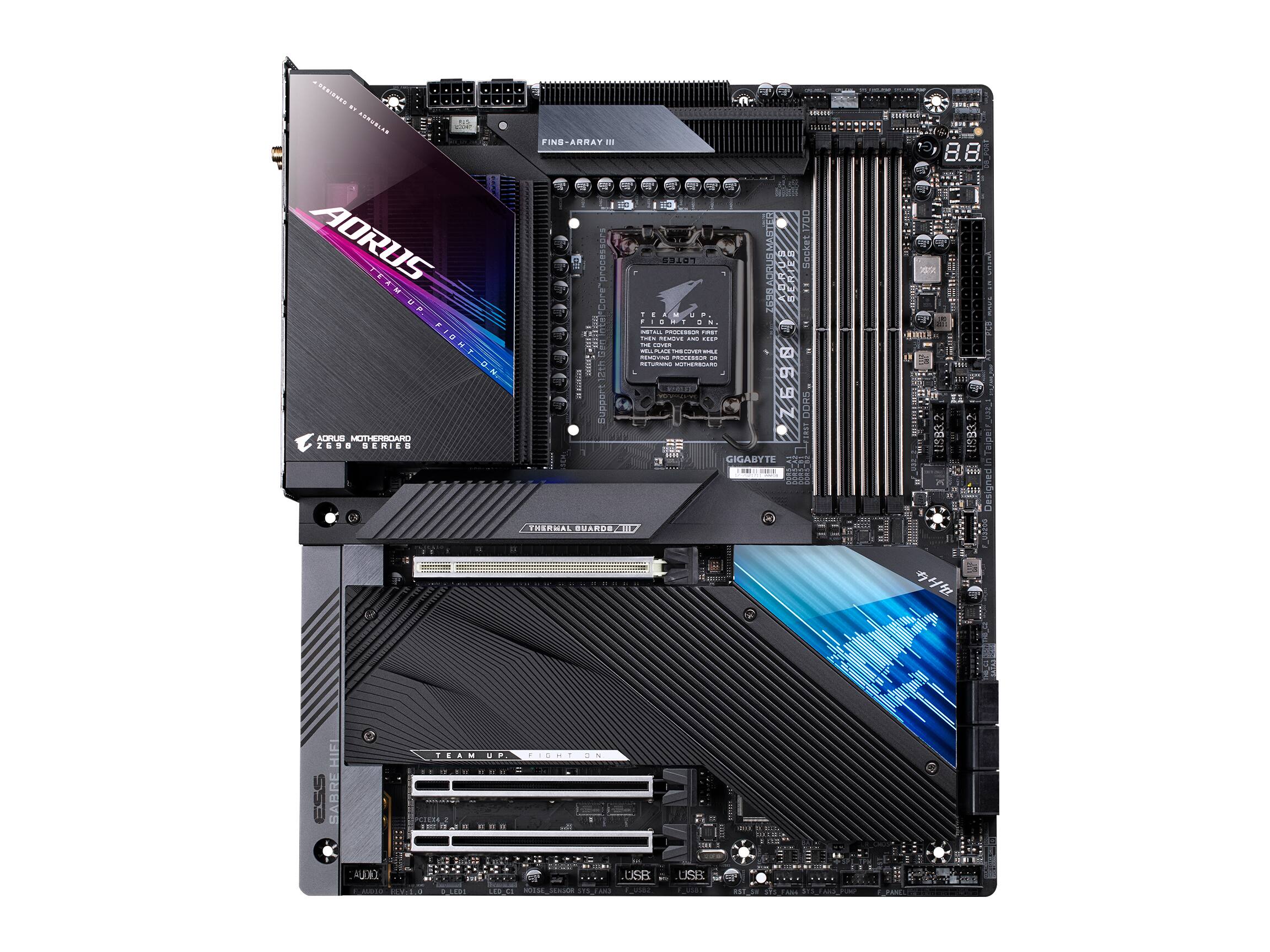

GIGABYTE - Z690 AORUS MASTER Socket 1700 USB 3.2 Intel Motherboard with RGB Lighting - Black
- Key Specs
- Chipset: Intel Z690 Express Chipset
- Form Factor: EATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1700 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 128 gigabytes
- General
- Brand: GIGABYTE
- Model Number: Z690 AORUS MASTER
- Product Name: Z690 AORUS MASTER Socket 1700 USB 3.2 Intel Motherboard with RGB Lighting
- Color: Black
- Compatibility
- Chipset: Intel Z690 Express Chipset
- Form Factor: EATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1700 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: Intel Core i9, Intel Core i7, Intel Core i5
- Connectivity
- Power Connector: 1 x 24-pin ATX main power connector, 2 x 8-pin ATX 12V power connectors (The configuration of the connector as it connects the motherboard to a power supply unit.)
- Slot
- Number Of Memory Slots: 4
- Dimensions
- Product Width: 11.57 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Memory
- Maximum Memory Supported: 128 gigabytes
- Other
- UPC: 889523030035
The King of Gaming is here. The Z690 AORUS MASTER supports 12th Gen Intel Processors and unparalled performance. GIGABYTE Z690 motherboards come with upgraded power design, high grade storage standards, and outstanding connectivity that enables you to optimize your performance.
- Processor Compatibility : Intel LGA 1700 Socket: Supports 12th Gen Intel Core Series Processors
- DDR5 Compatible: Dual Channel Non-ECC Unbuffered DDR5
- Commanding Power Design: 19+1+2 Phases Direct VRM Design with 105A Power Stage with Tantalum Polymer Capacitors
- Cutting-Edge Thermal Design: Thermal Reactive Armor with NanoCarbon Fins-Array III, Heatsink Direct Touch Heatpipe II, NanoCarbon Baseplate, Thermal Guards XTREME
- Next Gen Connectivity: PCIe 5.0, Quad NVMe PCIe 4.0 x4 M.2, Intel Thunderbolt 4, USB 3.2 Gen 2x2 Type-C
- Fast Networking: AQUANTIA 10GbE LAN, Intel 2.5 GbE LAN, Intel WiFi 6E 802.11ax, BT5
- Dynamic Audio: Essential USB Hex Audio Card and Essential USB DAC
- Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing, CPU, Memory, and GPU
- Processor Compatibility : Intel LGA 1700 Socket: Supports 12th Gen Intel Core Series Processors
- DDR5 Compatible: Dual Channel Non-ECC Unbuffered DDR5
- Commanding Power Design: 19+1+2 Phases Direct VRM Design with 105A Power Stage with Tantalum Polymer Capacitors
- Cutting-Edge Thermal Design: Thermal Reactive Armor with NanoCarbon Fins-Array III, Heatsink Direct Touch Heatpipe II, NanoCarbon Baseplate, Thermal Guards XTREME
- Next Gen Connectivity: PCIe 5.0, Quad NVMe PCIe 4.0 x4 M.2, Intel Thunderbolt 4, USB 3.2 Gen 2x2 Type-C
- Fast Networking: AQUANTIA 10GbE LAN, Intel 2.5 GbE LAN, Intel WiFi 6E 802.11ax, BT5
- Dynamic Audio: Essential USB Hex Audio Card and Essential USB DAC
- Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing, CPU, Memory, and GPU
Product Manuals
A: I wondered the same thing. Upon checking the model on the Gigabyte website the supported memory list shows only DDR5.
A: So, I love Gigabyte, but I decided to try asus with new Intel support. Everything is perfect and the BIOS settings are very easy. Gigabyte, on the other hand, leaves a lot to be desired in this aspect and the worst of all is that its support and everything via email, and it takes a long time, a repair on an Mb takes almost a year.
A: The 7000D is a safe bet! Good EATX case. But generally cases that specifically are advertised to qualify for at EATX board fit should be used. The big problem with some EATX cases however was fitting-in a AIO and many were forced to install their AIO's on top only. Problems with hoses getting in the way of the RAM. So this needs further checking on a case by case basis!
