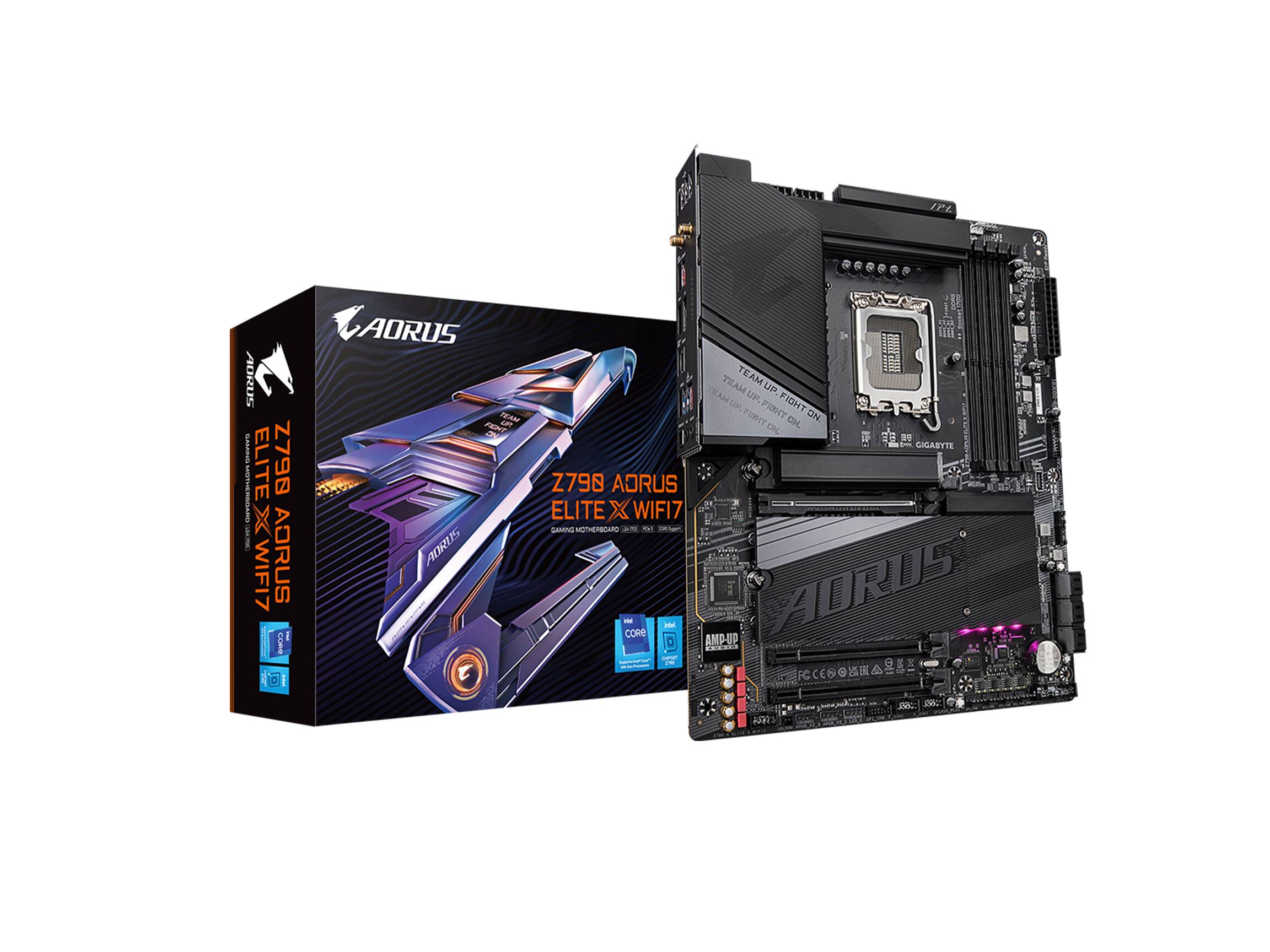

GIGABYTE - Z790 AORUS ELITE X WIFI7 (Socket LGA 1700) Intel Z790 ATX DDR5 Wi-Fi 7 Motherboard - Black
More Buying Options
Specifications
- ChipsetIntel Z790Form FactorATXProcessor SocketSocket LGA 1700Number of PCI-E Slots3Wireless Networking StandardWi-Fi 7Number Of Memory Slots4
- Key Specs
- Chipset: Intel Z790
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1700 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Number of PCI-E Slots: 3 (How many peripheral component interconnect express slots are available.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 192 gigabytes
- Memory Type Supported: DDR5
- General
- Brand: GIGABYTE
- Model Number: Z790 A ELITE X WIFI7
- Product Name: GIGABYTE - Z790 AORUS ELITE X WIFI7 (Socket LGA 1700) Intel Z790 ATX DDR5 Wi-Fi 7 Motherboard
- Color: Black
- Year of Release: 2023
- Compatibility
- Chipset: Intel Z790
- Chipset Compatibility: Intel
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1700 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: Intel 13th Generation Core i7, Intel 13th Generation Core i9, Intel 12th Generation Core i9, Intel 12th Generation Core i7
- Operating System Compatibility: Windows 11 Home, Mac OS
- Slot
- Number of M.2 Slots: 4 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number of PCI-E Slots: 3 (How many peripheral component interconnect express slots are available.)
- Number Of PCI-E x16 Slots: 3
- Number Of PCI-E x8 Slots: 0
- Number Of PCI-E x4 Slots: 0
- Number Of PCI-E x2 Slots: 0
- Number Of PCI-E x1 Slots: 0
- Number Of Memory Slots: 4
- Connectivity
- Power Connector: 24-pin ATX main power connector, 8-pin ATX 12V power connectors (The configuration of the connector as it connects the motherboard to a power supply unit.)
- SATA Connector: 6 x SATA 6G (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Fan/Cooling System Connector: 1 x CPU fan header,1 x CPU fan/water cooling pump header,3 x system fan headers,1 x system fan/water cooling pump headers (The configuration of the connector as it connects a computer component to a fan or cooling system.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: BE (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Ports
- USB Ports: 2 x USB-C 3.2, 2 x USB-A 3.2, None, None, None (The number and type of USB ports the product has.)
- Thunderbolt Ports: 0 (The number and type of Thunderbolt ports the product has.)
- Audio Ports: 2 x audio jacks
- Number of Audio Channels: 1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 305 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 244 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 80 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 192 gigabytes
- Memory Type Supported: DDR5
- Memory Format Supported: DIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 0, RAID 1, RAID 5 (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Other
- UPC: 889523039298

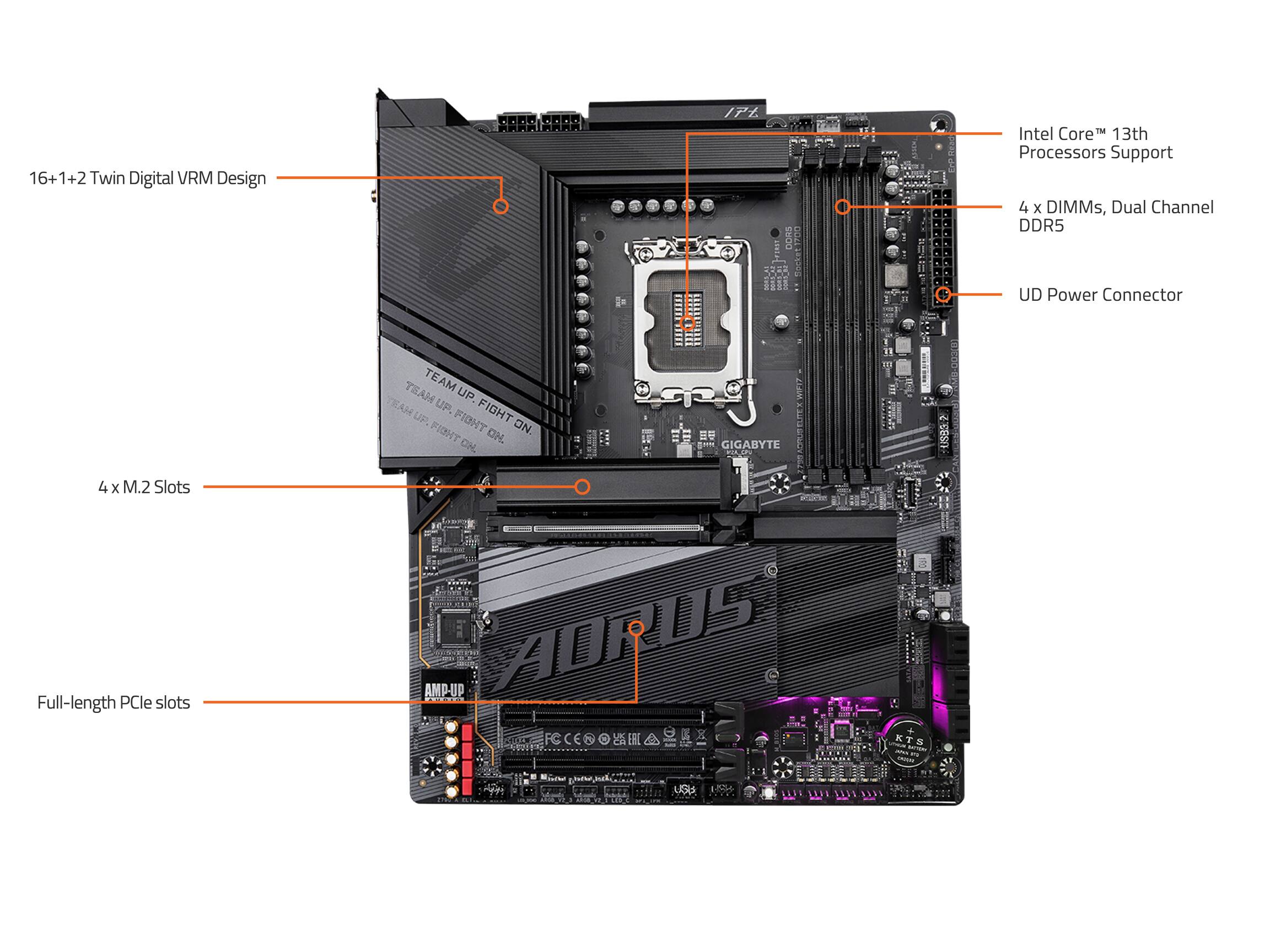

Introducing AORUS Z790 X Motherboards, the most powerful platform, built for the next generation of Intel Core processors. With leading performance in DDR5 memory, upgraded DIY innovation, and an all-new BIOS, AORUS Z790 X Motherboards are built to unleash next-gen power.
- Processor Compatibility: Intel LGA 1700 Socket for support of 13th and next-gen Intel Core Series Processors

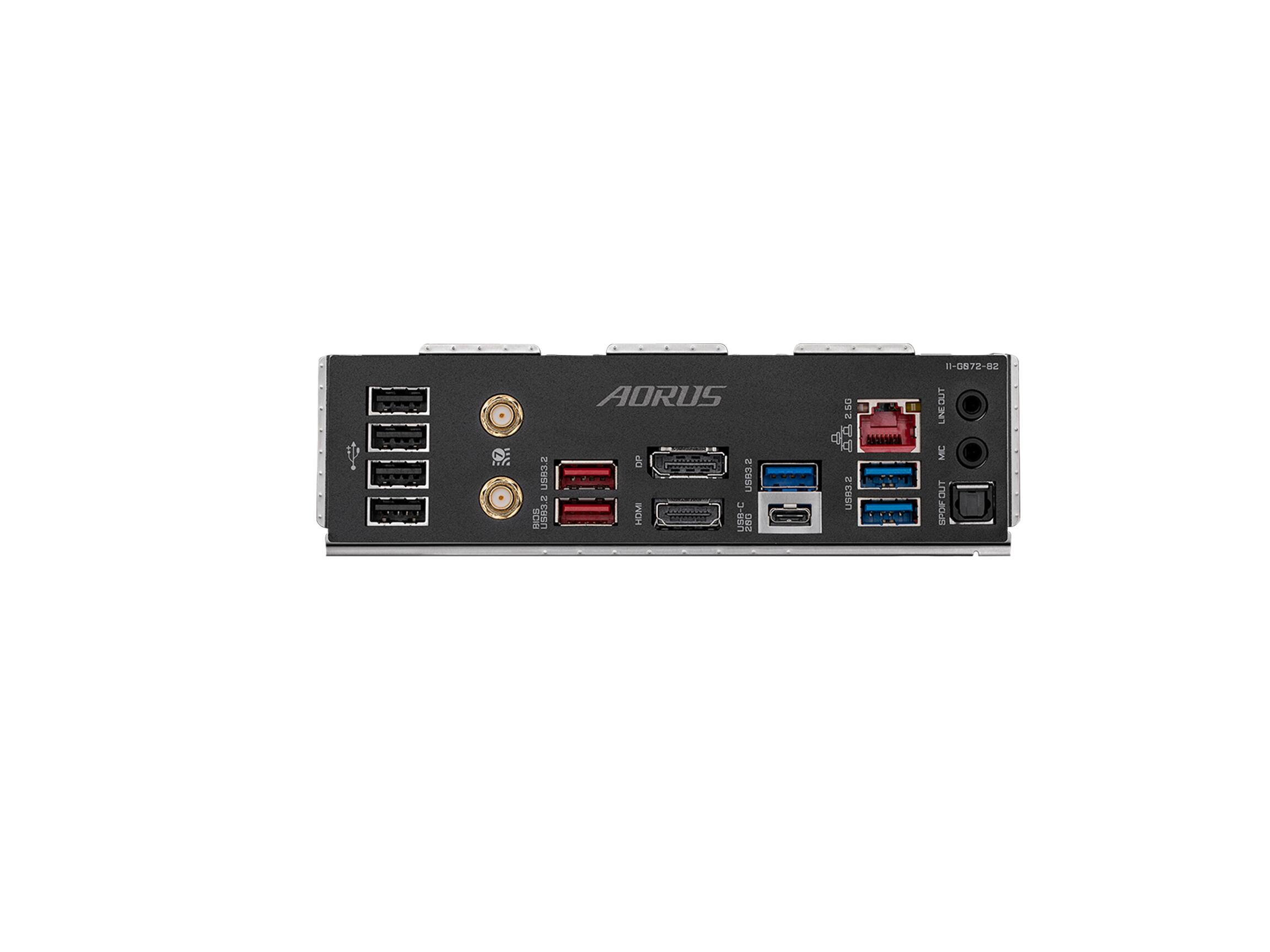

- Graphics: 1x Display Port, 1x HDMI
- Memory (Memory Supported): DDR5 Compatible - Dual Channel DDR5, 4 DIMMs
- Audio: 7.1-ch HD Audio, Audio Noise Guard, High-End Audio Capacitors
- Expansion Slots: Next Gen Connectivity - PCIe 5.0, NVMe PCIe 4.0 M.2
- Special Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing, CPU, Memory, and GPU
- Processor Compatibility: Intel LGA 1700 Socket for support of 13th and next-gen Intel Core Series Processors
- Graphics: 1x Display Port, 1x HDMI
- Memory (Memory Supported): DDR5 Compatible - Dual Channel DDR5, 4 DIMMs
- Audio: 7.1-ch HD Audio, Audio Noise Guard, High-End Audio Capacitors
- Expansion Slots: Next Gen Connectivity - PCIe 5.0, NVMe PCIe 4.0 M.2
- Special Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing, CPU, Memory, and GPU
Q: What type of memory does this motherboard support?
A: This motherboard supports DDR5 type memory.
Q: What processors are compatible with this motherboard?
A: This motherboard supports 13th and next-gen Intel Core Series Processors.
Q: What kind of audio features does this motherboard have?
A: This motherboard has 7.1-ch HD Audio, Audio Noise Guard, and High-End Audio Capacitors.
Q: Does this motherboard have bluetooth connectivity?
A: Yes, this motherboard comes with bluetooth connectivity.
Q: How many M.2 slots are available on this motherboard?
A: This motherboard has 4 M.2 slots.
Q: What is the maximum memory supported by this motherboard?
A: This motherboard supports a maximum memory of 192 gigabytes.
Q: What revision is the Gigabyte Z790 AORUS eLITE x wIFI 7?
A: I just got one today 3/30/25 and they are still shipping Rev 1.0 with the MediaTek Wifi 7
A: Yes this is the Elite X it supports all 14th gen without an update.
Compare similar products
Introducing AORUS Z790 X Motherboards, the most powerful platform, built for the next generation of Intel Core processors. With leading performance in DDR5 memory, upgraded DIY innovation, and an all-new BIOS, AORUS Z790 X Motherboards are built to unleash next-gen power.
Ascend the Throne of Gaming with the Z790 AORUS ELITE AX (rev. 1.x). The Z790 AORUS ELITE AX (rev. 1.x) supports 14th and 13th Gen Intel Core Processors unparalleled performance. Unlock your gaming potential with GIGABYTE Z790 Motherboards. GIGABYTE Z790 motherboards come with upgraded power design, high grade storage standards, and outstanding connectivity that enables you to optimize your performance. Claim what is yours.
ASUS TUF GAMING Z790-PLUS WIFI takes all the essential elements of Intel processors and combines them with game-ready features and proven durability.
MAG Z790 TOMAHAWK MAX WIFI is designed for gamers, providing a stable, solid, and durable foundation for their PC builds. Coming up with Wi-Fi 7 solution, 2.5G LAN, DDR5, PCIe 5.0 solutions, and exclusive M.2 Shield Frozr, it's ready for Intel 14 Gen and 13th Gen Core processors.
| Pros for GIGABYTE - Z790 AORUS ELITE X WIFI7 (Socket LGA 1700) Intel Z790 ATX DDR5 Wi-Fi 7 Motherboard - Black | |||
|---|---|---|---|
| There were no pros for this product— | There were no pros for this product— | Connectivity, Overall Performance, I/O Port, Installation Ease, Compatibility | Connectivity, Performance, Ease of use, BIOS, Price |
| Cons for GIGABYTE - Z790 AORUS ELITE X WIFI7 (Socket LGA 1700) Intel Z790 ATX DDR5 Wi-Fi 7 Motherboard - Black | |||
| There were no cons for this product— | There were no cons for this product— | There were no cons for this product— | M.2 Slot Access |
Specs
Reviews
Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
Lots of Features
Solid motherboard with lots of features. The 2.5G ethernet port and the 6 SATA ports is hard to come by at a reasonable price these days. Worked straight out of the box with my 14700K cpu, no BIOS update required. Installing an SSD m.2 drive is super easy on this board. No issues so far. Great packaging too.
This review is from GIGABYTE - Z790 AORUS ELITE X WIFI7 (Socket LGA 1700) Intel Z790 ATX DDR5 Wi-Fi 7 Motherboard - Black
Posted by Jeff
- Rated 4 out of 5 stars
Amazing
This motherboard does what it does best and it's the best at absolutely doing what it should do in every way.
This review is from GIGABYTE - Z790 AORUS ELITE X WIFI7 (Socket LGA 1700) Intel Z790 ATX DDR5 Wi-Fi 7 Motherboard - Black
Posted by JasonS
- Rated 5 out of 5 stars
Great MoBo
Solid MoBo for the money. Very well built, easy to add NVMe and more.
This review is from GIGABYTE - Z790 AORUS ELITE X WIFI7 (Socket LGA 1700) Intel Z790 ATX DDR5 Wi-Fi 7 Motherboard - Black
Posted by MichaelL
