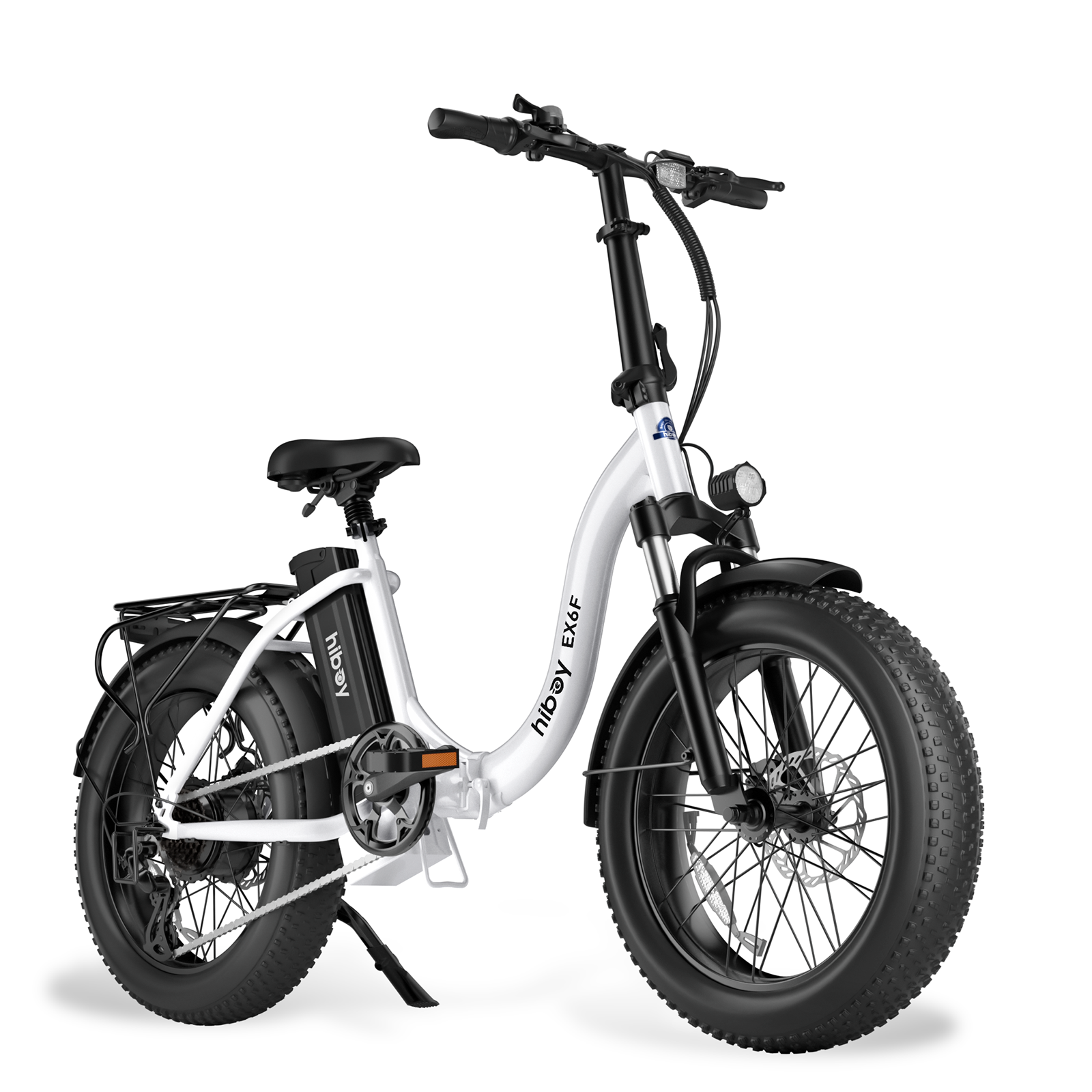

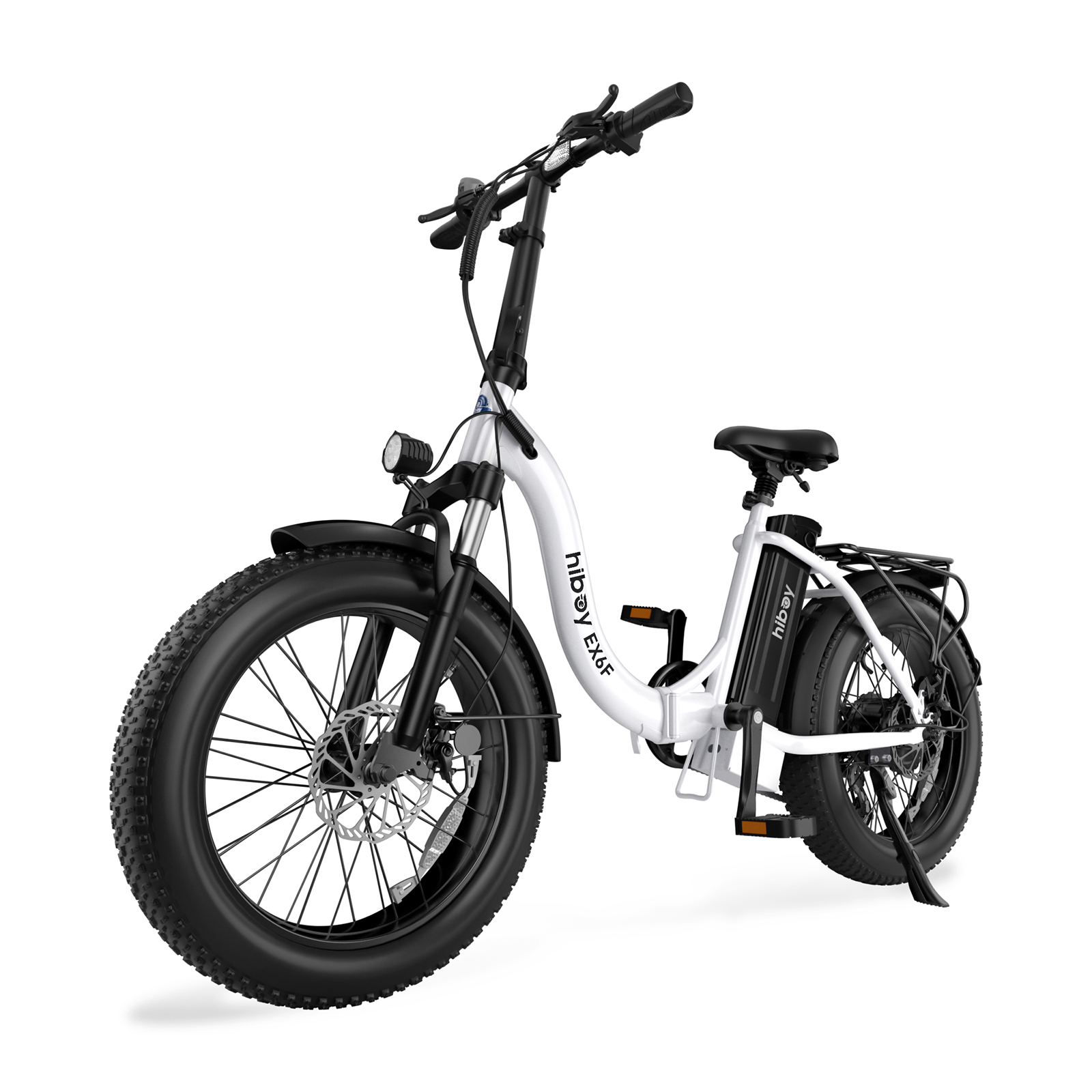

HiBoy - EX6F Foldable Electric Bike w/ 75 mi Max Operating Range & 25 mph Max Speed - 67.7*24.2*50.8 - White
Model: EX6F-White
SKU: 6641786
This item is no longer available in new condition. See similar items below
- Key Specs
- Color: White
- Product Weight: 71.7 pounds (The out of box weight of the item.)
- Maximum Operating Range: 62 miles
- Maximum Speed: 25 miles per hour
- Motor Power (Nominal): 500 watts (Also known as rated power, this is the maximum power a motor can produce without damaging itself under normal working conditions for an extended period of time.)
- Throttle Control Mechanism: Half twist
- Product Safety Certifications and Standard(s): UL 2849, UL 2271 (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Electric Bike Classification: Class 3 (Refers to the out of the box classification of the electric bike prior to any additional modifications. The three-tiered classification system is used to define and regulate the operation of the vehicle based on its speed capabilities. The use of these vehicles varies from state to state so it is important to check your local regulations prior to operating. Class 1: The bicycle is equipped with a motor that provides assistance only when the rider is pedaling, which ceases to assist when the e-bike reaches 20 miles per hour. Class 2: Bicycle equipped with a throttle-actuated motor that ceases to assist when the e-bike reaches 20 miles per hour. Class 3: The bicycle is equipped with a motor that provides assistance only when the rider is pedaling, which ceases to assist when the e-bike reaches 28 miles per hour.)
- General
- Brand: HiBoy
- Model Number: EX6F-White
- Product Name: Hiboy EX6F Foldable Electric Bike w/ 75 mi Max Operating Range & 25 mph Max Speed
- Color: White
- Electric Bike Classification: Class 3 (Refers to the out of the box classification of the electric bike prior to any additional modifications. The three-tiered classification system is used to define and regulate the operation of the vehicle based on its speed capabilities. The use of these vehicles varies from state to state so it is important to check your local regulations prior to operating. Class 1: The bicycle is equipped with a motor that provides assistance only when the rider is pedaling, which ceases to assist when the e-bike reaches 20 miles per hour. Class 2: Bicycle equipped with a throttle-actuated motor that ceases to assist when the e-bike reaches 20 miles per hour. Class 3: The bicycle is equipped with a motor that provides assistance only when the rider is pedaling, which ceases to assist when the e-bike reaches 28 miles per hour.)
- Bicycle Type: Adults bike
- Bike Style: Comfort and cruise
- Recommended Terrain: Paved roadways and trails, Hardpacked trails, Off-road trails
- Assembly Required: Yes
- Assembled Percentage: 85 percent
- Estimated Assembly Time: 30 minutes

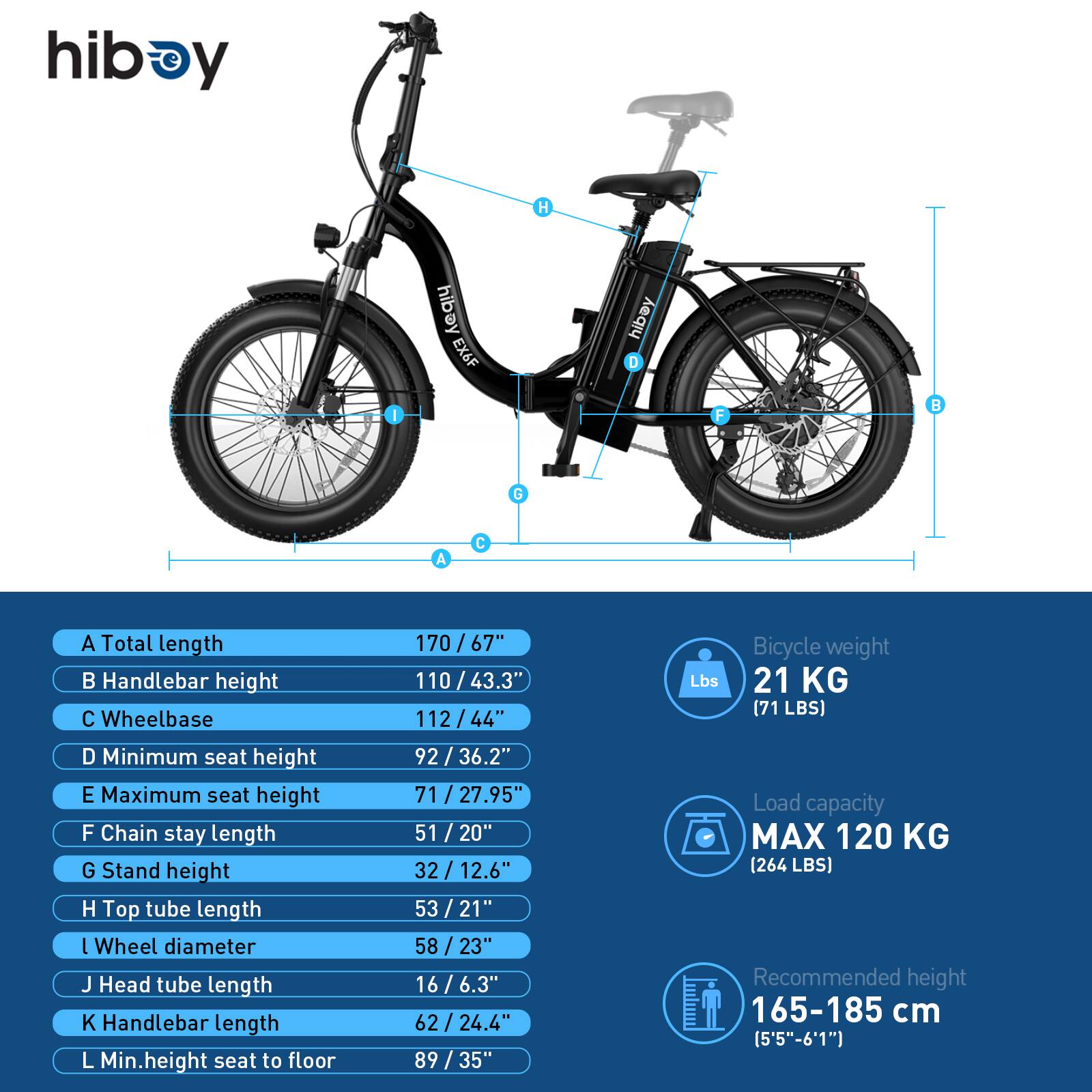

- Dimensions
- Product Width: 24.2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Height: 50.8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 67.7 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 71.7 pounds (The out of box weight of the item.)
- Maximum Weight Capacity: 265 pounds (The maximum load that can be supported by the product.)
- Recommended Maximum User Height: 78.7 inches
- Recommended Minimum User Height: 61 inches
- Maximum Seat Height: 39.8 inches
- Minimum Seat Height: 34.6 inches
- Bicycle Size: 67.7*24.2*50.8 (The size of the bicycle as stated by the manufacturer.)
- Connectivity
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Display
- Display Type: LCD
- Information Displayed: Assist mode, Odometer, Speed, Battery life, Distance
- Performance
- Maximum Operating Range: 62 miles
- Maximum Speed: 25 miles per hour
- Motor Power (Nominal): 500 watts (Also known as rated power, this is the maximum power a motor can produce without damaging itself under normal working conditions for an extended period of time.)
- Motor Power (Maximum): 750 watts (Also known as peak power, this is the maximum power a motor can produce for a short period of time under ideal conditions. Used for example when climbing a steep grade.)
- Number of Speed Settings: 7
- Power
- Throttle Control Mechanism: Half twist
- Electric Bike Motor Type: Rear hub motor
- Batteries Included: true (Indicates whether the product comes with the required batteries for its operation.)
- Removable Battery: true
- Battery Charge Time: 8 hours (Battery charge time will vary depending on the product configuration, product model, applications loaded on the product, power management setting of the product and the product features used by the customer. Charging time will likely decrease with time and usage of the battery.)
- Battery Chemistry: Lithium-ion
- Battery Capacity: 696 watt hours (The amount of energy stored in the battery.)
- Battery Amperage: 14.5 ampere hours
- Battery Voltage: 48 volts
- On/Off Switch: true
- Battery Indicator Light: true
- Rear-Rack Mounted Battery: false
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): UL 2849, UL 2271 (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Meets And Exceeds All UL Safety Standards: Yes (Indicates that the product, as stated by the manufacturer, is required to, or has met and surpassed the standards established by Underwriter Laboratories (UL) for ensuring quality and safety.)
- Ingress Protection (IP) Rating: IPX4 (A 4 to 6 character code classifying a product's degree of protection against intrusion of solid particles and liquids as well as impact. Each number in the IP Code denotes a level of protection, determined through testing and published by the International Electrotechnical Commission (IEC). The first digit represents the degree of protection against solid foreign objects or particles and the second digit represents the degree of protection against water ingress.)
- Features
- Passenger Ready: false
- Integrated Lights Included: Headlight, Tail light (Indicates the types of active lighting integrated into the product that actively generates light from a bulb instead of reflecting light from another source.)
- Padded Seat: true
- Adjustable Seat(s): true
- Adjustable Handlebar(s): true
- Kickstand: true
- Front Rack: false
- Rear Rack: true
- Fenders: true
- Design

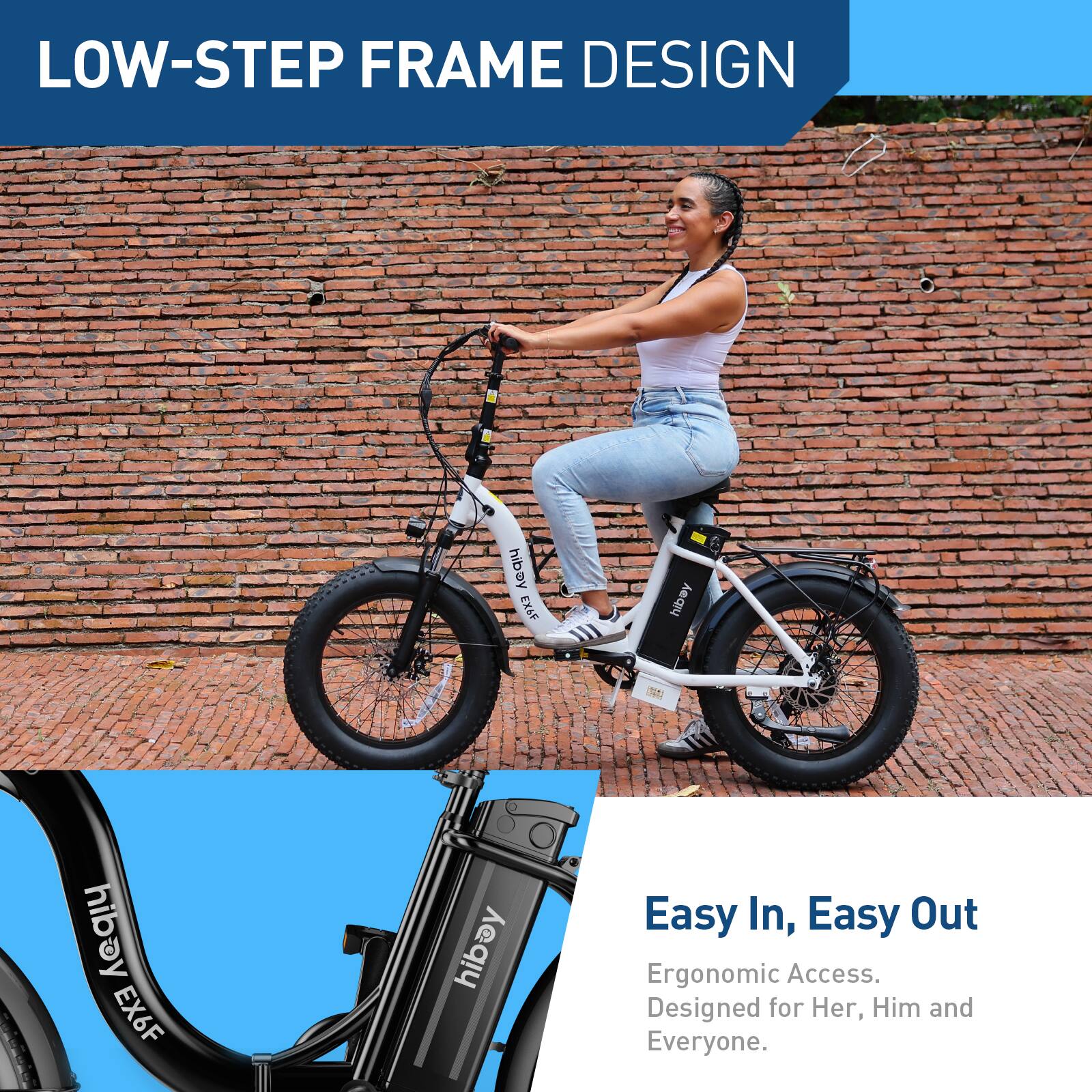

- Bicycle Frame Design: Step-through (Step-through frames, also known as open-frame or low-step bicycles, have a lower curved horizontal top tube which allow the rider to step through the frame when mounting and dismounting. Step-over frames, also known as diamond frames, have a horizontal top tube that connects to the seat tube and down tube to form a triangle. Riders must step over the frame when mounting and dismounting this style of bicycle.)
- Foldable Design: true
- Frame Material(s): High Carbon Steel
- Gear Shifting Method: Trigger
- Derailleur: true
- Chain Guard: false
- Alloy Rims: false
- Brakes
- Brake Style: Hydraulic disc
- Rear Brakes: true
- Tires
- Suspension Type: Front
- Tire Type: Pneumatic tubed
- Wheel Diameter: 20 inches
- Wheel Thickness: 4 inches
- Warranty
- Warranty - Parts: asset://embedded/asset/id/a8bd992b-714e-4186-9503-18f5d1d1d56f/filename/EX6F-Manual.pdf
- Warranty - Labor: asset://embedded/asset/id/a8bd992b-714e-4186-9503-18f5d1d1d56f/filename/EX6F-Manual.pdf
- Other
- UPC: 860013041687
Hiboy EX6F Folding Electric Bikes for Adults, 750W Peak Power Motor, 20 * 4.0” Fat Tires, Removable Battery, Hydraulic Fork, 7-Speed Shifting, Commuting and Outdoor Adventure

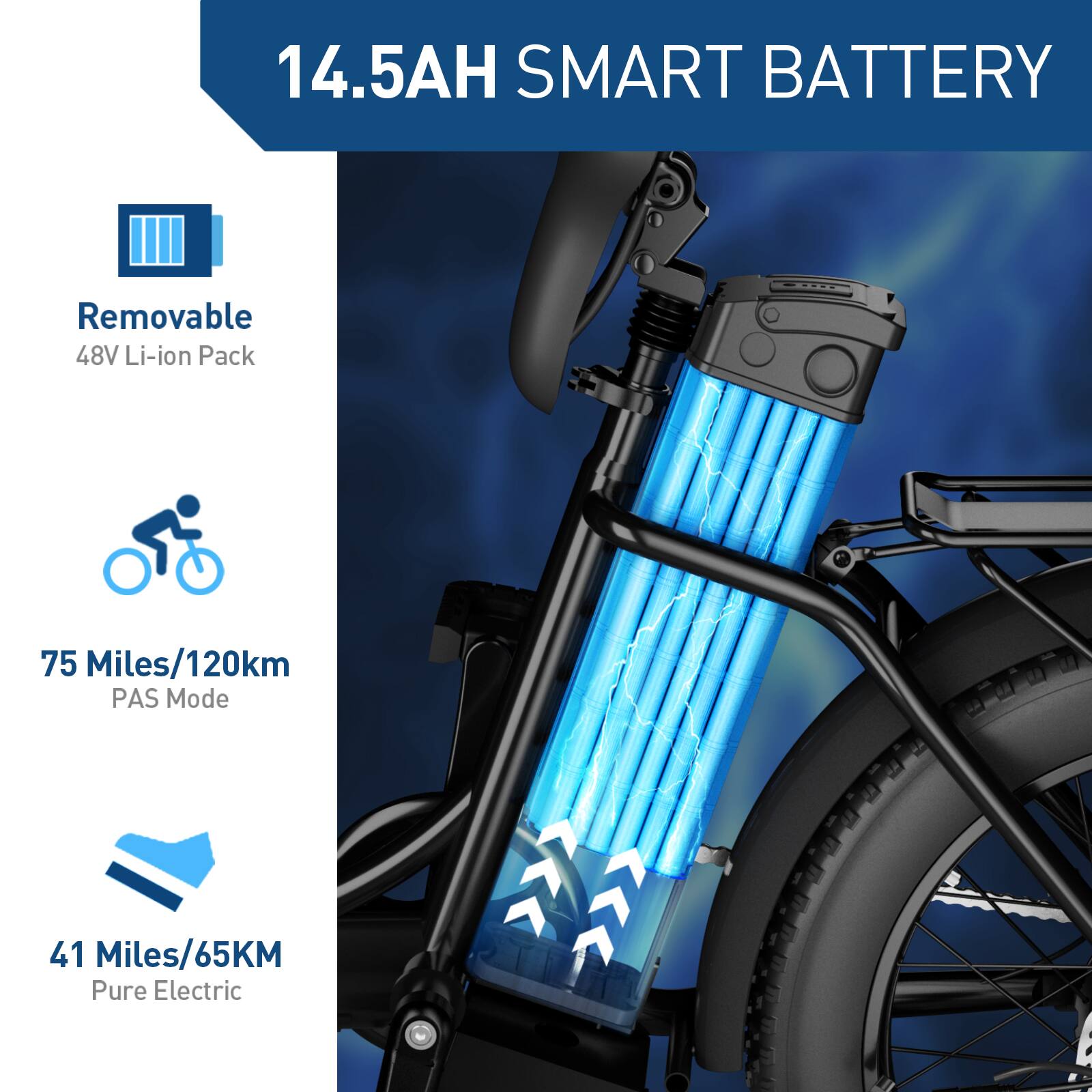

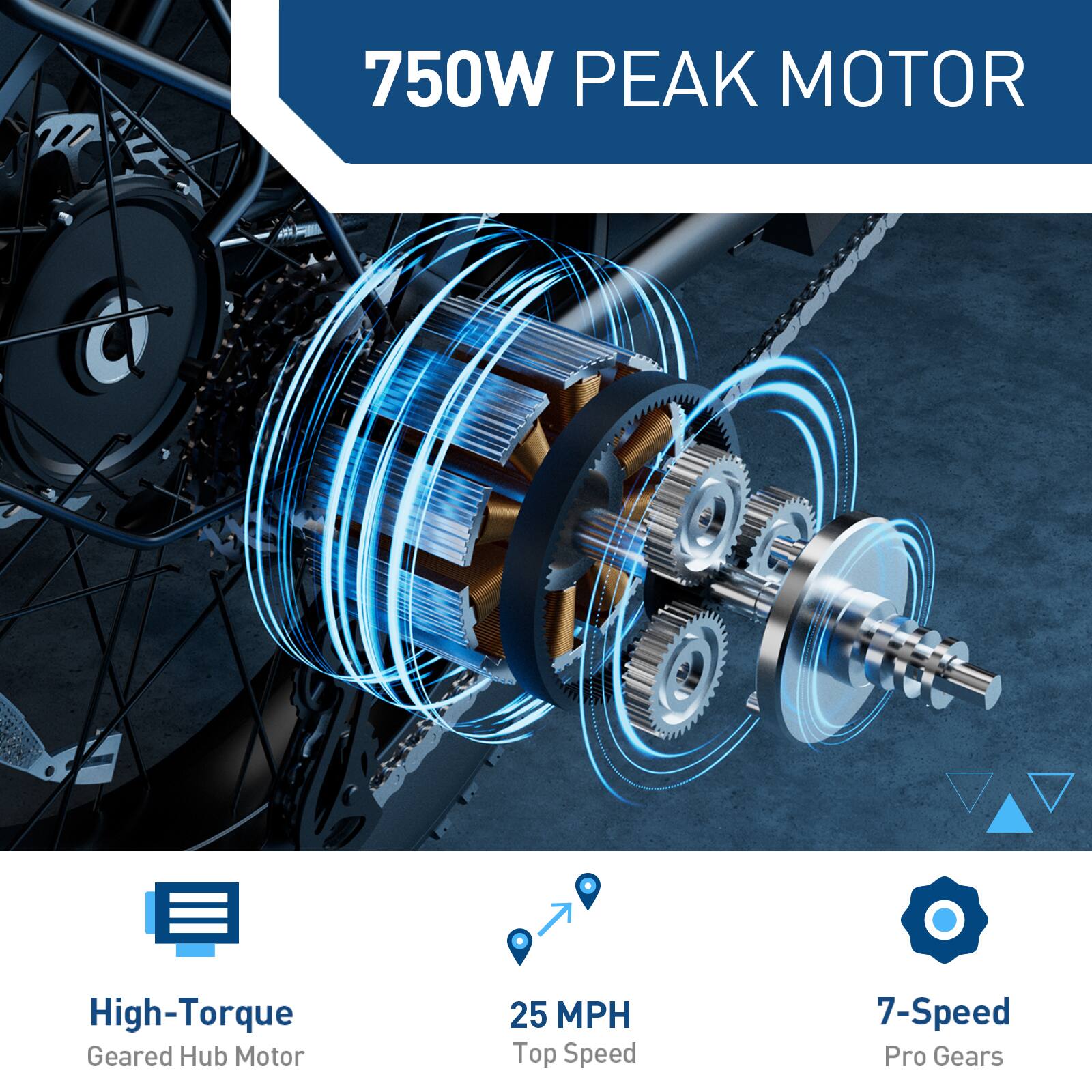

- Powerful 750W Peak Motor & Long Range: Ride up to 41 miles on pure electric or 75 miles with pedal assist, powered by a 750W peak motor and 48V 14.5Ah high-capacity battery.

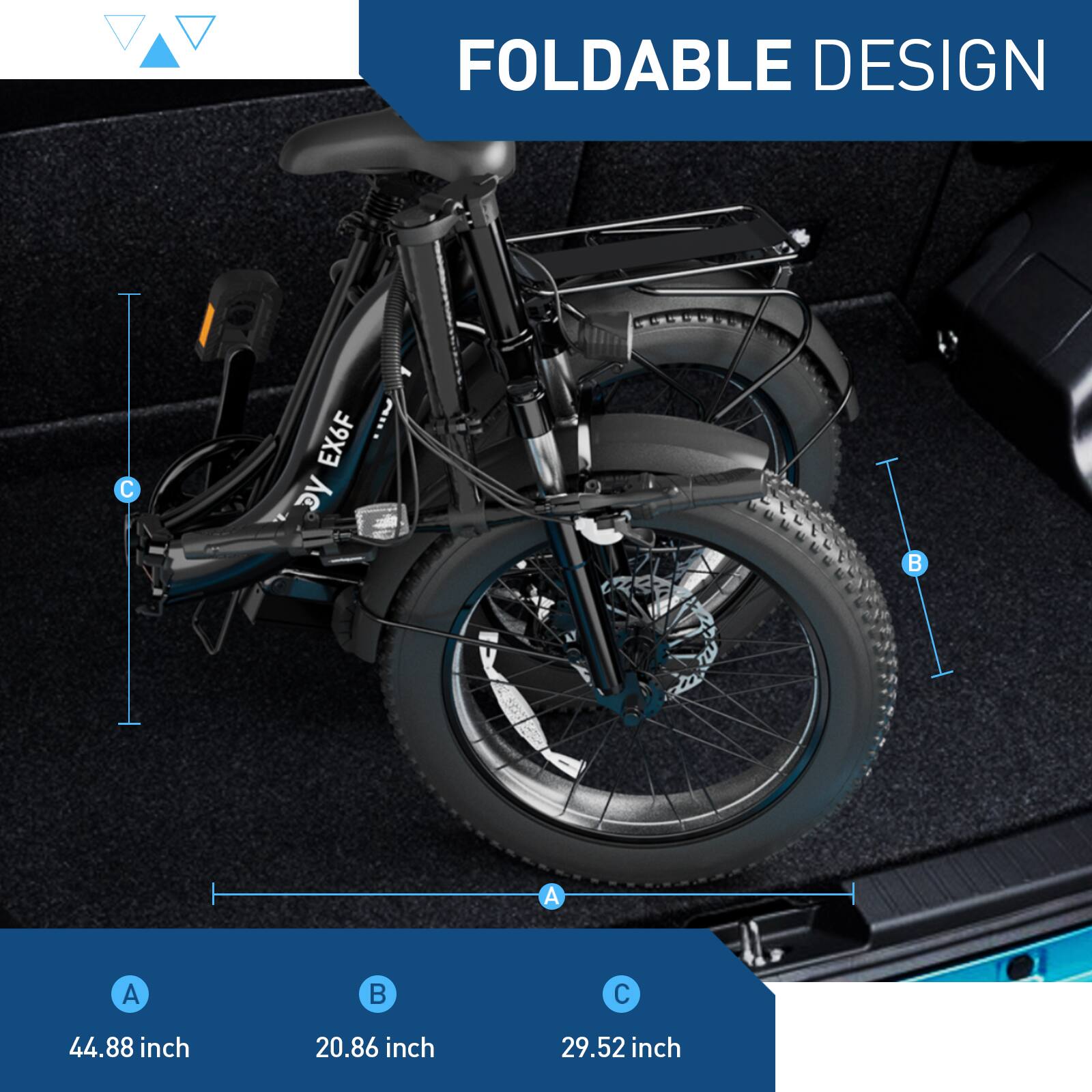

- Foldable & Portable Design: Easily fold and store the bike at home or in your car. Weighs just 71 lbs, making it perfect for commuting and travel.
- Durable Frame with Suspension: Built with high-carbon steel and a hydraulic front fork, the EX6F delivers smooth rides and lasting durability on city streets or rugged paths.
- UL-Certified & Water-Resistant: Certified to UL 2849 safety standards with smart battery management and IPX4 water resistance for added protection and reliability.

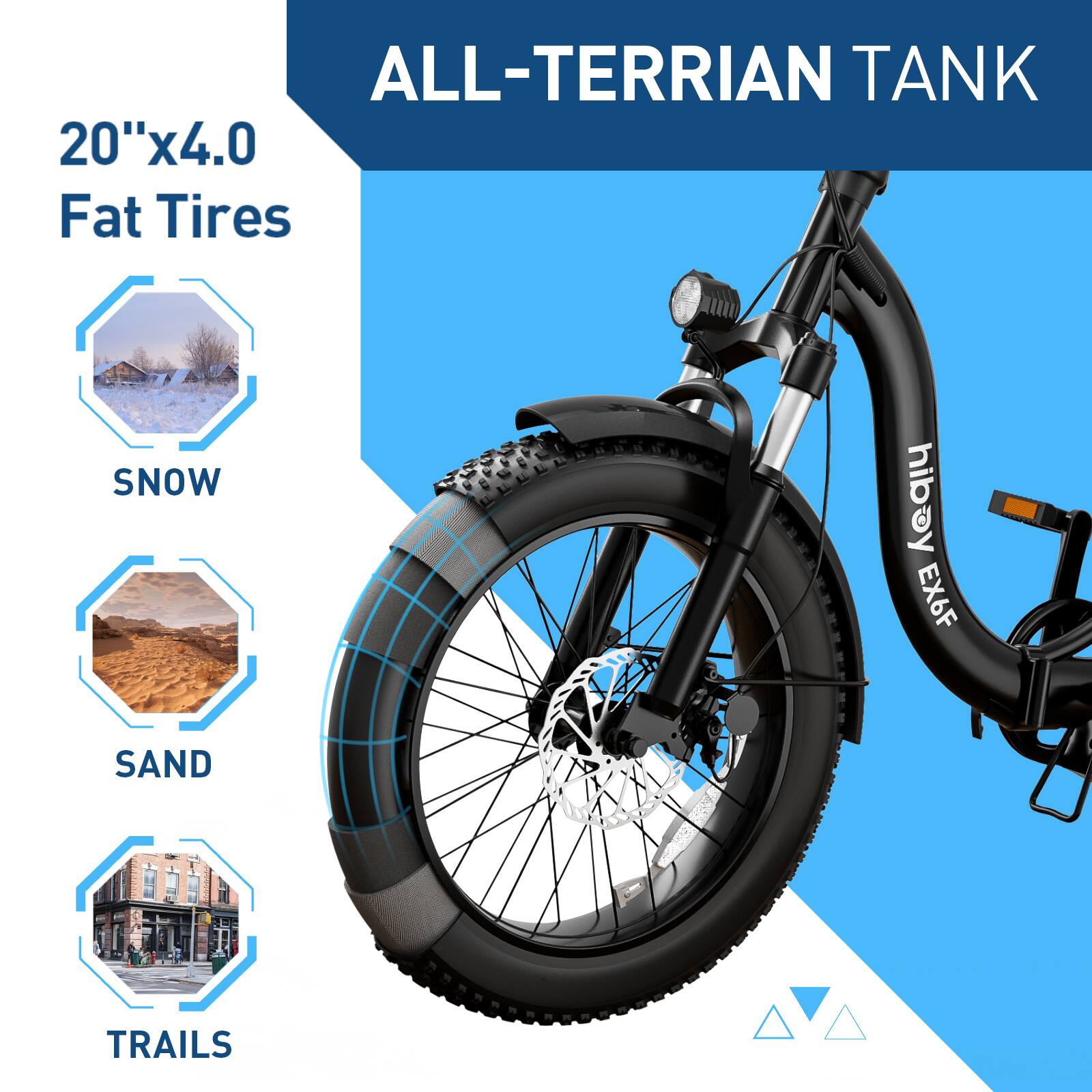

- All-Terrain 20” Fat Tires & 7-Speed Gears: Tackle various terrains with 20" x 4.0” fat tires and a 7-speed gear system. Supports riders up to 265 lbs.
- UL 2849 and 2271 compliant(UL LLC): Tested and Certified to UL 2849 and 2271 Safety Standards by UL Solutions
- Product Safety: The purchaser and rider of this product are responsible for knowing and obeying all state and local regulations regarding the use of this product. It is highly encouraged that you read and follow the product instructions including all safety precautions and use protective gear.
- NYC Consumers: NYC consumers please review fire safety info available here: https://www.nyc.gov/site/fdny/codes/reference/lithium-ion-battery-safety.page
- Powerful 750W Peak Motor & Long Range: Ride up to 41 miles on pure electric or 75 miles with pedal assist, powered by a 750W peak motor and 48V 14.5Ah high-capacity battery.
- Foldable & Portable Design: Easily fold and store the bike at home or in your car. Weighs just 71 lbs, making it perfect for commuting and travel.
- Durable Frame with Suspension: Built with high-carbon steel and a hydraulic front fork, the EX6F delivers smooth rides and lasting durability on city streets or rugged paths.
- UL-Certified & Water-Resistant: Certified to UL 2849 safety standards with smart battery management and IPX4 water resistance for added protection and reliability.
- All-Terrain 20” Fat Tires & 7-Speed Gears: Tackle various terrains with 20" x 4.0” fat tires and a 7-speed gear system. Supports riders up to 265 lbs.
- UL 2849 and 2271 compliant(UL LLC): Tested and Certified to UL 2849 and 2271 Safety Standards by UL Solutions
- Product Safety: The purchaser and rider of this product are responsible for knowing and obeying all state and local regulations regarding the use of this product. It is highly encouraged that you read and follow the product instructions including all safety precautions and use protective gear.
- NYC Consumers: NYC consumers please review fire safety info available here: https://www.nyc.gov/site/fdny/codes/reference/lithium-ion-battery-safety.page
Whats Included
- E-bike
- Manual
- Charger
- Toolkit
- E-bike
- Manual
- Charger
- Toolkit
Product Manuals
Q: What is the IPX rating for the bike motor & battery?
A: Hi! The bike motor is rated IP65, and the battery is rated IPX5. [From: Hiboy Support Team | Email: [email protected]]
