Hifonics - COLOSSUS MINI 800W Ultra-Compact Four-Channel Car Audio Amplifier - Black
Related Item
Specifications
- Maximum Watts x Channel @ Ohms200 x 4 @ 2 Ohms, 100 x 4 @ 4 OhmsAmplifier ClassDNumber Of Channels4Bass BoostNoneBridgeableYesLow-Pass CrossoverVariable
- Key Specs
- Maximum Watts x Channel @ Ohms: 200 x 4 @ 2 Ohms, 100 x 4 @ 4 Ohms (This is the maximum load the speaker, subwoofer or amp can drive.)
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Number Of Channels: 4
- Bass Boost: None (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Bridgeable: true (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Low-Pass Crossover: Variable (Devices with this function allow only audio frequencies below a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- High-Pass Crossover: Variable (Devices with this function allow only audio frequencies above a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- Speaker-Level Inputs: true (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- General
- Brand: Hifonics
- Model Number: HCM-800.4D
- Product Name: COLOSSUS MINI 800W Ultra-Compact Four-Channel Car Audio Amplifier
- Color: Black
- Audio Power
- Maximum Watts x Channel @ Ohms: 200 x 4 @ 2 Ohms, 100 x 4 @ 4 Ohms (This is the maximum load the speaker, subwoofer or amp can drive.)
- Total Power Handling Maximum: 800 watts
- Watts Per Channel Maximum: 200 watts
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Audio
- Number Of Channels: 4
- Minimum Frequency Response: 10 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 25 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Total Harmonic Distortion: 0.5 percent (Measurement of the harmonic sound distortion. The lower the percentage, the cleaner the sound.)
- Signal-to-Noise Ratio (SNR): 85 decibels (The ratio of the desired signal's strength to the level of background noise. A ratio higher than 1:1, which equates to greater than 0 decibels, indicates more signal than noise.)
- Bass Boost: None (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Features
- Bridgeable: true (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Low-Pass Crossover: Variable (Devices with this function allow only audio frequencies below a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- High-Pass Crossover: Variable (Devices with this function allow only audio frequencies above a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- Remote Control Included: No
- Fan Cooled: false
- Input
- Speaker-Level Inputs: true (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- Output
- Preamp Outputs: false
- Dimensions
- Product Height: 2.72 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 5.28 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 10.5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 4.4 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 806576234678

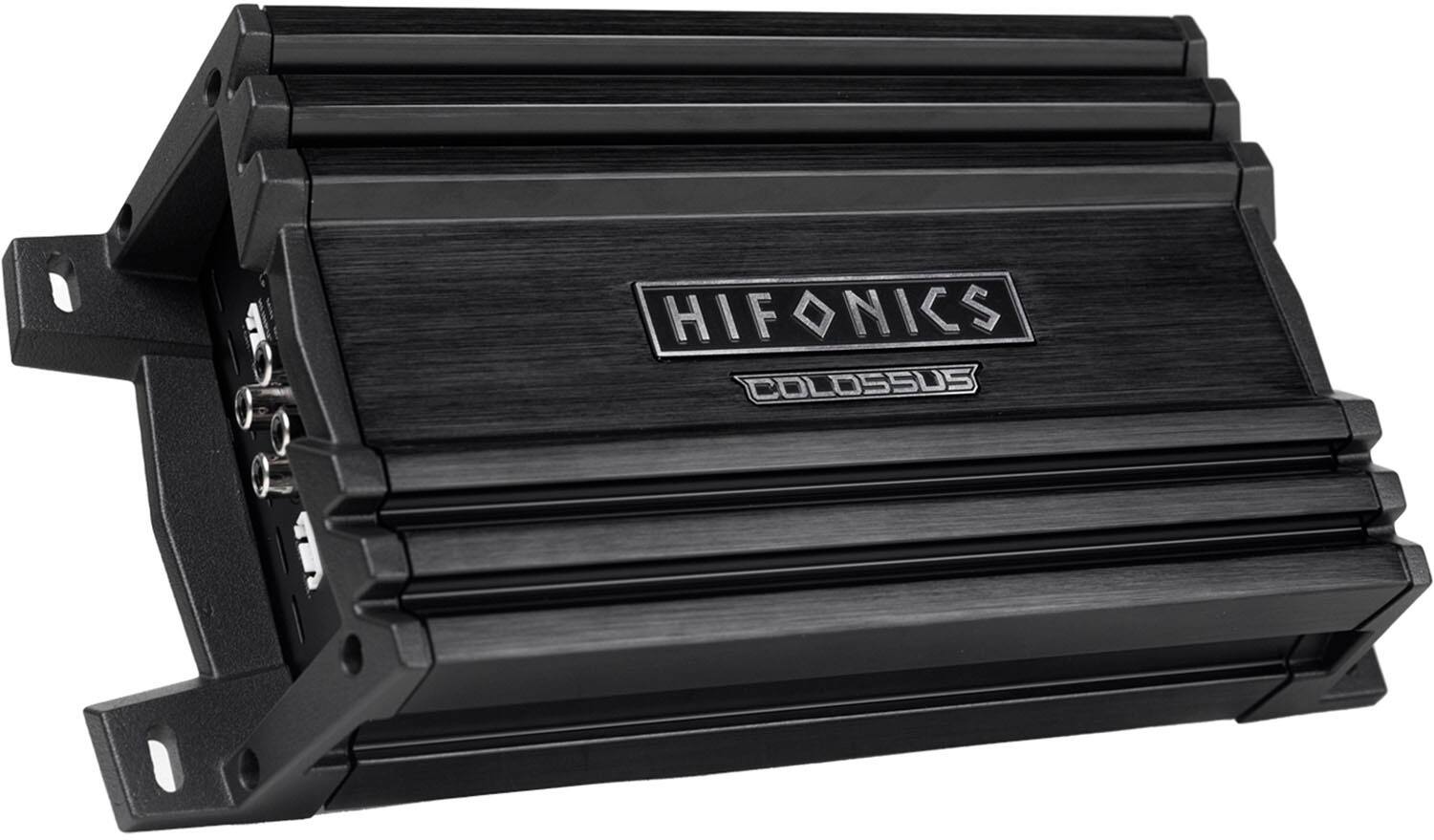

This Hifonics COLOSSUS MINI ultra-compact four-channel amplifier delivers 800W in a small footprint. The amplifier suites a wide range of applications, such as motorcycles, UTVs, and automotive vehicles.
- Compact design: Small footprint is perfect for a wide range of applications, such as motorcycles, UTVs, and automotive vehicles.
- Mass-loaded heat sink: The mass-loaded extruded aluminum heat sink results in better thermal management and output performance, with no fan cooling required.
- High-end preamplifier circuit: Accepts a wider range of input signals.
- RCA inputs: Nickel-plated RCA jacks create an efficient connection that is corrosion-resistant.
- High-tolerance output device: Ultra-Fi MOSFETS are designed for high output power and thermal dissipation through a proprietary coupling method.
- Operation mode: Four-channel operation mode allows for either stereo or mono bridged operation.
- Clean board construction: Multilayered printed circuit boards (PCB) with surface-mount components require fewer parts and result in a cleaner design.
- Full-range Class D amp: Features a full-range Class D chipset, making it compatible with a wide range of drivers, especially pro-style speakers.
- Power supply: Air core transformer is more effective for higher frequencies and reduces energy loss due to its open-core design.
- Delayed turn-on function: Ensures compatibility with a wide range of source units to eliminate any unwanted turn-on/off noises such as hisses and pops.

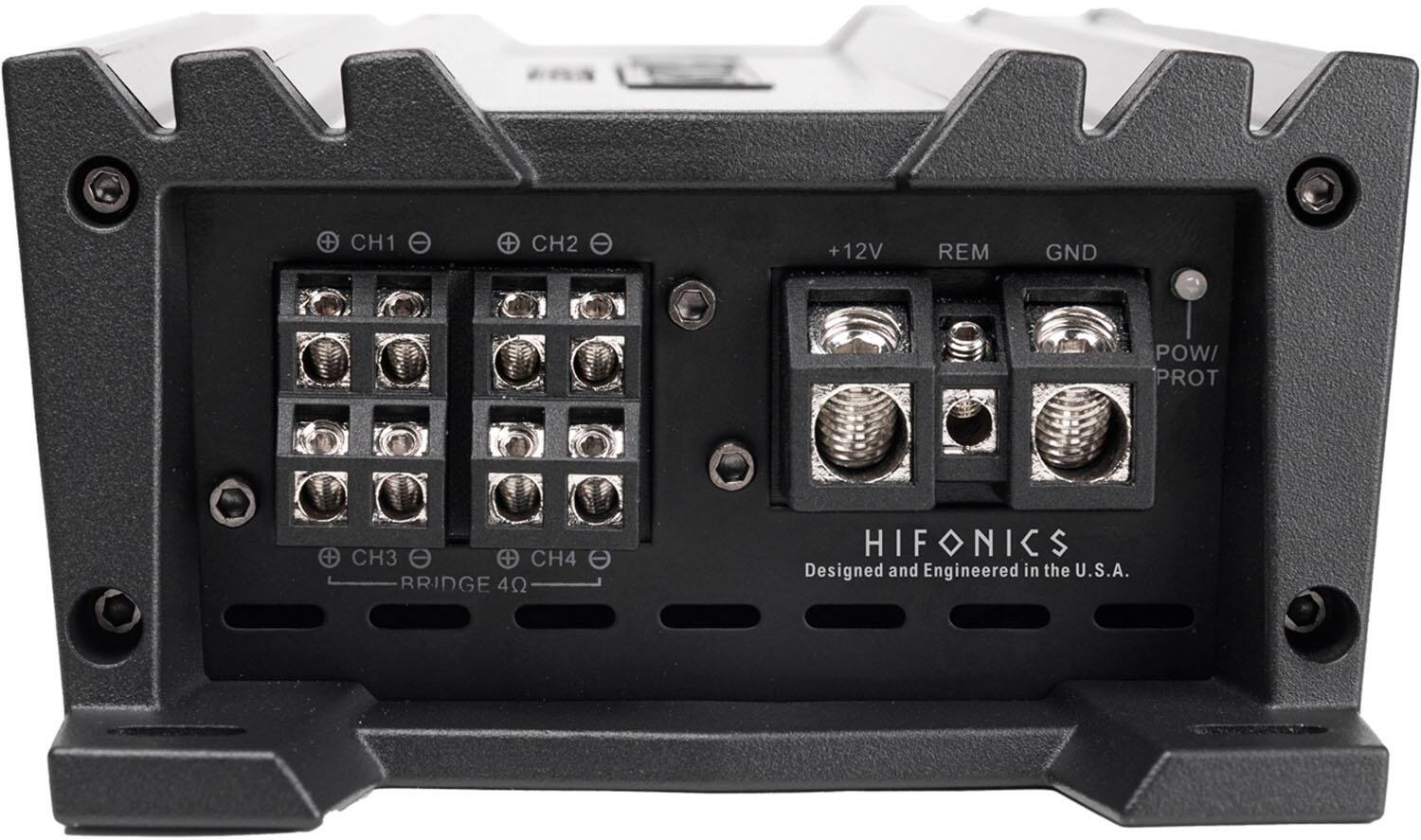

- Connection type: Secure molded connection terminal for all power, ground, and speaker connections. Angled for ease of access and a clean wire management profile.

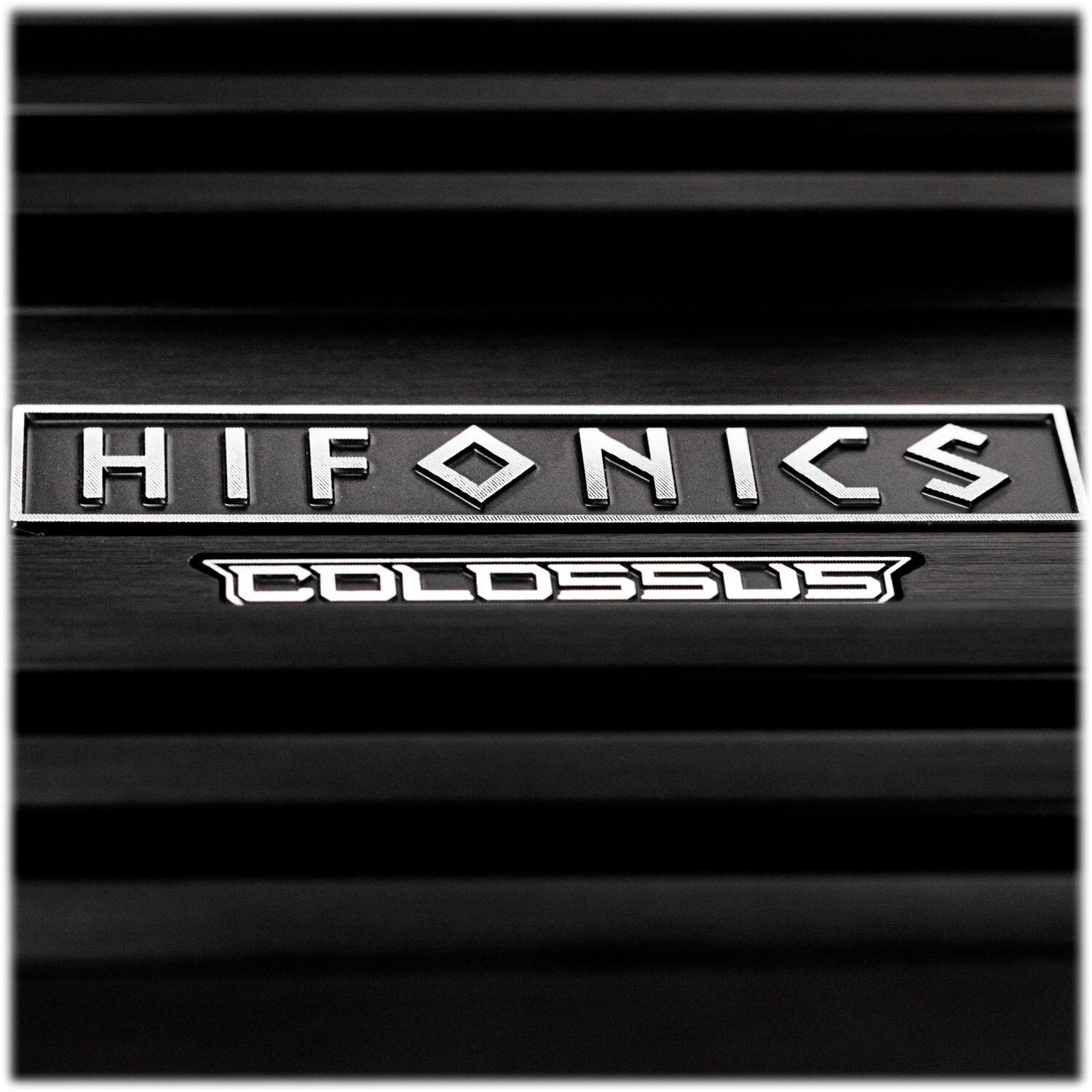

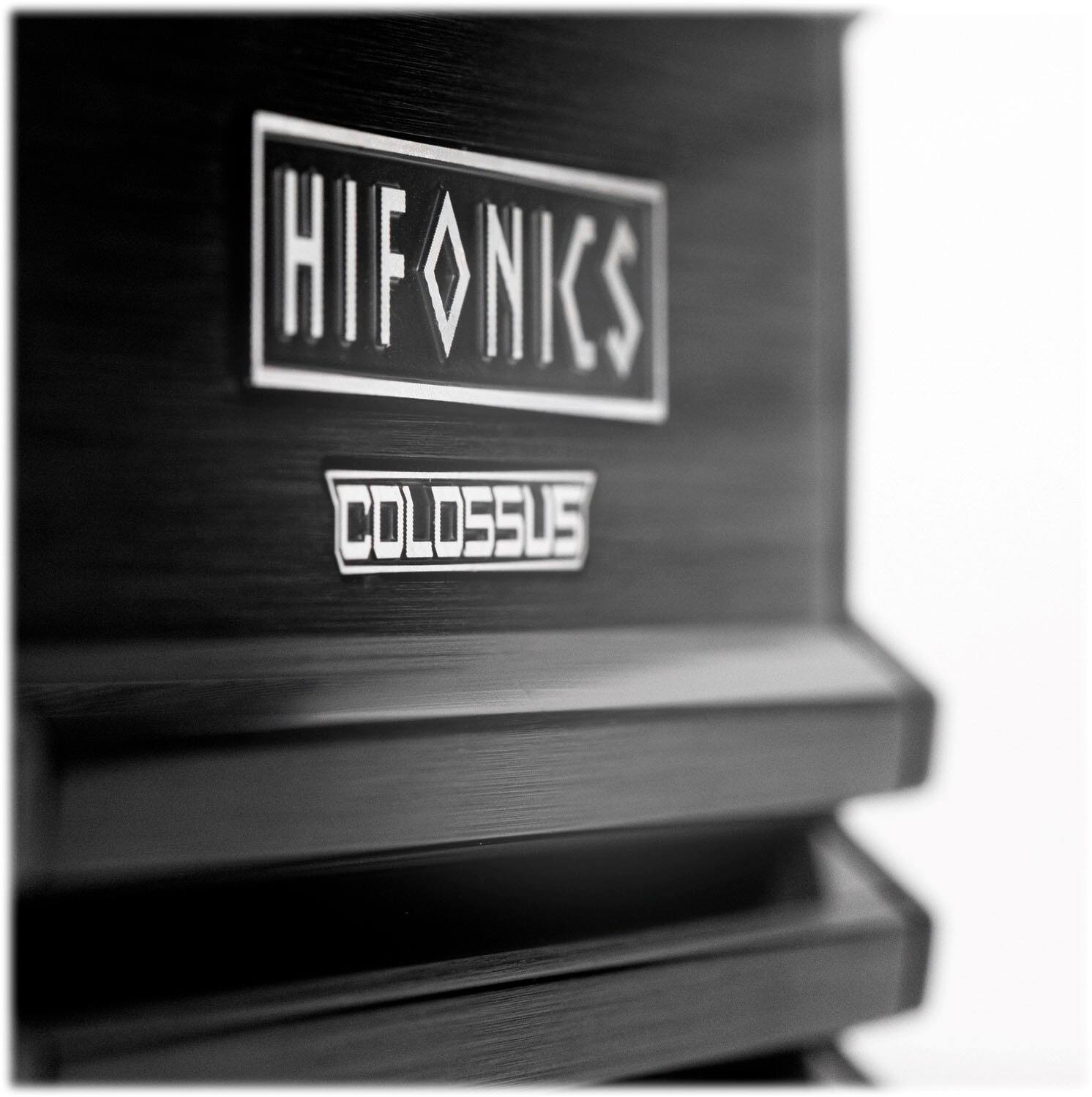

- Stylized fly-cut CNC badging: The Hifonics and COLOSSUS logo badges are made of CNC machined aluminum for a sleek and stylish look.
- Triple protection circuits: Over-/undervoltage, short circuit, and thermal protection circuits give you peace of mind that your investment (audio system and vehicle) will be protected under nearly every circumstance.
- Bass remote included: The included bass remote allows you to adjust the bass level relative to the setting on the amplifier end panel. The LED indicator light displays green when the amplifier is powered on and red when the amplifier enters protection mode.
Whats Included
- Hifonics COLOSSUS MINI 800W Ultra-Compact Four-Channel Car Audio Amplifier
Product Manuals
Q: What are the dimensions of the amplifier?
A: The amplifier is 5.28 inches wide, 2.72 inches high, and 10.5 inches deep.
Q: What is the total harmonic distortion of the amplifier?
A: The total harmonic distortion of the amplifier is 0.5 percent.
Q: Can the amplifier be bridged?
A: This amplifier can be bridged.
Q: Does the amplifier have a built-in fan?
A: This car audio amplifier is not fan-cooled.
Q: What is the minimum frequency response of the amplifier?
A: The minimum frequency response of the amplifier is 10 hertz.
Q: What is the maximum power output of the amplifier?
A: The maximum power output of the amplifier is 800 watts.
Q: How many channels does the amplifier have?
A: This amplifier has four channels.
