HUANUO - Single Monitor Desk Mount with Gas Spring Arm - Black
FREE shipping to
About This Item
- General
- Brand: HUANUO
- Model Number: HNSS37B
- Product Name: Single Monitor Desk Mount with Gas Spring Arm
- Color: Black
- Assembly Required: Partial
- Features
- Mount Profile: Recessed (The view of the product when seen attached to a wall or surface.)
- Mount Style: Full Motion, Rotating, Swiveling, Tilting, Full Motion
- Pan: ±90° (Angles to the left or right for customized viewing and/or accessibility.)
- Tilt: +85°~ -30° (Angles upward or downward for customized viewing and/or accessibility.)
- Rotation: 360° (Orientation can be rotated for customized viewing and/or accessibility.)
- Indoor or Outdoor Use: Indoor
- Motorized: false
- Adjustable Height: true
- Cord Storage: true
- Number Of Shelves Included: 0
- Number of Monitors Supported: 1
- Compatibility
- Maximum Weight Capacity: 26.4 pounds (The maximum load that can be supported by the product.)
- Compatibility: Monitors 13-35″
- Mount Location: Desktop
- Maximum Television Size: 35 inches
- Minimum Television Size: 13 inches
- VESA Wall Mount Standard: 75mm x 75mm, 100mm x 100mm (VESA wall mount standards refer to the spacing of screw holes built into a TV in order to fit with standard TV wall mounts. These standards are implemented into most TVs and monitors.)
- Dimensions
- Product Height: 22.5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 22.8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 5.4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Maximum Extension: 26 inches
- Product Weight: 10.89 pounds (The out of box weight of the item.)
- Included
- Hardware Included: true
- Material
- Mount Material: Metal
- Warranty
- Warranty - Parts: 5-year Limited
- Warranty - Labor: None
- Other
- UPC: 810158824294
The HNSS37B single monitor desk mount utilizes our premium arm and is designed for a single 13-35″ monitor that weighs between 4.4 and 26.4 lbs. The premium gas spring arm provides easy height adjustment – simply move the monitor where you want it, no tools required! Height, swivel, and tilt adjustments allow the monitor to be placed in the optimal position. Versatile mounting options include desk clamp or grommet mounting for a variety of desk types. Integrated cable management allows cables to be neatly organized for a clean look.
- Universal Compatibility: Fits most 13-35″ monitors that weigh between 4.4 and 26.4 lbs with 75 x 75 or 100 x 100mm VESA mounting hole patterns.

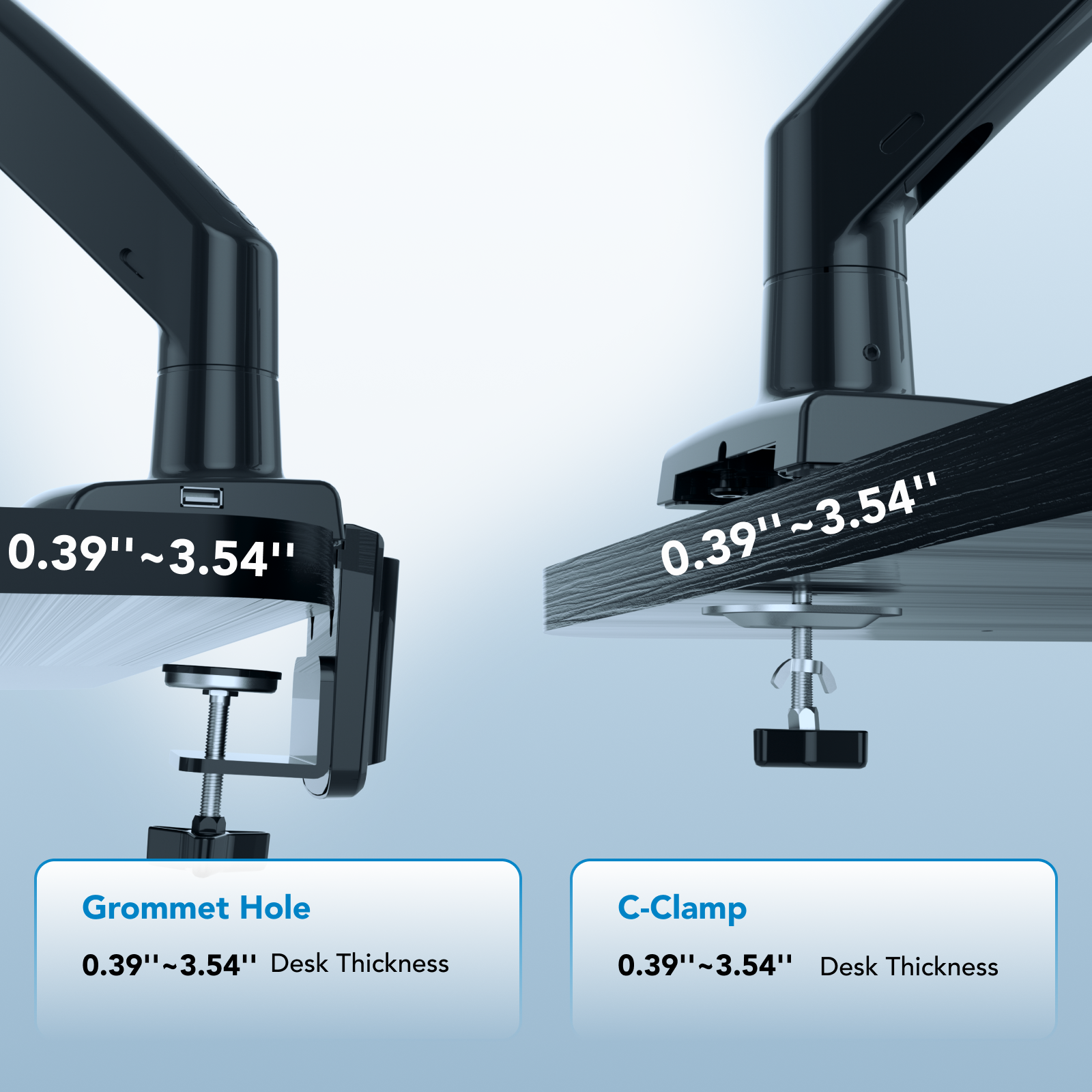

- Versatile Mounting Options: Includes desk clamp and grommet mounting hardware for a variety of desk types. Compatible with 0.39″ to 3.54″ thick desktops.

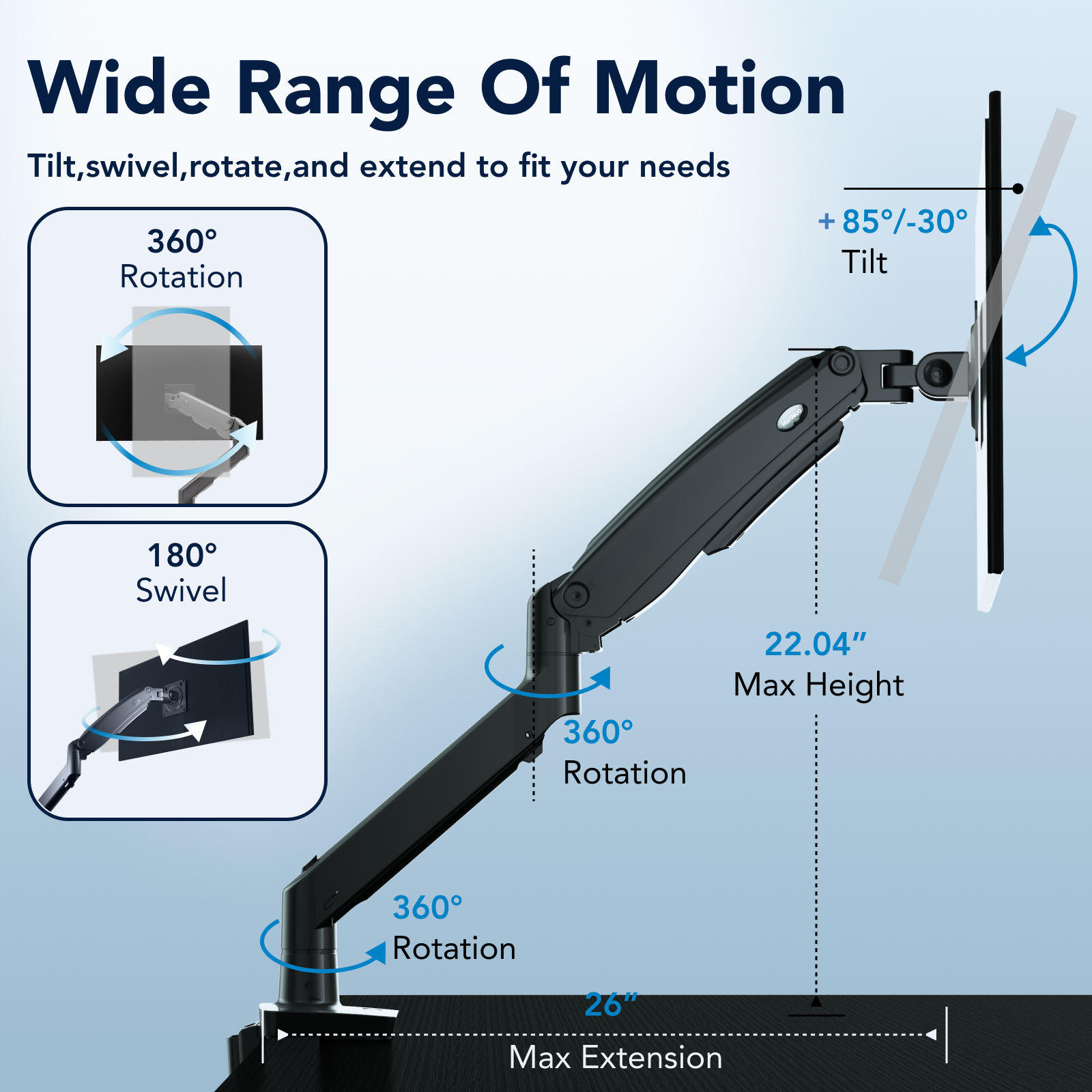

- Fully Adjustable: Height, swivel, extension, and tilt adjustments allow monitors to be placed in the optimal position.
- Aircraft-Grade Aluminum Lower Arm: Our aircraft-grade aluminum lower arm offers a sleek, lightweight design with ultimate strength.
- Premium Heavy-Duty Gas Spring Arm: Provides arm extension up to 26″ and height adjustment up to 22.04″.
- 360° Rotation: Easily rotate your monitor from a horizontal view to vertical.
- Monitor Tilt: Provides +85° to -30° tilt for the best viewing angles.
- Cable Management: Integrated cable management allows cables to be neatly organized for a clean look.
- USB Integration: The built-in USB port provides an easy way to connect devices directly on the desktop.
- Hassle-Free Assembly: Step-by-step instructions and labeled hardware kit are included.
- Universal Compatibility: Fits most 13-35″ monitors that weigh between 4.4 and 26.4 lbs with 75 x 75 or 100 x 100mm VESA mounting hole patterns.
- Versatile Mounting Options: Includes desk clamp and grommet mounting hardware for a variety of desk types. Compatible with 0.39″ to 3.54″ thick desktops.
- Fully Adjustable: Height, swivel, extension, and tilt adjustments allow monitors to be placed in the optimal position.
- Aircraft-Grade Aluminum Lower Arm: Our aircraft-grade aluminum lower arm offers a sleek, lightweight design with ultimate strength.
- Premium Heavy-Duty Gas Spring Arm: Provides arm extension up to 26″ and height adjustment up to 22.04″.
- 360° Rotation: Easily rotate your monitor from a horizontal view to vertical.
- Monitor Tilt: Provides +85° to -30° tilt for the best viewing angles.
- Cable Management: Integrated cable management allows cables to be neatly organized for a clean look.
- USB Integration: The built-in USB port provides an easy way to connect devices directly on the desktop.
- Hassle-Free Assembly: Step-by-step instructions and labeled hardware kit are included.
Whats Included
- Single Monitor Desk Mount
- Clamp and grommet mount
- Mounting hardware
- User manual
- USB-A cable
- Single Monitor Desk Mount
- Clamp and grommet mount
- Mounting hardware
- User manual
- USB-A cable
Q: Is assembly required for the desk mount?
A: This desk mount requires partial assembly.
Q: What is the maximum weight the desk mount can hold?
A: The maximum weight the desk mount can hold is 26.4 pounds.
Q: What is the maximum monitor size supported by the desk mount?
A: The desk mount supports a maximum monitor size of 35 inches.
Q: Does the desk mount allow for height adjustment?
A: This desk mount offers easy height adjustment without the need for tools.
Q: Can the desk mount be installed using a clamp or a grommet?
A: This desk mount can be installed with a desk clamp or by using a grommet mount.
Q: What is the range of motion for the desk mount?
A: The desk mount can tilt +85°~-30°, pan ±90°, and rotate 360°.
Q: Does this come with m4 10 mm screws?
A: Hello, it comes with M4 x 12 or M4 x 30 mm screws. The 30 mm screws are intended to be used with the included spacers as well. Thanks!
