Insignia™ - 6' Extension DC Cable Kit - Black
- Key Specs
- Cable Length: 6 feet
- Connector Type (End 1): Proprietary
- Gender (End 1): Female
- Connector Type (End 2): Proprietary
- General
- Brand: Insignia™
- Model Number: NS-DCX619
- Product Name: 6' Extension DC Cable Kit
- Color: Black
- Quantity: 1
- Connectivity
- Cable Type: Power
- Cable Length: 6 feet
- Product Type: Extension cable
- Connector Type (End 1): Proprietary
- Gender (End 1): Female
- Connector Type (End 2): Proprietary
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 600603244759
Add 6 feet of cord length to your DC power supply with this Insignia extension cable kit. It includes seven male and seven female jack connectors for compatibility with many devices.
- Designed for most devices with DC power supply: Includes seven of the most common round tips for most devices with DC power supply.
- 6' length: Enables flexible placement for an easy connection to a power outlet.
- Easily switch out tips: You can use it with other products.
- Includes 14 DC power round tips: Ensures compatibility with a wide range of devices.
- Slim design: Lets you easily route wires without the added bulk of a full-size extension cord.

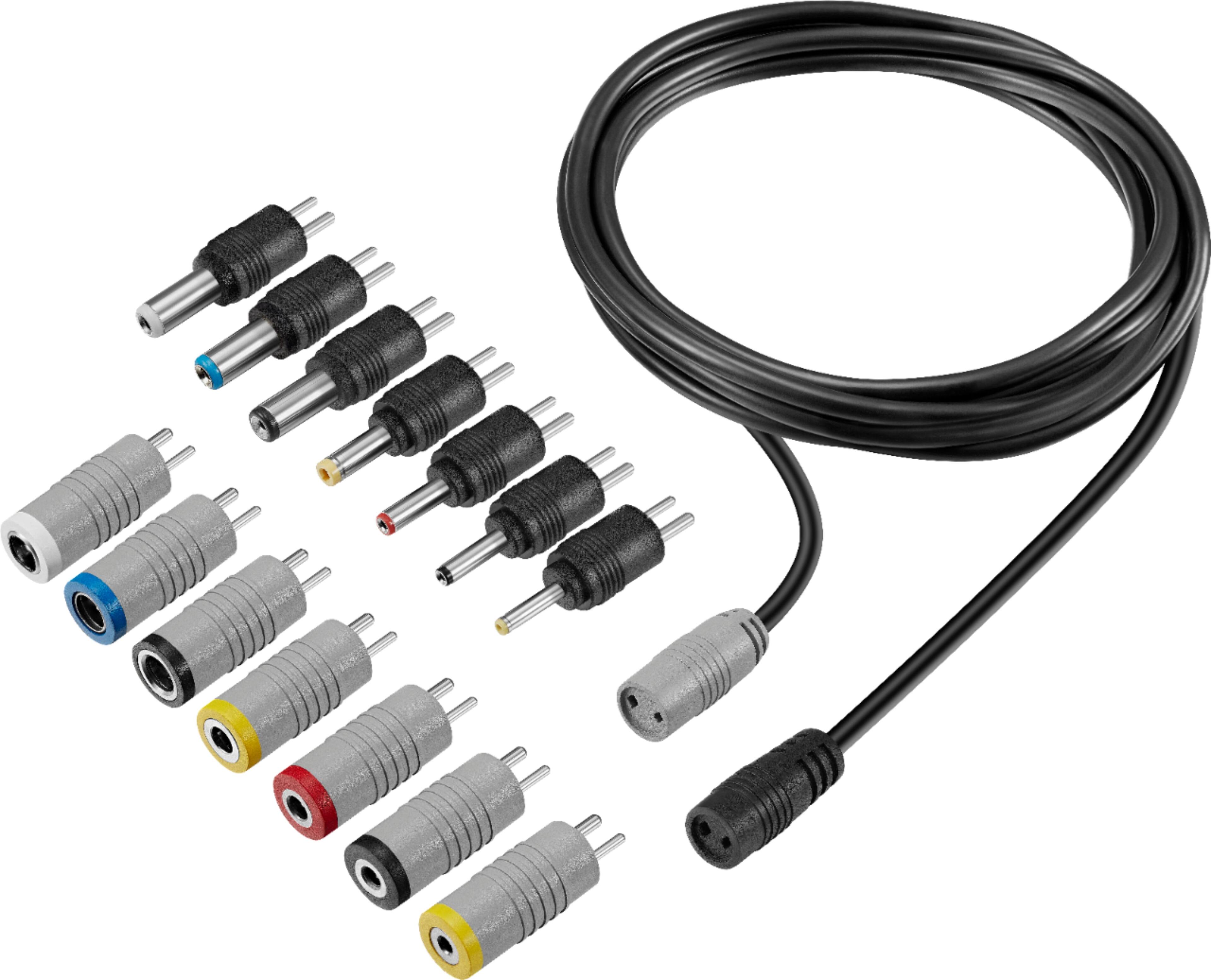

Whats Included
- Insignia 6' Extension DC Cable Kit
- Seven black male DC jack connectors
- Seven gray female DC jack connectors
- Owner's manual
Product Manuals
Q: What are the Voltage and Current ratings of the cable?
A: The manual lists the following information: Electrical specifications: • 20AWG, UL2464 DC cable • Maximum current for system: 8 amps • Cable Resistance: 33.9Ω/1 Km
A: This is an extension cord only. No dc adapter. Has many different size input and output plugs.
Q: Does it include tip size 6.5mm x 4.4mm?
A: Tip sizes: 1. 5.5mm x 2.50mm(white) 2. 5.5mm x 2.10mm(blue) 3. 5.5mm x 1.50mm(black) 4. 4.0mm x 1.70mm(yellow) 5. 3.5mm x 1.35mm(red) 6. 3.0mm x 1.00mm(black) 7. 2.5mm x 0.75mm(yellow)
Q: Does this Insignia Extension DC Cable Kit include tips size 5.5/2.1mm, 5.5/2.5mm and 6.4/4.4mm?
A: The tips included are: 1 White: 5.5/2.5mm (labelled DC5525) 2 Blue: 5.5/2.1mm (labelled DC5521) 3 Black: 5.5/1.5 mm (DC 5515) 4 Yellow 4.0/1.7 (DC4017) 5 Red 3.5/1.35 (DC35135) 6 Black 3.0/1.1 (DC 3011) 7 Yellow 2.5/0.7 (DC2507) The kit does NOT include the 6.4/4.4 mm connector I need so I am returning it. However, I want to mention some of the things that Insignia did really well (and some things that could be improved): PROS: * This is the only kit I found that included female as well as male tips (an extension cord instead of having to purchase a whole power supply with a longer cord) * The male tips are all labelled with their size (see my photo) * The male and female tips are colored coded (there are two pair of black and yellow, but the sizes are different enough that you are unlikely to confuse them). * The male tips have a small and a larger diameter pin so it is easier to keep the polarity consistent at both ends of the cable * The female tips have a short pin and a long in to help keep the polarity consistent at both ends of the cable CONs: * NONE of the online data sheets or listings mention which tips are included in the set . It is buyer beware. I had to pay for it, wait a week for it to arrive, wait quite a while at their curbside pick up, and realize within 3 minutes that the tip I needed isn't in there. I couldn't see how to return it at the store. I will use their web-site to set up the return after I finish this review/answer. * The differing pins help maintain the correct polarity, but both pins on Enercell right angle tips are the smaller diameter. They fit on this extension cord, but might not provide a reliable connection. INSIGNIA SHOULD OFFER RIGHT ANGLE TIPS FOR THIS CORD; SO YOU DON'T HAVE TO MOVE YOUR COMPONENT SO FAR FROM THE WALL. * I don't know if you can see it well in my photo, but the cable ends have a circular lip. The tips fit inside the connector. The Enercell and Adaptaplug tips do fit inside, but I have tips from an old Kensington Universal Laptop power supply that have a circular lip on the tip; therefore, these tips cannot be used on this Insignia extension cable. * They have 7 pair of tips, but only 5 colors. It would be easier with 7 colors so each tip is unique.
Q: Does this charger work with the samsung notebook 9?
A: Mine is missing an adapter in a box when purchased. Sorry I can't give you an answer.
A: No, this kit does not have an 8mm male connector.
Q: Does this include 6.0mm x 3.7mm ?
A: No, this kit does not include a 6.00 mm x 3.7 mm tip.
A: No, this extension cable is for extending/ adapting low voltage DC power supplies. It does not include connectors for audio.
