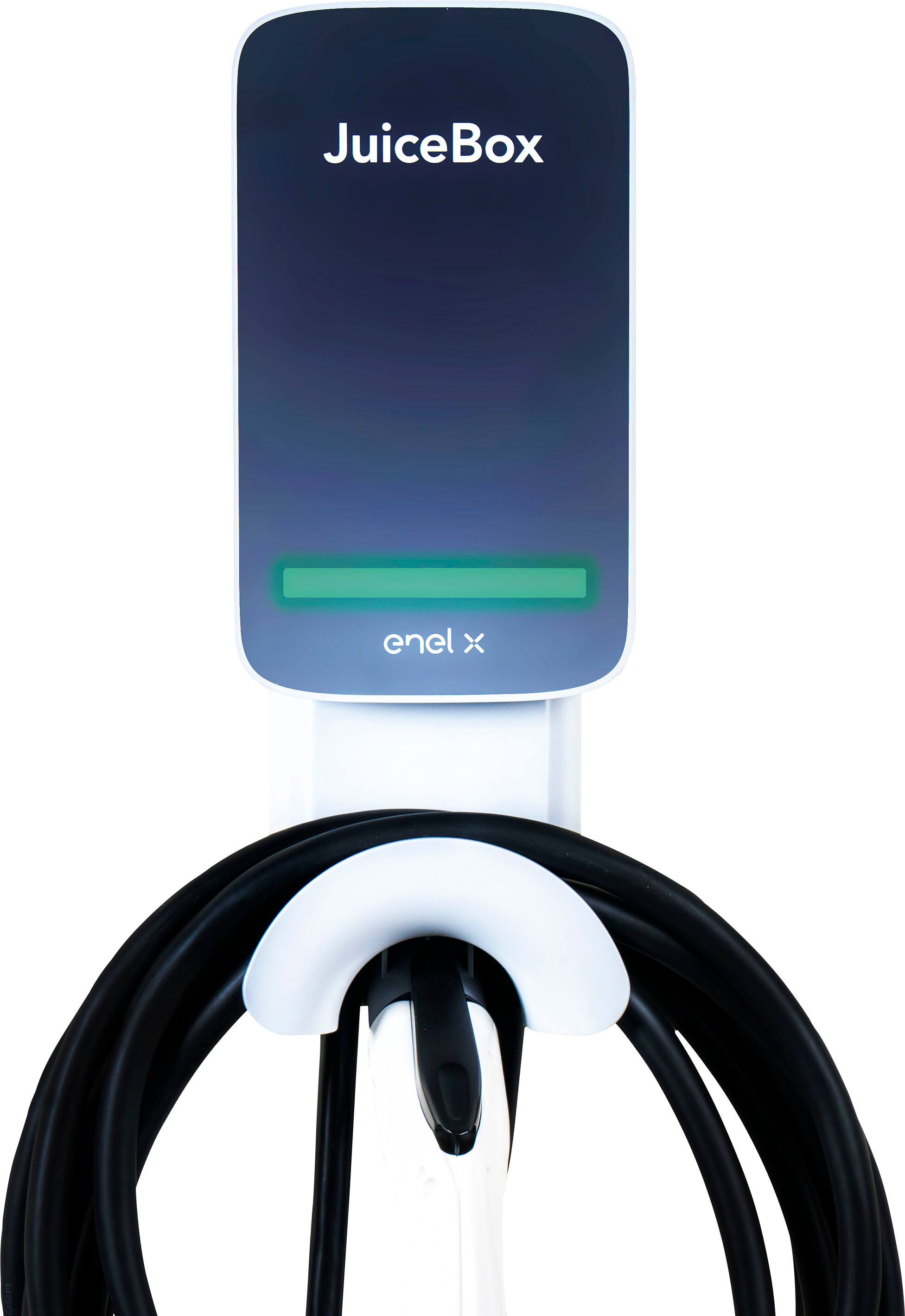

Juicebox - J1772 Level 2 NEMA 14-50 Electric Vehicle (EV) Charger - up to 40A - 25' - White
- General
- Brand: Juicebox
- Model Number: 2JBO401RNA-PJWX-355
- Product Name: J1772 Level 2 NEMA 14-50 Electric Vehicle (EV) Charger - up to 40A - 25'
- Color: White
- Power
- Electric Vehicle Charging Level: Level 2 (Level 1 chargers connect to a standard 120V outlet but may take nearly a day to charge a vehicle. Level 2 chargers connect to a dedicated 240V outlet and charge most vehicles within a few hours. Level 3 chargers require a specialized charger and are typically found in public, fast charging stations. Charging requirements vary by vehicle.)
- Input Wiring Type: NEMA 14-50
- Power Requirements: 110-240VAC
- Charging Rate: 40 Amp
- Charging Cable Length: 25 feet
- Connectivity
- Connector Type(s): SAE J1722 (Type 1) (Type of interface connection found on the device.)
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Features
- Number of Vehicles Charged Simultaneously: 1
- Display Type: LED
- Mount Type: Wall
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Environmental
- Indoor or Outdoor Use: Outdoor, Indoor
- Minimum Operating Temperature: -40 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Maximum Operating Temperature: 140 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- Ingress Protection (IP) Rating: IP66 (A 4 to 6 character code classifying a product's degree of protection against intrusion of solid particles and liquids as well as impact. Each number in the IP Code denotes a level of protection, determined through testing and published by the International Electrotechnical Commission (IEC). The first digit represents the degree of protection against solid foreign objects or particles and the second digit represents the degree of protection against water ingress.)
- Dimensions
- Product Height: 18.6 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 7.6 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 4.5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 15 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 3 year warranty covers defects in materials and workmanship under normal residential conditions during the warranty period
- Warranty - Labor: 3 year warranty covers defects in materials and workmanship under normal residential conditions during the warranty period
- Other
- UPC: 860001979480
This level 2 EVSE, WiFi-enabled, 40-amp smart EV charging station combines speed, performance and value. Enjoyed by thousands of satisfied EV drivers, it delivers all the safety and smart charging features you need to make home charging easy, reliable and cost-effective. Built on the universal J1772 charging standard, this charging station can power all electric vehicles on the market today. Inclues a 25-foot cable and integrated cable management.
- Up to 7x faster charging: Spend less time waiting for your EV to charge and more time enjoying the drive.
- WiFi connectivity: Monitor and schedule charging with intuitive JuiceNet mobile app & web portal.
- Convenient and stylish design: Dynamic LED lights display WiFi connectivity and charging behavior.
- Smart grid savings: Schedule your charging times when rates are lower — making your electric vehicle even cheaper to drive. Qualifies for many local utility rebates and incentives.
- Notifications: Get notified when your car is fully charged, set up a daily charging routine, or simply ask JuiceNet to remind you to plug in when life gets too busy.
- Easy to Use and Install: Quick-release mounting bracket and built-in cable management make set up and daily charging a breeze.
- Voice Control: Monitor, manage, and control your charger via voice commands on Amazon Echo / Alexa and Google Home.
- Universal Compatibility: SAE-J1772 connector ensures compatibility with all EVs on the market today and in the future, including Teslas with a commonly used adapter.
- Cleaner Driving: Optimize charging times and participate in smart grid programs to reduce emissions
- Earn Cash for Smart Charging: Participate in the JuicePoints program to get paid for charging your electric car.
- Plug-in Installation: Plug in installation when a 240V outlet (NEMA 14-50) is present. Note: A professional electrician may be required for installation if you do not already have a NEMA 14-50 outlet at your installation site.
- Manage Load: Configure two or more JuiceBox charging stations to share a circuit.
- Warranty: 3-year manufacturer's warranty for use under normal residential operating conditions (please note that the residential warranty is void if the station is used in a non-residential setting).
- Indoor and Outdoor Rated: Weatherproof, dust-tight, polycarbonate casing
Whats Included
- J1772 Level 2 NEMA 14-50 Electric Vehicle (EV) Charger - up to 40A - 25'
Product Manuals
A: I personally never used the app, just plugged it in and it worked.
Q: Do you have to pay for a subscription to use this charger.
A: Nope. Just plug it in and use it. I know this is a scary purchase. We debated and debated but this charger has been working out great. It was easy to install and it just plugs in and you can use it. It is as advertised. Hope this helps.
A: In most cases a regular 20-amp breaker would suffice, as long as you don't have other high-draw devices on the same circu Level 2 chargers can draw 40 amps. So you needa 50 amp breaker. All of these requirements can vary. This Level 2 charger is 40 amps. But l still have it on a 50-amp circuit. For a maximum of 50 amps, you’ll need a wire gauge of 6.
Q: Hi, Will it work with a Mustang Mach E? Do you have these in stock? Thanks
A: Works like a charm for my 2022 Mach e! Charging is set to start at midnight or lowest rates and stop when battery gets to 80% charge.
Q: How long to charge and type 1 or 2
A: Type 2, and depends on your vehicle, I own a Lexus NX 450h+ with a 6.6 onboard charger. If I use the included Type 1 (standard 110 outlet) cable it takes about 12.5 hours to charge. With this Type 2 JuiceBox 40 on a 50 amp circuit, it takes 2.5 hours to fully charge.
Q: Will this work with a 2018 chevy volt?
A: Yes, if it has the J1772 connection. With this home charger you can expect to add approximately 31 miles of range per charging hour.
Q: Will this work with a 2024 Jeep Wrangler Sahara 4xe?
A: Yes, I use it for my Jeep Grand Cherokee 4xe, I would imagine the system is the same as the Wrangler 4xe.
Q: Can this be installed outside meaning is it water/snow proof?
A: It is supposed to be weather proof, and comes with a locking mount to prevent theft. Only thing to cautious of is that it needs to be on WiFi.
