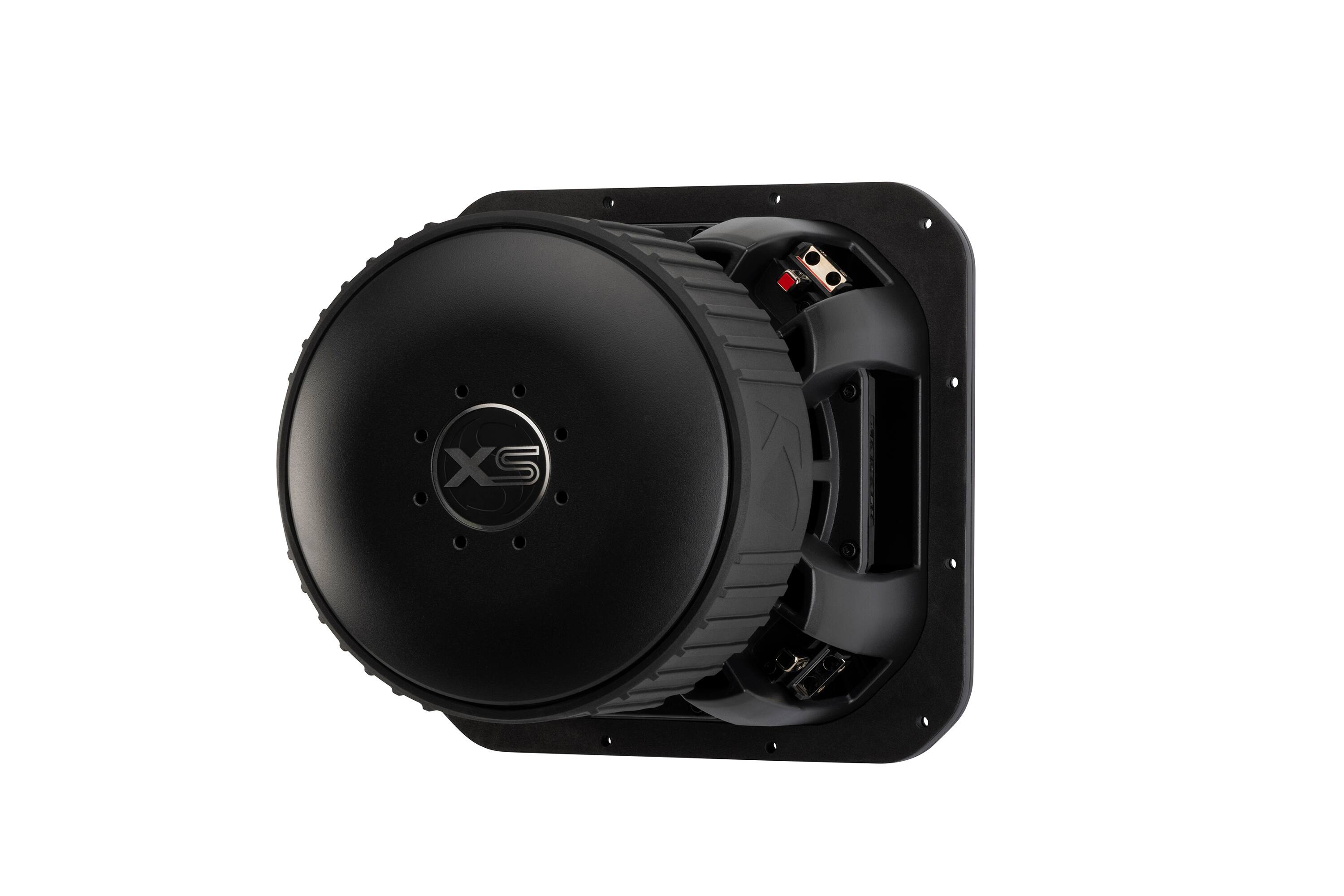

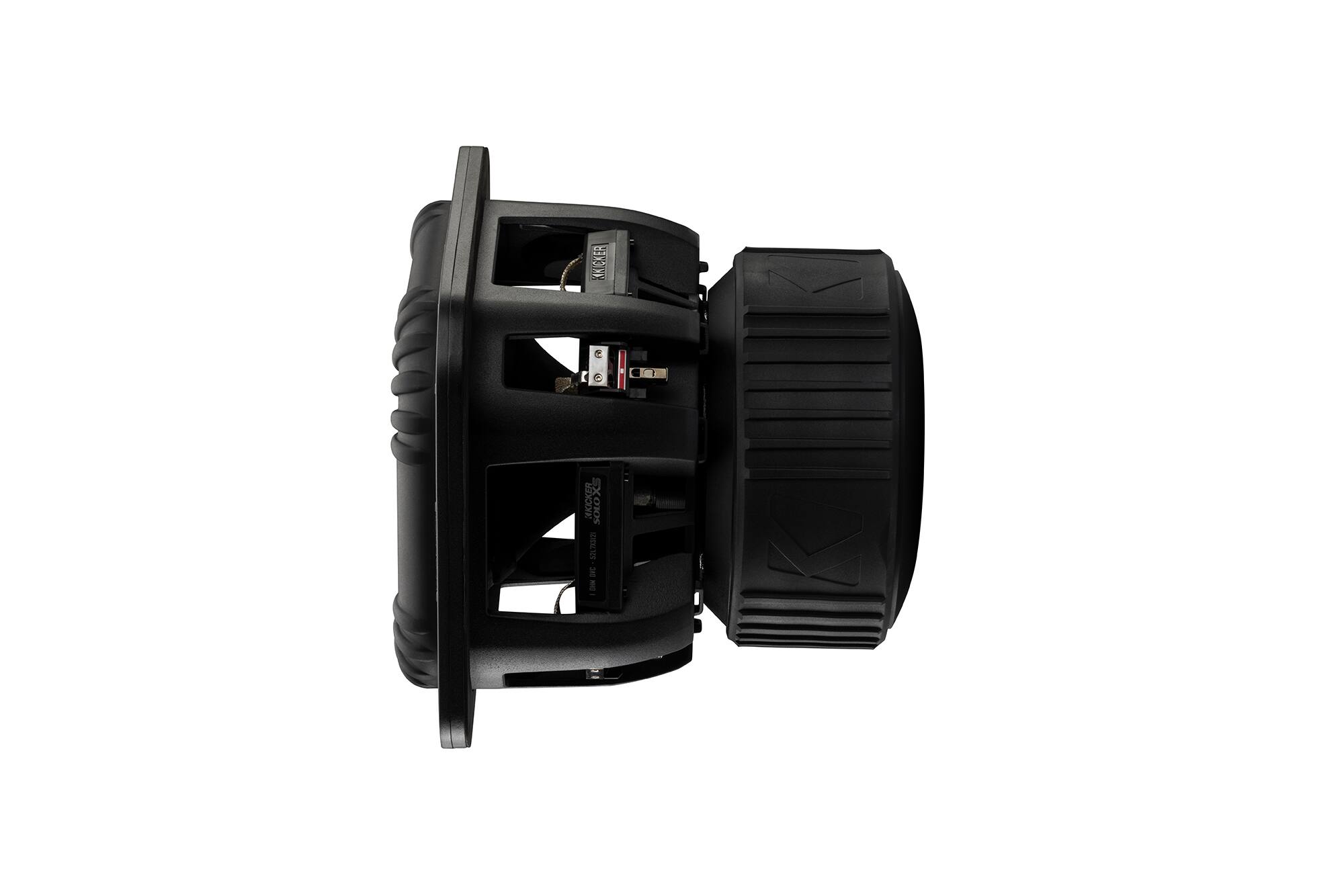

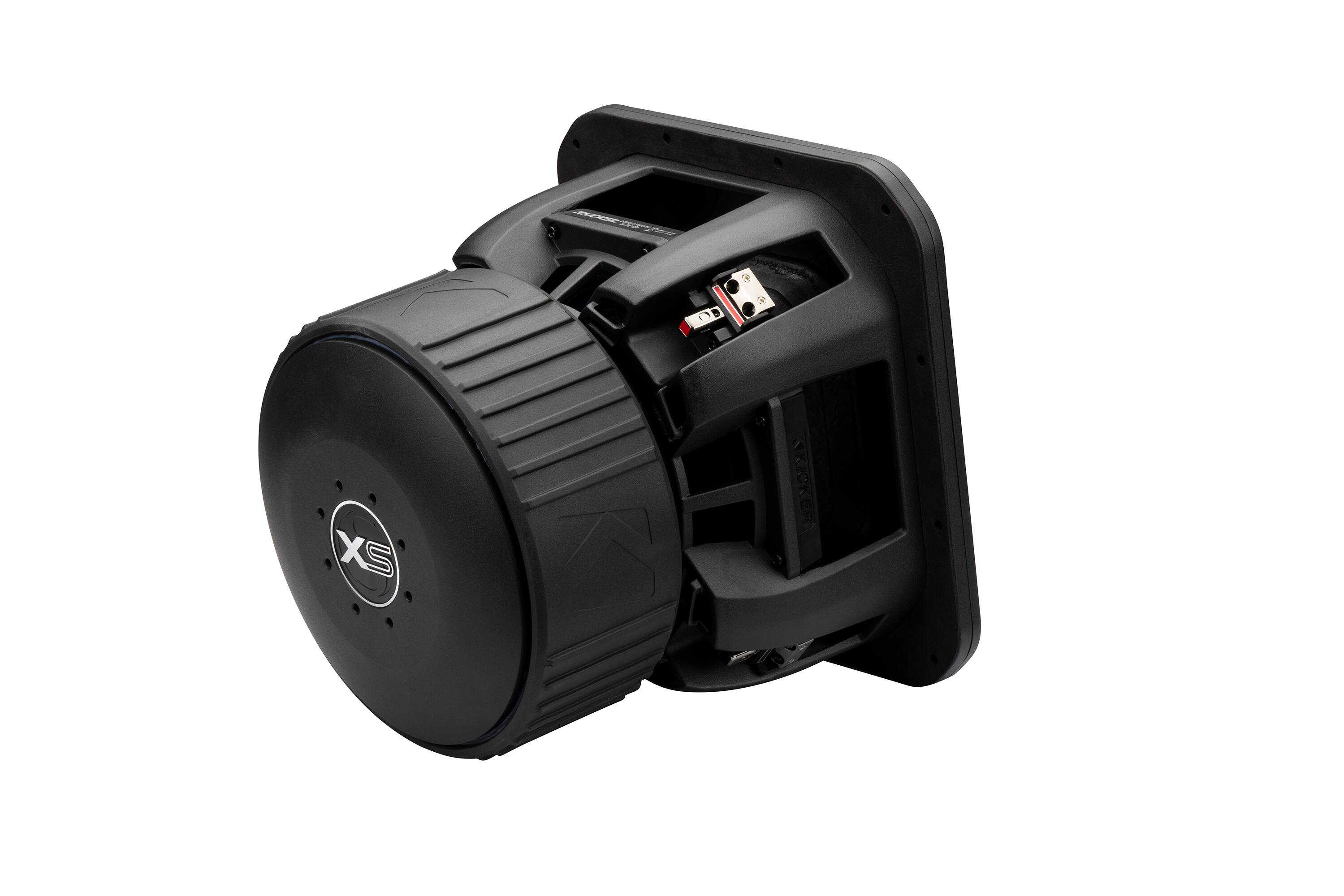

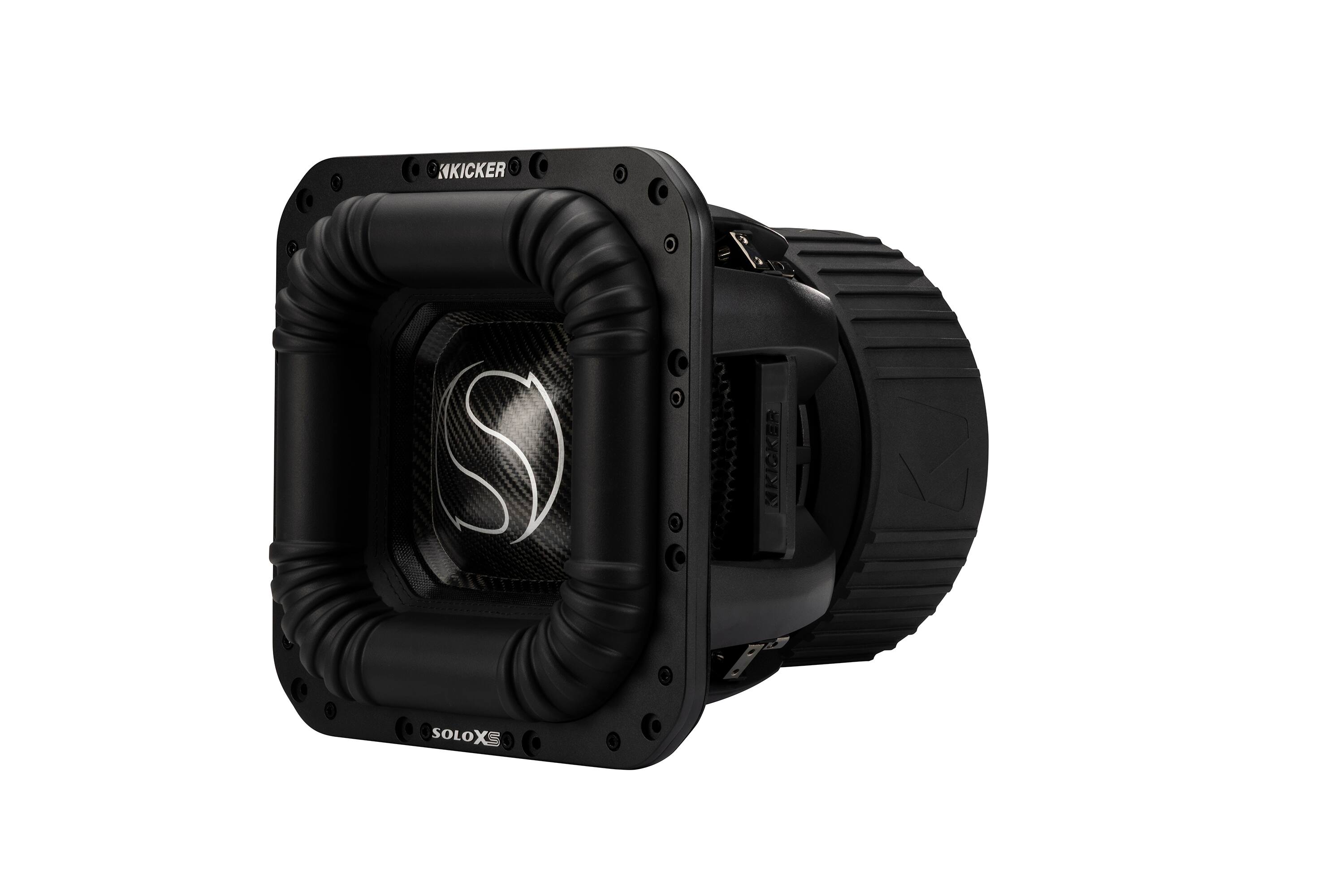

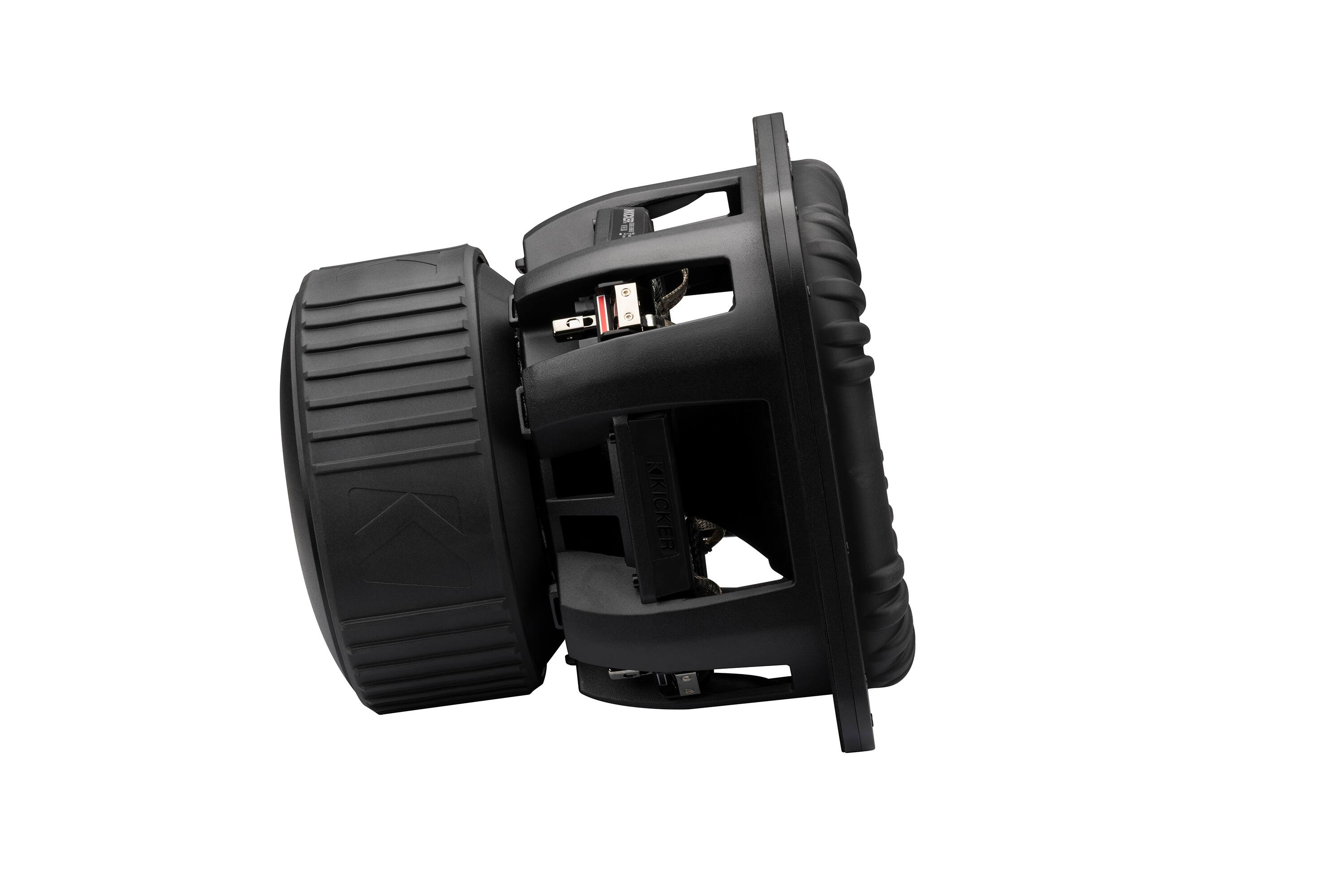

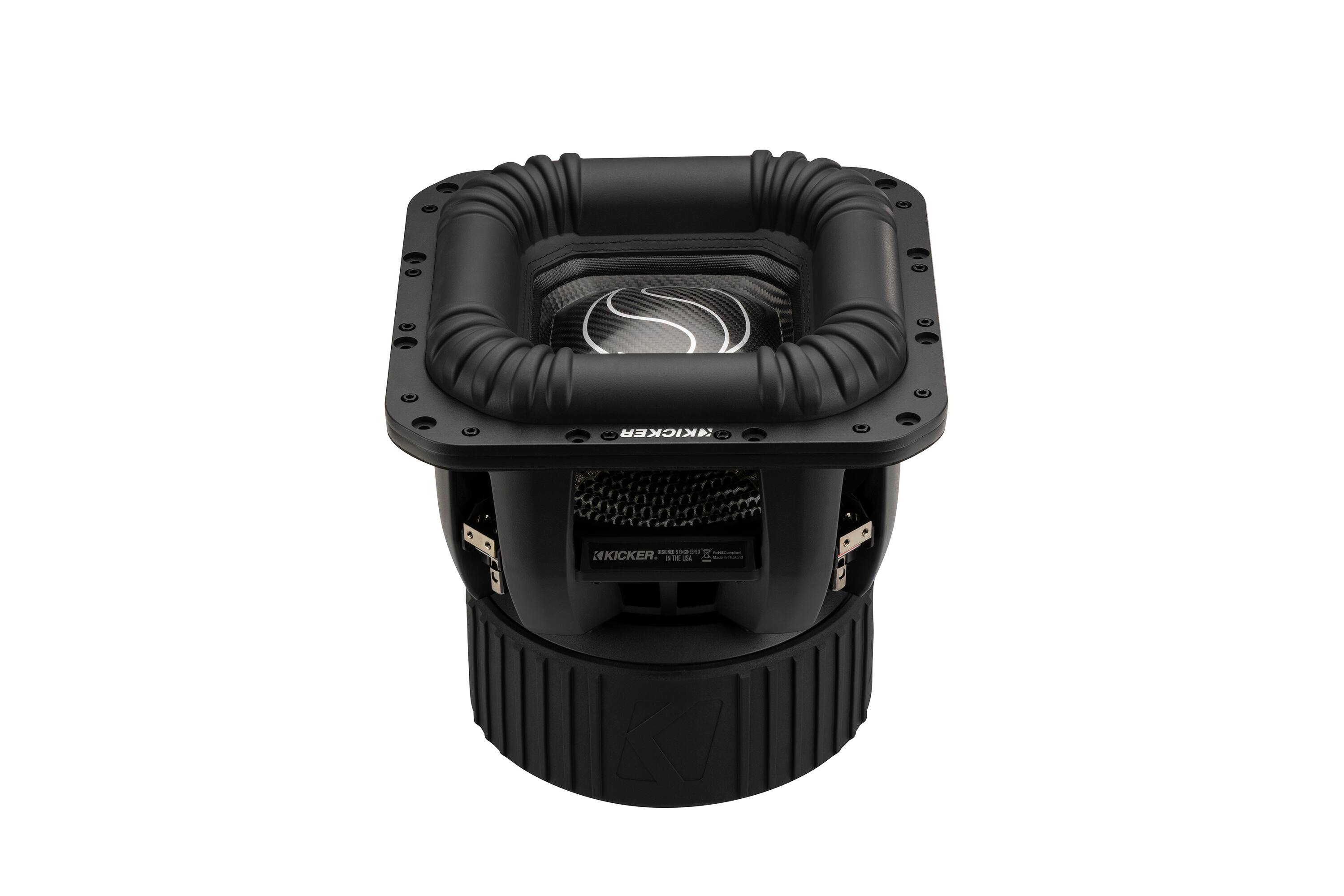

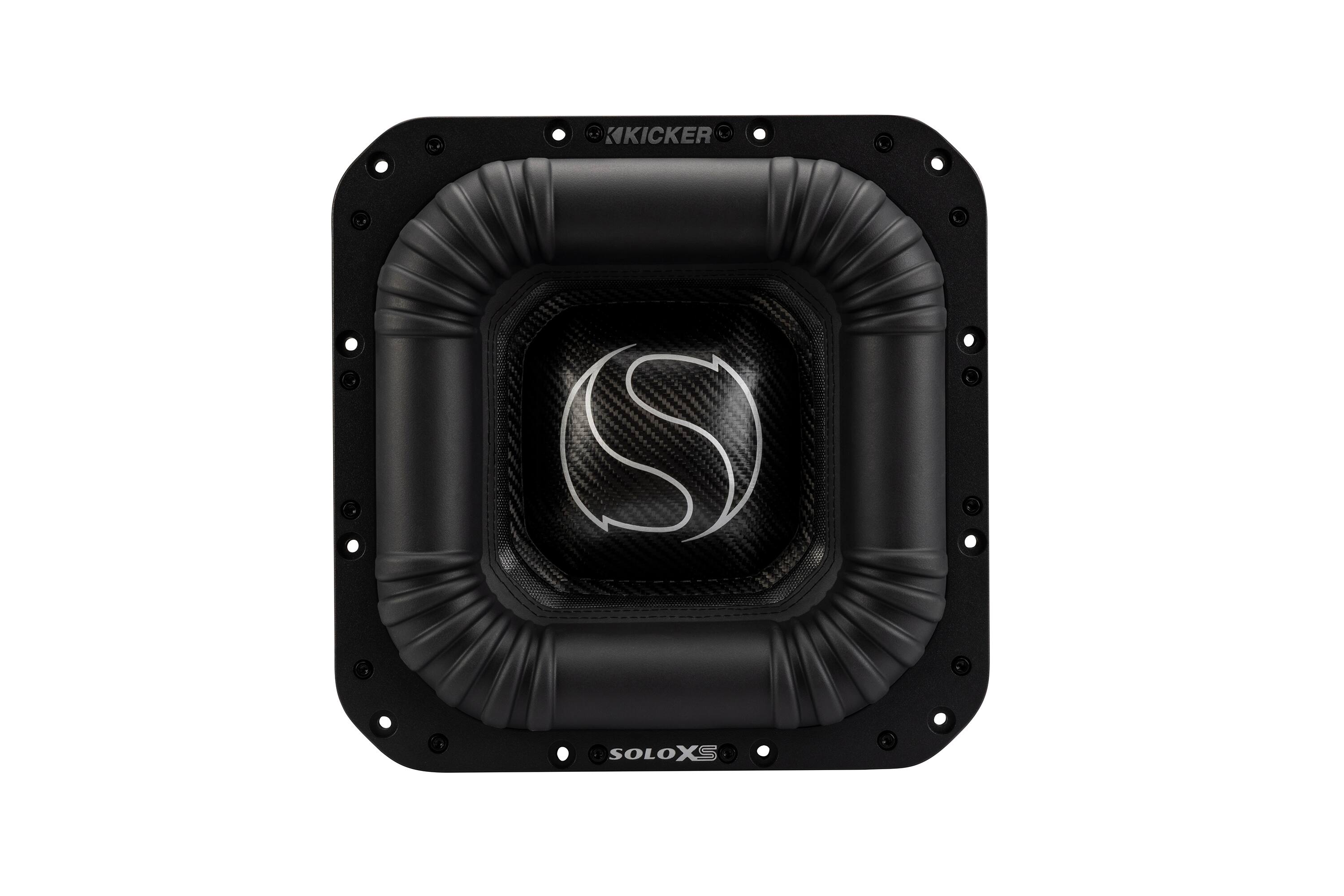

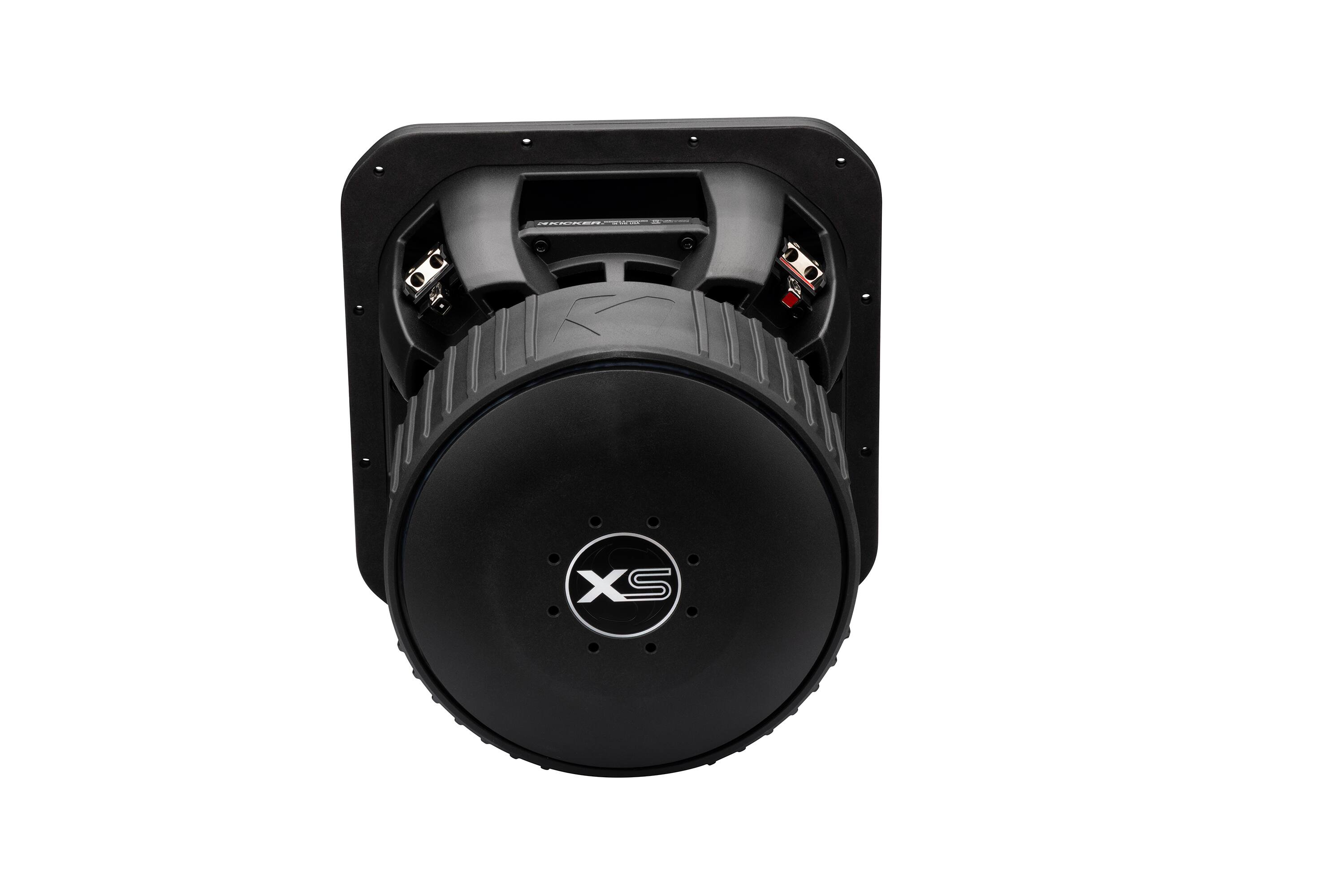

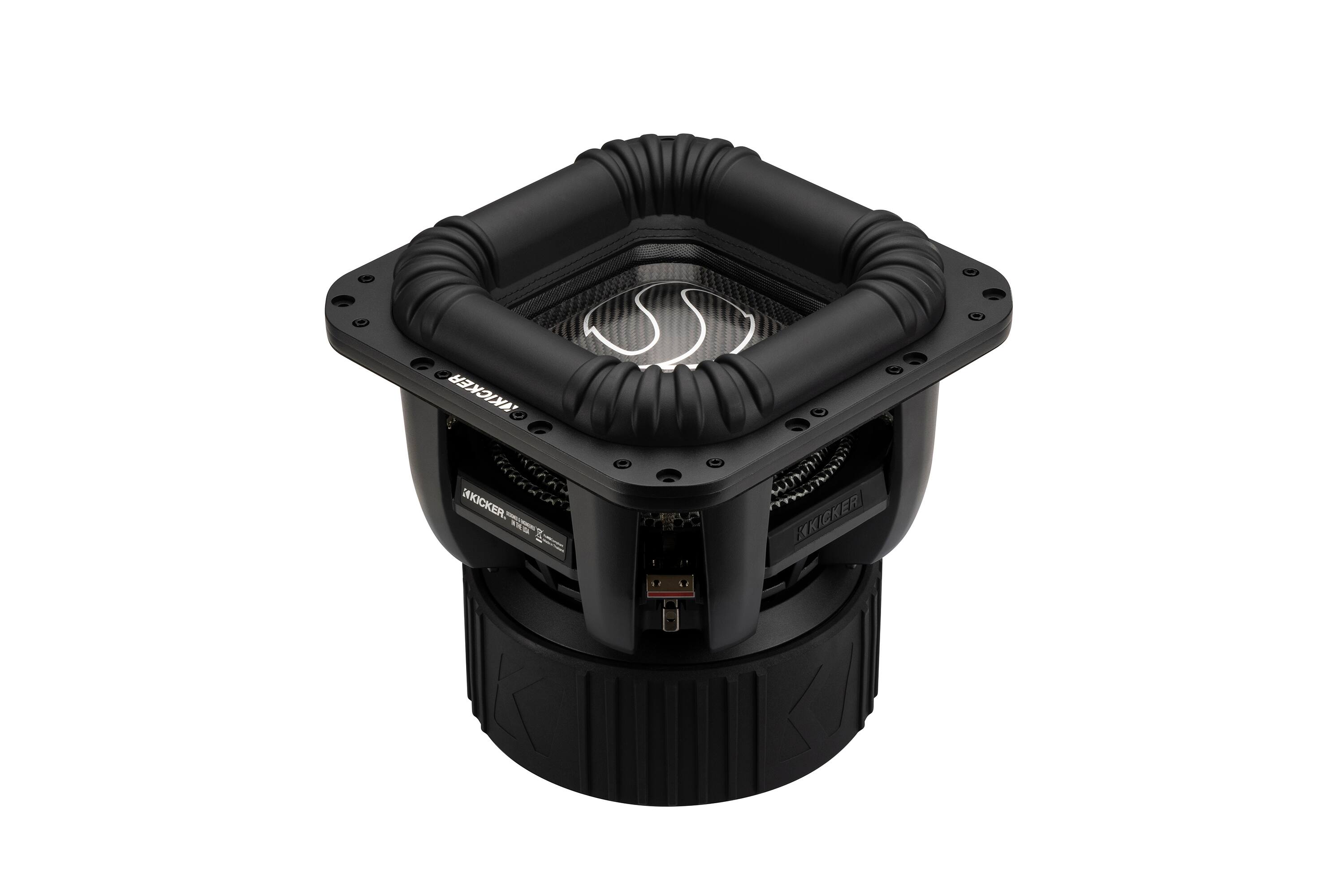

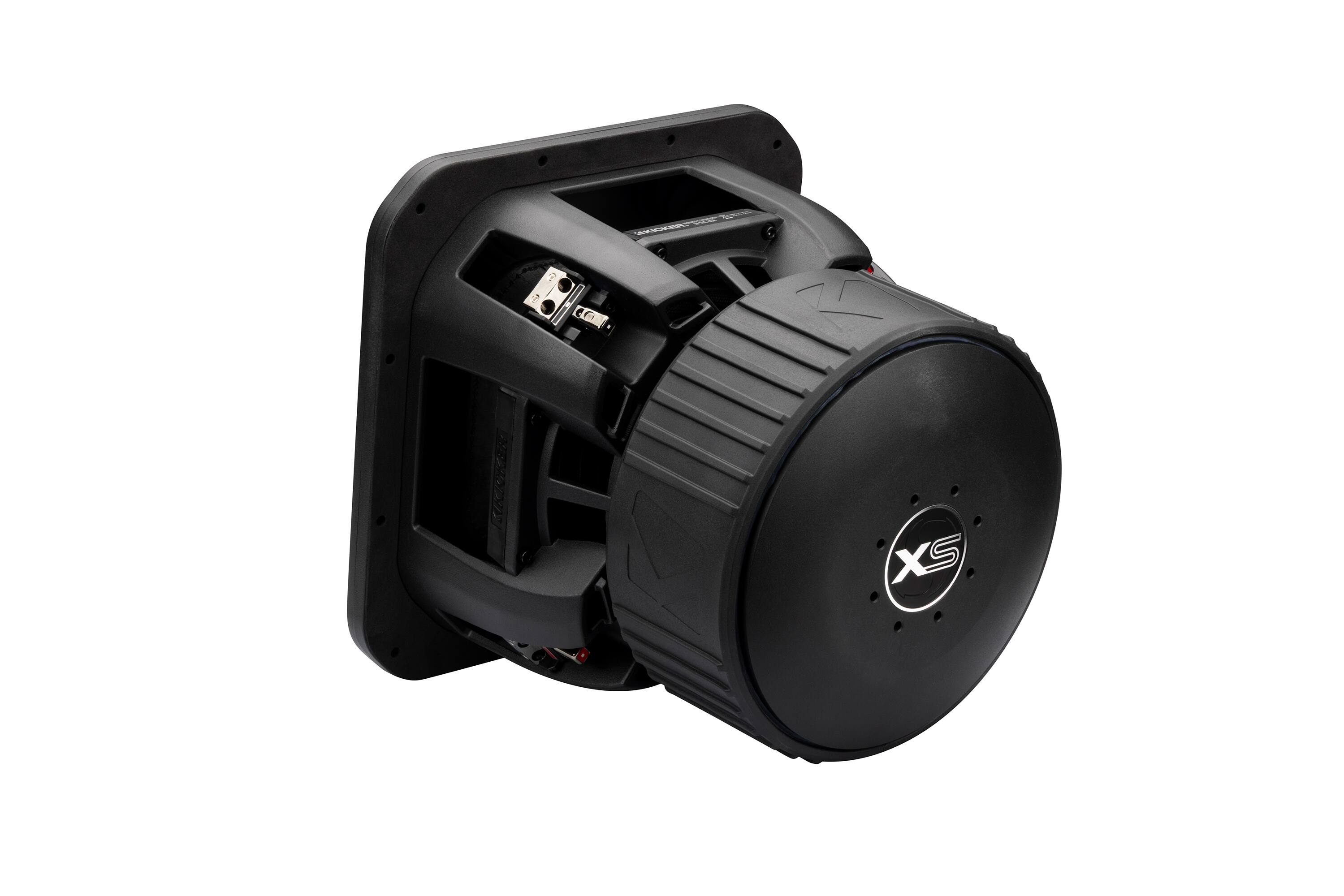

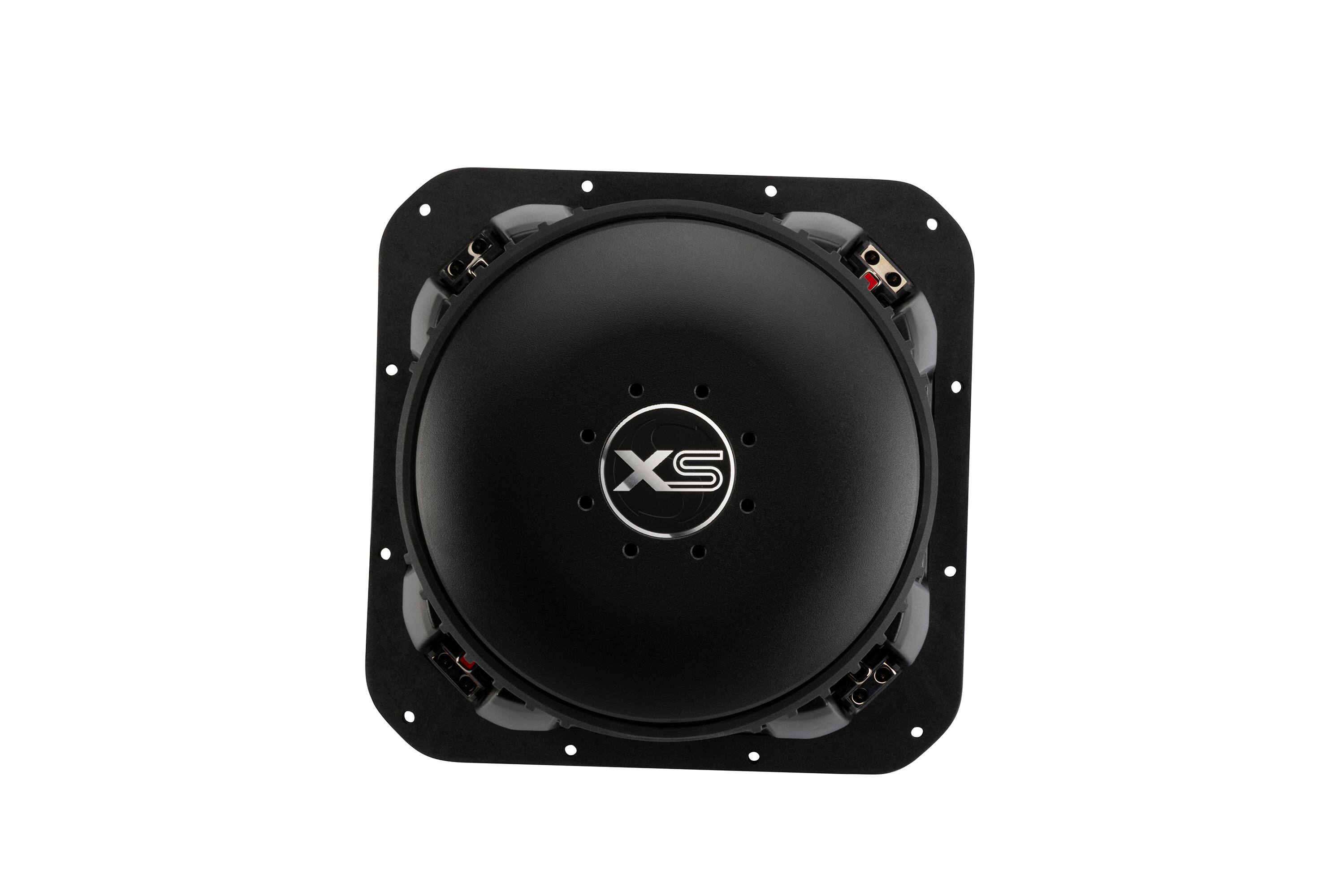

KICKER - 52L7XS121 - 12" SoloXS L7XS 1 Ohm DVC Square Subwoofer with 1500-3000W RMS, 43mm Xmax, Forced Air Cooling, a - Black/Gray

The KICKER 52L7XS121 is a 12-inch SoloXS L7XS square subwoofer built for extreme excursion, ultra-deep bass, and very high output. As part of KICKER’s pinnacle SoloXS line, it is designed with tighter tolerances, more stroke, more Xmax, and more power than the SoloX platform, while still aiming to remain highly musical in addition to being brutally loud. This 12-inch model uses a massive ferrite motor, a 3-inch aluminum voice-coil former, extra-large dual-spider suspension, a double-pressed pulp cone, and a next-generation proprietary NBR surround. Rated for 1500 to 3000 watts RMS with 43.1 mm of Xmax, the 52L7XS121 is built for serious bass systems that need both heavy excursion and long-term durability. KICKER also includes its exclusive Forced Air Cooling thermal management to help the SoloXS platform run cooler and last longer. Serviceability is a major part of the design as well, with a field-replaceable pre-assembled recone system that uses a surround compression system, bolt-on spider landing, and alignment pins, allowing fast no-glue replacement when needed. Spec Table: Series: SoloXS L7XS Size: 12" (30 cm) Configuration: 1 Ohm DVC Recommended Amplifier Power RMS: 1500-3000 Watts Frequency Response: 20-100 Hz Magnet Diameter: 9.85" (25 cm) Total Magnet Weight: 705 oz (20 kg) Voice Coil Diameter: 3" (75 mm) Voice Coil Winding Width: 3.4" (86.2 mm) Top Plate Thickness: 0.8" (20 mm) Xmax: 1.71" (43.1 mm) Mounting Cutout: 11-1/16" (28.1 cm) Mounting Depth: 10-1/8" (25.7 cm) Recommended Vented Box Volume: 3.0 Cu. Ft. (84.9 L) Port Opening: 3.5" x 13" (9 x 33 cm) Port Length: 36.5" (93 cm) Vented Enclosure Tuning Frequency: 31 Hz Forced Air Cooling: Yes Field-Replaceable Recone Kit: Yes Cone Material: Double-Pressed Pulp Cone Surround Material: Proprietary NBR Terminals: Single 8 AWG Push Terminal and Dual 4 AWG Terminal Block

• Key Feature: KICKER 52L7XS121 is a 12" SoloXS L7XS square subwoofer with 1-ohm DVC configuration, built for ultra-deep high-excursion bass with extreme output capability in serious daily and competition systems.
• Key Feature: Rated for 1500-3000 watts RMS, the 52L7XS121 uses a 3" aluminum voice-coil former, extra-large dual-spider suspension, massive 20 kg magnet assembly, and 43 mm Xmax for heavy-stroke low-frequency performance.
• Key Feature: Key enclosure data includes 10-1/8" mounting depth, 11-1/16" cutout, 3.0 cu ft recommended vented box volume, 31 Hz tuning, 3.5" x 13" port opening, and 36.5" port length.
• Key Feature: SoloXS family engineering includes KICKER exclusive Forced Air Cooling™, a field-replaceable recone assembly, double-pressed pulp cone, proprietary NBR surround, and a custom rubber boot over the oversized ferrite magnet.
• Key Feature: Installation and service features include a max-cooling cast-aluminum basket, single 8 AWG push terminal plus dual 4 AWG terminal block, dual high-strand tinsel leads, and no-glue recone replacement design.
