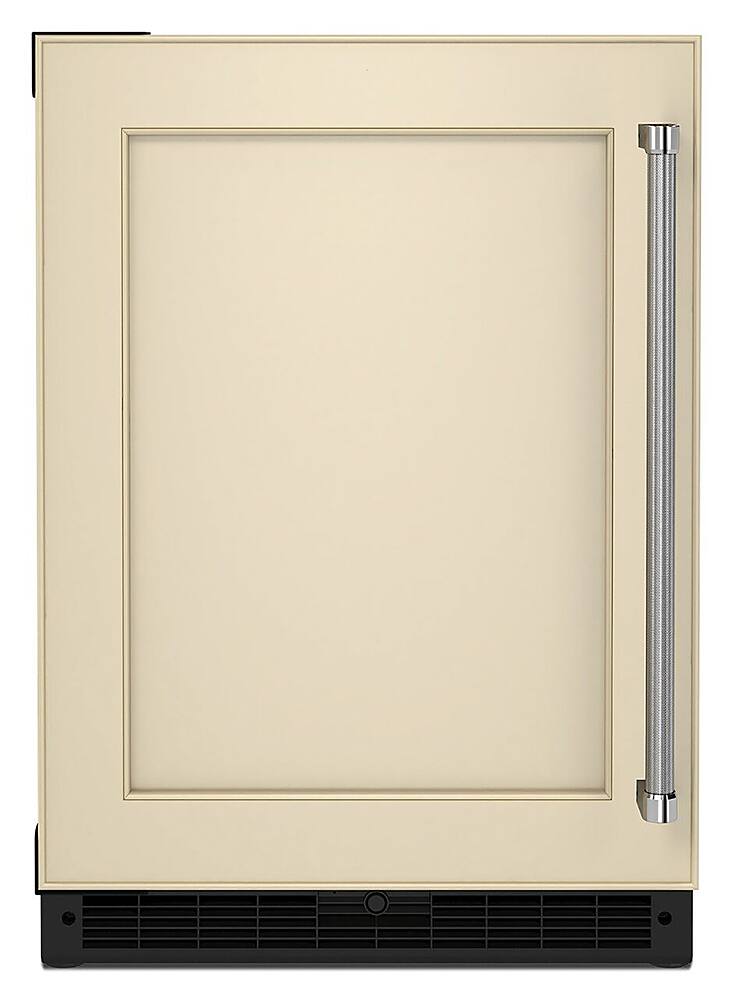

KitchenAid - 5.0 Cu. Ft. Built-In Mini Fridge with Panel Ready - Custom Panel Ready
Color
Custom Panel ReadyRelated Item
Specifications
- Color FinishCustomProduct Height34 3/8 inchesProduct Width23 7/8 inchesHeight To Top Of Refrigerator (Without Hinges)34 5/32 inchesHeight To Top Of Door Hinge34 3/8 inchesDepth Without Handle23 5/8 inches
- Key Specs
- Color Finish: Custom
- Product Height: 34 3/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 34 5/32 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 34 3/8 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Depth Without Handle: 23 5/8 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 26 7/16 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Total Capacity: 5 cubic feet
- Refrigerator Style: Compact
- Lighting Type: LED
- Ice Maker: No
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- General
- Brand: KitchenAid
- Model Number: KURL114KPA
- Product Name: 5.0 Cu. Ft. Built-In Mini Fridge with Panel Ready
- Color: Custom Panel Ready
- Color Finish: Custom
- Side Panel Color: Black
- Dimensions
- Product Height: 34 3/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 26 7/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 34 5/32 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 34 3/8 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Counter Depth: true (The product case installs flush with the depth of standard kitchen counters to provide a built-in appearance.)
- Depth Without Handle: 23 5/8 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 26 7/16 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Depth Without Door: 21 11/16 inches (Measurement from the back of the product to its front, not including the door.)
- Depth With Door 90 Degrees Open: 48 inches (Measurement from the back of the product to its front, with the door open at a 90-degree angle.)
- Product Weight: 94.8 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 35 1/2 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 24 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Total Capacity: 5 cubic feet
- Refrigerator Capacity: 5 cubic feet (Total amount of space within the refrigerator compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Features
- Configuration: Built-in (The size, arrangement, and physical configuration of the product.)
- Panel Ready: true (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Refrigerator Style: Compact
- Fingerprint Resistant: false
- Garage Ready: false (Garage Ready appliances have been tested by the manufacturer to operate within a wider range of external temperatures than the average home environment, such as a garage which can fall below freezing or heat above 100 degrees Fahrenheit. Please refer to the manufacturer's documentation for detailed external operating temperature requirements.)
- Door-Open Alarm: true
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Temperature Control Type: Electronic
- Display Type: None
- Defrost Type: Automatic (Ice build-up can reduce the appliance’s cooling capacity, making it work harder and consume more energy. Defrosting is necessary to maintain its efficiency and each type has its own advantages depending on user needs and preferences. Manual defrost appliances require unplugging to melt ice naturally, but offer more space, lower energy consumption, and lower cost without the internal heating element. Frost-free appliances regulate temperature to prevent ice build-up automatically. Automatic defrost systems use a timer to circulate heat and prevent ice accumulation, while adaptive defrost systems use sensors to determine the optimal times for heat circulation.)
- Reversible Door Hinge: false
- Lighting Type: LED
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Ice & Water
- Ice Maker: No
- Storage
- Number of External Doors/Drawers: 1
- Number of Refrigerator Shelves: 3
- Refrigerator Shelf Style: Adjustable, Spill proof, Removable
- Gallon Door Storage: false (Designated storage space for gallon-sized containers, such as milk, juice, and water.)
- Humidity-Controlled Crisper: false
- Refrigerator Shelf Material: Glass
- Freezer Info
- Freezer Compartment: false
- Electrical Specification
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 115 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Consortium for Energy Efficiency (CEE) Rating: CEE Not Qualified
- Chemical Disclosures: This product may contain one or more regulated perfluoroalkyl and polyfluoroalkyl substances or PFAS. Mandatory reporting is not required until January 1, 2025. Whirlpool Corporation is in the process of gathering more information on PFAS use across our supplier base, and will update this disclosure as we learn more. For more information about chemicals in this product, visit www.kitchenaid.com/regulatory. [Este producto puede contener una o más sustancias perfluoroalquilo y polifluoroalquilo reguladas o PFAS. No se requieren informes obligatorios hasta el 1 de enero de 2025. Whirlpool Corporation está en el proceso de recopilar más información sobre el uso de PFAS en nuestra base de proveedores y actualizará esta divulgación a medida que sepamos más. Para obtener más información sobre los químicos en este producto, visite www.kitchenaid.com/regulatory.] (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 5 years limited warranty on certain component parts
- Warranty - Labor: 5 years limited warranty on certain component labor
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Other
- UPC: 883049593050
This Undercounter Refrigerator makes room for party essentials from platters to pitchers. LED Interior Lighting turns on when the door is open, making it easy to find items inside, and a Temperature Monitoring System with sensor alert adds peace of mind. Fully Flush Installation and Panel-Ready Design let you seamlessly match your cabinetry.
- Fully Flush Installation with Hidden Hinges: Provides a built-in look within a standard 24" base cabinet, so your style stands out, not the appliance. Hidden hinges allow the refrigerator door to sit flush with surrounding cabinet fronts when closed yet easily swing open a full 90 degrees.
- Panel-Ready Design: Allows you to install a custom front panel and handle (not included) over the door to create a seamless look with kitchen cabinetry.
- Temperature Monitoring System: Uses sensors to monitor temperatures inside the refrigerator for added peace of mind. If the system detects temperatures above 45°F for more than 4 hours, an over-temp alarm and indicator light will alert you that service is needed.
- LED Interior Lighting: Turns on when the door is open, making it easy to find items inside.
- Glass Shelves: Bring distinctive style inside with a solid glass design that makes it easy to wipe up spills.
- 5.0 Cu. Ft. Capacity: Features two full-width glass shelves and one half shelf, making it easy to find a place for items of different shapes and sizes, even wide platters and tall pitchers. Two removable full-width door bins add extra space for small jars and slim bottles.
- Door Alarm: Alerts you if the door has been left open for five minutes or more and repeats every two minutes until you close the door or touch the controls.
- Backlit Touch Controls: Located inside the refrigerator make it easy to choose settings for what you're storing. The lighted control panel displays the current temperature and other status alerts.
- Sabbath Mode (Star-K Certified): To meet kosher requirements for use on the Jewish Sabbath and other religious holidays. Turning on Sabbath Mode disables automatic lights and alarm tones.
- Max Cool: Sets the refrigerator to its lowest temperature for up to 24 hours, so you can turn up the cold when the door will be open while serving or restocking.
- Automatic Defrost: Cycles automatically to help reduce frost build-up, freeing you from having to regularly empty the appliance and manually defrost.
- Fully Flush Installation with Hidden Hinges: Provides a built-in look within a standard 24" base cabinet, so your style stands out, not the appliance. Hidden hinges allow the refrigerator door to sit flush with surrounding cabinet fronts when closed yet easily swing open a full 90 degrees.
- Panel-Ready Design: Allows you to install a custom front panel and handle (not included) over the door to create a seamless look with kitchen cabinetry.
- Temperature Monitoring System: Uses sensors to monitor temperatures inside the refrigerator for added peace of mind. If the system detects temperatures above 45°F for more than 4 hours, an over-temp alarm and indicator light will alert you that service is needed.
- LED Interior Lighting: Turns on when the door is open, making it easy to find items inside.
- Glass Shelves: Bring distinctive style inside with a solid glass design that makes it easy to wipe up spills.
- 5.0 Cu. Ft. Capacity: Features two full-width glass shelves and one half shelf, making it easy to find a place for items of different shapes and sizes, even wide platters and tall pitchers. Two removable full-width door bins add extra space for small jars and slim bottles.
- Door Alarm: Alerts you if the door has been left open for five minutes or more and repeats every two minutes until you close the door or touch the controls.
- Backlit Touch Controls: Located inside the refrigerator make it easy to choose settings for what you're storing. The lighted control panel displays the current temperature and other status alerts.
- Sabbath Mode (Star-K Certified): To meet kosher requirements for use on the Jewish Sabbath and other religious holidays. Turning on Sabbath Mode disables automatic lights and alarm tones.
- Max Cool: Sets the refrigerator to its lowest temperature for up to 24 hours, so you can turn up the cold when the door will be open while serving or restocking.
- Automatic Defrost: Cycles automatically to help reduce frost build-up, freeing you from having to regularly empty the appliance and manually defrost.
Product Manuals
Documents
- Energy_Guide_PDF
- Energy_Guide_PDF
Q: Does this refrigerator require a custom front panel?
A: Yes, the panel-ready design allows for a custom front panel and handle to be installed.
Q: What is the capacity of this KitchenAid refrigerator?
A: This KitchenAid refrigerator has a capacity of 5.0 cubic feet.
Q: Does this refrigerator have an alarm that sounds if the door is left open?
A: Yes, this refrigerator has a door alarm that will sound if the door is left open for more than five minutes.
Q: Does this refrigerator have adjustable shelves?
A: Yes, this unit features adjustable shelves.
Q: What type of lighting is used inside this refrigerator?
A: This refrigerator uses LED interior lighting.
Q: How does the temperature monitoring system in this refrigerator work?
A: This refrigerator uses sensors to monitor the internal temperature and will provide an alert if the temperature goes above 45 degrees for more than 4 hours.
Q: How many bottles of wine can you fit
A: Hello Captain71, we do not have the exact number amount as there are different variables that can determine that amount. This model offers a 5.0cubic footage interior which features two full-width glass shelves and one half shelf, making it easy to find a place for items of different shapes and sizes, even wide platters and tall pitchers. Two removable full-width door bins add extra space for small jars and slim bottles. We hope this helps.
A: Hi, yes this is an undercounter unit. We do hope this is helpful.
