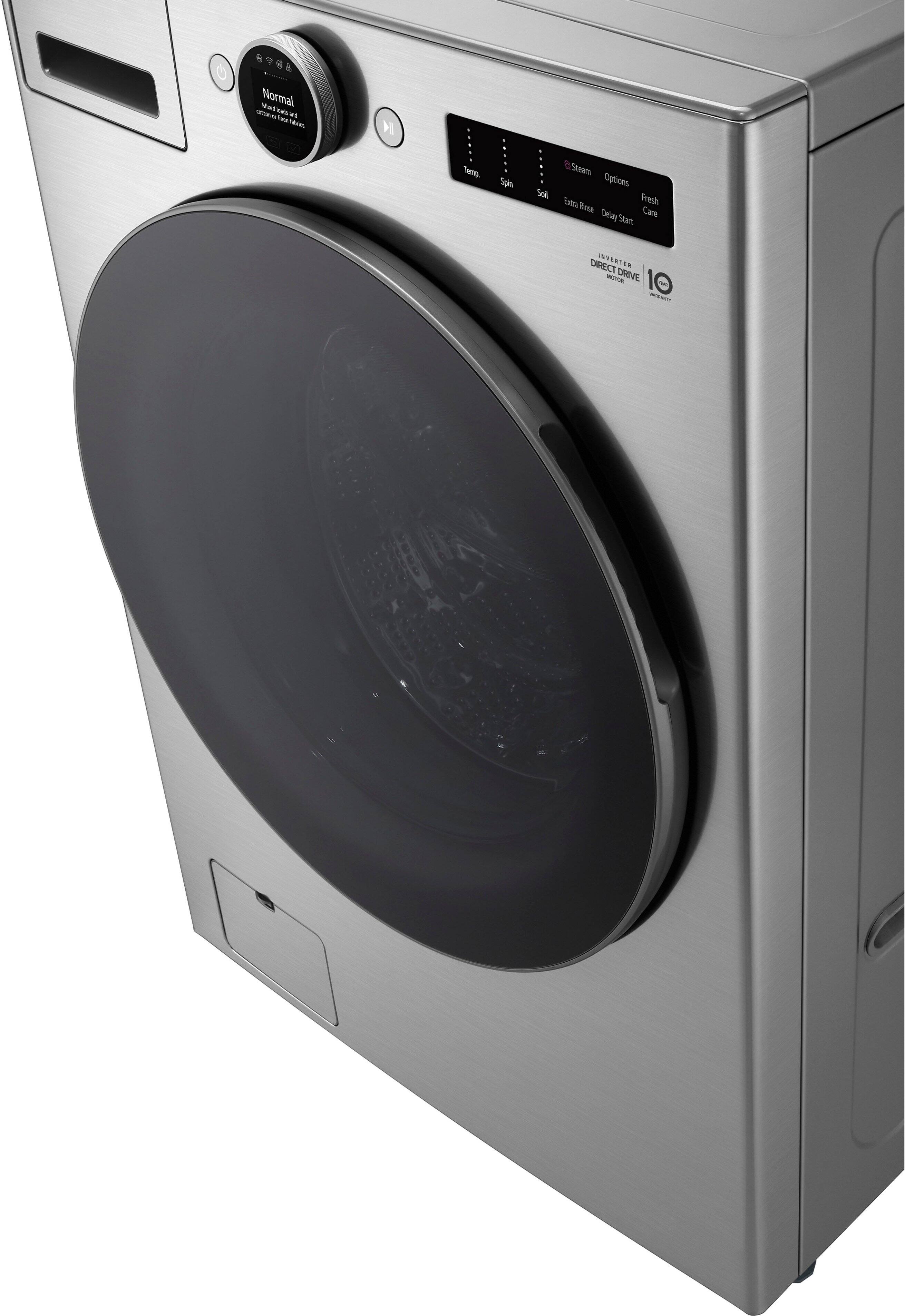

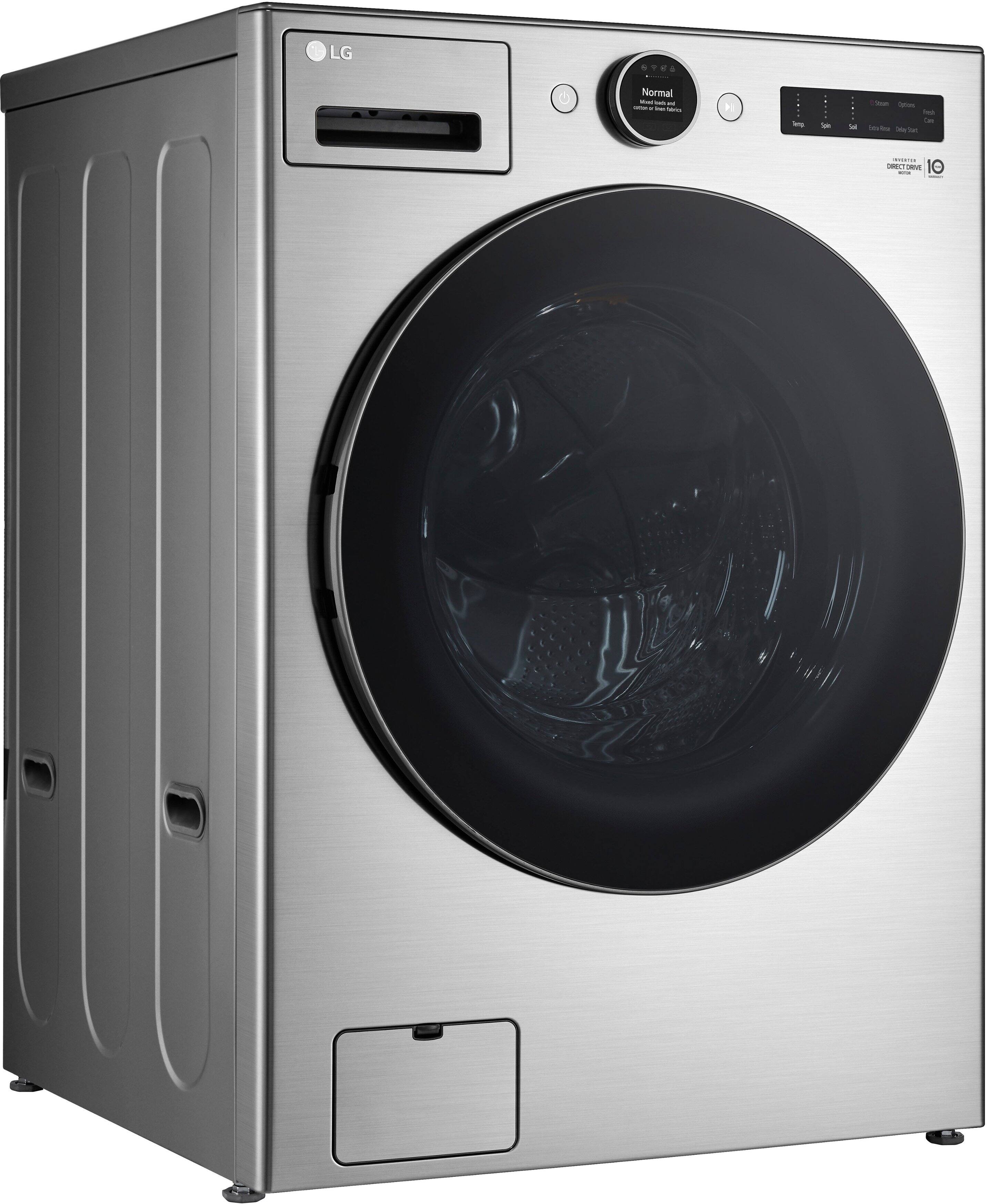

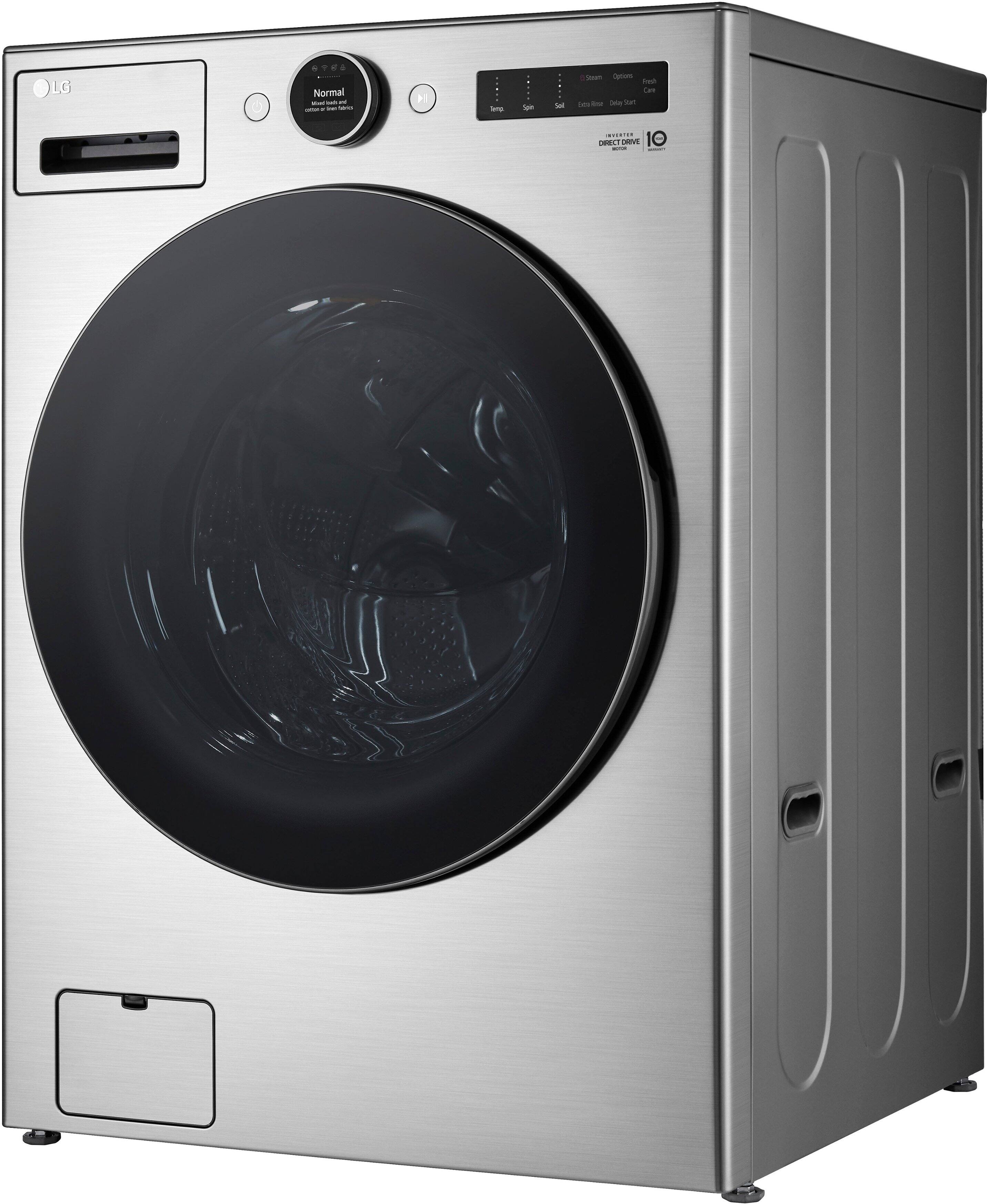

LG - 4.5 Cu. Ft. High-Efficiency Stackable Smart Front Load Washer with Steam and and ezDispense - Graphite Steel

Model: WM5700HVA
SKU: 6560214
This item is no longer available in new condition. See similar items below
  • Key Specs
    • Color Finish: Graphite steel

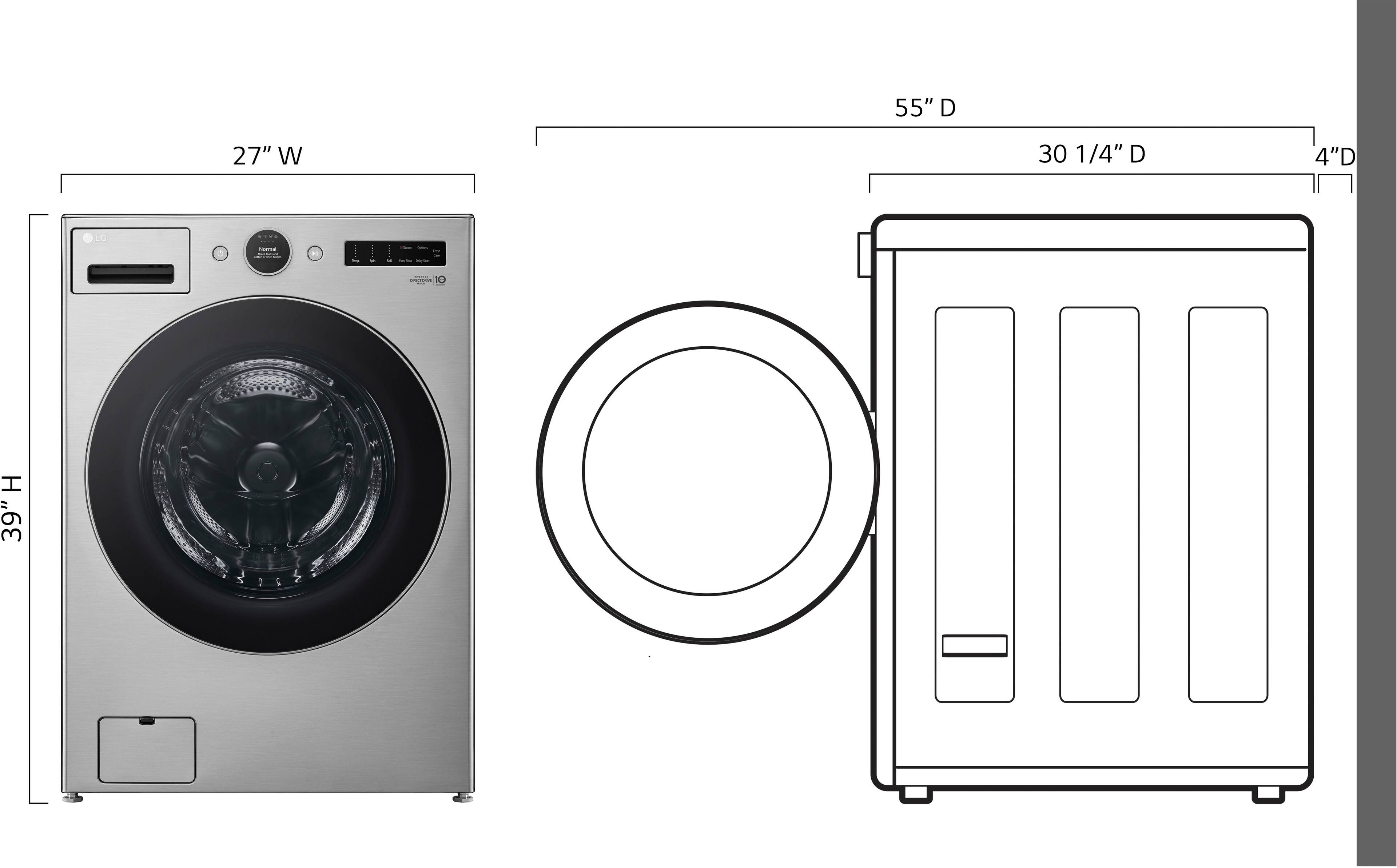

    • Product Height: 39 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 27 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Depth: 30 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
    • Depth With Door Open: 55 inches (Measurement from the back of the product to its front, with door fully open.)
    • Capacity: 4.5 cubic feet
    • High-Efficiency: true (Washers with this label feature technology meant to use less water. High Efficiency (HE) washers may also be larger in capacity. Using High Efficiency (HE) detergent in these washers is highly recommended as they are designed to be quick-dispersing and operate in low water conditions by producing less suds, requiring less detergent. Not using the recommended detergent can lead to additional rinse cycles and increased water usage.)
    • Steam Function: true (In washers, this feature may be employed before, during, or after the main wash cycle. Steam aids in stain removal, activating detergent, sanitizing, and softening wrinkles. In dryers, this feature can be used to remove wrinkles or quickly freshen clothing items.)
    • Washer Load Type: Front load
    • Pedestal Model Compatibility: WD300CV SideKick Pedestal Washer; WDP6V Pedestal
    • Matching Dryer Model Number: DLEX5500V, DLGX5501V, DLHC5502V
    • Stackable: true (To stack with similar products, ensure that the necessary support and/or installation hardware is in place to reduce safety hazards.)
    • Stacking Kit Model Compatibility: KSTK4
    • App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
  • General
    • Brand: LG
    • Model Number: WM5700HVA
    • Product Name: 4.5 Cu. Ft. High-Efficiency Stackable Smart Front Load Washer with Steam and and ezDispense
    • Color: Graphite Steel
    • Color Finish: Graphite steel
    • Commercial Merchandise: false
  • Dimensions
    • Product Height: 39 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 27 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Depth: 30 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
    • Depth With Door Open: 55 inches (Measurement from the back of the product to its front, with door fully open.)
    • Product Weight: 207.2 pounds (The out of box weight of the item.)
  • Capacity
    • Capacity: 4.5 cubic feet
  • Features
    • High-Efficiency: true (Washers with this label feature technology meant to use less water. High Efficiency (HE) washers may also be larger in capacity. Using High Efficiency (HE) detergent in these washers is highly recommended as they are designed to be quick-dispersing and operate in low water conditions by producing less suds, requiring less detergent. Not using the recommended detergent can lead to additional rinse cycles and increased water usage.)
    • Steam Function: true (In washers, this feature may be employed before, during, or after the main wash cycle. Steam aids in stain removal, activating detergent, sanitizing, and softening wrinkles. In dryers, this feature can be used to remove wrinkles or quickly freshen clothing items.)
    • Antimicrobial Protection: false (The product includes protective features which are designed to eliminate or inhibit the growth of microorganisms.)
    • Vibration Reduction: true (Additional features, such as sensors that adjust spin speeds or weights that counter unbalanced loads, help to minimize vibration for smoother, quieter operation.)
    • Noise Reduction: LoDecibel Quiet Operation
    • Maximum Spin Speed: 1300 revolutions per minute (This is the maximum spin speed of the tub in the final cycle. Higher revolutions per minute (RPM) will remove the water out of the clothes more quickly and effectively which can reduce drying time.)
    • Out-Of-Balance Detection: true
    • Internal Water Heater: false
    • Fingerprint Resistant: false
    • Automatic Temperature Control: false (This feature regulates hot and cold temperatures of the water or air within the appliance in order to keep them in the optimal range for each cycle.)
    • Child Lock: true (Setting that allows appliance to be temporarily locked to prevent use.)
    • Delay Start: true (Allows you to program the appliance to automatically run at a later time. This feature helps you coordinate with your household’s water needs, noise preferences, and more. Additionally, operating your appliance during off-peak hours may reduce energy costs.)
    • End-Of-Cycle Signal: true (An audible alert and/or visual indicator that notifies you when a pre-selected cycle is complete.)
    • Time-Remaining Display: true
    • Interior Light(s): true
    • Bleach Dispenser: true
    • Fabric Softener Dispenser: true
    • Pre-Wash Detergent Dispenser: true
    • Detergent Dispenser Type: Multi load, Single load (Single load dispensers hold enough liquid detergent for a single cycle and must be refilled after each use. A multiple load dispenser holds enough for multiple cycles before it is necessary to refill the detergent. The exact number of cycles completed before refilling will vary as machines with multiple load dispensers will calculate and dispense detergent automatically based on load size and other user preferences such as concentration level.)
    • Detergent Form: Gel, Liquid, Powder, Single-use packs, Tablet
    • Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
  • Design
    • Washer Load Type: Front load
    • Compact Design: false
    • Reversible Door Hinge: false
    • Control Type: Button, Dial, Touchpad
    • Tub/Drum Material: Stainless steel
    • Window: true
    • Wheels/Casters: false
    • Adjustable Leveling Legs: true (Legs can be adjusted accordingly to ensure that your appliance sits level, even on uneven ground.)
  • Cycle Specifications
    • Number of Wash/Rinse Cycles: 25
    • Wash/Rinse Cycles: Normal, AI Wash, Bedding, Delicates, Towels, Quick Wash, Heavy Duty, Allergiene, Perm. Press, Tub Clean, Bright Whites, Sanitary, Rinse+Spin, Spin Only, Hand/Wool, Active Wear, Swimwear, Kids Wear, Jeans, Dresses, Color Care, Sweat Stains, Small Load, Large Load, X Large Load
    • Options and Programs: TurboWash, Steam, Fresh Care, Pre-wash, Remote Start, Delay Wash, Wi-Fi, Add Item, Extra Rinse, Control Lock, Drum Light, Cold Wash, Detergent Level, Softener Level, Signal, Cycle List Edit, Cycle Optimization, Softener Tank Use
    • Number of Temperature Settings: 5
    • Temperature Settings: Ex. Hot, Hot, Warm, Cold, Tap Cold
    • Number of Spin Speeds: 5
    • Soil Levels: Light, Med. Light, Medium, Med. Heavy, Heavy (Washers with the option to select the soil level will employ different wash cycles to optimally clean the respective load. Most have three options: light, normal, or heavy.)
  • Compatibility

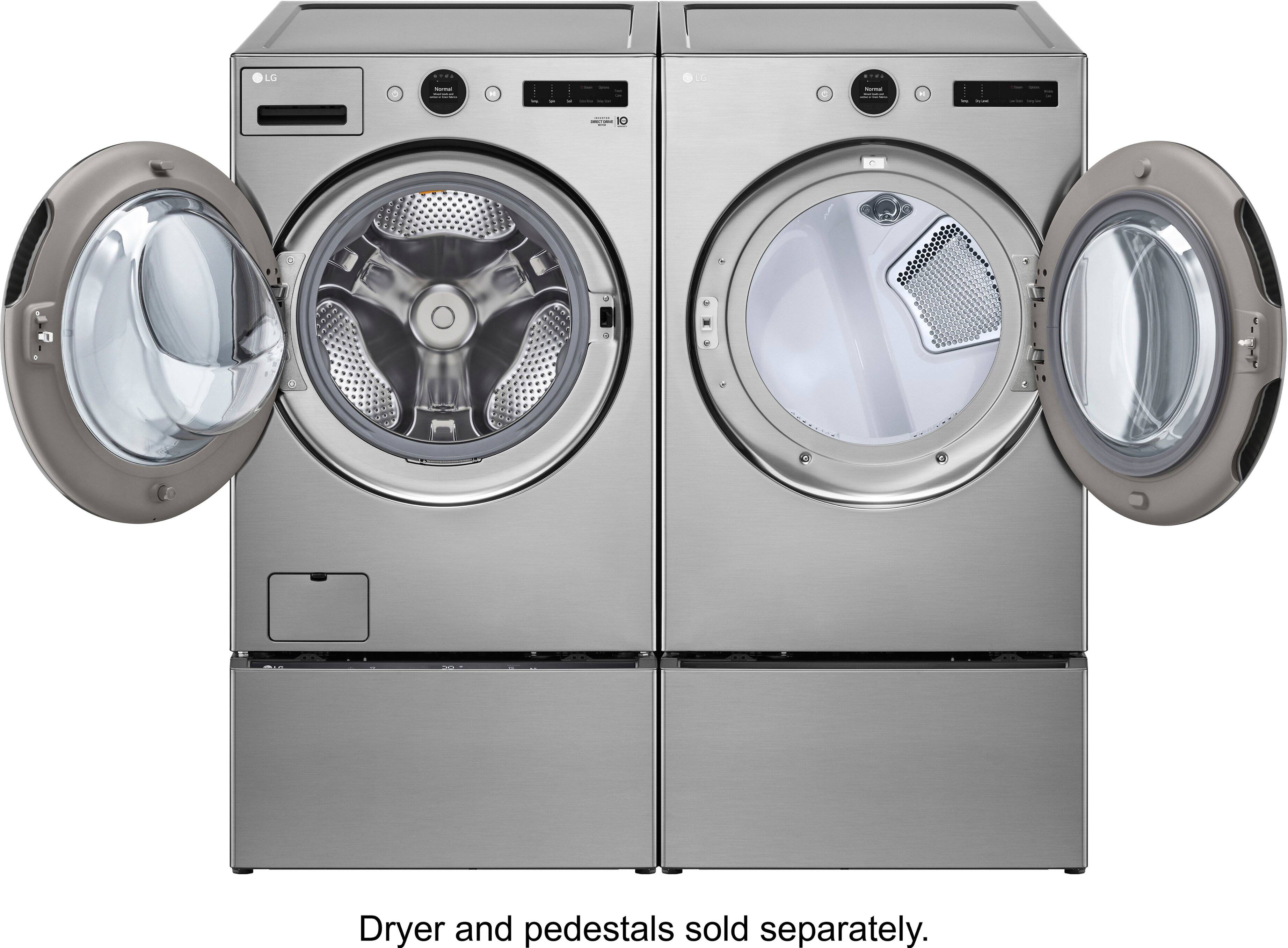

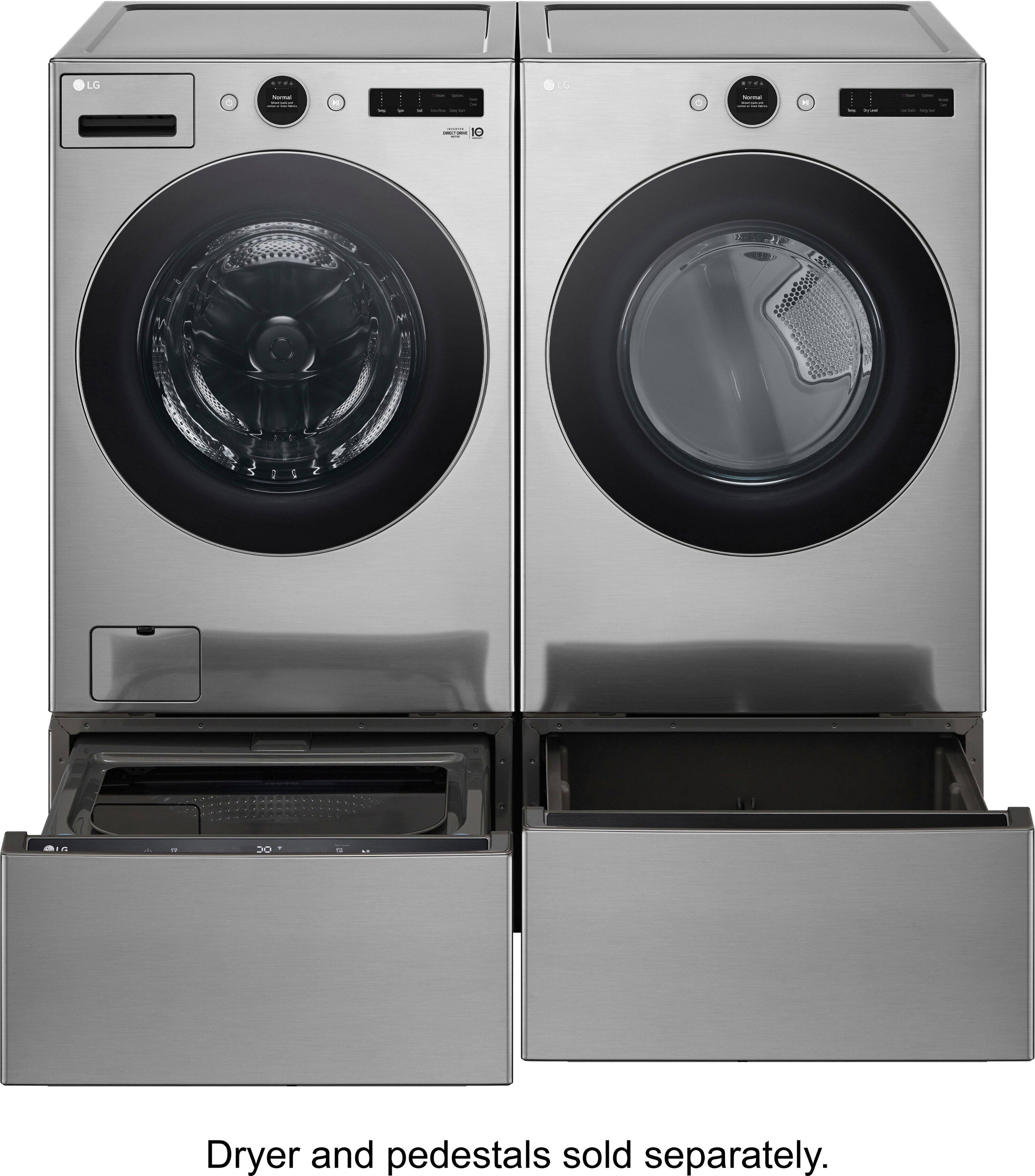

    • Pedestal Available: true

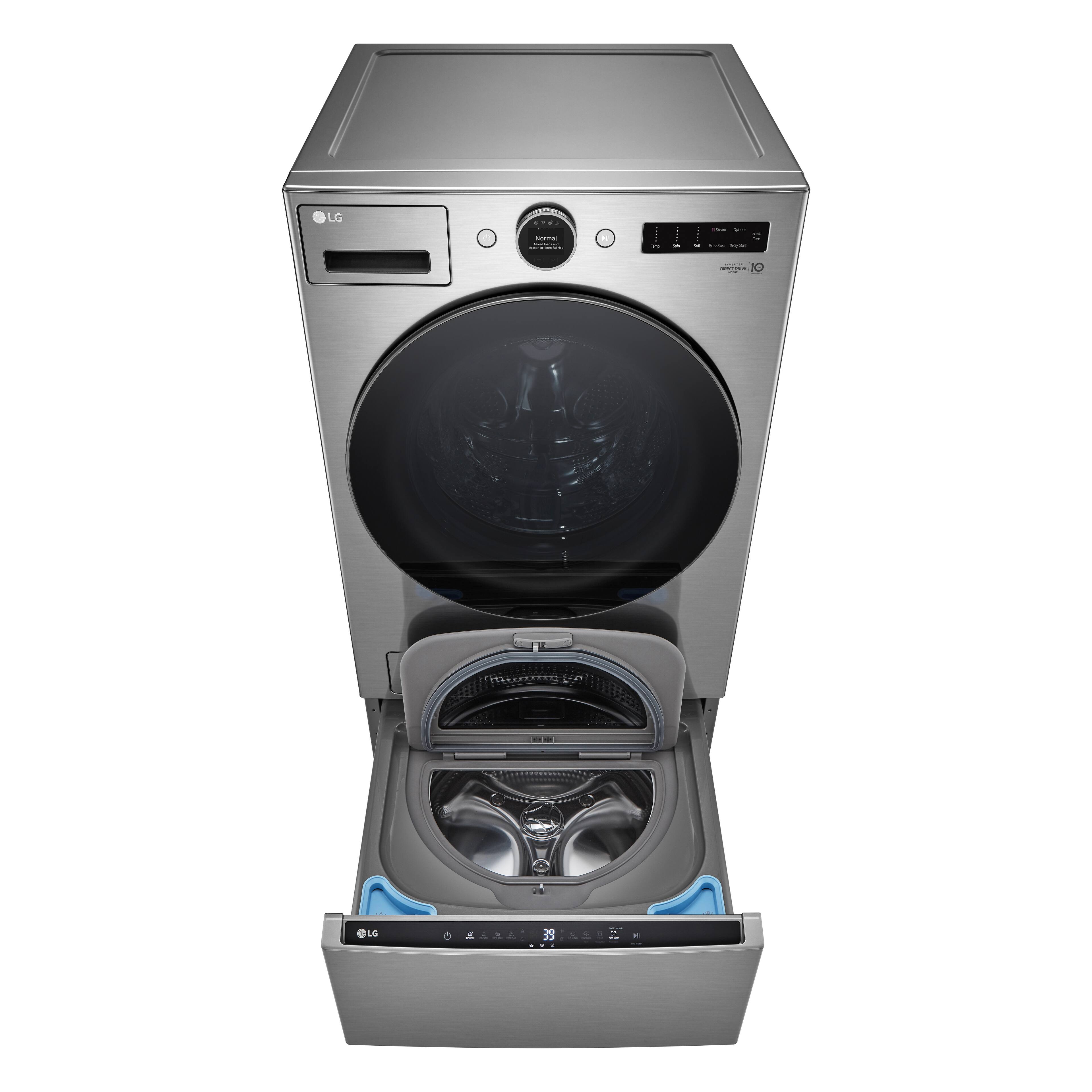

    • Pedestal Model Compatibility: WD300CV SideKick Pedestal Washer; WDP6V Pedestal
    • Matching Dryer Available: true
    • Matching Dryer Model Number: DLEX5500V, DLGX5501V, DLHC5502V
    • Stackable: true (To stack with similar products, ensure that the necessary support and/or installation hardware is in place to reduce safety hazards.)
    • Stacking Kit Model Compatibility: KSTK4
    • Stacking Kit Included: false
    • Works With: Amazon Alexa, Google Assistant (Compatible with or able to be connected to other smart devices or applications.)
  • Included
    • Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
    • Fill Hoses Included: false
    • Drain Hose Included: true
  • Electrical Specification
    • Estimated Annual Electricity Use: 105 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
    • Estimated Annual Operating Cost: 16 United States dollars (Predicted cost of operating the product under average conditions for one year.)
    • Amperage: 10 amperes (Strength of electrical current.)
    • Voltage: 120 volts (Amount of power needed to support an electrical current.)
  • Certifications Listings & Approvals
    • ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
    • ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
    • ANSI Certified: false (Meets the requirements of the American National Standards Institute.)
    • Consortium for Energy Efficiency (CEE) Rating: CEE Tier 2
    • Product Safety Certifications and Standard(s): None (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
    • NSF Listed: false (Meets the National Sanitation Foundation's standards for public health protection.)
    • AAFA Certified: true (Meets the requirements and standards set by the Asthma and Allergy Foundation of America (AAFA) for used by those with asthma and allergies.)
  • Connectivity
    • App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
  • Other
    • Display Type: LCD
    • UPC: 195174062784

Our intuitive dial control with LCD display and built-in intelligence that gets smarter with every use make it easy to give favorite clothes the care they deserve. AI technology and advanced sensors detect fabric texture and load size to automatically select the perfect settings. All wrapped in a sleek, minimalist design—plus turbo-charged cleaning that puts time back into your day.

  • 4.5 cu. ft. Ultra Large Capacity: Say never again to never-ending piles of laundry—this ultra large capacity washer fits more clothes in each load and helps you power through laundry day in less time. Bring on big loads of towels or jeans; this 4.5 cu. ft. washer fits more in every load up to 20 lbs.

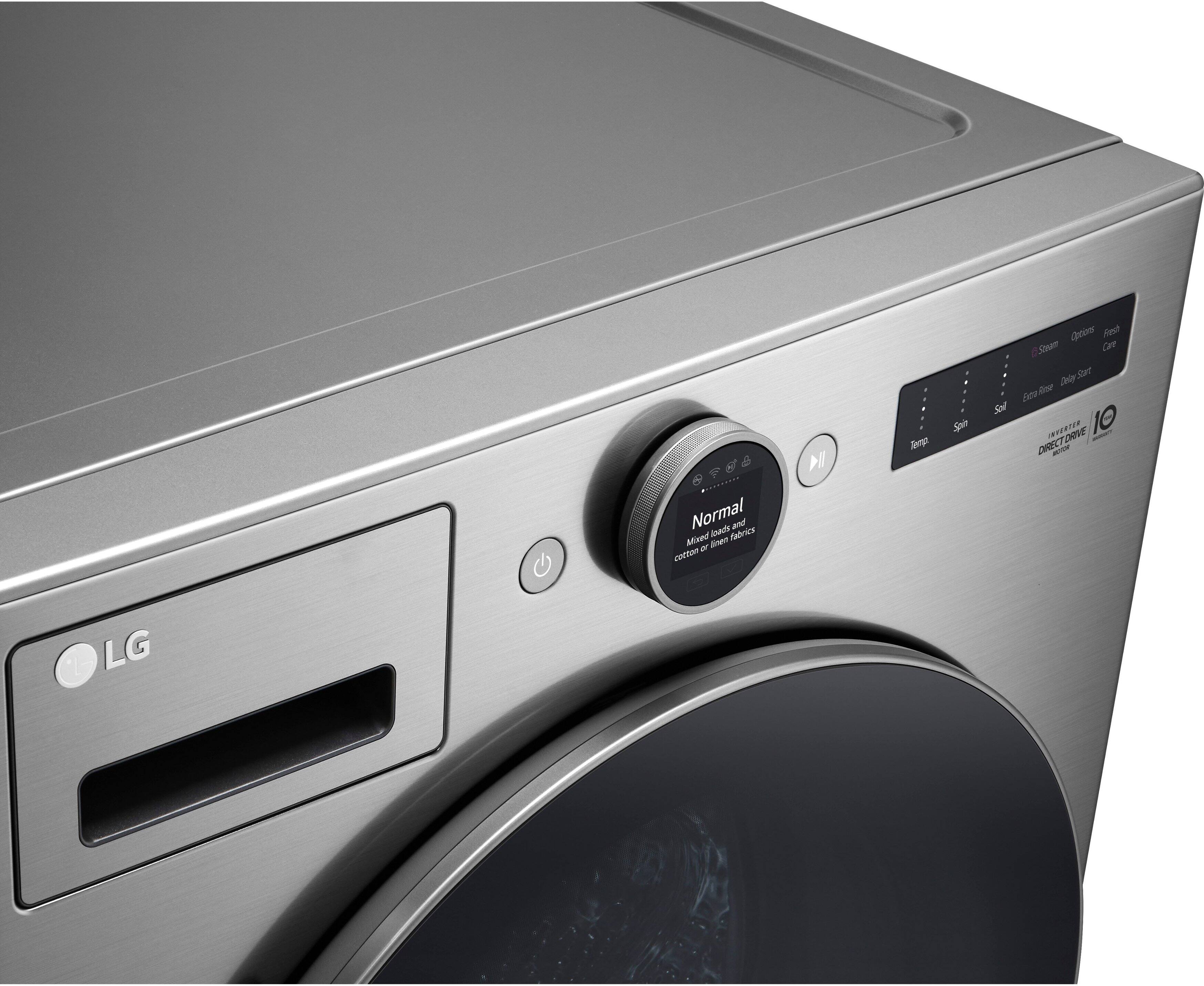

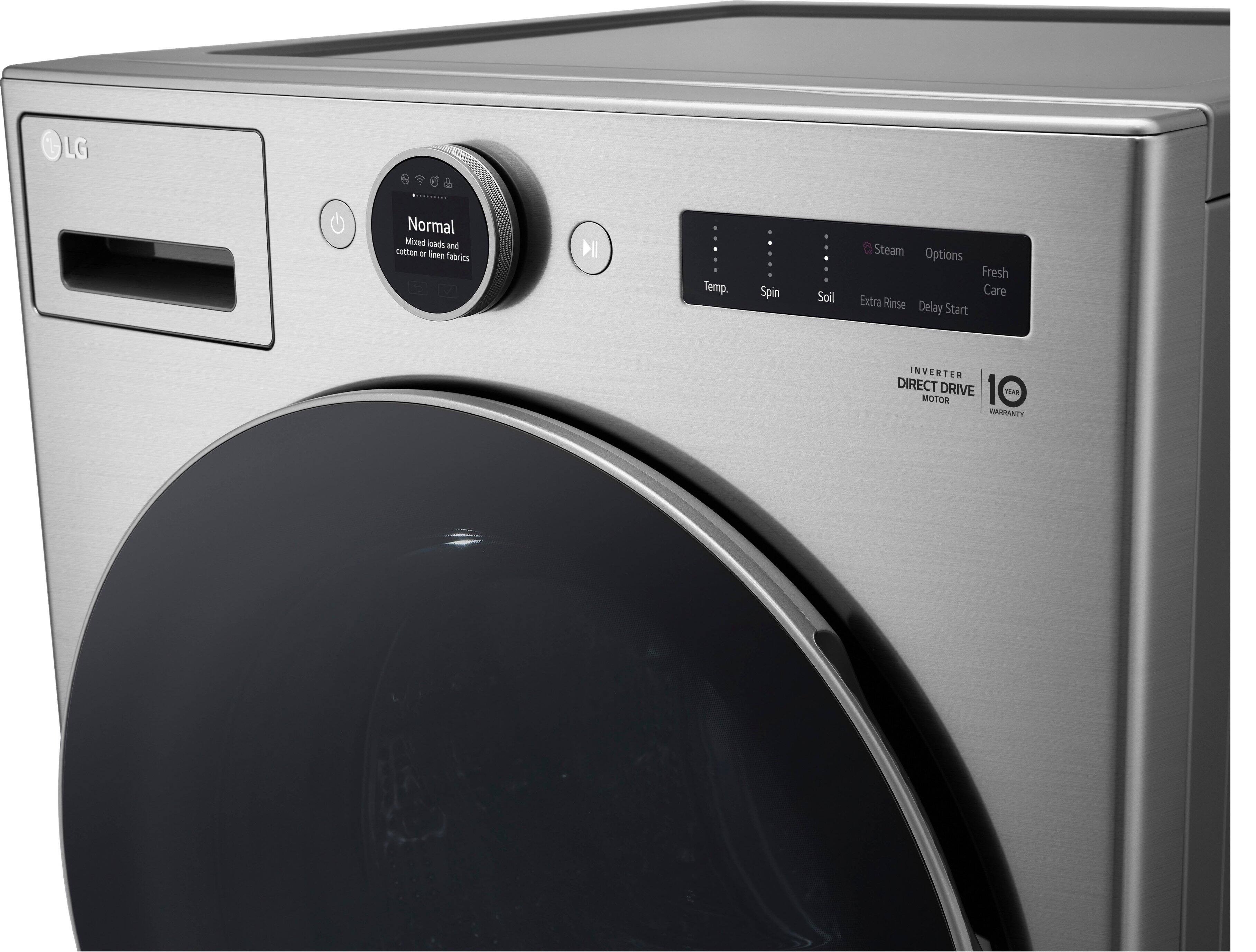

  • Digital Dial Control: Sleek, modern design brings a premium look to your laundry space, with a flat front design, graphite steel finish, tinted, tempered glass doors and streamlined controls. Our intuitive digital dial control with LCD display gives you helpful information with each turn.
  • ThinQ Technology: Use the ThinQ app to start the laundry while you’re out shopping, check remaining cycle time or get notifications on your smartphone.² Go hands-free—select washer features work with Alexa and Google Assistant.
  • ThinQ Care: Amazon Dash Replenishment Service tracks usage and automatically delivers your favorite detergent right to your door. ThinQ Care provides monitoring of key functions behind-the-scenes to protect your investment and keep your appliances running smoothly.
  • TurboWash 360° Technology: Clean large loads fast while enjoying the great washing performance you expect from LG. 5 powerful jets with variable sprays surround clothes from multiple angles so detergent can penetrate deep into fabrics for a complete clean—even the big loads—in under 30 minutes¹.
  • Built-In Intelligence: Forget about endless sorting or toggling through cycles—built-in sensors use AI technology to detect fabric texture and load size, then automatically select the right wash motions, temperatures and more for advanced fabric care.

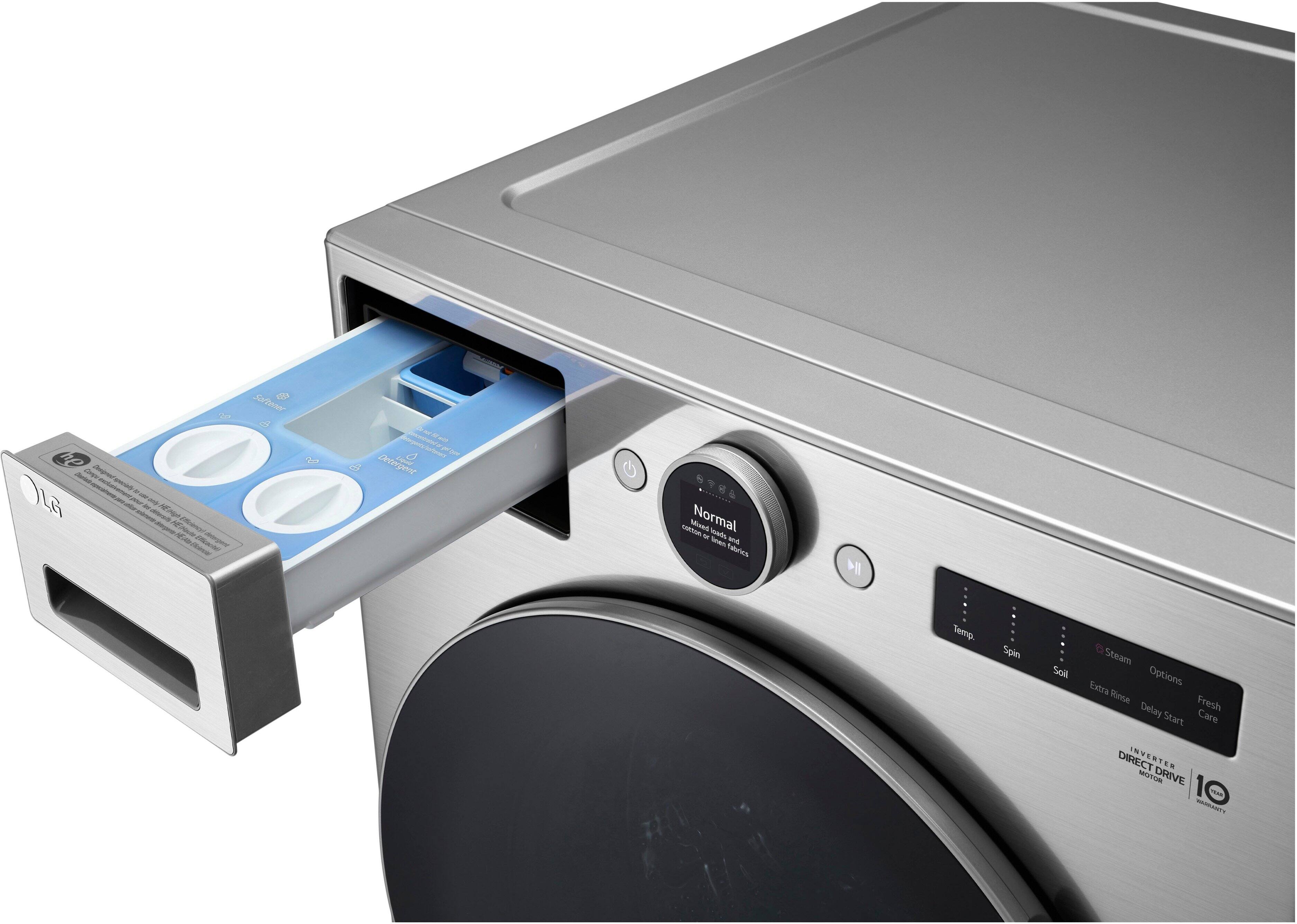

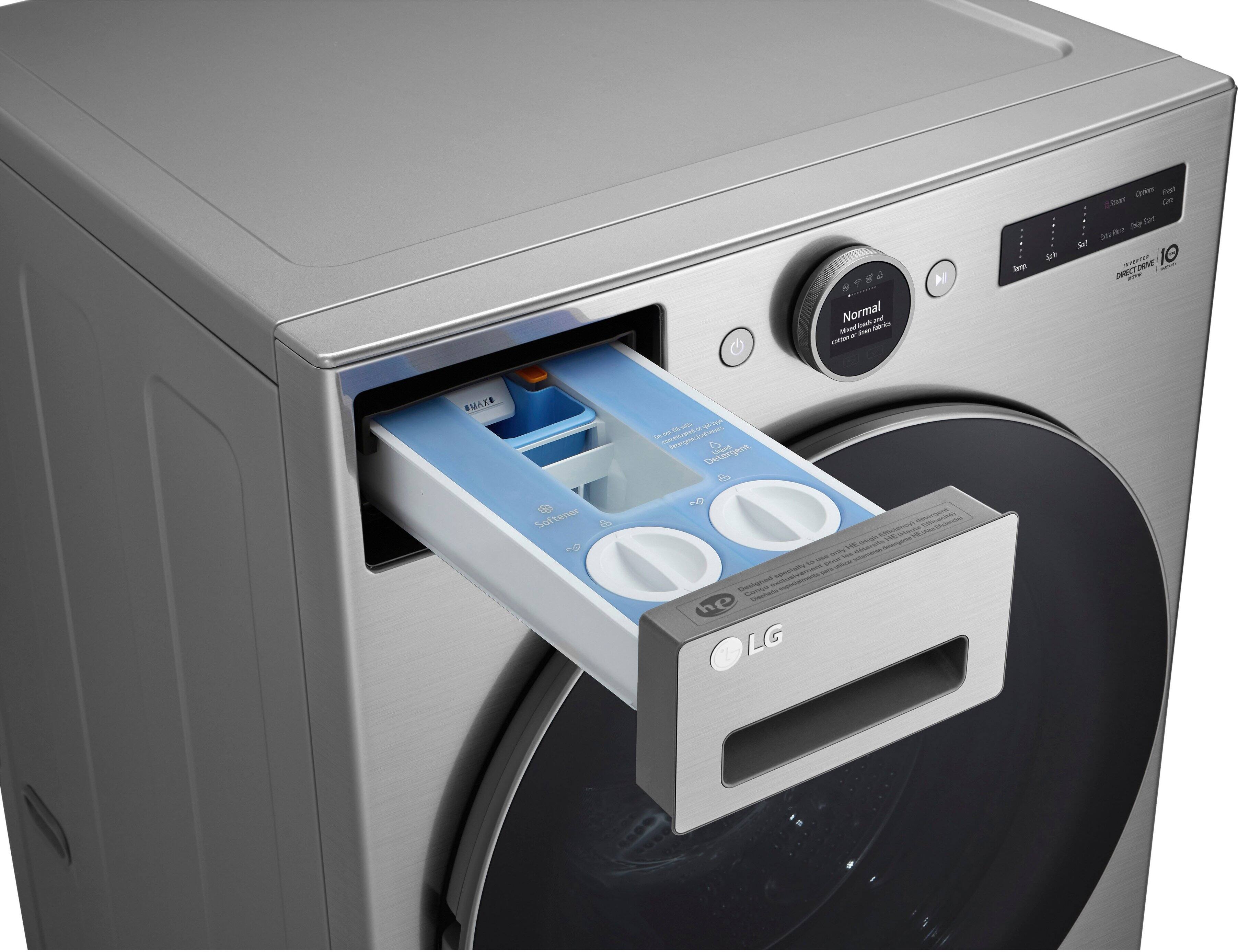

  • ezDispense Automatic Dispenser: Automatically dispenses the right amount of detergent and fabric softener, skipping refills for up to 18 to 31 loads³. Even get alerts on your smartphone when it’s time to refill, making laundry quick, easy and foolproof⁴.
  • AAFA Certified LG Washer: AAFA certified LG washers with the Allergiene Cycle use the power of steam to remove over 95%⁵ of dust, pet dander and pollen.

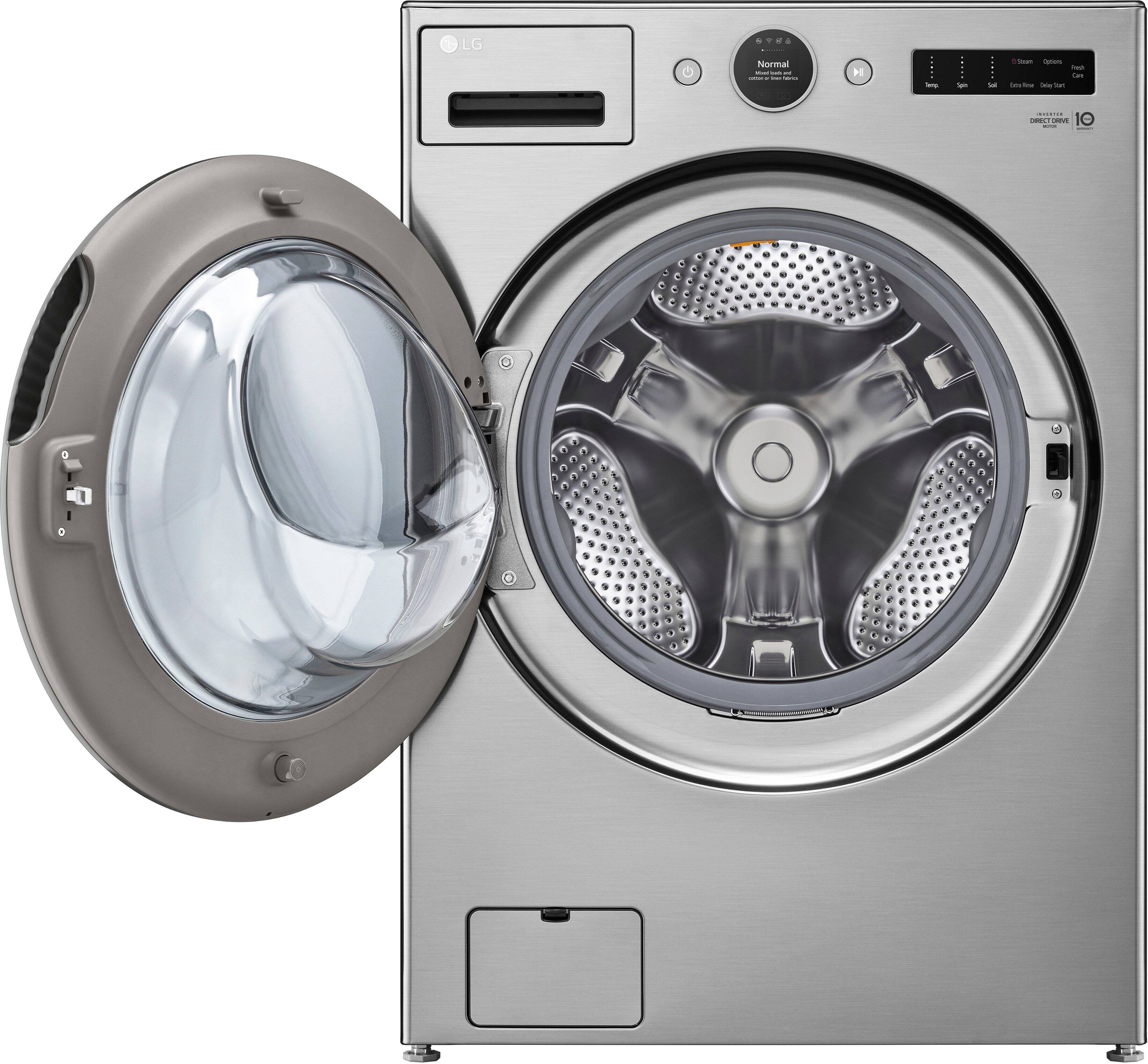

  • Tempered Glass Door with Silver Rim: LG front load washers and dryers use tempered glass doors for a sleek, stylish look that resists shock and scratches. Door trim and matching digital control knob in silver complement the door and enhance the premium feel.
  • Cold Wash Technology: Saving energy⁶ doesn’t mean compromising on cleaning with the Cold Wash option. Powered by LG Direct Drive Motor and 6Motion Technology, it’s ideal for cleaning all types of clothes—with almost any wash cycle and virtually all fabric types.
  • Direct Drive Motor 10-Year Limited Warranty: Backed by a 10-year limited warranty, the LG Direct Drive Motor delivers peace of mind with every load. Fewer moving parts means less noise and vibration, greater stability and durable performance you can depend on for years to come.
  • ENERGY STAR Certified: This LG high efficiency washer uses far less water and energy than a conventional washer for savings that add up with each load.⁷
  • Closet Depth: Flexibility to fit almost any space. LG closet-depth washers and dryers have a shallower depth to fit in more places and add sleek style to any room. Install the pair side-by-side, or get a stacking kit and install the dryer over the washer to save even more space.

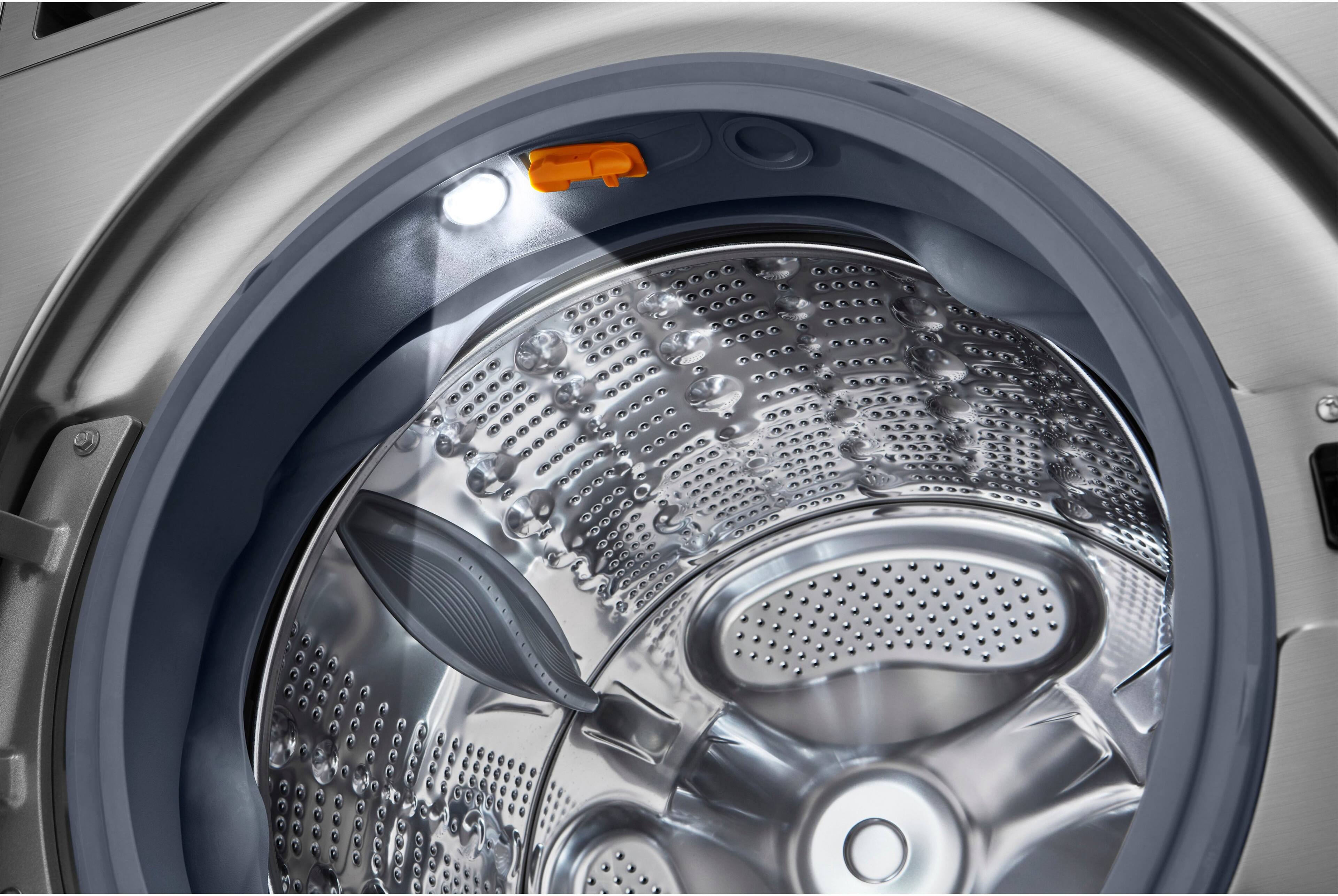

  • NeveRust Stainless Steel Tub: Unlike tubs made from porcelain or plastic, the LG NeveRust Stainless Steel Tub avoids the chips and nicks that can snag fabrics and ruin clothing.
  • Tub Clean System: With LG Tub Clean, you don’t have to worry about mold, mildew or musty odors. Select Tub Clean cycle, add liquid bleach or other cleaner and let the washer work to thoroughly clean and dry the tub, door and gaskets. Run it every month or so to help keep your washer clean and fresh.
  • True Balance Anti-Vibration System and LoDecibel Quiet Operation: Wash whenever you want! True Balance Anti-Vibration and LoDecibel systems are designed for quiet operation that keeps even big loads in balance to reduce washer noise and vibration. A must-have for main- or second-floor laundry rooms.
  • Requires fill hose (not included): for standard hook-up upon delivery
  • 4.5 cu. ft. Ultra Large Capacity: Say never again to never-ending piles of laundry—this ultra large capacity washer fits more clothes in each load and helps you power through laundry day in less time. Bring on big loads of towels or jeans; this 4.5 cu. ft. washer fits more in every load up to 20 lbs.
  • Digital Dial Control: Sleek, modern design brings a premium look to your laundry space, with a flat front design, graphite steel finish, tinted, tempered glass doors and streamlined controls. Our intuitive digital dial control with LCD display gives you helpful information with each turn.
  • ThinQ Technology: Use the ThinQ app to start the laundry while you’re out shopping, check remaining cycle time or get notifications on your smartphone.² Go hands-free—select washer features work with Alexa and Google Assistant.
  • ThinQ Care: Amazon Dash Replenishment Service tracks usage and automatically delivers your favorite detergent right to your door. ThinQ Care provides monitoring of key functions behind-the-scenes to protect your investment and keep your appliances running smoothly.
  • TurboWash 360° Technology: Clean large loads fast while enjoying the great washing performance you expect from LG. 5 powerful jets with variable sprays surround clothes from multiple angles so detergent can penetrate deep into fabrics for a complete clean—even the big loads—in under 30 minutes¹.
  • Built-In Intelligence: Forget about endless sorting or toggling through cycles—built-in sensors use AI technology to detect fabric texture and load size, then automatically select the right wash motions, temperatures and more for advanced fabric care.
  • ezDispense Automatic Dispenser: Automatically dispenses the right amount of detergent and fabric softener, skipping refills for up to 18 to 31 loads³. Even get alerts on your smartphone when it’s time to refill, making laundry quick, easy and foolproof⁴.
  • AAFA Certified LG Washer: AAFA certified LG washers with the Allergiene Cycle use the power of steam to remove over 95%⁵ of dust, pet dander and pollen.
  • Tempered Glass Door with Silver Rim: LG front load washers and dryers use tempered glass doors for a sleek, stylish look that resists shock and scratches. Door trim and matching digital control knob in silver complement the door and enhance the premium feel.
  • Cold Wash Technology: Saving energy⁶ doesn’t mean compromising on cleaning with the Cold Wash option. Powered by LG Direct Drive Motor and 6Motion Technology, it’s ideal for cleaning all types of clothes—with almost any wash cycle and virtually all fabric types.
  • Direct Drive Motor 10-Year Limited Warranty: Backed by a 10-year limited warranty, the LG Direct Drive Motor delivers peace of mind with every load. Fewer moving parts means less noise and vibration, greater stability and durable performance you can depend on for years to come.
  • ENERGY STAR Certified: This LG high efficiency washer uses far less water and energy than a conventional washer for savings that add up with each load.⁷
  • Closet Depth: Flexibility to fit almost any space. LG closet-depth washers and dryers have a shallower depth to fit in more places and add sleek style to any room. Install the pair side-by-side, or get a stacking kit and install the dryer over the washer to save even more space.
  • NeveRust Stainless Steel Tub: Unlike tubs made from porcelain or plastic, the LG NeveRust Stainless Steel Tub avoids the chips and nicks that can snag fabrics and ruin clothing.
  • Tub Clean System: With LG Tub Clean, you don’t have to worry about mold, mildew or musty odors. Select Tub Clean cycle, add liquid bleach or other cleaner and let the washer work to thoroughly clean and dry the tub, door and gaskets. Run it every month or so to help keep your washer clean and fresh.
  • True Balance Anti-Vibration System and LoDecibel Quiet Operation: Wash whenever you want! True Balance Anti-Vibration and LoDecibel systems are designed for quiet operation that keeps even big loads in balance to reduce washer noise and vibration. A must-have for main- or second-floor laundry rooms.
  • Requires fill hose (not included): for standard hook-up upon delivery
Whats Included
  • WM5700HVA 4.5 Cu. Ft. High-Efficiency Stackable Smart Front Load Washer
  • Non-skid Pads
  • Hole Caps
  • Wrench
  • Tie Strap
  • Elbow Bracket for securing drain hose
  • Owners manual
  • WM5700HVA 4.5 Cu. Ft. High-Efficiency Stackable Smart Front Load Washer
  • Non-skid Pads
  • Hole Caps
  • Wrench
  • Tie Strap
  • Elbow Bracket for securing drain hose
  • Owners manual
Documents
  • Energy_Guide_PDF
  • Energy_Guide_PDF

Q: What are the dimensions of this washer, and how does it fit into a closet-depth space?

A: The dimensions of the washer are 27 inches in width, 39 inches in height, and 30 1/4 inches in depth. It is designed to fit into a closet-depth space, with a shallower depth compared to standard washers, making it suitable for smaller laundry areas or rooms with limited space.

Q: What is the Smart Pairing feature, and how does it communicate with compatible dryers to optimize the drying cycle?

A: The Smart Pairing feature allows the washer to communicate with compatible LG dryers via Wi-Fi. When activated, the washer can send information about the wash cycle to the dryer, which can then automatically select the optimal drying cycle for the load. This helps to optimize the drying process and reduce energy consumption.

Q: Can you explain how the AI technology and advanced sensors detect fabric texture and load size?

A: The AI technology and advanced sensors in the LG WM5700HVA washer use a combination of algorithms and physical sensors to detect fabric texture and load size. The sensors measure the weight and density of the load, as well as the type of fabric, and then adjust the wash cycle accordingly. This ensures that the clothes are washed with the optimal amount of water, detergent, and agitation, resulting in a more efficient and effective wash.

Q: What is the noise level of this washer during operation, and does it have any noise reduction features?

A: The noise level of this LG washer is not specified in the provided context. However, it does have noise reduction features such as True Balance Anti-Vibration System and LoDecibel Quiet Operation to minimize noise and vibration during operation.

Q: How does the Tub Clean System work, and how often should it be used to maintain the washer's cleanliness?

A: The Tub Clean System in this LG washer removes residue and prevents odor buildup in the drum. To use it, select the Tub Clean cycle, add liquid bleach or a designated cleaner, and let the washer run through the cycle. It's recommended to run the Tub Clean cycle monthly to maintain the washer's cleanliness. If mildew or musty smell is already present, run the cycle once a week for three consecutive weeks.

Q: Does this washer have a reversible door hinge for convenient installation in different spaces?

A: No, this LG washer does not have a reversible door hinge. The product specifications clearly state that the "Reversible Door Hinge" feature is "false".

Q: Can you explain how the ezDispense Automatic Dispenser simplifies the laundry process?

A: The ezDispense Automatic Dispenser simplifies the laundry process by automatically dispensing the right amount of detergent and fabric softener for each load, eliminating the need for manual measuring and pouring. It has two separate reservoirs, one for detergent and one for fabric softener, and can store enough detergent and fabric softener for up to 18 to 31 loads, reducing the frequency of refills.

Q: Can you explain the Cold Wash Technology and how it saves energy without compromising cleaning efficiency?

A: The Cold Wash Technology in LG washers allows users to save energy by using cooler water during the wash cycle. Despite the lower water temperature, the cleaning efficiency is maintained through the combination of LG's Direct Drive Motor and 6Motion Technology, ensuring effective cleaning for various types of clothes and fabrics.
