product image

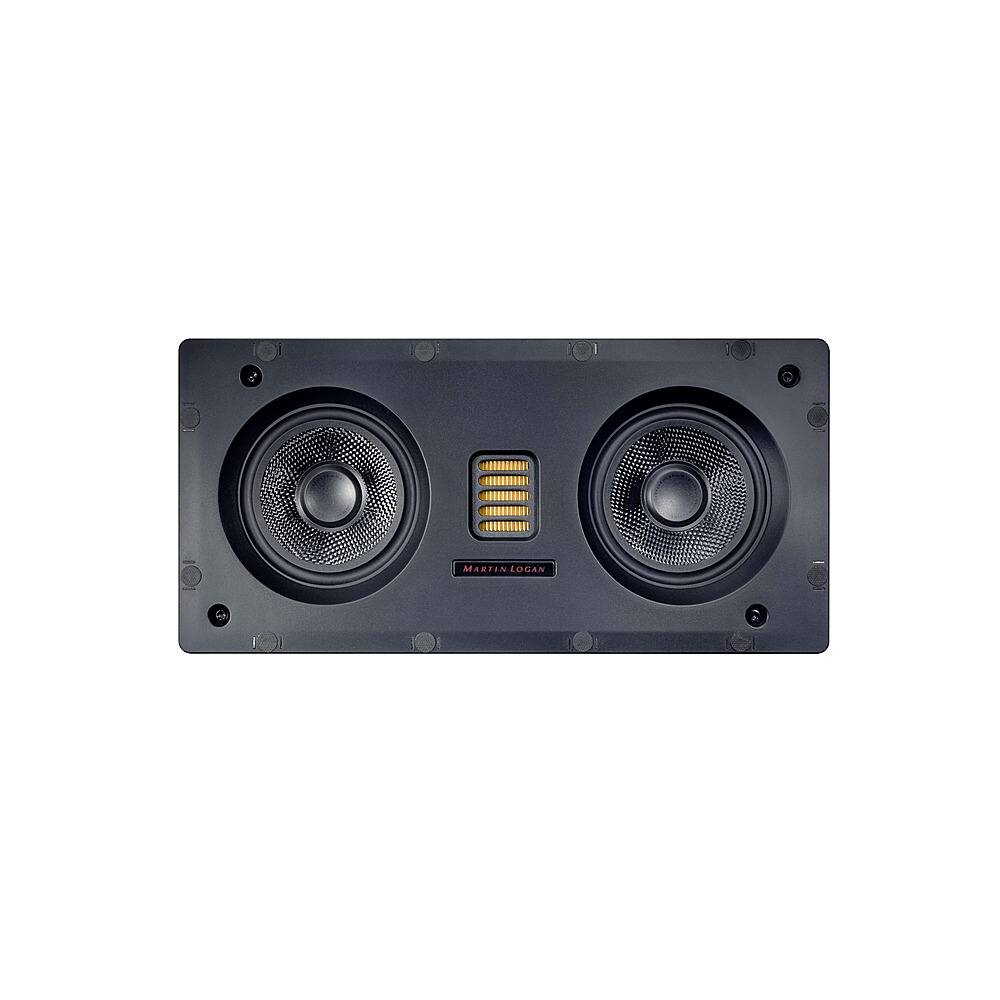

MartinLogan - Motion Series CI, Dual 4" Woofer with Folded Motion Tweeter, 2-way In-Wall Speaker (Each) - Paintable White

Model: MW4LCR
SKU: 6457009
This item is no longer available in new condition. See similar items below
  • Key Specs
    • Speaker Type: In-Wall
    • RMS Power: 100 watts (The maximum amount of continuous power the device is able to handle.)
  • General
    • Brand: MartinLogan
    • Model Number: MW4LCR
    • Product Name: Motion Series CI, Dual 4" Woofer with Folded Motion Tweeter, 2-way In-Wall Speaker (Each)
    • Color: Paintable White
  • Audio
    • Speaker Type: In-Wall
    • RMS Power: 100 watts (The maximum amount of continuous power the device is able to handle.)
    • Peak Power Handling: 200 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
    • Impedance: 4 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
    • Minimum Frequency Response: 78 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
    • Maximum Frequency Response: 25 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
    • Sensitivity: 93 decibels
    • Number of Speakers: 1
    • Number of Tweeters: 1
    • Tweeter Size: 1.4 inches
    • Number of Midranges: 2
    • Midrange Size: 4 inches
    • Number of Drivers: 3
  • Connectivity
    • Wireless Multi-Room Audio: false (Technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
    • Audio Only Inputs: No audio only inputs
    • Network Connector(s): No network connectors
    • Speaker Wire Connection Type: Binding posts
  • Features
    • Indoor Or Outdoor Use: Indoor (Indicates the appropriate environment product was designed to be used in.)
  • Dimensions
    • Product Height: 6.13 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 12.74 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Depth: 2.69 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
    • Product Weight: 6.02 pounds (The out of box weight of the item.)
    • Mounting Dimensions: 4 Cut out diameter
  • Other
    • UPC: 810123025602

One of the most compact in-wall speakers in MartinLogan history, the MW4-LCR expertly blends high performance and maximum flexibility. The MW4-LCR is a true “Left, Center, Right” speaker that can be used as a front, surround or center channel wherever high quality sound and a small footprint are desired. All MartinLogan Motion CI Series speakers feature our signature Folded Motion Tweeter or FMT. This innovative piece of audio technology provides incredible detail, precise clarity, clean output and high efficiency in a small but mighty package. Pairing this tweeter with lightweight woven fiberglass woofers means that Motion CI delivers a clean and balanced sound that is perfectly suited for any application. Whether you listen to music, movies or a little bit of everything, Motion CI gives you a true high-end audio experience at an affordable price. To round out the assortment, pre-construction brackets are available for all models, and all in-ceiling models have square grilles and retrofittable back enclosures available separately.

  • The MartinLogan Sound: Regardless of the environment, our speakers sound better, more articulate, detailed, and realistic. With Controlled Dispersion and one of the clearest tweeters in the industry, our architectural models can compete with and often exceed the performance of traditional speakers.
  • Controlled Dispersion: Room acoustics are extremely important. Everything in the listening room has an impact on the sound of your speakers, so we try to minimize the harmful effects by focusing the sound directly on your ears. This increases clarity, and detail regardless of the rooms design.
  • Performance Meets Aesthetics: While there are many choices of CI speakers out there, MartinLogan stands out for bringing unique, high-performance technologies together in a package that perfectly blends discrete sound with noticeable quality. Performance and Aesthetics, both without compromise.
  • Folded Motion Tweeter: This miracle of audio engineering gives high efficiency and low distortion a new benchmark. Our signature Folded Motion Tweeter uses an extremely lightweight diaphragm, in a space saving “folded” design, to deliver incredible detail, speed, and accuracy in a small space.
  • Fiberglass Woofers: All Motion CI speakers feature lightweight woven fiberglass cones specifically engineered for their application to blend seamlessly with the lightning speed of our signature Folded Motion Tweeter.
Whats Included
  • Paintable Grille
  • Cut-Out Template
  • User's Manual

Q: What is the impedance of the speaker?

A: The impedance of the speaker is 4 ohms.

Q: What is the minimum frequency response of the speaker?

A: The minimum frequency response of the speaker is 78 hertz.

Q: What is the peak power handling of the speaker?

A: The peak power handling of the speaker is 200 watts.

Q: Does the speaker come with a paintable grille?

A: The MartinLogan speaker comes with a paintable grille.

Q: How many drivers are included in the speaker?

A: This speaker includes three drivers.

Q: What size rough opening should I make in the wall for this speaker?

A: Hello. Thank you for your question and for your interest in our products. For our MW4-LCR, we recommend cut-out dimensions, with tolerance, of 5.25 inches in height and 11.88 inches in width. We hope this helps, and please let us know if you have any other questions. Thanks again, and we appreciate your support.
