product image
MSI

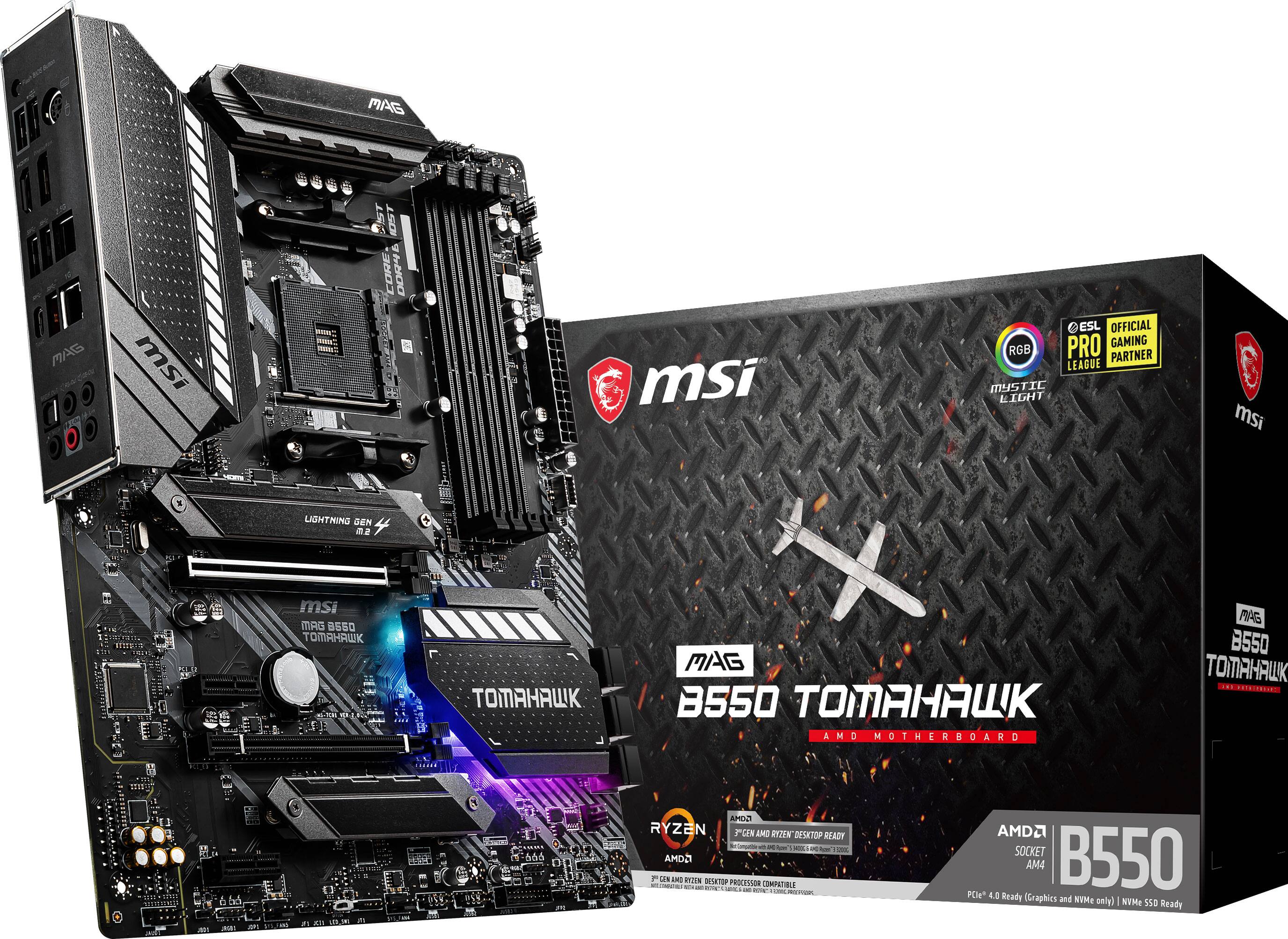

MSI - B550 TOMAHAWK (Socket AM4) USB-C Gen2 AMD ATX GAMING Motherboard - Black

Model: B550TMHWK
SKU: 6420740
This item is no longer available in new condition. See similar items below
  • Key Specs
    • Chipset: B550
    • Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
    • Processor Socket: Socket AM4 (PGA 1331) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
    • Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
    • Number Of Memory Slots: 4
    • Maximum Memory Supported: 128 gigabytes
    • Memory Type Supported: DDR4
  • General
    • Brand: MSI
    • Model Number: B550TMHWK
    • Product Name: B550 TOMAHAWK (Socket AM4) USB-C Gen2 AMD ATX GAMING Motherboard
    • Color: Black
  • Compatibility
    • Chipset: B550
    • Chipset Compatibility: AMD
    • Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
    • Processor Socket: Socket AM4 (PGA 1331) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
    • Processor Compatibility: AMD Ryzen 7 3000 Series
    • Operating System Compatibility: Windows 10, Windows 11 Home, Windows 11 Pro
  • Slot
    • Number of M.2 Slots: 2 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
    • Number Of PCI-E x16 Slots: 2
    • Number Of PCI-E x1 Slots: 2
    • Number Of Memory Slots: 4
  • Connectivity
    • SATA Connector: SATA 6 Gbps (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
    • Fan/Cooling System Connector: 6x 4-pin (The configuration of the connector as it connects a computer component to a fan or cooling system.)
    • Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
    • Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
    • Wireless Standard: AX (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
  • Ports
    • USB Ports: 5 x USB-A 3.2, 2 x USB-C (The number and type of USB ports the product has.)
    • Audio Ports: 1x Front Audio (JAUD)
    • Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
  • Dimensions
    • Product Length: 304.8 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
    • Product Width: 50.8 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Weight: 24 ounces (The out of box weight of the item.)
  • Memory
    • Maximum Memory Supported: 128 gigabytes
    • Memory Type Supported: DDR4
    • Memory Format Supported: DIMM (Memory module size that will fit with the device.)
    • Memory Speeds Supported: 4866 (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
    • Memory Slot Type: 288-pin DIMM
  • Features
    • Multi-GPU Support: CrossFire
    • RAID Support: RAID 0, RAID 1, RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
  • Other
    • UPC: 824142217627

The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface for entry level gamers. MAG B550 TOMAHAWK features high-bandwidth and low-latency 2.5G plus Gigabit LAN for power users. Onboard 2.5Gbps connectivity provides incredible data transfer speed faster than ever before. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency.

  • Supports AMD Ryzen 7 and Ryzen processors: In an AM4 socket
  • Up to 4866+MHz: 4 x DDR4 memory slots, support up to 128GB 1; Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC; Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866+ MHz by A-XMP OC MODE
  • AMD CrossFireX graphics support: 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1 2; 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1Maximum shared memory of 16GB
  • Four 288-pin DDR4 SDRAM DIMM sockets: Support up to 64GB of system memory.
  • AUDIO: Realtek ALC1200 Codec; 7.1-Channel High Definition Audio; Supports S/PDIF output
  • STORAGE: 6x SATA 6Gb/s ports; 2x M.2 slots (Key M); M2_1 slot (from AMD Processor); Supports PCIe 4.0/ 3.0 x4 1; Supports SATA 6Gb/s; Supports 2242/ 2260/ 2280/ 22110 storage devices; M2_2 slot (from AMD B550 chipset); Supports PCIe 3.0x4; Supports 2242/ 2260/ 2280 storage devices
  • EXPANSION SLOT: 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1; 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2; 2x PCIe 3.0 x1 slots
  • RAID: Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices; Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
  • USB: 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector); 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
  • LAN: 1x Realtek RTL8125B 2.5Gbps LAN controller; 1x Realtek RTL8111H 1Gbps LAN controller
  • INTERNAL CONNECTORS: 1x 24-pin ATX main power; 1x 8-pin ATX 12V power; 6x SATA 6Gb/s; 2x M.2 slots (M-Key); 1x USB 3.2 Gen 1 5Gbps Type-C port; 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports); 2x USB 2.0 connectors ; 1x 4-pin CPU fan
  • INTERNAL CONNECTORS: 1x 4-pin water-pump fan connector; 6x 4-pin system fan connectors; 1x Front panel audio connector; 2x System panel connectors; 1x Chassis Intrusion connector; 2x 4-pin RGB LED connectors; 2x 3-pin RAINBOW LED connectors; 1x TPM module connector; 1x Clear CMOS jumper
  • Supports AMD Ryzen 7 and Ryzen processors: In an AM4 socket
  • Up to 4866+MHz: 4 x DDR4 memory slots, support up to 128GB 1; Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC; Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866+ MHz by A-XMP OC MODE
  • AMD CrossFireX graphics support: 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1 2; 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1Maximum shared memory of 16GB
  • Four 288-pin DDR4 SDRAM DIMM sockets: Support up to 64GB of system memory.
  • AUDIO: Realtek ALC1200 Codec; 7.1-Channel High Definition Audio; Supports S/PDIF output
  • STORAGE: 6x SATA 6Gb/s ports; 2x M.2 slots (Key M); M2_1 slot (from AMD Processor); Supports PCIe 4.0/ 3.0 x4 1; Supports SATA 6Gb/s; Supports 2242/ 2260/ 2280/ 22110 storage devices; M2_2 slot (from AMD B550 chipset); Supports PCIe 3.0x4; Supports 2242/ 2260/ 2280 storage devices
  • EXPANSION SLOT: 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1; 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2; 2x PCIe 3.0 x1 slots
  • RAID: Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices; Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
  • USB: 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector); 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
  • LAN: 1x Realtek RTL8125B 2.5Gbps LAN controller; 1x Realtek RTL8111H 1Gbps LAN controller
  • INTERNAL CONNECTORS: 1x 24-pin ATX main power; 1x 8-pin ATX 12V power; 6x SATA 6Gb/s; 2x M.2 slots (M-Key); 1x USB 3.2 Gen 1 5Gbps Type-C port; 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports); 2x USB 2.0 connectors ; 1x 4-pin CPU fan
  • INTERNAL CONNECTORS: 1x 4-pin water-pump fan connector; 6x 4-pin system fan connectors; 1x Front panel audio connector; 2x System panel connectors; 1x Chassis Intrusion connector; 2x 4-pin RGB LED connectors; 2x 3-pin RAINBOW LED connectors; 1x TPM module connector; 1x Clear CMOS jumper

Q: Does this motherboard have bluetooth?

A: This motherboard does not have bluetooth built in.

Q: Does this motherboard come with an io shield?

A: This motherboard does not come with a separate IO shield. The IO shield is already attached to the motherboard. Rather than the typical separate IO shield that you would first attached to the back of the PC, before mounting the motherboard in the PC case.

Q: does it support ryzen 5 third gen?

A: Yes! This board supports 3rd Gen Ryzen 3, 5, 7, and 9. It will NOT support Ryzen 1XXX Series, 2XXX Series, and the 3200g-3400g.

Q: Is this board ryzen 5000 series ready?

A: Some ship with latest BIOS. Some don't. If your box says it's GEN3 ready, then yes. If not, then a USB BIOS update can be done easily for GEN3 support.

Q: Will this support future amd processors and the new rtx 30 series?

A: Yes

Q: Is it possible to remove the IO shield?

A: You can remove the I.O shield, but it is not recommended as it may damage the board when you do so.

Q: will this work with my i5-13400?

A: This is a AMD motherboard A4 stocket

Q: Does this motherboard support the RTX 4000 series graphic cards?

A: Yes, the B550 Tomahawk is compatible with RTX 4000 series graphics cards.
