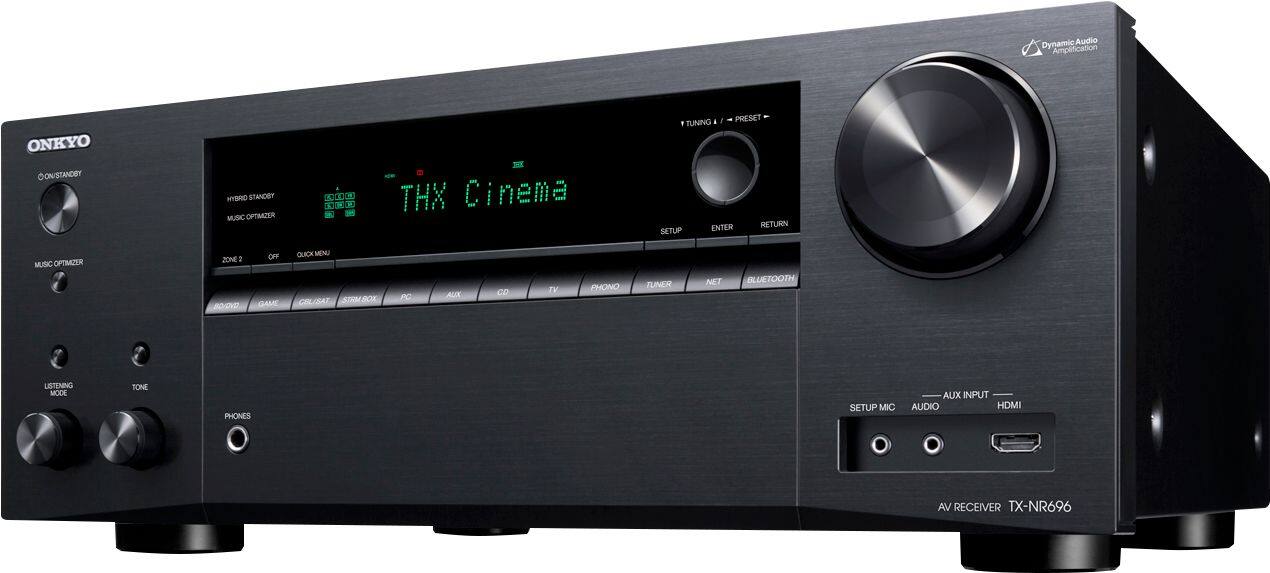

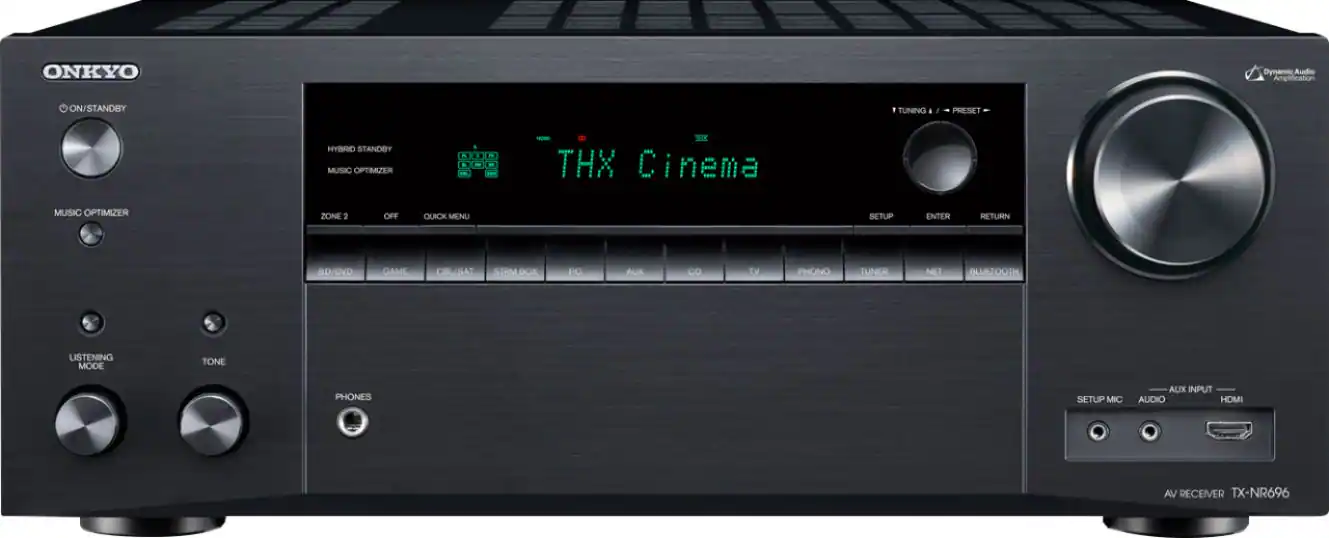

Onkyo - TX-NR696 7.2-Ch. with Dolby Atmos 4K Ultra HD HDR Compatible A/V Home Theater Receiver - Black
Related Item
Specifications
- Continuous Watts x Channel @ Ohms100 watts x 7 channels @ 6 ohmsNumber of Channels7.2Number of Audio Zones2Audio Only Inputs1 x Optical digital audio, 1 x Coaxial digital audio, 1 x 3.5mm audio, 5 x Analog audio, 1 x PhonoAudio/Video Inputs7 x HDMINetwork Connector(s)1 x LAN
- Key Specs
- Continuous Watts x Channel @ Ohms: 100 watts x 7 channels @ 6 ohms
- Number of Channels: 7.2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Number of Audio Zones: 2 (Audio zones, typically designated by rooms in a home, are areas in which all speakers are dependent on the same sound source. Whether a zone encompasses one or multiple rooms, the receiver or preamp/processor is used to control all aspects of its audio and is able to select which zones receive sound.)

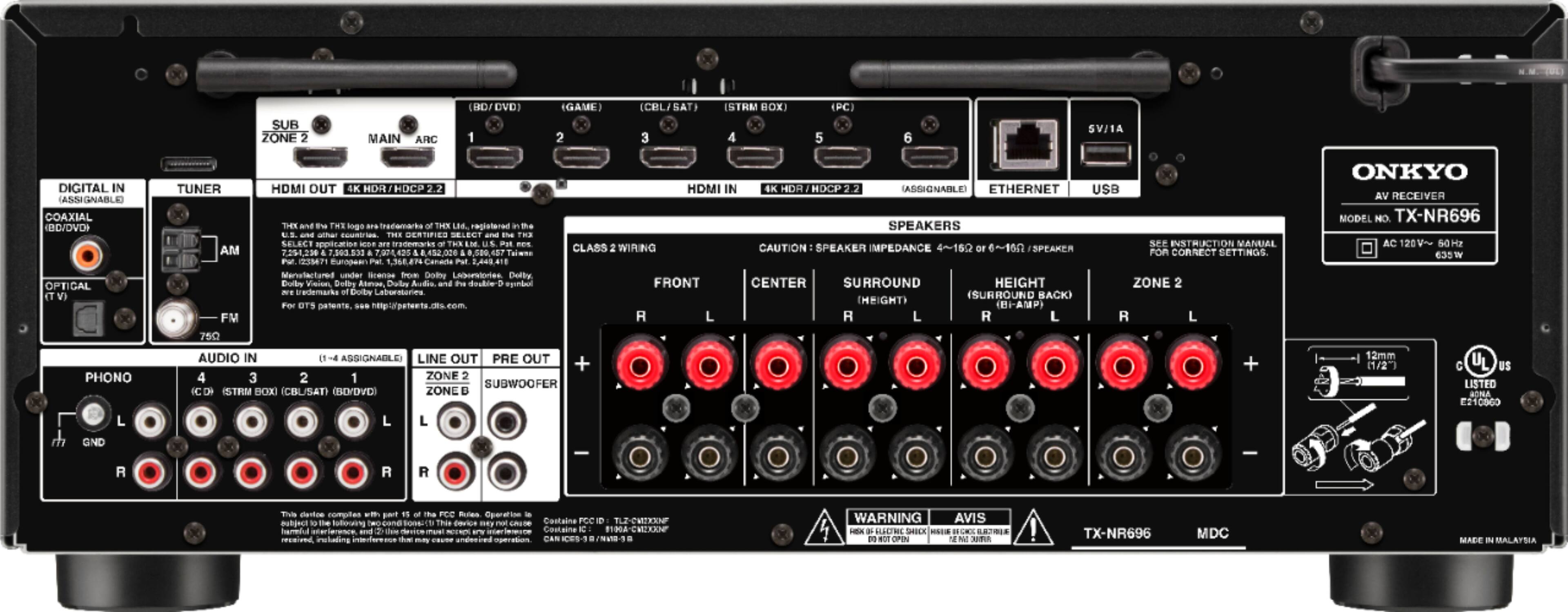

- Audio Only Inputs: 1 x Optical digital audio, 1 x Coaxial digital audio, 1 x 3.5mm audio, 5 x Analog audio, 1 x Phono
- Audio/Video Inputs: 7 x HDMI (The number and type of HDMI inputs the product has.)
- Network Connector(s): 1 x LAN
- Video Pass-through: HDR, 2160 (4K), 3D (Devices with this feature allow video signals to travel from their source to a target device without alteration. For example, a receiver with 4K pass-through would allow 4K video signal from a Blu-ray player to pass to a target TV with surround sound; without the pass-through ability, the receiver would not allow both 4K video and surround sound to be transmitted simultaneously.)
- Maximum Supported Resolution (Video Passthrough): 2160p (4K) (The highest video resolution supported by the device for passing through video to another device.)
- Audio/Video Outputs: 2 x HDMI (The number and type of HDMI outputs the product has.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- General
- Brand: Onkyo
- Model Number: TX-NR696
- Product Name: Onkyo TX-NR696 7.2-Ch. with Dolby Atmos 4K Ultra HD HDR Compatible A/V Home Theater Receiver
- Color: Black
- Audio
- Continuous Watts x Channel @ Ohms: 100 watts x 7 channels @ 6 ohms
- Number of Channels: 7.2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- High Resolution Audio: true (Hear music the way musicians and sound technicians intended it to be heard. Products that support hi-res audio deliver audio signals with a dynamic range and bandwidth far greater than that of a standard CD so you'll be able to enjoy pure music with outstanding sound quality. The device supports high-resolution audio signals, which more closely resemble the quality of music as it was originally recorded, with more texture and detail than can be heard via typical music streaming services or CDs.)
- Number of Audio Zones: 2 (Audio zones, typically designated by rooms in a home, are areas in which all speakers are dependent on the same sound source. Whether a zone encompasses one or multiple rooms, the receiver or preamp/processor is used to control all aspects of its audio and is able to select which zones receive sound.)
- Number of Audio Zone Source Outputs: 2 (Multiple source outputs from the receiver mean different speakers are able to receive different sound sources from the receiver or preamp/processor. For every output, a different sound source can be accessed simultaneously in different zones. For example, two source outputs could be a streaming media player in one room and a Blu-ray player in another.)
- Surround Sound Supported: Dolby Digital, Dolby TrueHD, Dolby Atmos, DTS:X (Surround sound systems use multiple audio channels and speakers to create an immersive sound experience for the listener. There are also various proprietary technologies that imitate this kind of sound via a device's built-in speakers or soundbar.)
- Maximum Sampling Rate Supported: 11.2 MHz (DSD) (Generally, the higher the sampling rate, the greater the quality of audio and/or video.)
- Supported File Formats: WAV, WMA, AIFF, PCM, MP3, FLAC, DSD, ALAC
- Inputs
- Audio Only Inputs: 1 x Optical digital audio, 1 x Coaxial digital audio, 1 x 3.5mm audio, 5 x Analog audio, 1 x Phono
- Audio/Video Inputs: 7 x HDMI (The number and type of HDMI inputs the product has.)
- Network Connector(s): 1 x LAN
- Number of HDMI Inputs (Total): 7
- Video
- Video Pass-through: HDR, 2160 (4K), 3D (Devices with this feature allow video signals to travel from their source to a target device without alteration. For example, a receiver with 4K pass-through would allow 4K video signal from a Blu-ray player to pass to a target TV with surround sound; without the pass-through ability, the receiver would not allow both 4K video and surround sound to be transmitted simultaneously.)
- Maximum Supported Resolution (Video Passthrough): 2160p (4K) (The highest video resolution supported by the device for passing through video to another device.)
- High Dynamic Range Format: Dolby Vision, HDR 10, Hybrid Log-Gamma (HLG) (There are a few HDR formats that tell the TV or other HDR-compatible product how to best utilize its capabilities to display HDR content. HDR technology can support one or multiple formats, each with various benefits to picture quality.)
- Outputs
- Audio/Video Outputs: 2 x HDMI (The number and type of HDMI outputs the product has.)
- Number of HDMI Outputs (Total): 2
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Features
- Remote Control Included: true
- Connectivity
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Dimensions
- Product Height: 6.8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 17.1 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 14.9 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 22.1 pounds (The out of box weight of the item.)
- Other
- UPC: 889951001720
Immerse yourself to an exciting sound experience with this Onkyo 7.2-channel network A/V receiver. The DTS Play-Fi feature is compatible with any audio app on smart devices, letting you stream playlists from different sources. With a 165W- per- channel output, this Onkyo 7.2-channel network A/V receiver packs a massive punch for movies, placing you at the center of the action. Includes HDMI 4K Ultra HD and 3D pass-through technologies for compatibility with 3D TVs, Blu-ray players and gaming consoles and 4K Ultra HD TVs.
- Connect to the Internet: Access a variety of online streaming services, such as Pandora, Deezer, Spotify, TuneIn, TIDAL, Chromecast and Amazon Music, as well as music and photos over your home network.
- 4K and 3D passthrough: Allows high-quality 3D and 4K video through the receiver straight to your media device.
- Surround sound decoders: Include Dolby Digital, Dolby TrueHD, Dolby Atmos, DTS decoder, DTS-HD Master Audio and more for crystal surround sound.
- Headphone jack: Enables private listening.
- USB port: Enables simple connection of a variety of USB-enabled devices.
- Auxiliary input: Makes it easy to connect a variety of devices.
- 7 HDMI inputs, 2 HDMI outputs: HDMI cable not included. High-speed HDMI cable is the only connection that can deliver a full high-definition experience with a full 1080p picture and digital surround sound.
- Dual-zone capability: Supports distributed audio playback in another room, so you can enjoy music throughout your home.
- x.v.Color and Deep Color technology: Produce vibrant hues for a lifelike picture.
- Bass and treble controls: Enable simple sonic customization, so you can tailor the sound to suit your preferences.
- Remote control: Lets you control the receiver from afar.
- AccuEQ acoustic calibration: Ensures the sound is calibrated to your room's acoustics, including manual adjustments and presets.
- Hi-Res audio support: Lets you enjoy high-quality audio playback via LAN, USB, Bluetooth.
- Connect to the Internet: Access a variety of online streaming services, such as Pandora, Deezer, Spotify, TuneIn, TIDAL, Chromecast and Amazon Music, as well as music and photos over your home network.
- 4K and 3D passthrough: Allows high-quality 3D and 4K video through the receiver straight to your media device.
- Surround sound decoders: Include Dolby Digital, Dolby TrueHD, Dolby Atmos, DTS decoder, DTS-HD Master Audio and more for crystal surround sound.
- Headphone jack: Enables private listening.
- USB port: Enables simple connection of a variety of USB-enabled devices.
- Auxiliary input: Makes it easy to connect a variety of devices.
- 7 HDMI inputs, 2 HDMI outputs: HDMI cable not included. High-speed HDMI cable is the only connection that can deliver a full high-definition experience with a full 1080p picture and digital surround sound.
- Dual-zone capability: Supports distributed audio playback in another room, so you can enjoy music throughout your home.
- x.v.Color and Deep Color technology: Produce vibrant hues for a lifelike picture.
- Bass and treble controls: Enable simple sonic customization, so you can tailor the sound to suit your preferences.
- Remote control: Lets you control the receiver from afar.
- AccuEQ acoustic calibration: Ensures the sound is calibrated to your room's acoustics, including manual adjustments and presets.
- Hi-Res audio support: Lets you enjoy high-quality audio playback via LAN, USB, Bluetooth.
Whats Included
- Onkyo TX 7.2-Ch. with Dolby Atmos 4K Ultra HD HDR Compatible A/V Home Theater Receiver
- Onkyo TX 7.2-Ch. with Dolby Atmos 4K Ultra HD HDR Compatible A/V Home Theater Receiver
Q: Does this Onkyo receiver support high resolution audio?
A: Yes, it supports high resolution audio.
Q: Can I connect this receiver to the internet?
A: Yes, you can connect this receiver to the internet to access streaming services and content over your home network.
Q: Does this receiver have a phono input?
A: Yes, this receiver does have a phono input.
Q: What is the maximum sampling rate supported by this receiver?
A: The maximum sampling rate supported is 11.2 MHz (DSD).
Q: What is the total harmonic distortion of this receiver?
A: The total harmonic distortion is 0.08 percent.
Q: How many HDMI inputs does this Onkyo receiver have?
A: This Onkyo receiver has 7 HDMI inputs.
A: Refer to P86 of the manual and use the MOVIE/TV or MUSIC buttons on the remote at the bottom right to change the listening mode. See P100 for all the MUSIC Listening modes. if the source of the music is digital then the best mode would be AllCh Stereo.
Q: Does this support 4k 120hz refresh rate?
A: Yes it will, but you have to enable the HDMI enhanced mode first. This is done by holding down the first input selector button on the console then pressing the power button once. The indicator screen will come up and show HDMI mode: Normal > Enhanced. Once it is selected for enhanced all HDMI inputs are in this mode which allows the processing for 4K 60 hz and 120 Hz. Found this out the hard way trying to get my PS5 to work in 4K with this unit, now that it is setup works great.
Compare similar products
Immerse yourself to an exciting sound experience with this Onkyo 7.2-channel network A/V receiver. The DTS Play-Fi feature is compatible with any audio app on smart devices, letting you stream playlists from different sources. With a 165W- per- channel output, this Onkyo 7.2-channel network A/V receiver packs a massive punch for movies, placing you at the center of the action. Includes HDMI 4K Ultra HD and 3D pass-through technologies for compatibility with 3D TVs, Blu-ray players and gaming consoles and 4K Ultra HD TVs.
Experience breathtaking 8K video and immersive 3D audio with our new 7.2-channel 8K receiver. Enjoy space-filling sound from your 7.2 or 5.2.2 setup with Dolby Atmos and DTS:X. It’s easy to enjoy all your content with Works with SONOS, Chromecast Built-in, Apple AirPlay, and Spotify Connect—all via Wi-Fi or Bluetooth.
Escape the everyday with spatial surround-sound From easy Bluetooth wireless streaming to the heart-pounding thrills of Dolby Atmos and DTS:X soundtracks, the TX-SR494 deepens enjoyment of daily life with great sound and smart features. Seven channels of high-current power give you freedom to choose a speaker layout that suits. Dolby Atmos Height Virtualizer* or DTS Virtual:X place sound overhead or behind if you don’t want height or surround speakers and both Dolby Surround and DTS Neural:X are on board. Rear surrounds, bi-amped front speakers, or Powered Zone B audio are also an option. AccuEQ with subwoofer EQ and AccuReflex for 5.2.2-ch Dolby Atmos-enabled systems clarify sound in any space. As the heart of your home theater, the TX-SR494 has HDMI terminals supporting HDR and 4K/60p video, while the GUI with OSD over HDMI, Zone B pre-/line-out, and Vocal Enhancer function make this receiver a joy to use as well as hear.
Building key noise-reduction refinements into 100 W/Ch THX Certified Select high-current amplification, the Onkyo TX-NR6100 sets the bar for reference sound while bringing 8K/60p and HDR10+ video to your compatible display over HDMI. Enjoy Dolby Atmos and DTS:X soundtracks through your height-enabled surround system or use upmixing and virtualization solutions from DTS and Dolby to create a 3D sound-field from any layout. Cue and control music around your home with voice assistants Hey Google or Alexa, and connect a second display via HDMI Sub/Zone 2 output. Chromecast built-in, AirPlay 2, DTS Play-Fi, and Works with Sonos cover every multi-room situation, and if you connect passive loudspeakers, you can switch between a 7.2/5.2.2-ch and 5.2-ch + Zone 2 layout at the touch of a button thanks to dedicated Zone 2 speaker terminals. Features such as a quality MM phono equalizer and bi-directional Bluetooth wireless technology make this value proposition even more persuasive.
| Pros for Onkyo - TX-NR696 7.2-Ch. with Dolby Atmos 4K Ultra HD HDR Compatible A/V Home Theater Receiver - Black | |||
|---|---|---|---|
| Sound Quality, Ease of use, HDMI, Power, Setup | Sound Quality, Ease of use, Setup, Power, Dolby Atmos | Sound Quality, Ease of use, Setup, Power, Price | Sound Quality, Ease of use, HDMI, Power, Setup |
| Cons for Onkyo - TX-NR696 7.2-Ch. with Dolby Atmos 4K Ultra HD HDR Compatible A/V Home Theater Receiver - Black | |||
| Remote, Volume, Zone 2, App, Manual | Remote | Volume, Overheating | Display, Input Switching |
Specs
Reviews
Customers are saying
Customers often highlight the excellent sound quality and ease of use of the TX-NR696 receiver. Many appreciate the HDMI capabilities, power, straightforward setup, and overall value. Some customers have expressed minor concerns regarding the remote, Zone 2 functionality, the manual, the app, and the volume control.
Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
Easy setup and the sound is fantastic
Using the setup procedure that comes out of the box I am very happy with this unit. I am already wired so this was as simple as removing my old Denon unit and wiring up the Onkyo. I had to make a couple changes no that I have 4k pass through. I no longer have to connect my Xbox One X directly to the TV. Just one HDMI cable to the television. I also purchased Klipsch Dolby Atmos speakers for my rear channel to take advantage of the added sound processing. Using the included microphone to setup the sound was incredibly simple and Onkyo uses a more thorough process than my old Denon. It also has a much clearer on screen menu. I'll starting playing and tweaking settings this weekend. Do the Firmware update as soon as it is available to get Chromecast working if you use Google Home. Voice activating the controls is awesome. I've tested several streaming services and hooked into my in home streaming server without any issues and the music sounds incredible. I have several FLAC files along with WMA and MP3 and all play perfectly. I highly recommend this unit.
Posted by Gymm
- Rated 3 out of 5 stars
Great sound, KNOWN ISSUE WITH VIZIO TV's
I purchased this receiver based on the reviews here as well as a few other websites to replace a 15 year old Denon 3808ci. Overall the sound quality once I got it working on the eARC was crystal clear and very good on my 7.1 surround sound speaker system. The biggest complaint I have or the main issue and reason for why I will be returning it though is the issue with video output to my Vizio television. I was not aware prior to buying it because I didn't realize this until scouring the internet but it apparently has a known issue with Vizio tvs. For whatever reason it will not operate on the latest HDMI version 2.1 and I have to change the settings on the television to 1.4 to be able to get video from the receiver. After it synchs up incan change back to 2.1 and it works until the TV is powered off. Then all I get is the static snow screen pictured. It is very annoying to have to constantly change the HDMI setting just to be able to use this tv. My wife and kids will never be able to figure that out so I'm not keeping this receiver. I purchased this to have the latest Dolby Atmos codec as well as the latest DTS codec technology available with my new television but totally defeats the purpose of using this with my Xbox and other systems connected directly to this receiver due to the HDMI issue. Pro - *Lightweight compared to my previous Denon receiver (may be a con for some, it was SIGNIFICANTLY lighter than my Denon) *Great sound for Dolby Atmos movies *Number of HDMI inputs Con - *Won't work with Vizio TV's even after firmware updates on the receiver and validating my Vizio was on the latest firmware *Makes a loud and annoying click everytime it changes inputs, I can hear it from 7 to 8 feet a way and it was a bit annoying.
Posted by ShaunOrlando
- Rated 5 out of 5 stars
Musicman
The Onkyo receiver was on sale with $100 off the price. Paired it with two new Sony speakers and the sound and ease of use are second to none. Love the setup program and the Bluetooth capability to stream music. Great buy and really good value.
Posted by Dantheman
