Orei - 4K 6x4 HDMI HDBaseT Matrix Over CAT6/7 up to 132 Feet, 18Gbps Bandwidth with HDR, IR Control (UHD66-EXB132-K) - Black
Related Item
About This Item
- General
- Brand: Orei
- Model Number: UHD66-EXB132-K
- Product Name: 4K 6x4 HDMI HDBaseT Matrix Over CAT6/7 up to 132 Feet, 18Gbps Bandwidth with HDR, IR Control (UHD66-EXB132-K)
- Color: Black
- Connectivity
- Input(s): 1 x HDMI
- Output(s): 1 x HDMI
- Dimensions

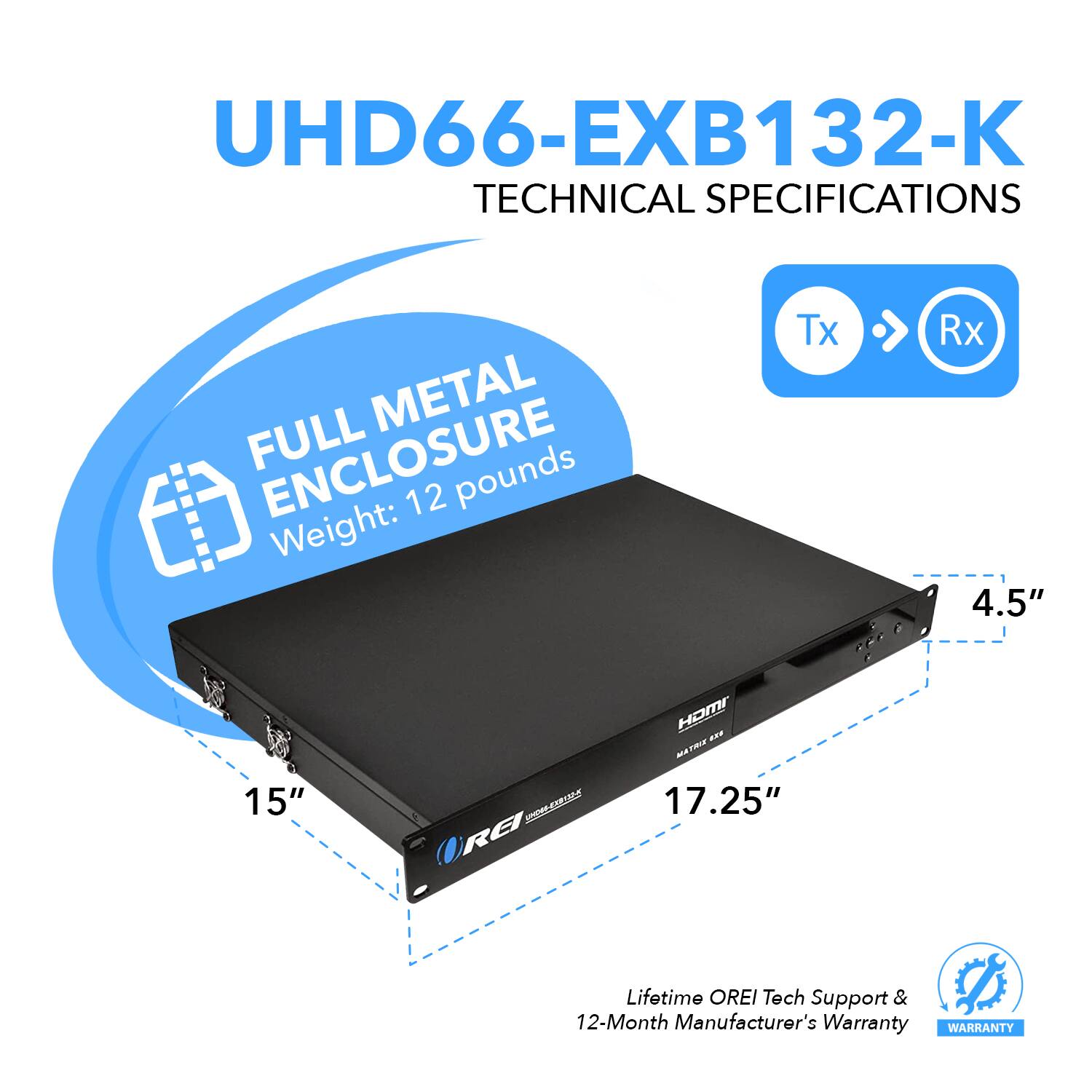

- Product Height: 1.75 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 11.92 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19.01 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: None
- Other
- UPC: 850031132276

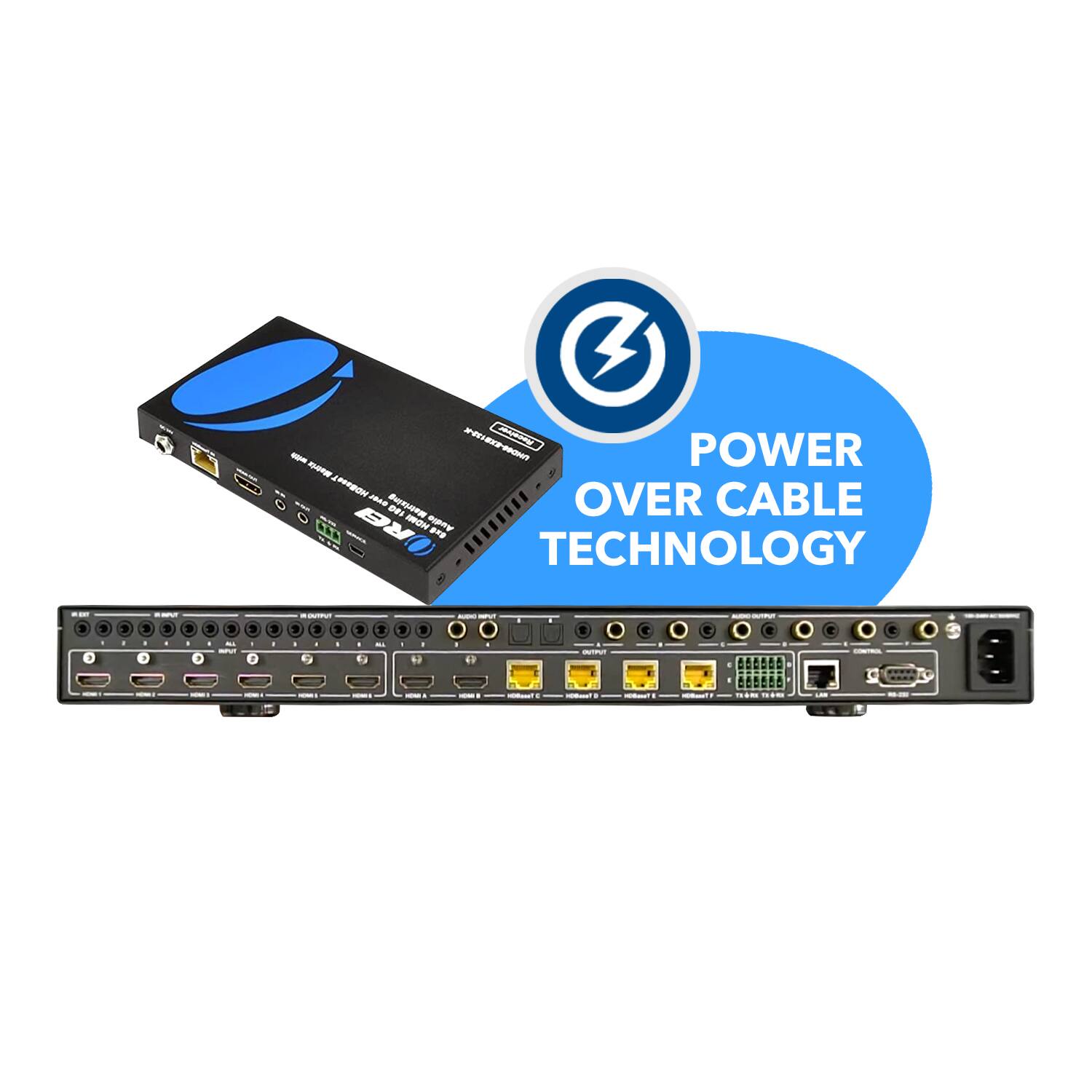

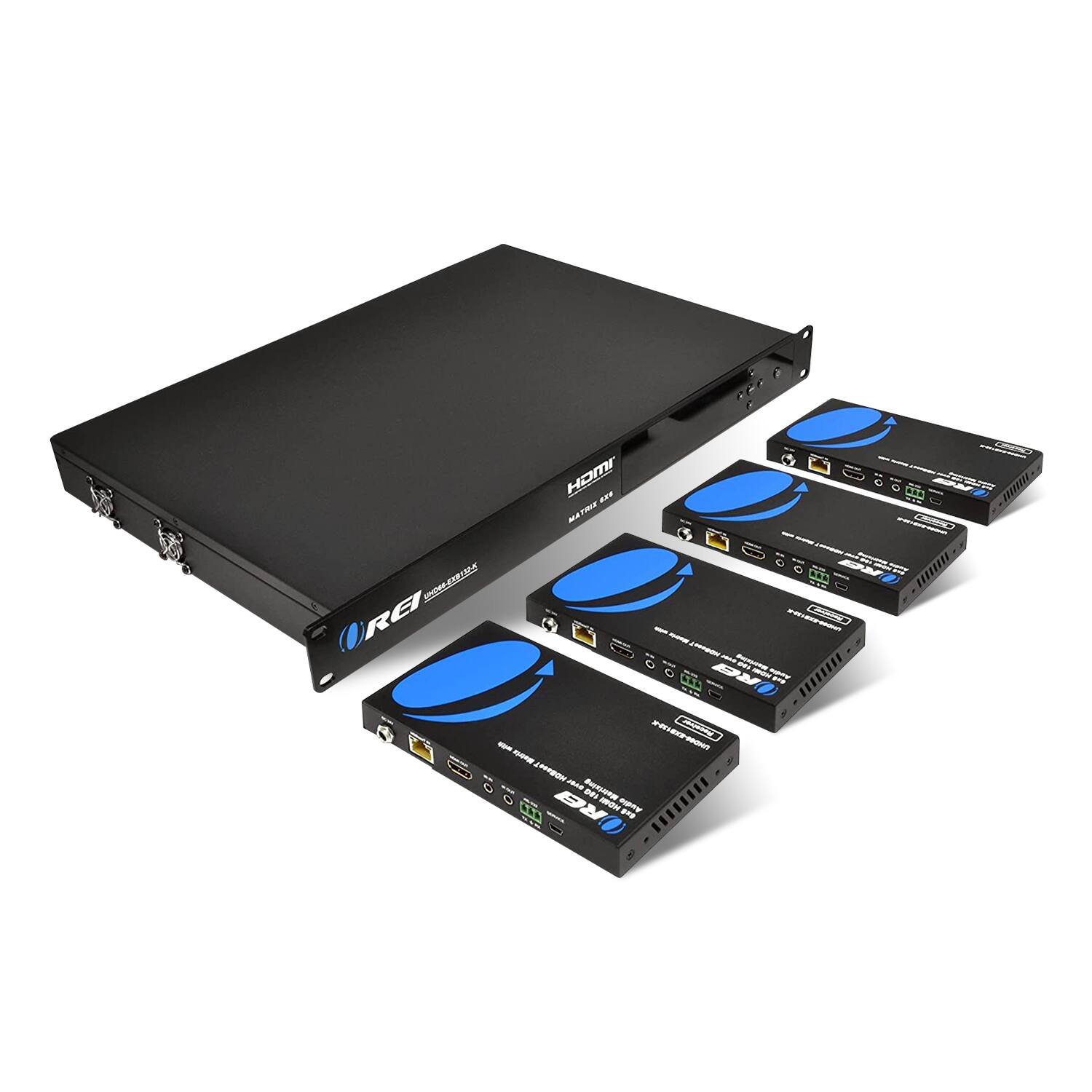

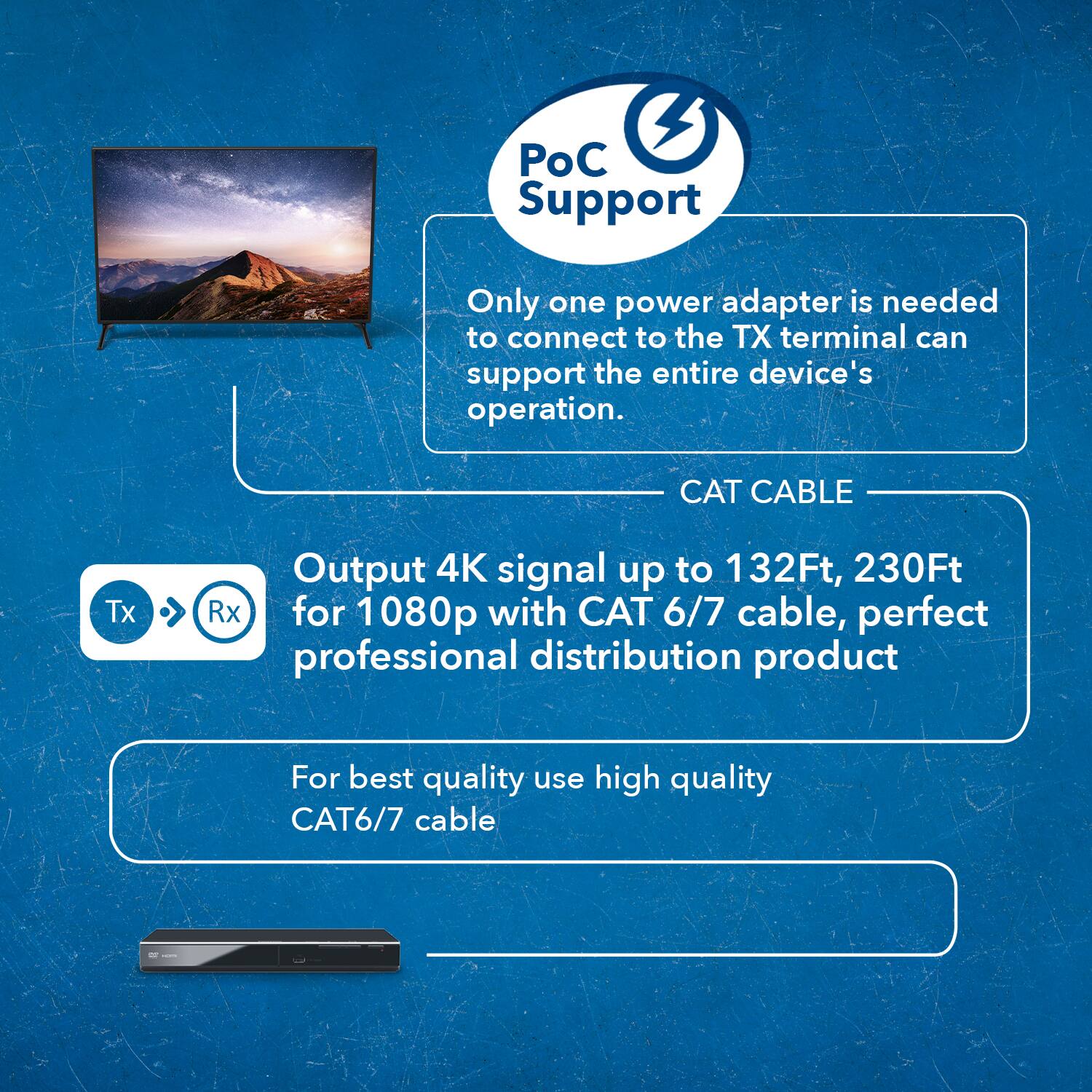

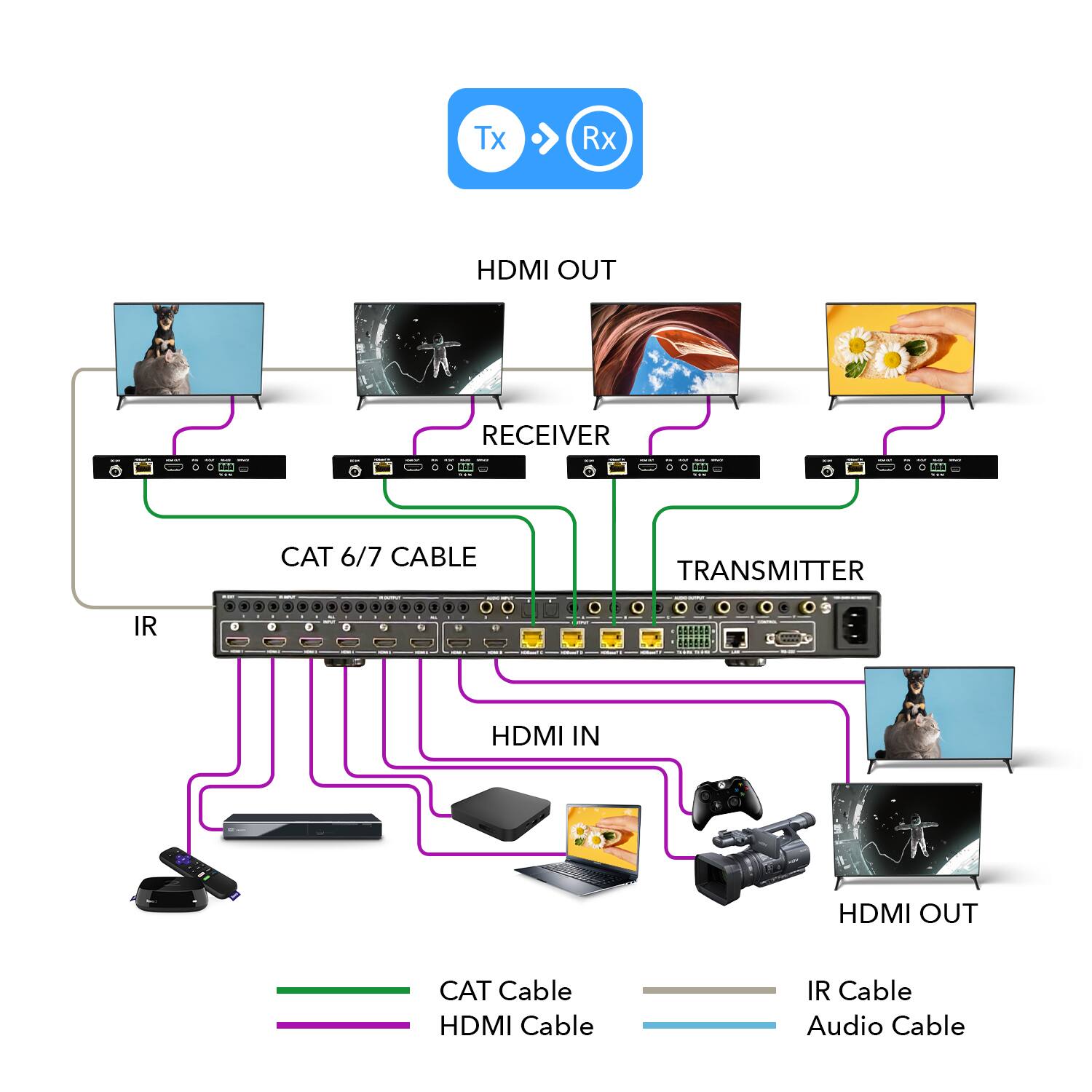

The UHD66-EXB132-K is a Matrix extender with 6 HDMI inputs, 2 HDMI outputs, and 4 HDBaseT outputs extending HDMI signals up to 130 feet at 4K@60Hz 4:4:4, and 230 feet at 1080p@60Hz. Compliant with HDMI 2.0b and HDCP 2.2, it offers a video bandwidth of up to 18Gbps and supports resolutions up to 4K@60Hz 4:4:4 with HDR10 & Dolby Vision pass-through. It features bi-directional IR for control from either location. Featuring audio matrixing with 2 L/R, 2 coaxial, 2 optical inputs, and 6 L/R & 6 coaxial outputs. Control options include RS-232, TCP/IP (RJ-45), IR remote and front panel buttons. It supports 24V power over cable for all HDBaseT ports. Robust build with easy installation, ideal for commercial and personal setups.
- OREI 4x4 4k HDMI Matrix Extender Up To 400 Feet: Bi-directional IR support for controlling the source device from the receiver’s location and vice versa
