Pioneer - Diamante Essenza 1-Zone 11,500 BTU 17 SEER2 Ductless Mini Split Inverter Heat Pump with 16 ft. Lines 208V/230V - White
Pioneer - Diamante Essenza 1-Zone 11,500 BTU 17 SEER2 Ductless Mini Split Inverter Heat Pump with 16 ft. Lines 208V/230V - White
Related Item
Specifications
- Recommended Room Size450 square feetBTU Cooling Rating11500 british thermal unitsNumber of Cool Settings5Number of Fan Speeds5Airflow Rate159 cubic feet per minuteRemote ControlYes
- Key Specs
- Recommended Room Size: 450 square feet (The recommended area size in which the product is designed to operate and produce optimal results, such as the desired heating or cooling. Generally, running a unit too big or too small for the space will result in ineffective operation and wasted energy.)
- BTU Cooling Rating: 11500 british thermal units (The amount of BTUs (British Thermal Units) per hour the unit uses to cool the air, also known as cooling capacity. For best results, the capacity of the unit should be based on the size of the area it is intended to cool. For example, a 5,000 BTU capacity works optimally for a 150 square foot room. In general, an oversized unit will not effectively remove humidity, and an undersized unit will not cool the space efficiently.)
- Number of Cool Settings: 5
- Number of Fan Speeds: 5
- Airflow Rate: 159 cubic feet per minute
- Remote Control: true
- Integrated Heater: true
- Sleep Mode: true (Enabling this mode sets the unit to first reach the desired temperature, then gradually increase the temperature over a period of time until it reaches a new set temperature, typically several degrees higher than the initial cool setting. This mode helps save energy while keeping the room comfortable.)
- Timer: true
- Auto Shut-Off: true (Feature automatically turns off the product.)
- Energy Efficiency Ratio: 9.5 (The ratio of output BTUs (British Thermal Units) to input electrical energy (watts) at a given operating point. Generally, the higher the number, the more efficient the unit. Though higher efficiency units are typically more expensive upfront, they may offset the price in energy costs over time.)
- Seasonal Energy Efficiency Ratio (SEER): 17 (This rating is generally used to measure a central air conditioner's and mini-split air conditioner's energy efficiency and will not be found on window or room air conditioners. SEER measures the ratio of output BTUs (British Thermal Units) to input electrical energy (watts) over the course of an entire cooling season. Generally, the higher the SEER rating, the more energy efficient the equipment is.)
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Air Conditioner Type: Split
- General
- Brand: Pioneer
- Model Number: WYT012GLUI17RL
- Product Name: Diamante Essenza 1-Zone 11,500 BTU 17 SEER2 Ductless Mini Split Inverter Heat Pump with 16 ft. Lines 208V/230V
- Color: White
- Air Conditioner Type: Split
- Dimensions
- Indoor Unit Dimensions: 30.5 x 7.88 x 9.75
- Outdoor Unit Dimensions: 31 x 11.5 x 19.38
- Cord Length: 192 inches
- BTU Rating
- Recommended Room Size: 450 square feet (The recommended area size in which the product is designed to operate and produce optimal results, such as the desired heating or cooling. Generally, running a unit too big or too small for the space will result in ineffective operation and wasted energy.)
- BTU Cooling Rating: 11500 british thermal units (The amount of BTUs (British Thermal Units) per hour the unit uses to cool the air, also known as cooling capacity. For best results, the capacity of the unit should be based on the size of the area it is intended to cool. For example, a 5,000 BTU capacity works optimally for a 150 square foot room. In general, an oversized unit will not effectively remove humidity, and an undersized unit will not cool the space efficiently.)
- BTU Heat Rating: 11500 british thermal units (The number of BTUs (British Thermal Units) per hour the unit produces to heat the air, also known as heating capacity. For best results, the capacity of the unit should be based on the size of the area it is intended to heat. The recommended capacity depends on several factors such as climate and level of insulation, but generally ranges from 30-60 BTUs per square foot.)
- Features
- Number of Cool Settings: 5
- Number of Fan Speeds: 5
- Airflow Rate: 159 cubic feet per minute
- Maximum Noise Level: 34 decibels adjusted
- Remote Control: true
- Control Type: Button
- Integrated Heater: true
- Filter Indicator Light(s): true
- Filter Type: Washable
- Sleep Mode: true (Enabling this mode sets the unit to first reach the desired temperature, then gradually increase the temperature over a period of time until it reaches a new set temperature, typically several degrees higher than the initial cool setting. This mode helps save energy while keeping the room comfortable.)
- Timer: true
- Auto Shut-Off: true (Feature automatically turns off the product.)
- Number of Indoor Units: 1
- Number of Outdoor Units: 1
- Power
- Energy Efficiency Ratio: 9.5 (The ratio of output BTUs (British Thermal Units) to input electrical energy (watts) at a given operating point. Generally, the higher the number, the more efficient the unit. Though higher efficiency units are typically more expensive upfront, they may offset the price in energy costs over time.)
- Voltage Requirement: 230
- Seasonal Energy Efficiency Ratio (SEER): 17 (This rating is generally used to measure a central air conditioner's and mini-split air conditioner's energy efficiency and will not be found on window or room air conditioners. SEER measures the ratio of output BTUs (British Thermal Units) to input electrical energy (watts) over the course of an entire cooling season. Generally, the higher the SEER rating, the more energy efficient the equipment is.)
- Amperage: 10.4 amperes (Strength of electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Product Safety Certifications and Standard(s): ETL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Included
- Number of Remotes Included: 1
- Unit Placement
- Indoor Unit1 Placement: Wall mount
- Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: Not applicable
- Other
- UPC: 810102183460

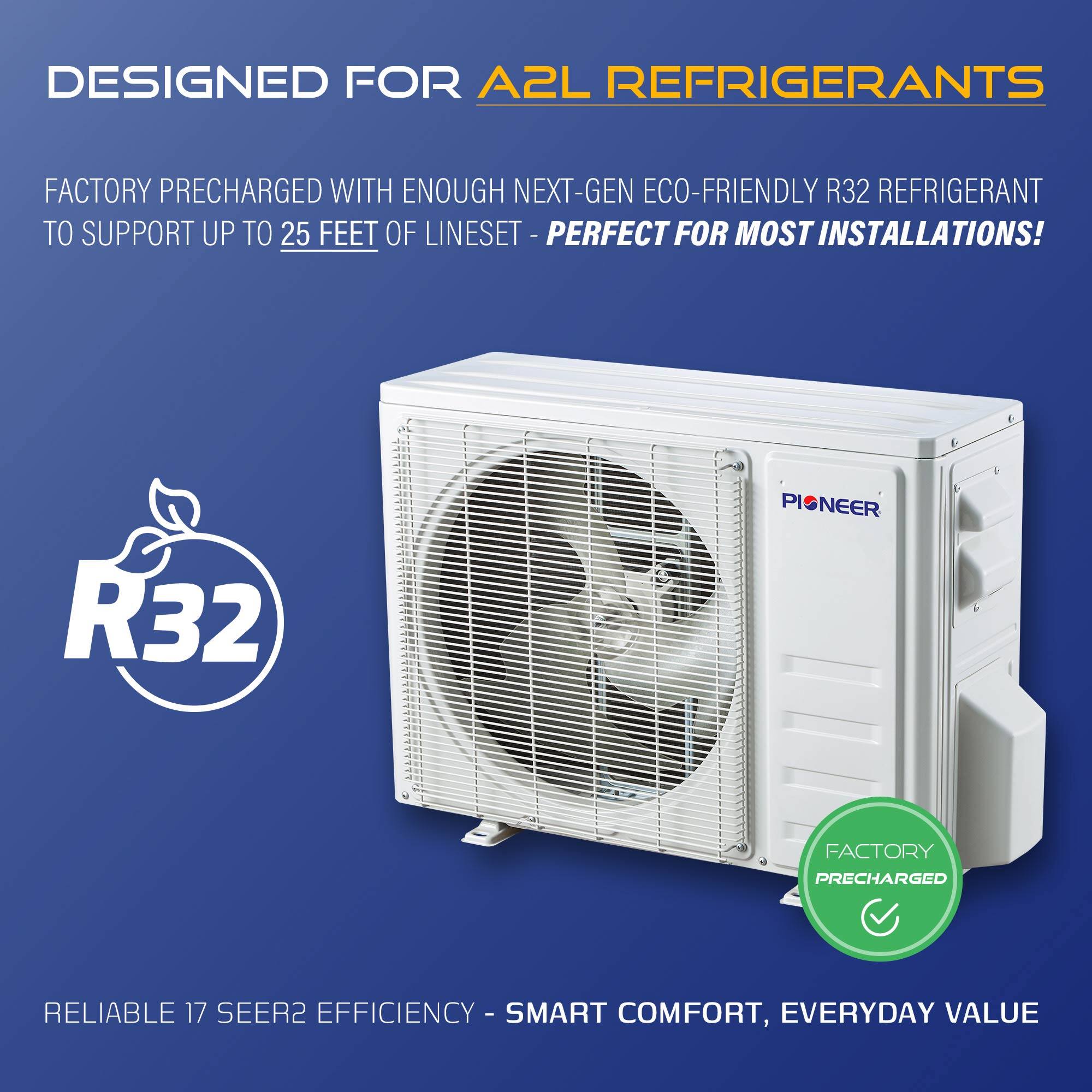

The Pioneer Diamante Essenza WYT-17 is a high-efficiency, entry-level ductless mini split system designed to deliver reliable year-round heating and cooling with an average 17-SEER rating. Ideal for bedrooms, home offices, and small spaces, it features whisper-quiet operation, a compact wall-mounted indoor unit, and a factory pre-charged outdoor condenser with R32 refrigerant. Inverter technology ensures consistent comfort while reducing energy waste, and maintenance is simple with front-access washable filters. The system includes a 16 ft. lineset, drain hose, remote control, and essential installation components-everything needed to complete core setup with ease.
- High-Efficiency Cooling & Heating: 11,500 BTU/hour cooling (17 SEER2, 9.5 EER2) and 11,500 BTU/hour heating (8.3 HSPF2, 3.2 COP2) for year-round comfort in rooms 400–650 sq. ft.

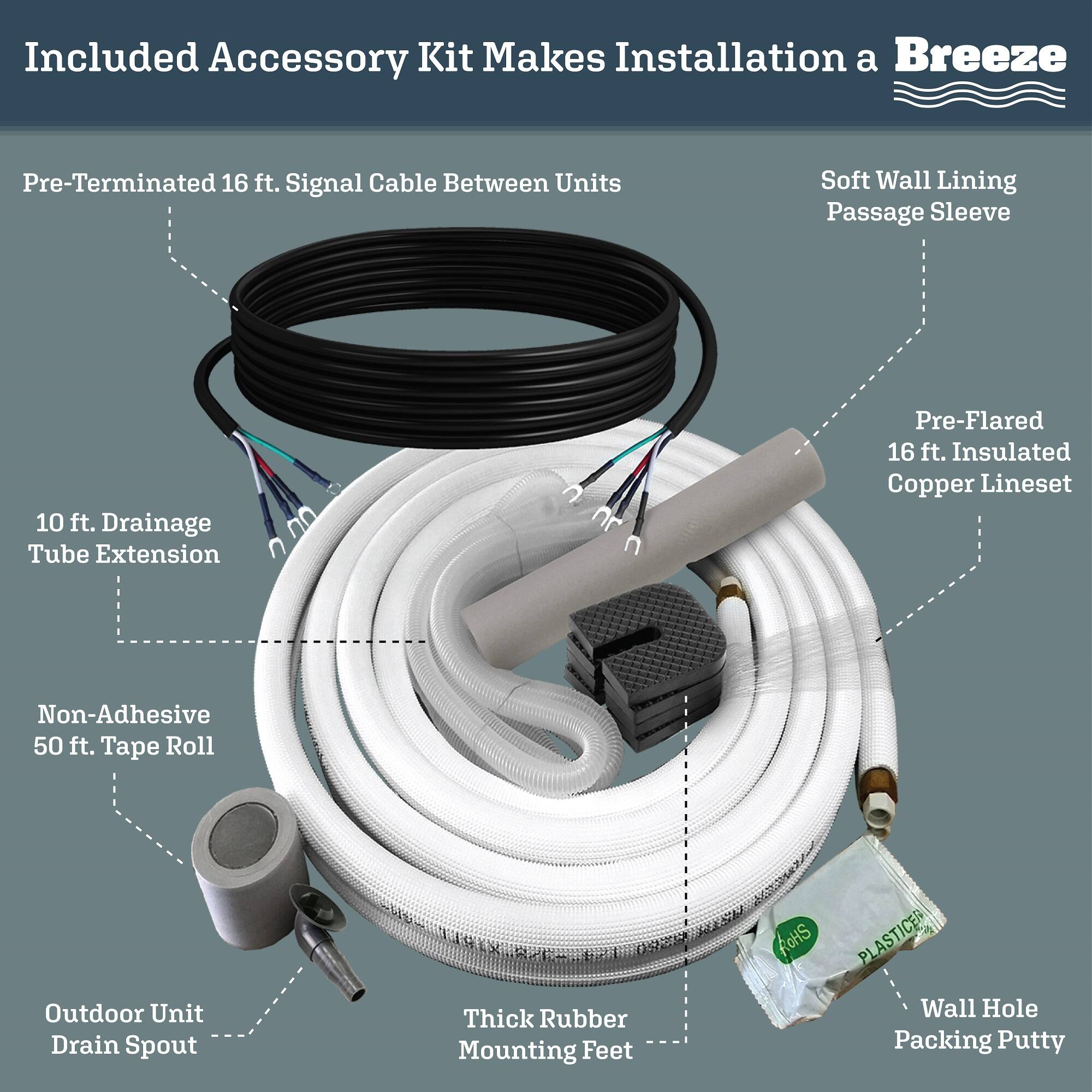

- Complete System Included: Indoor fan coil, outdoor condenser, wireless remote with holder, 16 ft. line set, installation accessories, and vibration absorber feet.
- Advanced Inverter Technology: Pulse width modulation DC inverter compressor and variable-speed DC inverter fan motors for high performance, low power consumption, and reliable operation.
- User-Friendly Controls & Versatile Operation: Dual-axis airflow, ECO and SLEEP modes, self-clean cycle, memory function, TURBO mode, IFEEL temperature sensing, timer on/off control, and standard ambient range operation (5°F heating / 122°F cooling).
- Certified & Energy-Safe: ETL, AHRI, and DOE certified; operates on 208/230V, 60Hz, 1Ph, and uses R-32 refrigerant; backed by support hotline for installation, troubleshooting, and warranty.
Whats Included
- Indoor Unit
Product Manuals
Documents
- Energy_Guide_PDF
Disclaimers
- Read all instructions before use. Only use approved parts. Failure to follow instructions may cause damage or void warranty.
