Pioneer - Diamante Pro Low-Ambient 1-Zone 24,000 BTU 21 SEER2 Ductless Mini Split Inverter Heat Pump with 16 ft. Lines 208V/230V - White
Pioneer - Diamante Pro Low-Ambient 1-Zone 24,000 BTU 21 SEER2 Ductless Mini Split Inverter Heat Pump with 16 ft. Lines 208V/230V - White
Related Item
Specifications
- Recommended Room Size1000 square feetBTU Cooling Rating24000 british thermal unitsNumber of Cool Settings5Number of Fan Speeds5Airflow Rate412 cubic feet per minuteRemote ControlYes
- Key Specs
- Recommended Room Size: 1000 square feet (The recommended area size in which the product is designed to operate and produce optimal results, such as the desired heating or cooling. Generally, running a unit too big or too small for the space will result in ineffective operation and wasted energy.)
- BTU Cooling Rating: 24000 british thermal units (The amount of BTUs (British Thermal Units) per hour the unit uses to cool the air, also known as cooling capacity. For best results, the capacity of the unit should be based on the size of the area it is intended to cool. For example, a 5,000 BTU capacity works optimally for a 150 square foot room. In general, an oversized unit will not effectively remove humidity, and an undersized unit will not cool the space efficiently.)
- Number of Cool Settings: 5
- Number of Fan Speeds: 5
- Airflow Rate: 412 cubic feet per minute
- Remote Control: true
- Integrated Heater: true
- Sleep Mode: true (Enabling this mode sets the unit to first reach the desired temperature, then gradually increase the temperature over a period of time until it reaches a new set temperature, typically several degrees higher than the initial cool setting. This mode helps save energy while keeping the room comfortable.)
- Timer: true
- Auto Shut-Off: true (Feature automatically turns off the product.)
- Energy Efficiency Ratio: 11 (The ratio of output BTUs (British Thermal Units) to input electrical energy (watts) at a given operating point. Generally, the higher the number, the more efficient the unit. Though higher efficiency units are typically more expensive upfront, they may offset the price in energy costs over time.)
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Air Conditioner Type: Wall
- General
- Brand: Pioneer
- Model Number: WYT024GLSI20RL
- Product Name: Diamante Pro Low-Ambient 1-Zone 24,000 BTU 21 SEER2 Ductless Mini Split Inverter Heat Pump with 16 ft. Lines 208V/230V
- Color: White
- Air Conditioner Type: Wall
- Dimensions
- Indoor Unit Dimensions: 46.88 x 10.25 x 14.25
- Outdoor Unit Dimensions: 36.5 x 14.88 x 27.5
- Cord Length: 192 inches
- BTU Rating
- Recommended Room Size: 1000 square feet (The recommended area size in which the product is designed to operate and produce optimal results, such as the desired heating or cooling. Generally, running a unit too big or too small for the space will result in ineffective operation and wasted energy.)
- BTU Cooling Rating: 24000 british thermal units (The amount of BTUs (British Thermal Units) per hour the unit uses to cool the air, also known as cooling capacity. For best results, the capacity of the unit should be based on the size of the area it is intended to cool. For example, a 5,000 BTU capacity works optimally for a 150 square foot room. In general, an oversized unit will not effectively remove humidity, and an undersized unit will not cool the space efficiently.)
- BTU Heat Rating: 24600 british thermal units (The number of BTUs (British Thermal Units) per hour the unit produces to heat the air, also known as heating capacity. For best results, the capacity of the unit should be based on the size of the area it is intended to heat. The recommended capacity depends on several factors such as climate and level of insulation, but generally ranges from 30-60 BTUs per square foot.)
- Features
- Number of Cool Settings: 5
- Number of Fan Speeds: 5
- Airflow Rate: 412 cubic feet per minute
- Maximum Noise Level: 36 decibels adjusted
- Remote Control: true
- Control Type: Button
- Integrated Heater: true
- Filter Indicator Light(s): true
- Filter Type: Washable
- Sleep Mode: true (Enabling this mode sets the unit to first reach the desired temperature, then gradually increase the temperature over a period of time until it reaches a new set temperature, typically several degrees higher than the initial cool setting. This mode helps save energy while keeping the room comfortable.)
- Timer: true
- Auto Shut-Off: true (Feature automatically turns off the product.)
- Number of Indoor Units: 1
- Number of Outdoor Units: 1
- Power
- Energy Efficiency Ratio: 11 (The ratio of output BTUs (British Thermal Units) to input electrical energy (watts) at a given operating point. Generally, the higher the number, the more efficient the unit. Though higher efficiency units are typically more expensive upfront, they may offset the price in energy costs over time.)
- Voltage Requirement: 230
- Amperage: 9.4 amperes (Strength of electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Product Safety Certifications and Standard(s): ETL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Included
- Number of Remotes Included: 1
- Unit Placement
- Indoor Unit1 Placement: Wall mount
- Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: Not applicable
- Other
- UPC: 810102183552
Discover the ideal blend of performance, precision, and control with the WYT-20 Diamante Pro Series from Pioneer. Engineered with a powerful DC inverter compressor and charged with eco-friendly R-454B refrigerant, this next-generation ductless mini split system achieves an impressive average efficiency of up to 20 SEER2, helping you stay comfortable year-round with lower energy consumption. Whether you're heating in freezing -4° F conditions or cooling on sweltering days, the WYT-20 delivers reliable performance across a wide operating range, and comes in 8-capacity options to suit any room size. Featuring 3D airflow with a dual-directional louver, the Diamante Pro evenly distributes air throughout the room for superior comfort. A modern flat-panel design with LED display meets function with style, while optional wireless internet control via the Pioneer AirLink app (module sold separately) gives you full command of your climate from anywhere. Quiet, efficient, and packed with smart features, this is climate control that adapts to your life.
- High-Efficiency Cooling & Heating: 24,000 BTU/hour cooling (21 SEER2, 11 EER2) and 24,600 BTU/hour heating (9.5 HSPF2, 3.41 COP2) for year-round comfort in rooms 750–1000 sq. ft.
- Complete System Included: Indoor fan coil, outdoor condenser, wireless remote with holder, 16 ft. line set, installation accessories, and vibration absorber feet.
- Advanced Inverter Technology: Pulse width modulation DC inverter compressor and variable-speed DC inverter fan motors for high performance, low power consumption, and reliable operation.
- User-Friendly Controls & Versatile Operation: Dual-axis airflow, ECO and SLEEP modes, self-clean cycle, memory function, TURBO mode, IFEEL temperature sensing, timer on/off control, and standard ambient range operation (4°F heating / 122°F cooling).
- Certified & Energy-Safe: ETL, AHRI, and DOE certified; operates on 208/230V, 60Hz, 1Ph, and uses R-454b refrigerant; backed by support hotline for installation, troubleshooting, and warranty.
- High-Efficiency Cooling & Heating: 24,000 BTU/hour cooling (21 SEER2, 11 EER2) and 24,600 BTU/hour heating (9.5 HSPF2, 3.41 COP2) for year-round comfort in rooms 750–1000 sq. ft.
- Complete System Included: Indoor fan coil, outdoor condenser, wireless remote with holder, 16 ft. line set, installation accessories, and vibration absorber feet.
- Advanced Inverter Technology: Pulse width modulation DC inverter compressor and variable-speed DC inverter fan motors for high performance, low power consumption, and reliable operation.
- User-Friendly Controls & Versatile Operation: Dual-axis airflow, ECO and SLEEP modes, self-clean cycle, memory function, TURBO mode, IFEEL temperature sensing, timer on/off control, and standard ambient range operation (4°F heating / 122°F cooling).
- Certified & Energy-Safe: ETL, AHRI, and DOE certified; operates on 208/230V, 60Hz, 1Ph, and uses R-454b refrigerant; backed by support hotline for installation, troubleshooting, and warranty.
- High-Efficiency Cooling & Heating: 24,000 BTU/hour cooling (21 SEER2, 11 EER2) and 24,600 BTU/hour heating (9.5 HSPF2, 3.41 COP2) for year-round comfort in rooms 750–1000 sq. ft.
- Complete System Included: Indoor fan coil, outdoor condenser, wireless remote with holder, 16 ft. line set, installation accessories, and vibration absorber feet.
- Advanced Inverter Technology: Pulse width modulation DC inverter compressor and variable-speed DC inverter fan motors for high performance, low power consumption, and reliable operation.
- User-Friendly Controls & Versatile Operation: Dual-axis airflow, ECO and SLEEP modes, self-clean cycle, memory function, TURBO mode, IFEEL temperature sensing, timer on/off control, and standard ambient range operation (4°F heating / 122°F cooling).
- Certified & Energy-Safe: ETL, AHRI, and DOE certified; operates on 208/230V, 60Hz, 1Ph, and uses R-454b refrigerant; backed by support hotline for installation, troubleshooting, and warranty.
Whats Included
- Indoor Unit
- Indoor Unit
- Indoor Unit
Product Manuals
Documents
- Energy_Guide_PDF
- Energy_Guide_PDF
- Energy_Guide_PDF
Disclaimers
- Read all instructions before use. Only use approved parts. Failure to follow instructions may cause damage or void warranty.
- Read all instructions before use. Only use approved parts. Failure to follow instructions may cause damage or void warranty.
- Read all instructions before use. Only use approved parts. Failure to follow instructions may cause damage or void warranty.
Compare similar products
Discover the ideal blend of performance, precision, and control with the WYT-20 Diamante Pro Series from Pioneer. Engineered with a powerful DC inverter compressor and charged with eco-friendly R-454B refrigerant, this next-generation ductless mini split system achieves an impressive average efficiency of up to 20 SEER2, helping you stay comfortable year-round with lower energy consumption. Whether you're heating in freezing -4° F conditions or cooling on sweltering days, the WYT-20 delivers reliable performance across a wide operating range, and comes in 8-capacity options to suit any room size. Featuring 3D airflow with a dual-directional louver, the Diamante Pro evenly distributes air throughout the room for superior comfort. A modern flat-panel design with LED display meets function with style, while optional wireless internet control via the Pioneer AirLink app (module sold separately) gives you full command of your climate from anywhere. Quiet, efficient, and packed with smart features, this is climate control that adapts to your life.
Experience year-round comfort with this mini split air conditioner.This mini split AC & heat pump system offers cooling and heating capacities of 24000 BTU, suitable for areas up to 1200 sq. ft. Its outdoor unit includes a chassis electrical heating system that helps it work stably in temperatures from 5℉ to 126℉. The inverter technology optimizes compressor performance and achieves an 18.1 SEER2 rating. The WiFi connectivity enables you to control the AC via your phone or voice commands, while the handy remote control provides easy manual adjustments. 7 modes and 6 fan speeds allow customization, complemented by features like 4D auto swing, child lock, and a 24-hour timer. The sleep mode and ultra quiet operation ensure restful nights. Additionally, maintenance is simplified with a self-cleaning function and washable filters.
Our split inverter air conditioner with heat pump is a perfect addition to your home! This 18000 BTU split air conditioner can quickly cool down or warm up rooms up to 1250 sq.ft, which is an ideal companion for hot summer or cold winter. Featuring an innovative inverter technology, our split AC unit can adjust the power supply frequency automatically to let you enjoy the benefit of comfort and lower energy consumption. The unit can provide strong and steady airflow to every part of your room with auto up-down and left-right swing. The air filter is easy to remove and wash, which can keep the AC unit running its best. You can adjust the working mode (auto, cool, dry, heat, fan), speed, timer, sleep mode, ECO mode or anything else by using the handy remote control. Self-clean and auto-defrost functions ensure good air quality and prolong service life. In addition, this split AC unit runs quietly, which won't disrupt your sleeping or working. And you can set the auto-off time from 0.5 to 24 hours. Filled with the new R32 refrigerant, the most eco-friendly choice that ensures the best air quality both indoors and outdoors. Competitors use an older refrigerant that is more harmful to the environment. If additional refrigerant needs to be added to the lines, check R32 availability at your local seller. Warm Notice: 1. The item comes in 2 boxes and delivery time may be different per box, please contact us if you have any questions. 2. The installation of this equipment should be done only by a Licensed HVAC Installer.

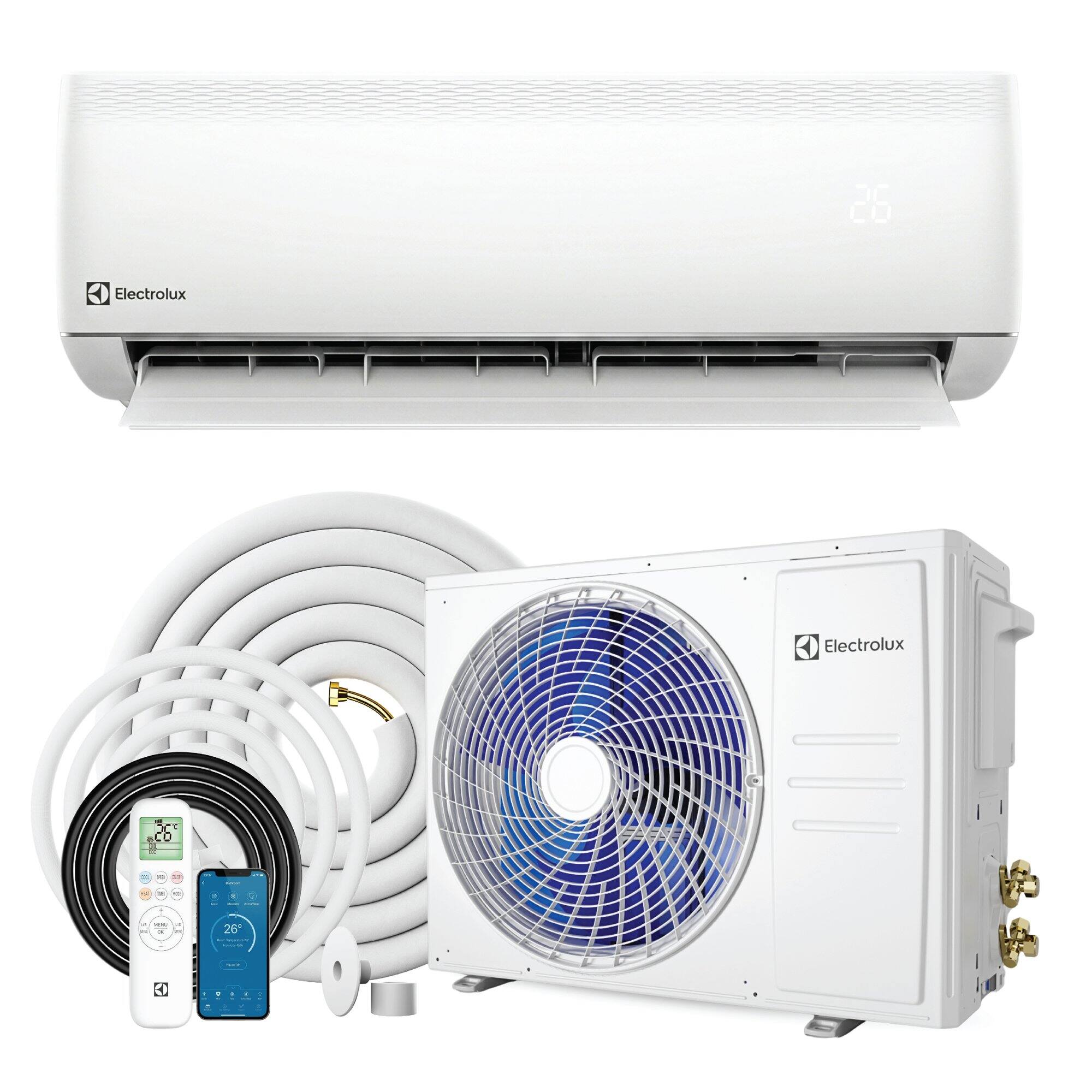

Effortlessly control your home's climate with this smart-enabled mini split AC system.Compatible with Alexa and Google Assistant, you can adjust settings via the app, remote, or voice control. With multiple mode, fan speeds, and convenient features like 24H timer and self-cleaning, this AC unit meets all-season needs. The inverter technology provides energy-efficient and precise temperature control. The package comes with a required installation kit. Note: Professional installation is recommended for optimal performance.
