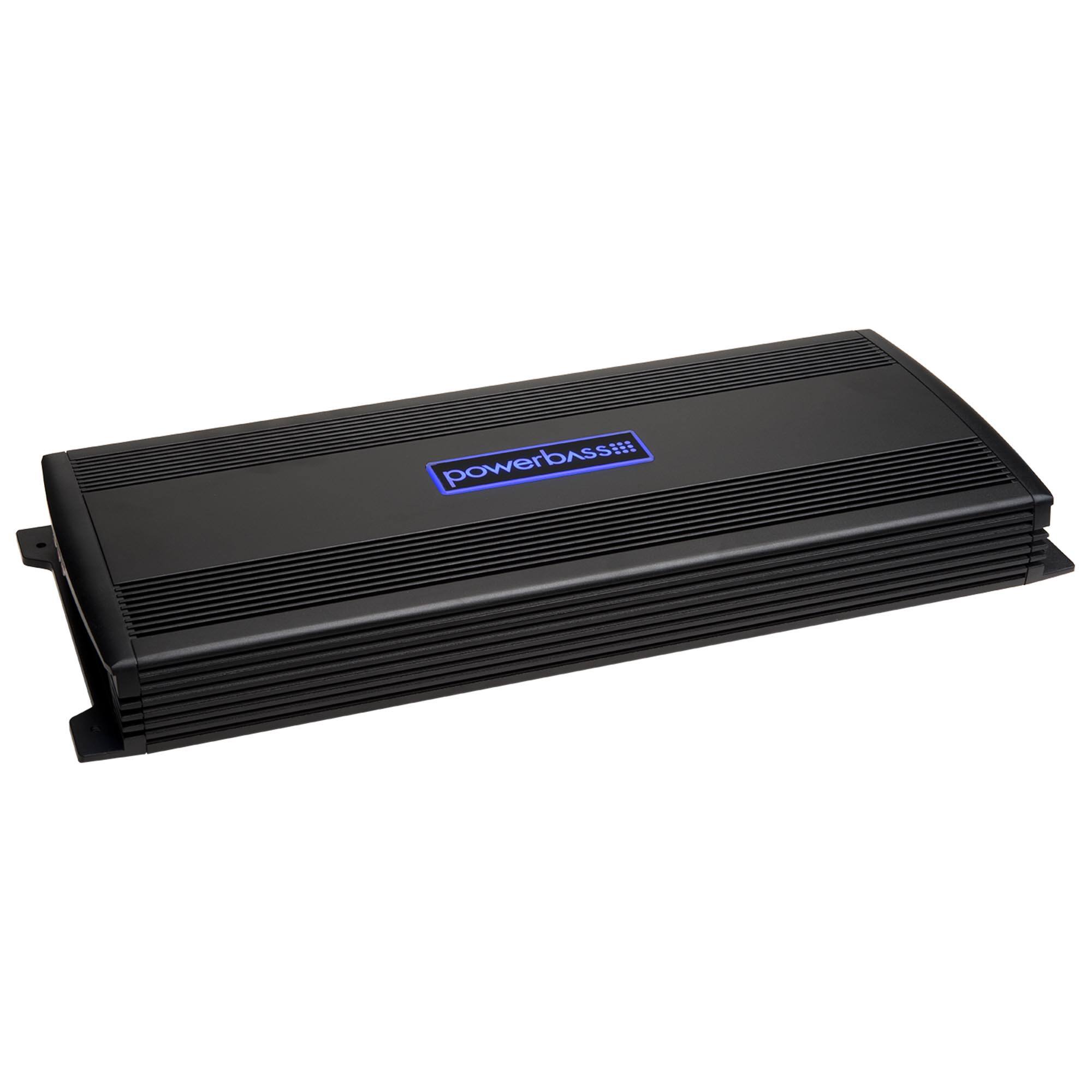

Powerbass - ASA3-1100.5 - 150 Watt x 4 + 500 Watt x 1 @ 2-Ohm Amplifier - Black/Gray
Specifications
- Amplifier ClassDNumber Of Channels5Bass BoostVariable
- Key Specs
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Number Of Channels: 5
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- General
- Brand: Powerbass
- Model Number: ASA3-1100.5
- Product Name: PowerBass ASA3-1100.5 - 150 Watt x 4 + 500 Watt x 1 @ 2-Ohm Amplifier
- Color: Black/Gray
- Audio Power
- Total Power Handling RMS: 1100 watts
- Total Power Handling Maximum: 2200 watts
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Audio
- Number Of Channels: 5
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Features
- Bluetooth Enabled: false (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Marine: false
- Dimensions
- Product Height: 4.700 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 11.600 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21.900 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 13.8 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1-Year Manufacturer Warranty
- Warranty - Labor: None
- Other
- UPC: 823871006106

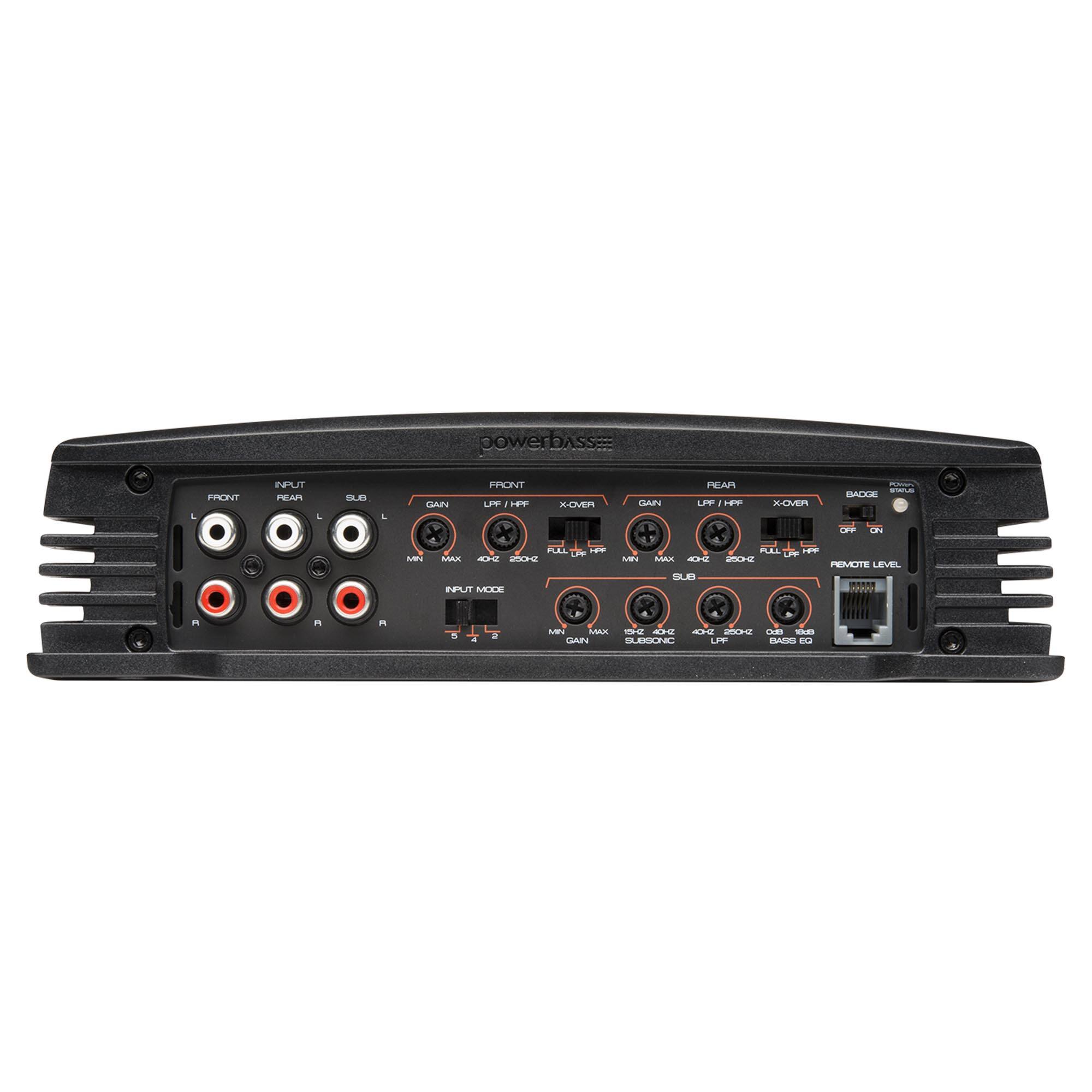

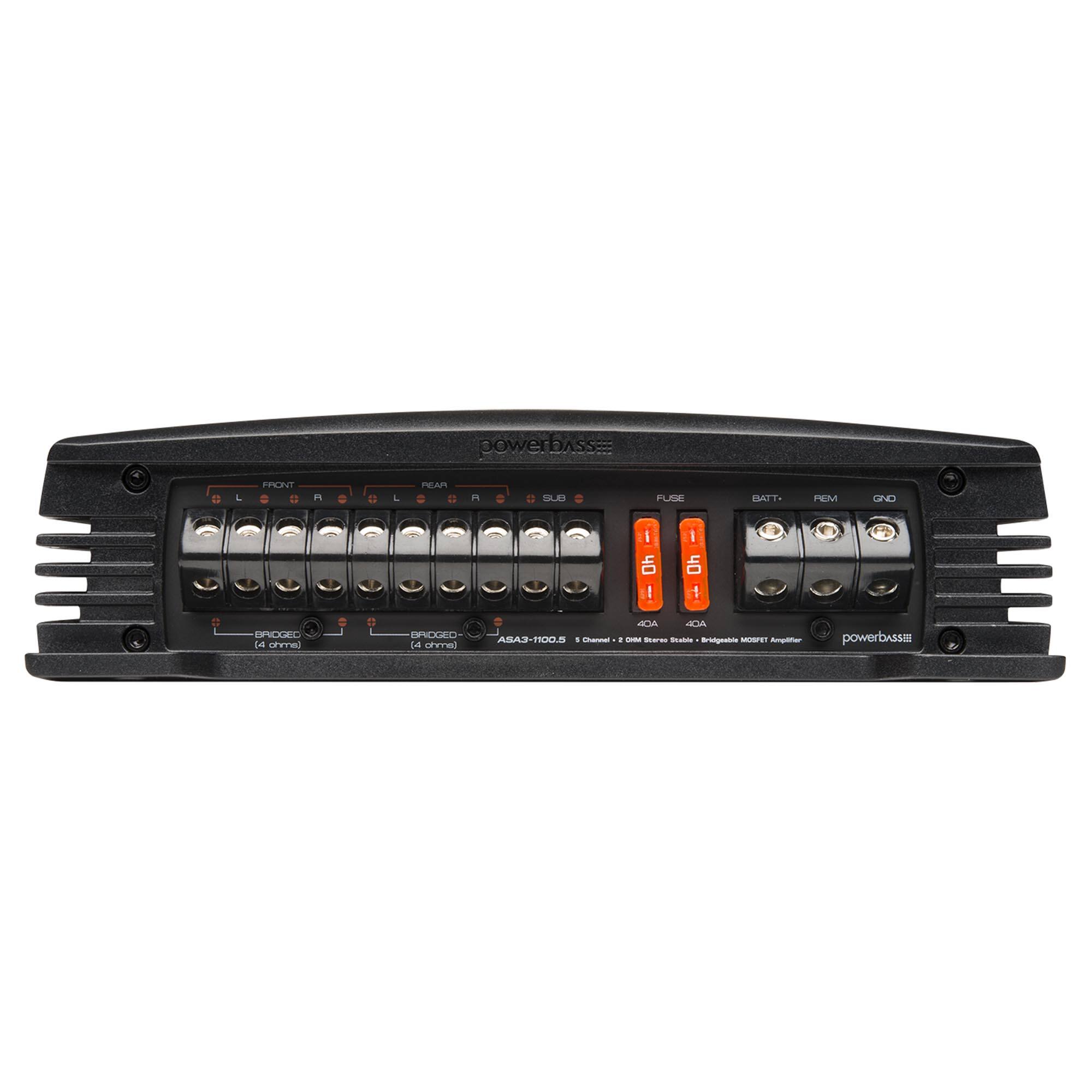

PowerBass ASA3 1100.5 5ch Amplifier PowerBass faced the daunting task of improving Their now legendary ASA-Series amplifiers. Welcome ASA3! Their third generation of ASA-Series amplifiers have a narrower footprint for installation versatility, increased over-voltage protection, broader input sensitivity, new extruded chassis designed for better heat management and a sporty light up badge. Variable 12 dB, high/low pass electronic crossover for infinite system applications. User-friendly features like a variable bass boost control with 18 dB of boost at 45 Hz to give you more output from your subwoofers. Features - • 5-Channel 1,100 Watt High Efficiency Class A/B Design • 2-ohm Stable (4-ohm in Bridged Mode) • Low Level RCA Input/Low Level RCA Pass Through Output • Remote Soft Delay Turn On/Off Circuit • Variable High/Low Pass Electronic Crossover • Variable 18dB Bass Boost EQ @ 45 Hz • Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output. • Wired Secondary Remote Gain Control (Optional PB-GAIN1) • Switchable Logo Back Lighting Specifications - • Selectable Subwoofer EQ: 0-18 dB Gain @ 45Hz • Variable Subsonic Freq: 15 Hz - 40 Hz • Inputs: RCA, 3 Pairs • Equalization Boost/Cut: 0 - 18 dB • Subwoofer Frequency Range: 20 Hz - 250 Hz • 4-ohm Mono Power: 300 watts x 2 +500 x 1 (2-ohm) • 4-ohm Power: 75 watts x 4 +250 x 1 • 2-ohm Power: 150 watts x 4 +500 x 1 • Subwoofer EQ Frequency: 45 Hz • Variable Subwoofer EQ: 0 - 18 dB • Low-Pass Crossover Freq: 40 Hz - 250 Hz • High-Pass Crossover Freq: 40 Hz - 250 Hz • Crossover Slope: 12 dB • Dimensions (in Inches): 20.3" x 8.3" x 2.3" • Input Sensitivity: 0.25 V - 6.0 V • S/N Ratio: >94 dB • Total Harmonic Distortion: 0.05% at Rated Power • Output Power (14.4 V) @ 4 ohm: 75 watts x 4 +250 x 1 • Output Power (14.4 V) @ 2 ohm: 150 watts x 4 +500 x 1 • Channels (mono): 5 • Frequency Response: 20 Hz - 22 kHz
- Key Feature: 5-Channel 1,100 Watt High Efficiency Class A/B Design
- Key Feature: Third generation of ASA-Series amplifiers have a narrower footprint for installation versatility.
- Key Feature: Increased over-voltage protection, broader input sensitivity, new extruded chassis designed for better heat management and a sporty light up badge.
- Key Feature: Improved extruded heatsink uses more fins while still maintaining the clean lines that made ASA a classic.
- Key Feature: User-friendly features like a variable bass boost control with 18 dB of boost at 45 Hz to give you more output from your subwoofers.
- Key Feature: 5-Channel 1,100 Watt High Efficiency Class A/B Design
- Key Feature: Third generation of ASA-Series amplifiers have a narrower footprint for installation versatility.
- Key Feature: Increased over-voltage protection, broader input sensitivity, new extruded chassis designed for better heat management and a sporty light up badge.
- Key Feature: Improved extruded heatsink uses more fins while still maintaining the clean lines that made ASA a classic.
- Key Feature: User-friendly features like a variable bass boost control with 18 dB of boost at 45 Hz to give you more output from your subwoofers.
Whats Included
- PowerBass ASA3-1100.5 - 150 Watt x 4 + 500 Watt x 1 @ 2-Ohm Amplifier
- PowerBass ASA3-1100.5 - 150 Watt x 4 + 500 Watt x 1 @ 2-Ohm Amplifier
