Renogy - 400 Watt Monocrystalline Solar Kit w/ 4 Pcs 100W Solar Panel and 30A PWM Charge Controller - Black
- General
- Brand: Renogy
- Model Number: RNG-KIT-RV400D-ADV30-G3-US
- Product Name: 400 Watt Monocrystalline Solar Kit w/ 4 Pcs 100W Solar Panel and 30A PWM Charge Controller
- Color: Black
- Power
- Power Supply Output: 1 x MC4 (The connector type(s) used by the device to send electrical power to another device.)
- Maximum Power Delivery: 400 watts
- Current at Maximum Power (Imp): 400 amperes
- Short Circuit Current (Isc): 5.21 amperes
- Voltage at Open Circuit (VOC): 24.3 volts
- Solar Cell Efficiency: 22 percent
- Solar Cell Type: Monocrystalline (Polycrystalline cells are generally less expensive, but less efficient, while Monocrystalline cells are more expensive, but more efficient.)
- Storage Battery Included: false
- Features
- Number of Units Per Package: 4
- Product Use: Universal
- Mount Type: Roof, Stand, Vehicle
- Solar Panel Design: Rigid
- Inverter Included: false
- Charge Controller Included: true
- Dimensions
- Product Height: 8.27 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 22.83 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 43.5 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 77.16 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 5-year warranty on panels, 1-year warranty on accessories and controllers, 3- year warranty on cables
- Warranty - Labor: 5-year warranty on panels, 1-year warranty on accessories and controllers, 3- year warranty on cables
- Other
- UPC: 816360020868
RV/Van/Marine Kits are the perfect addition to any RV, motorhome, boat, or mobile application.Equipped with mobile-friendly components, including a flush mount charge controller and a cable entry housing unit, these kits take all the guesswork out of starting your solar adventure.Easy to install and simple to use, they allow you to travel freely and stay off the grid longer without the need for noisy generators.
- Wide Application: 1600Wh daily output depends on the 4 hours sunlight availability.This panel is suited for applications that require a smaller footprint, making it a favorite for those with RVs, campers, caravan, boat, Green house and more.
- Excellent Performance: 22% High solar cell efficiency. Corrosion-resistant aluminum frame for outdoor use, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa)

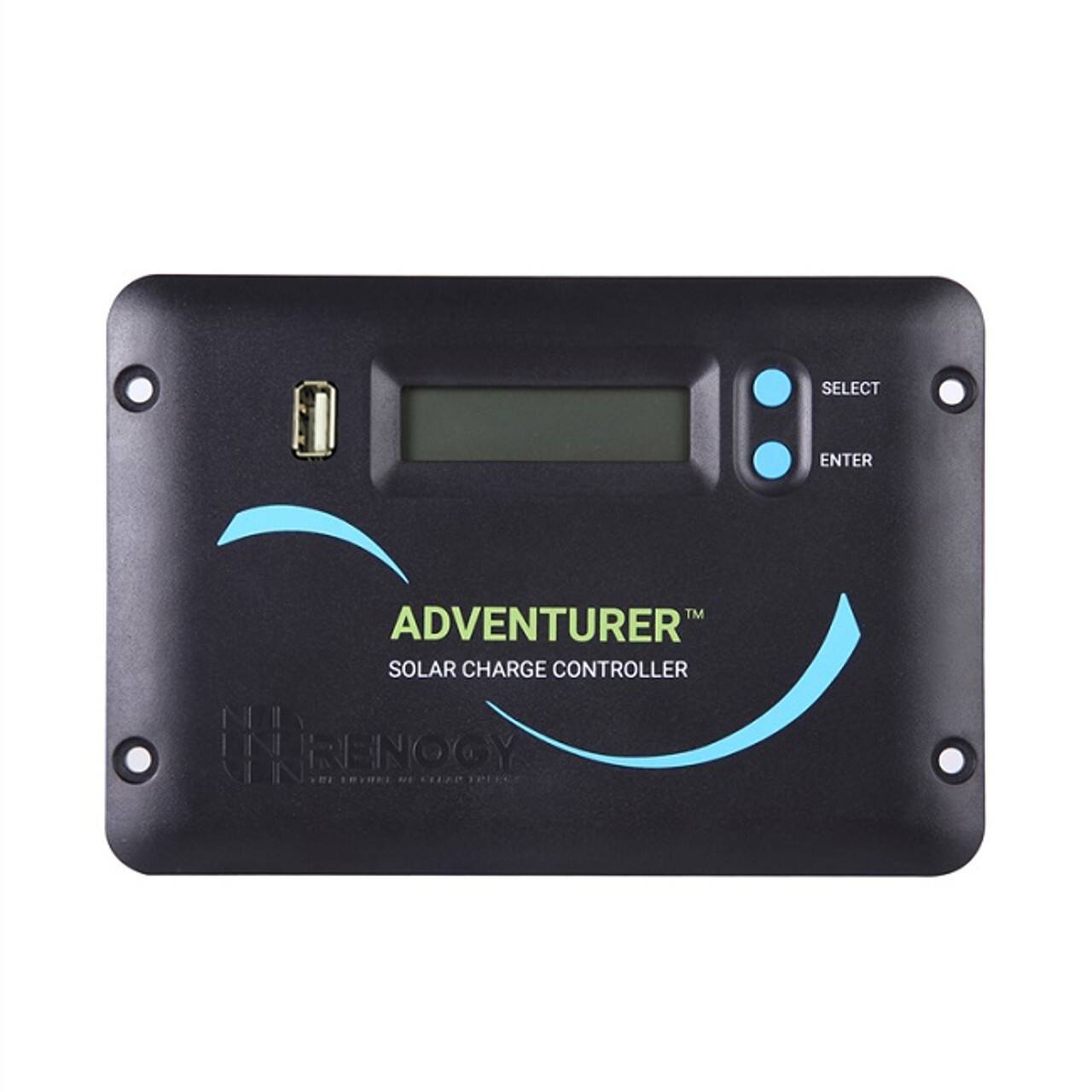

- Multiple Protection: Adventurer 30A PWM Charge Controller is designed to be used with 12V or 24V photovoltaic systems. This advanced negative-ground controller is designed for aesthetically clean flush mounting on RV or camper walls. It can prevent the battery from over charge, over voltage, discharge and short circuit, reversed polarity protection.
- Easy Installation: Pre-drilled holes and Plug&Play cables on the back allow for fast mounting. And it supports 3 types of batteries:lithium batteries, lead-acid batteries, gel batteries. 3 pairs of Y branch connectors are newly added to meet your parallel requirements.

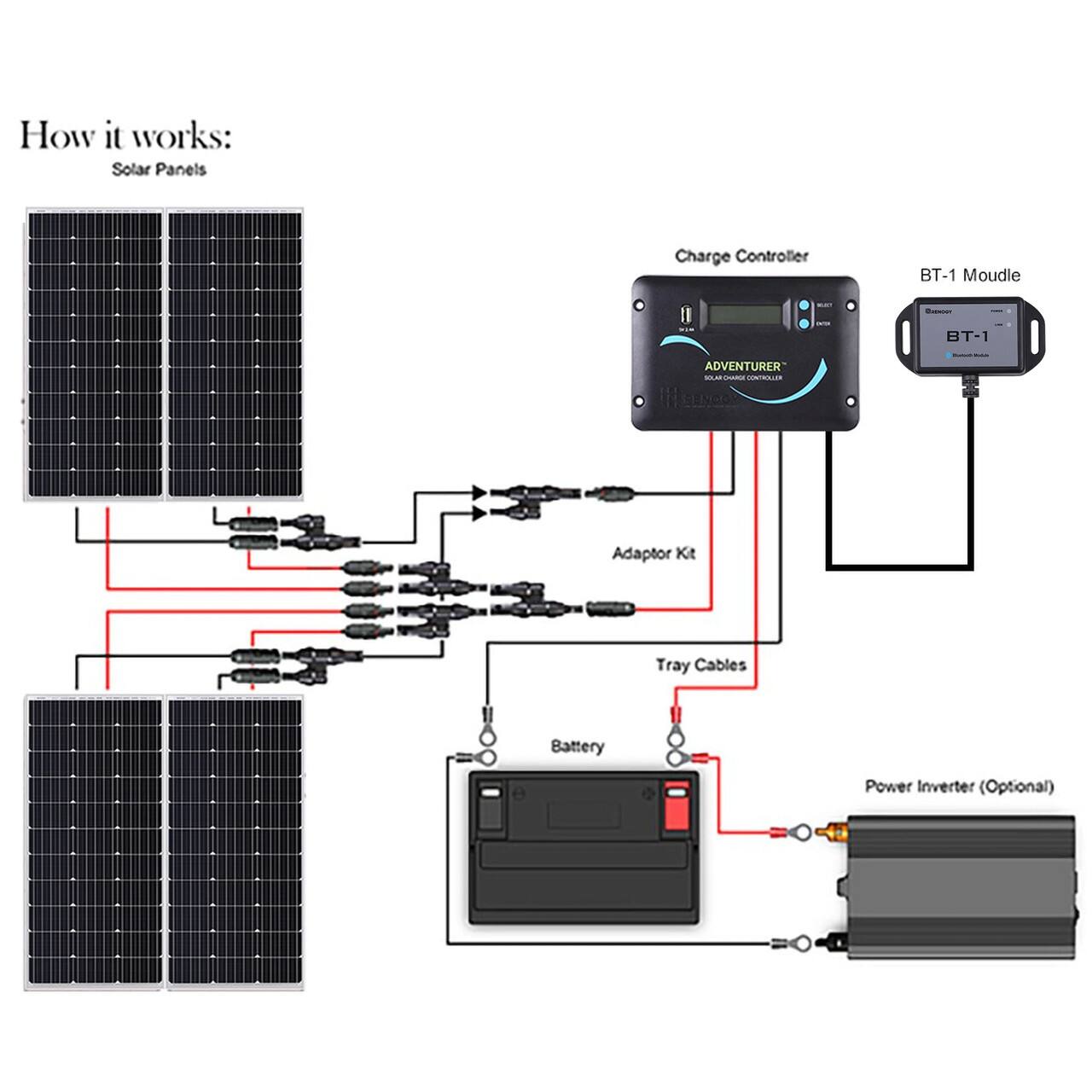

Whats Included
- 4 100W Mono Solar Panel
- 1 Renogy Adventurer-30A PWM Charge Controller
- 1 Renogy Cable Entry Housing
- 1 Renogy 30ft 10AWG Solar Adaptor Kit
- 1 Renogy 16ft 10AWG Tray Cables
- 3 Renogy Solar Y Branch Connectors
- 4 Mounting Z Brackets
- 1 Renogy BT-1 Bluetooth Module
Product Manuals
Q: What type of charge controller is included?
A: This solar kit includes a 30A PWM charge controller.
Q: Does the kit include an inverter?
A: This solar kit does not include an inverter.
Q: What is the warranty on the panels?
A: The panels have a 5-year warranty.
Q: How many solar panels are included in the kit?
A: This kit includes four solar panels.
Q: Is a storage battery included in the kit?
A: A storage battery is not included in the kit.
Q: What is the maximum power output of the solar kit?
A: The maximum power delivery of the solar kit is 400 watts.
Q: Is an mppt solar charge controller available for this system?
A: Hi Gordster, Yes, an MPPT solar charge controller is available for this system. We recommend the Rover 40A as an upgrade option. If you need further assistance, please feel free to give us a call at 909-287-7111.
