Renogy - Solar Y Connectors MMF+FFM Pair - Black
- Key Specs
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Renogy
- Model Number: RNG-CNCT-MC4Y-G2-US
- Product Name: Solar Y Connectors MMF+FFM Pair
- Color: Black
- Power
- Voltage: 0 volts (Amount of power needed to support an electrical current.)
- Features
- Material: Plastic
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Connectivity
- Plug Style: Plug and connector combination
- Dimensions
- Product Height: 0.7 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 2.07 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 4.3 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 0.1 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 810009717430

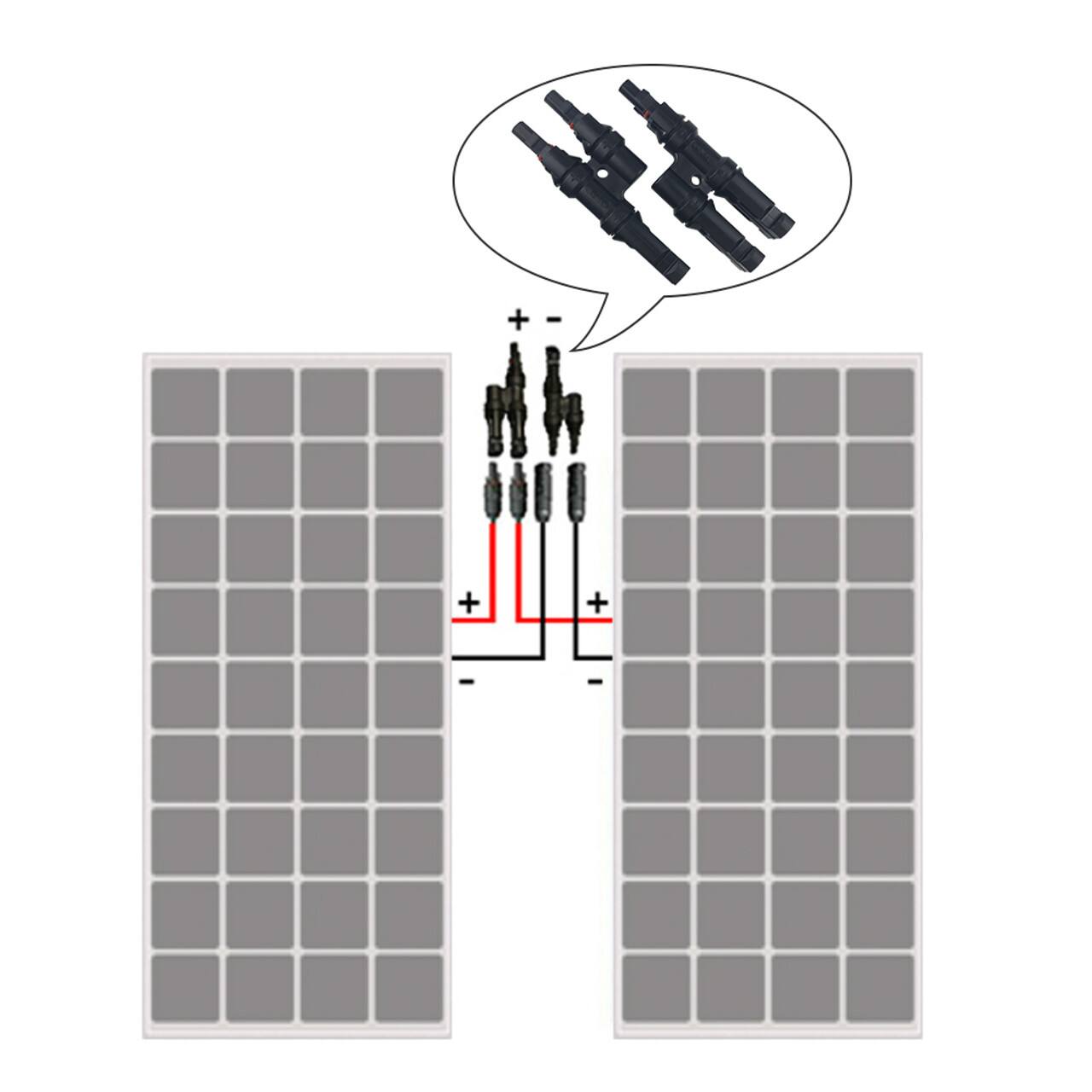

The Renogy Solar Y Branch Connectors are used for parallel wiring solar panels (PV modules). Sold as a pair, these “Y-Connectors” will maintain the voltage of the solar panel configuration to match the battery size. These connectors are solely compatible with Solar connectors and come with one male (MMF) and one female (FFM) connector. Use these Solar Branch Connectors to make tight, waterproof connections.
- Material: Hard plastic; One FFM, one MMF. Insulation Material: PC/PA; Contact Material: Copper, silver plated
- Operating Temperature: Temperature Range: -40F~+194F
- Protection Degree: Protection Degree: IP67, mated; Unmating Force: 200 Newton
- Certificate: CE and TUV certified; Flame Class: UL94-V0 or UL94-5VA
- Material: Hard plastic; One FFM, one MMF. Insulation Material: PC/PA; Contact Material: Copper, silver plated
- Operating Temperature: Temperature Range: -40F~+194F
- Protection Degree: Protection Degree: IP67, mated; Unmating Force: 200 Newton
- Certificate: CE and TUV certified; Flame Class: UL94-V0 or UL94-5VA
Whats Included
- 1 Pair Solar Y Branch Connectors MMF+FFM Pair
- 1 Pair Solar Y Branch Connectors MMF+FFM Pair
Product Manuals
Q: How are the connectors used for parallel wiring solar panels?
A: Renogy Solar Y Branch Connectors are used for parallel wiring solar panels (PV modules). When used in this configuration, they will maintain the voltage of the solar panel configuration to match the battery size. These connectors are compatible with solar connectors and come with one male and one female connector.
Q: What is the length of the product?
A: The product length is 4.3 inches.
Q: What is the height of the product?
A: The product height is 0.7 inches.
Q: What is the weight of the product?
A: The product weight is 0.1 pounds.
Q: What is the warranty period for the connectors?
A: The connectors have a one-year warranty for both parts and labor.
Q: What is the width of the product?
A: The product width is 2.07 inches.
Q: Is the material used for the connectors plastic?
A: The material used for the connectors is plastic.
Q: Do the connectors maintain the voltage of the solar panel configuration?
A: These Y-Connectors will maintain the voltage of the solar panel configuration to match the battery size. They are compatible solely with solar connectors and come with one male and one female connector.
