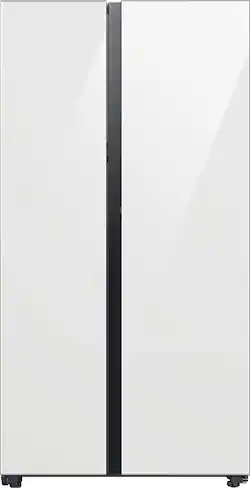

Samsung - BESPOKE Side-by-Side Counter Depth Smart Refrigerator with Beverage Center - White Glass
Model: RS23CB760012/AA
SKU: 6529230
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: White
- Product Height: 70 5/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 68 5/8 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 70 5/8 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Depth Without Handle: 28 7/8 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 28 7/8 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Total Capacity: 22.6 cubic feet
- Refrigerator Style: Side-by-Side
- Lighting Type: LED
- Ice Maker: Yes
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: SmartThings (Compatible with or able to be connected to other smart devices or applications.)
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- General
- Brand: Samsung
- Model Number: RS23CB760012/AA
- Product Name: BESPOKE Side-by-Side Counter Depth Smart Refrigerator with Beverage Center
- Color: White Glass
- Color Finish: White
- Vendor Collection: Samsung BESPOKE (Part of a line of different product types, like kitchen appliances.)
- Dimensions
- Product Height: 70 5/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 28 7/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 68 5/8 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 70 5/8 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Counter Depth: true (The product case installs flush with the depth of standard kitchen counters to provide a built-in appearance.)
- Depth Without Handle: 28 7/8 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 28 7/8 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Depth With Door 90 Degrees Open: 46 3/8 inches (Measurement from the back of the product to its front, with the door open at a 90-degree angle.)
- Product Weight: 263 pounds (The out of box weight of the item.)
- Capacity
- Total Capacity: 22.6 cubic feet
- Refrigerator Capacity: 14.6 cubic feet (Total amount of space within the refrigerator compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Freezer Capacity: 8 cubic feet (Total amount of space within the freezer compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Performance
- Minimum Operating Temperature: 38 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Maximum Operating Temperature: 110 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- Features
- Configuration: Freestanding (The size, arrangement, and physical configuration of the product.)
- Panel Ready: false (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Refrigerator Style: Side-by-Side
- Fingerprint Resistant: true
- Garage Ready: true (Garage Ready appliances have been tested by the manufacturer to operate within a wider range of external temperatures than the average home environment, such as a garage which can fall below freezing or heat above 100 degrees Fahrenheit. Please refer to the manufacturer's documentation for detailed external operating temperature requirements.)
- Door-Open Alarm: true
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Temperature Control Type: Electronic
- Display Type: None
- Defrost Type: Automatic (Ice build-up can reduce the appliance’s cooling capacity, making it work harder and consume more energy. Defrosting is necessary to maintain its efficiency and each type has its own advantages depending on user needs and preferences. Manual defrost appliances require unplugging to melt ice naturally, but offer more space, lower energy consumption, and lower cost without the internal heating element. Frost-free appliances regulate temperature to prevent ice build-up automatically. Automatic defrost systems use a timer to circulate heat and prevent ice accumulation, while adaptive defrost systems use sensors to determine the optimal times for heat circulation.)
- Hinge Setting: Fixed left, Fixed right
- Lighting Type: LED
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Ice & Water
- Ice Maker: Yes
- Secondary Ice Maker: No (This feature, often located within a pull-out freezer drawer, produces and stores ice in addition to the primary ice maker.)
- Ice Maker Location(s): Freezer
- Ice Maker Ice Form: Cubed, Nugget
- Ice and Water Dispenser: Water only
- Ice and Water Dispenser Location: Internal
- Dispensed Water Type: Cold Water
- Dispenser Features: Beverage center
- Storage
- Number of External Doors/Drawers: 2
- Number of Refrigerator Shelves: 5
- Refrigerator Shelf Style: Slide-In
- Quick Access Door: false (A door-within-door that provides convenient access to your favorite food and drink items without opening the main door.)
- Gallon Door Storage: true (Designated storage space for gallon-sized containers, such as milk, juice, and water.)
- Refrigerator Shelf Material: Tempered Glass
- Freezer Info
- Freezer Compartment: true
- Freezer Location: Left
- Freezer Door Type: Swing Door
- Freezer Shelf Material: Glass
- Freezer Interior Light: true
- Filter Info
- Water Filtration: true
- Water Filter Model Number: HAF-QIN (The water filter model(s) recommended for use with the product.)
- Electrical Specification
- Amperage: 5 amperes (Strength of electrical current.)
- Voltage: 115 volts (Amount of power needed to support an electrical current.)
- Estimated Annual Electricity Use: 600 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 84 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- ADA Compliant: true (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Chemical Disclosures: Free of PFAS, PFOA, lead, and cadmium. Libre de PFAS, PFOA, plomo, y cadmio (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: SmartThings (Compatible with or able to be connected to other smart devices or applications.)
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Other
- UPC: 887276715889
A Bespoke Counter Depth Side-by-Side refrigerator lets you create a stylish kitchen with your choice of color and finish: White Glass or Fingerprint Resistant Stainless Steel. The Beverage Center provides quick and easy access to refreshing cold and filtered water. Dual Auto Ice Maker makes two types of ices - cubed or Ice Bites. Plus, Power Touch Sensor lets you open doors effortlessly with a light touch.
- Counter Depth: Get more workspace while enhancing your kitchen's look with our counter-depth refrigerator design. Its sleek, built-in style blends in with the cabinetry, adding function and style to your kitchen.
- Bespoke Design: Create a stylish kitchen with your choice of color and finish: Bespoke White Glass or fingerprint-resistant Stainless Steel.
- Beverage Center: Convenient access to refreshingly cool, filtered water is always within reach. The Beverage Center includes a dispenser and AutoFill Water Pitcher with the option to infuse with a flavor.
- Dual Auto Ice Maker: Choose from cubed ice or Ice Bites that chill your drink faster.¹
- Power Touch Sensor: The Power Touch sensor makes it even easier to open the door, doing it automatically with a light touch over the sensor.²
- Large Capacity: Store more with a spacious 23 cu. ft. interior. ³With SpaceMax technology, you get extra storage space where you need it, without compromising space in your kitchen.
- Premium Interior Design: The adjustable slide-in shelves are flexibly designed to be able to fit in just half of the fridge, so you can slide them back to create more room for tall and bulky items. A silver accent on the edge of the shelves adds a premium look throughout the interior.
- SmartThings Energy: SmartThings Energy⁴ lets you easily check that your power consumption is within preset targets, so that you can adjust if needed.
- All-around Cooling: Keep items at the same temperature throughout the interior, so that everything stays fresher, longer. All-around Cooling uses evenly spaced vents and continual temperature monitoring to ensure consistent cooling from corner to corner.
- ADA-Compliant Display: Enjoy a stylish and easy way to access the controls. The display enhances the minimalist design as it is discreetly hidden inside.
- ENERGY STAR Certified: Save energy and money, while protecting the planet by reducing harmful carbon emissions. This refrigerator is ENERGY STAR certified for its outstanding energy efficiency. Proven to use less power, without sacrificing performance or functionality.
- Counter Depth: Get more workspace while enhancing your kitchen's look with our counter-depth refrigerator design. Its sleek, built-in style blends in with the cabinetry, adding function and style to your kitchen.
- Bespoke Design: Create a stylish kitchen with your choice of color and finish: Bespoke White Glass or fingerprint-resistant Stainless Steel.
- Beverage Center: Convenient access to refreshingly cool, filtered water is always within reach. The Beverage Center includes a dispenser and AutoFill Water Pitcher with the option to infuse with a flavor.
- Dual Auto Ice Maker: Choose from cubed ice or Ice Bites that chill your drink faster.¹
- Power Touch Sensor: The Power Touch sensor makes it even easier to open the door, doing it automatically with a light touch over the sensor.²
- Large Capacity: Store more with a spacious 23 cu. ft. interior. ³With SpaceMax technology, you get extra storage space where you need it, without compromising space in your kitchen.
- Premium Interior Design: The adjustable slide-in shelves are flexibly designed to be able to fit in just half of the fridge, so you can slide them back to create more room for tall and bulky items. A silver accent on the edge of the shelves adds a premium look throughout the interior.
- SmartThings Energy: SmartThings Energy⁴ lets you easily check that your power consumption is within preset targets, so that you can adjust if needed.
- All-around Cooling: Keep items at the same temperature throughout the interior, so that everything stays fresher, longer. All-around Cooling uses evenly spaced vents and continual temperature monitoring to ensure consistent cooling from corner to corner.
- ADA-Compliant Display: Enjoy a stylish and easy way to access the controls. The display enhances the minimalist design as it is discreetly hidden inside.
- ENERGY STAR Certified: Save energy and money, while protecting the planet by reducing harmful carbon emissions. This refrigerator is ENERGY STAR certified for its outstanding energy efficiency. Proven to use less power, without sacrificing performance or functionality.
Documents
- Energy_Guide_PDF
- Energy_Guide_PDF
A: Yes it will hit the wall. Best if not up against a wall. Particularly so you can open the drawers all the way.
Q: Is there any indicator when the water filter needs to be replaced?
A: Hi Sharon, Yes, the filter reset indicator will turn red and you will hear an alarm reminding you to replace the water filter. Please see "Filter reset" on page 34 and "Water filter replacement" on page 39 of the user's manual for your reference. Manual https://downloadcenter.samsung.com/content/UM/202301/20230128185253856/SBS_RS5300C_DA68-04562A-00_EN_MES_CFR_29112022.pdf Have a great day. ^Aloe
A: It takes about 8 hours for the system to start feeling water after fridge gets setup. I had the same issue no worries.
A: Hello there, No, only Bespoke refrigerator's with three doors and up have customizable panels. Have a great day. -John
Q: What size is the autofill pitcher?
A: It's actually 48 oz.
Q: What is the depth in inches of the refrigerator shelves?
A: 3 shelves on the frig side are 15"; 1 shelf is 16" deep. Shelves in the freezer are 13" deep.
Q: Where are the condensor coils?
A: Hi IngridL, We are glad to answer your question about the location of the condenser coils. The condenser is located at the bottom-backside of the refrigerator, sitting behind the cover comp fitted by 7 screws. Leo
Q: Are the shelves in this model adjustable?
A: Yes, Jenny, the shelves are adjustable. Have a great day. ^Camille
