Thermalright - Phantom Spirit 120 EVO CPU Air Cooler, 7 Heat Pipes CPU Cooler, Dual 120mm TL-K12 PWM Fans, for AM4 /AM5 - Black
FREE shipping to
Specifications
- Airflow Volume69 cubic feet per minuteCooling SystemAirFan Size120 millimetersFan Speed2150 revolutions per minuteNoise Level27 decibels adjustedNumber of Fans Included3
- Key Specs
- Airflow Volume: 69 cubic feet per minute
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Fan Size: 120 millimeters
- Fan Speed: 2150 revolutions per minute
- Noise Level: 27 decibels adjusted
- Number of Fans Included: 3
- Lighting Type: RGB
- Product Height: 228.6 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 203.2 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Processor Socket: Socket AM4 (PGA 1331), Socket AM5 (LGA 1718), Socket LGA 1200, Socket LGA 1700, Socket LGA 1851 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- General
- Brand: Thermalright
- Model Number: PHANTOM SPIRIT 120 EVO
- Product Name: Phantom Spirit 120 EVO CPU Air Cooler, 7 Heat Pipes CPU Cooler, Dual 120mm TL-K12 PWM Fans, for AM4 /AM5
- Color: Black
- Cooling
- Airflow Volume: 69 cubic feet per minute
- Cooling Fan Type: CPU
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Fan Size: 120 millimeters
- Fan Speed: 2150 revolutions per minute
- Noise Level: 27 decibels adjusted
- Number of Fans Included: 3
- Bearing Type: S-FDB V2 Bearing
- Fan/Cooling System Connector: 4 Pin (PWM Fan connector) (The configuration of the connector as it connects a computer component to a fan or cooling system.)
- Features
- Lighting Type: RGB
- Power
- Power Consumption: 2.4 watts
- Dimensions
- Product Height: 228.6 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 203.2 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 254 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 65.28 ounces (The out of box weight of the item.)
- Compatibility
- Processor Socket: Socket AM4 (PGA 1331), Socket AM5 (LGA 1718), Socket LGA 1200, Socket LGA 1700, Socket LGA 1851 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Warranty
- Warranty - Parts: 3 years
- Other
- UPC: 814256015585
Thermalright Phantom Spirit 120 EVO CPU Air Cooler, 7 Heat Pipes CPU Cooler, Dual 120mm TL-K12 PWM Fans, AGHP 4.0 Technology, for AM4 /AM5/Intel 1851/1700/1150/1151/1200, PC Cooling; PS120 EVO; CPU Cooler dimensions: 125(L)x135(W)x157(H)mm (4.92x5.3x 6.18 inch); Heat sink material: aluminum, the main body is made of anodized black frosted top + finely carved pure copper base technology, avoiding the memory design, the main body is fully aluminum fins, bringing maximum heat dissipation area. combined with the high thermal conductivity of the thermal paste, which can perfectly perform the cooler's most powerful cooling effect

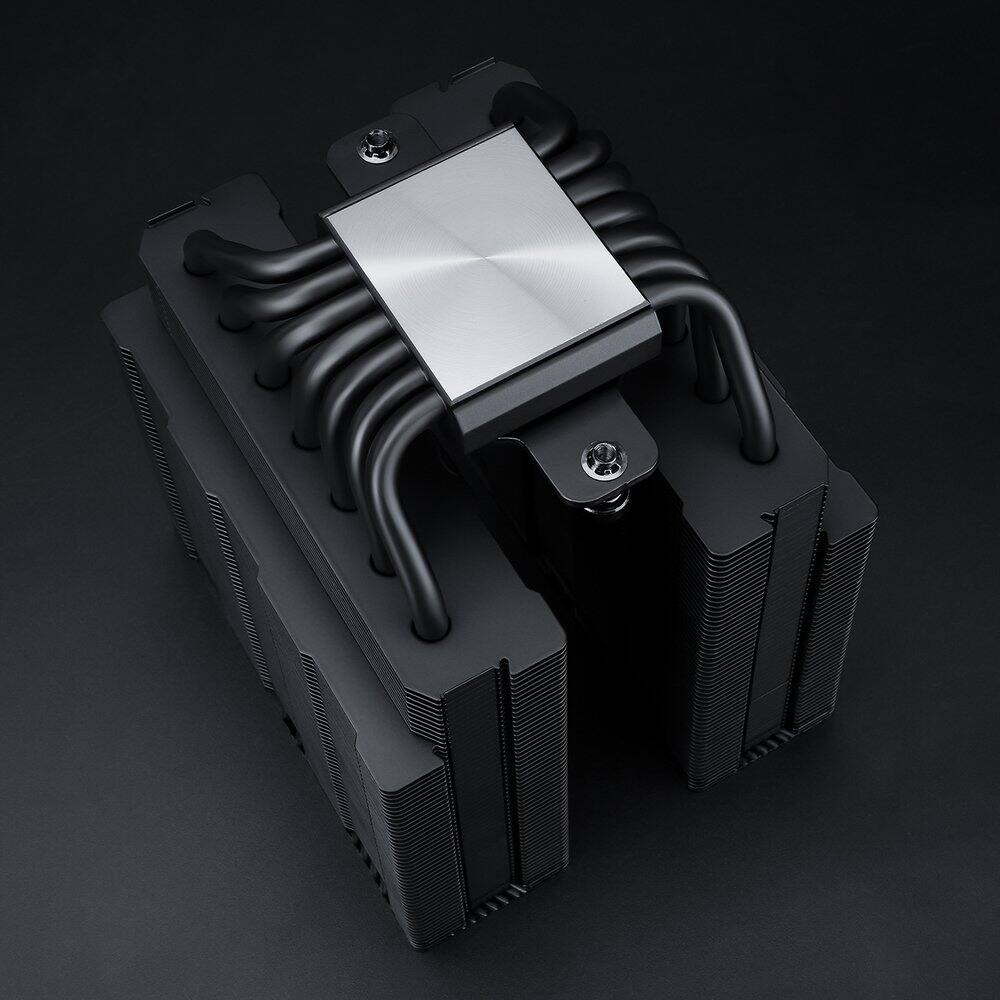

- Overall refinement: The cpu radiator adopts anodic black frosted process, the twin towers of the radiator body present a frosted texture, with 7 fully plated and blackened heatpipes, as well as a precision micro-engraved reflow soldered copper base, which greatly enhances the overall performance of the radiator; avoiding the treatment of the graphics card allows for greater compatibility of the cpu cooler

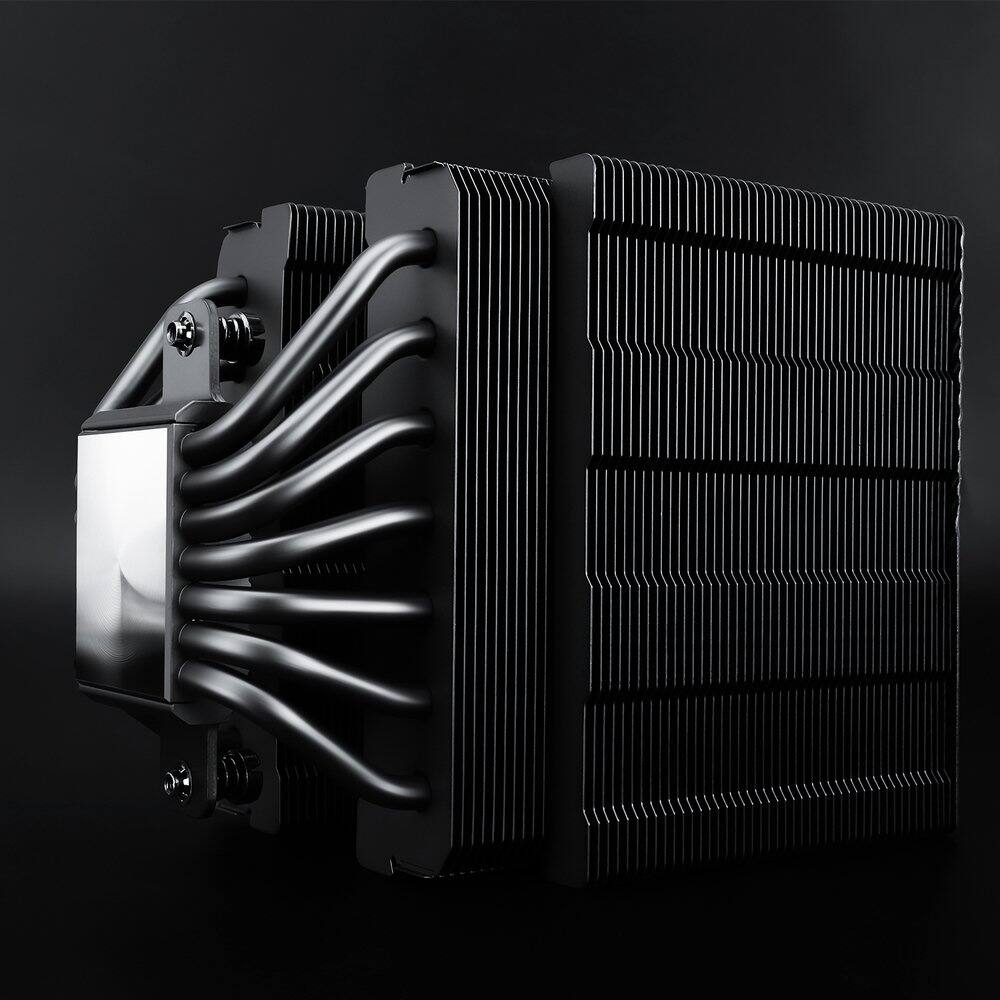

- AGHP technique: 7x6mm heatpipe with AGHP upgraded 4th generation technology, the Inverse gravity effect caused by vertical / horizontal orientation. Up to 20000 hours of industrial service life, S-FDB bearings ensure long service life of air-cooler radiators.UL class a safety insulation low-grade, industrial strength PBT + PC material to create high-quality products for you

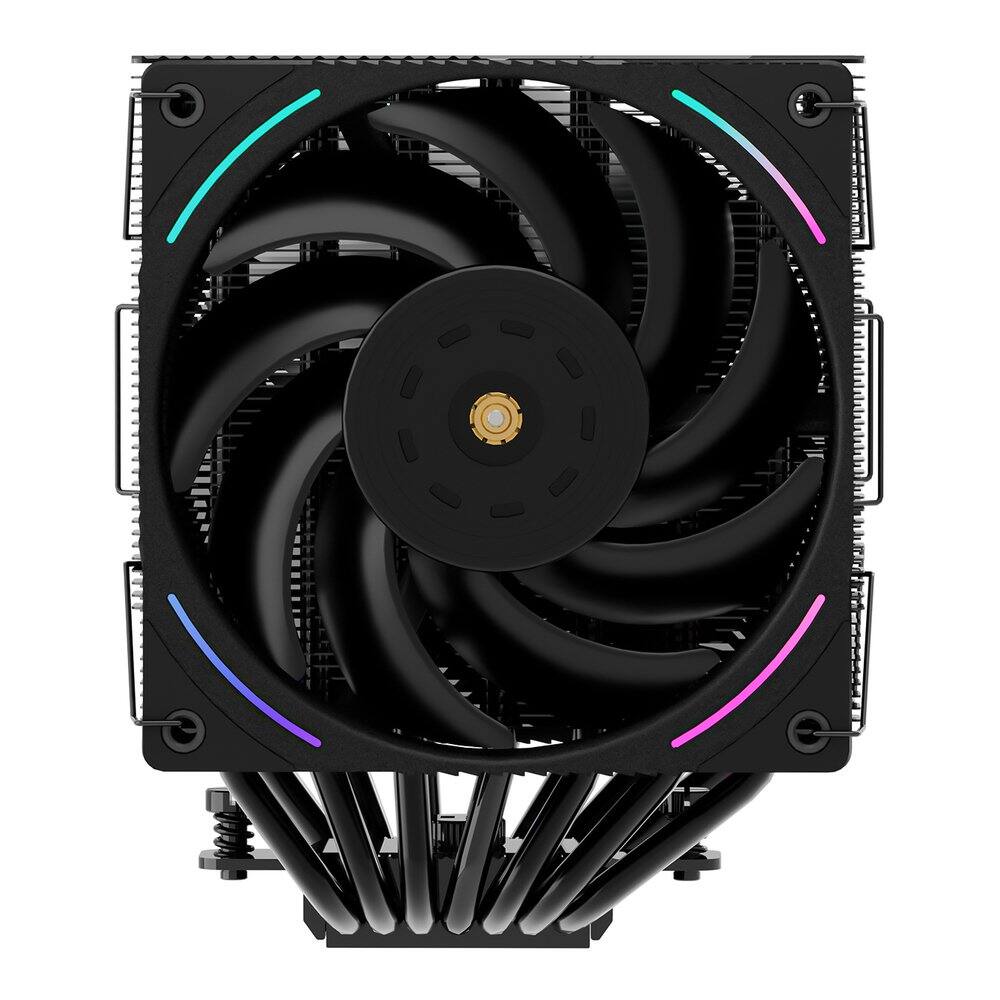

- Performance Fan Matching: The cpu cooler is equipped with a fan that not only has a high rotation speed, but also has a very high face value. 2150RPM high rotation speed can quickly drive the heat, the red clay block in the middle of the fan serves as a balancing act, and the fan is surrounded by four rounded ARGB lines, which makes the high-value, high-rotation speed fan a perfect combination of the main body of the pc cooler
- Compatibility: CPU cooling slot support: Intel: LGA1851/1700/1150/1151/1155/1156/1200/2011/2066; AMD: AM4/AM5; for different CPU slot platforms, provide the corresponding mounting plate or fasteners, can be combined with the installation instructions or follow the tutorial to get on the machine
- Overall refinement: The cpu radiator adopts anodic black frosted process, the twin towers of the radiator body present a frosted texture, with 7 fully plated and blackened heatpipes, as well as a precision micro-engraved reflow soldered copper base, which greatly enhances the overall performance of the radiator; avoiding the treatment of the graphics card allows for greater compatibility of the cpu cooler
- AGHP technique: 7x6mm heatpipe with AGHP upgraded 4th generation technology, the Inverse gravity effect caused by vertical / horizontal orientation. Up to 20000 hours of industrial service life, S-FDB bearings ensure long service life of air-cooler radiators.UL class a safety insulation low-grade, industrial strength PBT + PC material to create high-quality products for you
- Performance Fan Matching: The cpu cooler is equipped with a fan that not only has a high rotation speed, but also has a very high face value. 2150RPM high rotation speed can quickly drive the heat, the red clay block in the middle of the fan serves as a balancing act, and the fan is surrounded by four rounded ARGB lines, which makes the high-value, high-rotation speed fan a perfect combination of the main body of the pc cooler
- Compatibility: CPU cooling slot support: Intel: LGA1851/1700/1150/1151/1155/1156/1200/2011/2066; AMD: AM4/AM5; for different CPU slot platforms, provide the corresponding mounting plate or fasteners, can be combined with the installation instructions or follow the tutorial to get on the machine
Compare similar products
Thermalright Phantom Spirit 120 EVO CPU Air Cooler, 7 Heat Pipes CPU Cooler, Dual 120mm TL-K12 PWM Fans, AGHP 4.0 Technology, for AM4 /AM5/Intel 1851/1700/1150/1151/1200, PC Cooling; PS120 EVO; CPU Cooler dimensions: 125(L)x135(W)x157(H)mm (4.92x5.3x 6.18 inch); Heat sink material: aluminum, the main body is made of anodized black frosted top + finely carved pure copper base technology, avoiding the memory design, the main body is fully aluminum fins, bringing maximum heat dissipation area. combined with the high thermal conductivity of the thermal paste, which can perfectly perform the cooler's most powerful cooling effect
Cooler Master is relaunching its most acclaimed air cooler with the new Hyper 212 Halo Black. Featuring the all-new Halo fan, the new 212 combines its renowned performance with overhauled aesthetics. The Hyper 212 Halo Black is releasing in an all-black design with a matching aluminum top cover. The black coated heat pipes maintain unhindered heat conductivity with a stunning black finish. The all-new Halo fan delivers stunning lighting of the dual loop ARGB and improved performance from its predecessor. The cooler height is designed at 154mm, allowing for a wide range of compatibility in most chassis without compromising cooling capabilities. The installation brackets give you the versatility for the latest platforms on market. We have taken what’s best and made it even better – the Hyper 212 Halo Black.
Stop your CPU from overheating with this Cooler Master Hyper 212 Black Edition fan. The Silent Driver IC technology keeps noise and power consumption to a minimum, and its four heat pipes effectively dissipate hot air. This Cooler Master Hyper 212 Black Edition fan includes a push-pull configuration to exhaust heat faster.
The CORSAIR NAUTILUS RS ARGB Liquid CPU Cooler showcases CORSAIR's excellence in engineering and design, offering efficient, low-noise cooling with straightforward connectivity – no controller required, just plug directly into your motherboard. Its slightly convex cold plate with pre-applied thermal paste ensures superior thermal transfer, while RS120 ARGB fans maintain low temperatures for maximum CPU performance. Eight RGB LEDs on the pump head and each fan light up your system with easy motherboard control. Simplify your build with easy, daisy-chained connections and precise cooling control via a 4-pin PWM fan header. For more advanced control, an optional iCUE controller (sold separately) can be used. Supporting a wide range of Intel and AMD CPU sockets, including LGA 1851, the NAUTILUS RS offers broad system compatibility.
| Pros for Thermalright - Phantom Spirit 120 EVO CPU Air Cooler, 7 Heat Pipes CPU Cooler, Dual 120mm TL-K12 PWM Fans, for AM4 /AM5 - Black | |||
|---|---|---|---|
| There were no pros for this product— | Cooling Performance, Ease of use, Noise Level, Installation, RGB Lighting | Noise Level, Ease of use, Cooling, Overall Performance, Price | Cooling Performance, Noise Level, Installation, Mounting Ease, Appearance |
| Cons for Thermalright - Phantom Spirit 120 EVO CPU Air Cooler, 7 Heat Pipes CPU Cooler, Dual 120mm TL-K12 PWM Fans, for AM4 /AM5 - Black | |||
| There were no cons for this product— | Size, Compatibility | Size, Installation, Instructions | Compatibility |
