Series
AX1800FREE shipping to
Scheduled delivery options available in checkout- TP-Link - Deco X25 AX1800 Dual-Band Whole Home Mesh Wi-Fi 6 System (3-Pack) - White$179.99
Related Item
Highlights
- Key Specs
- Wi-Fi Mesh System: false (A single wireless network consisting of a main router (connected directly to a modem) that connects to a series of satellite modules or nodes placed around the home. Routers with this capability promote stronger, faster wireless signals as well as increase Wi-Fi coverage by reducing interference and eliminating dead zones.)
- Number Of LAN Ports: 4 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- Wi-Fi Speed: 1.8 gigabits per second (The maximum rate at which data is transferred between a network device and wireless router.)
- Works With: Amazon Alexa (Compatible with or able to be connected to other smart devices or applications.)
- General
- Product Name: Archer AX20 AX1800 Dual-Band Wi-Fi 6 Router
- Brand: TP-Link
- Model Number: Archer AX20
- Color: Black
- Security
- Data Encryption: true
- Encryption Type: WPA, WPA2, WPA3 (The security protocols or certification programs that protect the Wi-Fi network.)
- Firewall Type: NAT (The method the firewall uses to filter and process data to increase network security, primarily by blocking malicious traffic requests while allowing legitimate traffic through.)
- Parental Controls: true (Allows user to block unwanted content, signals, channels, networks, etc. from being received or accessed.)
- Network
- Quality Of Service (QoS) Traffic Prioritization: true (Allows a user to manage a device's network performance by configuring the types of traffic that receive top priority for transmission. High priority functions and applications receive maximum network performance, while low priority traffic receives minimum performance.)
- Band Technology: Dual (Refers to the number of frequency bands used to wirelessly transmit an internet signal. For example, dual-band devices may use one 2.4 and one 5 GHz band, while tri-band devices may use one 2.4 and two 5 GHz bands. Multiple bands also provide more flexibility for designating connected devices to specific band use.)
- Ethernet Standard: 10/100/1000 (Each standard is a variation of the IEEE 802.3 set of computer networking technologies known as Ethernet. New versions evolved to include higher bandwidth, different physical media, and other new and improved features. Standards are often denoted by speeds (in Megabits per second). For example, a 10/100/1000 Ethernet port transmits at 10 Mbps, 100 Mbps, and 1000 Mbps (1 Gbps).)
- Number of Antennas: 4
- Frequency Band: 2.4 GHz, 5.0 GHz (Bands may be grouped into categories such as low- and high-band VHF (Very High Frequency), low- and high-band UHF (Ultra High Frequency), or certain frequency channels (measured in MHz or GHz). Generally, higher frequencies transmit information faster but have shorter range than lower frequencies.)
- Wireless Networking Standard: Wi-Fi 6 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: AX, AC, N (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Input/Output Technology: MU-MIMO (Multi-user Multiple-Input Multiple Output) (Generally, multiple-input multiple-output communication technologies allow for more signals to be transmitted at a single time, which can improve the device's overall performance.)
- Number of 2.4Ghz Streams: 1 (A router's streams are like lanes on a highway. The more streams a router has, the less traffic congestion. Because the 2.4 GHz band is used to transmit wireless signals to a wide variety of devices, there is often high amounts of traffic on that stream. But with multiple streams, each can be designated to a specific device for optimal performance. For example, if one 2.4 GHz stream is assigned to one device, such as a desktop computer, it leaves the remaining streams open for guest users, devices that use more data, or devices with specific band compatibility.)
- Number of 5.0Ghz Streams: 1 (A router's streams are like lanes on a highway. The more streams a router has, the less traffic congestion. The 5.0 GHz band provides high speed, short-range data transmission and typically has less traffic than the 2.4 GHz band. With multiple streams, each can be designated to a specific device for optimal performance. For example, if one 5.0 GHz stream is assigned to one device, such as a streaming media player, it leaves the remaining streams open for guest users, devices that need less data, or devices with specific band compatibility.)
- Wi-Fi Mesh System: false (A single wireless network consisting of a main router (connected directly to a modem) that connects to a series of satellite modules or nodes placed around the home. Routers with this capability promote stronger, faster wireless signals as well as increase Wi-Fi coverage by reducing interference and eliminating dead zones.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Features
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- App Name: Tether
- Beamforming: true (A signal processing technique that enables a router to focus a Wi-Fi signal in a specific direction. The router determines where a connected device in the network is located and projects a stronger signal in that specific direction. This can result in faster and higher quality data transfer as well as reduced signal interference.)
- Integrated Modem: false
- Wireless: true
- Ports
- Number Of WAN Ports: 1 (Number of devices able to be connected to the Wide Area Network (WAN). This type of port may simply be labeled "Internet," and it allows the device to share its internet connection with all devices connected to it via LAN ports.)
- Port Type(s): RJ-45 (USB 2.0 connects external drives, gaming controllers, smartphones, MP3 players and other accessories.USB 3.0 transfers data faster than USB 2.0, but only when used with USB 3.0 devices.USB Type-C provides fast speeds and versatile power, featuring connectors with identical ends that plug in upside down or right side up. Adapters allow for video as well as backward compatibility.Thunderbolt provides ultra-high bandwidth for fast data transfer between devices featuring a Thunderbolt or MiniDisplayPort connection.HDMI allows you to connect a projector or display HD media on your HDTV or monitor.Media card slots allow you to transfer photos from your digital camera or camcorder.)
- Number Of LAN Ports: 4 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- Speed
- Wi-Fi Speed: 1.8 gigabits per second (The maximum rate at which data is transferred between a network device and wireless router.)
- Compatibility
- System Requirements: Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux (The software that a product must have for it to be able to integrate with another product.)
- Bluetooth Enabled: false (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Works With: Amazon Alexa (Compatible with or able to be connected to other smart devices or applications.)
- Dimensions
- Product Height: 5.3 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 10.2 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 1.5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 0.97 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 2 Year Warranty
- Warranty - Labor: 2 Year Warranty
- Other
- UPC: 840030700316
Wi-Fi 6 technology has redefined home WiFi. Experience faster speeds, higher capacity, and reduced congestion overall compared to the previous AC Wi-Fi 5 standard. The Archer AX20 dual-band router reaches speeds of up to 1.8 Gbps, for a buffer-free 4K/HD streaming and gaming experience. With more and more devices in your home, your current router will likely begin to slow down. Archer AX20 uses Beamforming technology and 4 antennas to adapt and focus WiFi signals to your devices far away for stronger, more reliable coverage. Using Target Wake Time (TWT), your router talks to your devices and negotiates when and how frequently they should transfer data to increase device sleep time, extending battery life. The Archer AX20 works with all previous WiFi standards and all WiFi-enabled devices. Setup in minutes with Tether app.
- Dual-Band Wi-Fi 6: Wi-Fi 6 technology achieves faster speeds, greater capacity and reduced network congestion compared to the previous generation.
- Next-Gen 1.8 Gbps Speeds: Enjoy smoother and more stable streaming, gaming, downloading and more with WiFi speeds up to 1.8 Gbps (1200 Mbps on 5 GHz band and 574 Mbps on 2.4 GHz band).
- Extensive Coverage: Achieve the strongest, most reliable WiFi coverage with Archer AX20 as it focuses signal strength to your devices far away using Beamforming technology, 4 antennas and an advanced front-end module (FEM) chipset
- ISP Compatibility: Compatible with all Internet Service Providers (ISP)

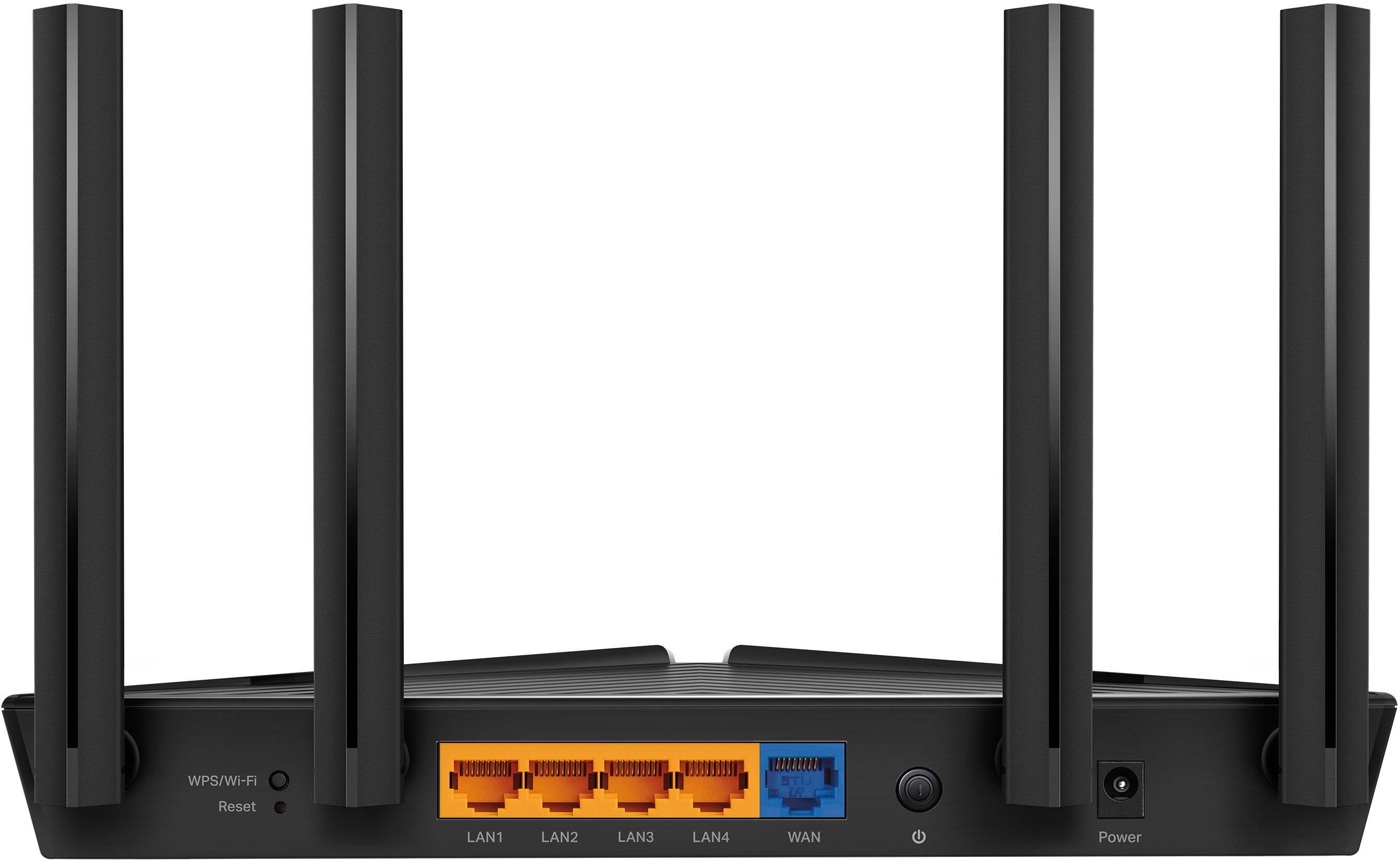

- Number of ports: 1 x Gigabit WAN; 4 x Gigabit LAN
- Security: VPN Server (OpenVPN, PPTP); WPA3; SPI Firewall; IP Address Filter/MAC Address Filter/Domain Filter; IP and MAC Address Binding
- Easy Setup: Set up your router in minutes with the powerful TP-Link Tether App or setup using a web browser.
- System Supports: PC System Requirements: Microsoft Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10; MAC System Requirements: MAC OS; Others: NetWare, UNIX or Linux
Whats Included
- 1 x Archer AX20 AX1800 Wi-Fi 6 Router
- 1 x Power supply unit
- 1 x Ethernet Cable
- 1 x Quick Installation Guide
Product Manuals
Q: How do I set up this router?
A: You can set up the router using the TP-Link Tether app or through a web browser.
Q: Does this router support VPN?
A: Yes, the router supports VPN with OpenVPN and PPTP.
Q: What is the processor speed of this router?
A: This router has a 1.5 GHz quad-core CPU.
Q: What is the maximum Wi-Fi speed this router can achieve?
A: The Archer AX20 router can reach speeds up to 1.8 Gbps.
Q: Will this router work well with spectrum streaming l
A: Hi! Yes, as long as the router is connected to your existing Internet source (e.g., modem) via Ethernet cable.
A: No, this is not a DSL modem and does not have a DSL port (RJ11 phone jack). However, it can be used in conjunction with an existing modem to provide your home with WiFi 6 connectivity.
A: Hi! 1) Yes. 2) No; however you can conveniently apply firmware updates via the web GUI or the Tether app. 3) This will vary depending on whether or not an update is warranted (e.g. to address performance, bugs, or security as the need arises). 4) WPA3 Personal is the recommended encryption type for home networks.
A: 150' 5G and 250' 2G is a realistic range if you don't have metal siding, brick, or thick walls in the way. If you set the 5G and 2G with different SSIDs via the website portal you can pick which frequency works best at your distance on your mobile device.
Compare similar products
Wi-Fi 6 technology has redefined home WiFi. Experience faster speeds, higher capacity, and reduced congestion overall compared to the previous AC Wi-Fi 5 standard. The Archer AX20 dual-band router reaches speeds of up to 1.8 Gbps, for a buffer-free 4K/HD streaming and gaming experience. With more and more devices in your home, your current router will likely begin to slow down. Archer AX20 uses Beamforming technology and 4 antennas to adapt and focus WiFi signals to your devices far away for stronger, more reliable coverage. Using Target Wake Time (TWT), your router talks to your devices and negotiates when and how frequently they should transfer data to increase device sleep time, extending battery life. The Archer AX20 works with all previous WiFi standards and all WiFi-enabled devices. Setup in minutes with Tether app.
RTAX1800S is a 2x2 dual band Wi-Fi router that provides 80MHz bandwidth and 1024 QAM for dramatically faster wireless connections. With a total networking speed of about 1800Mbps - 574Mbps on the 2.4GHz band and 1201Mbps on the 5GHz band - RTAX1800S is 1.5X faster than 802.11ac 2x2 dual band routers.
Take your home Wi-Fi to the next level with the Archer BE6500. This powerful router boasts blazing-fast speeds of up to 6500 Mbps, ensuring everyone can enjoy smooth 4K/8K streaming, seamless online gaming, and crystal-clear video conferencing, all at the same time. No more waiting for content to load or battling online lag – the Archer BE6500 delivers a truly immersive and uninterrupted experience for the whole family. Equipped with 6 high-performance antennas and Multi-Link Operation (MLO) technology, the Archer BE6500 provides a stable and reliable connection throughout your entire home. Plus, EasyMesh compatibility allows you to easily expand your network coverage as your needs evolve. Two 2.5 Gbps ports and a USB 3.0 port offer maximum flexibility for connecting wired devices and sharing files across your network. Upgrade your home Wi-Fi today and experience the future of connectivity with the Archer BE6500.
Engineered by SpaceX, Starlink delivers high-speed, low-latency internet to users all over the world, including the most rural and remote locations.
| Pros for TP-Link - Archer AX20 AX1800 Dual-Band Wi-Fi 6 Router - Black | |||
|---|---|---|---|
| Overall Performance, Ease of use, Speed, Setup, Range | There were no pros for this product— | Setup, Speed, Overall Performance, Range, Ease of use | There were no pros for this product— |
| Cons for TP-Link - Archer AX20 AX1800 Dual-Band Wi-Fi 6 Router - Black | |||
| Size, Compatibility | There were no cons for this product— | There were no cons for this product— | There were no cons for this product— |
Specs
Reviews
Customers are saying
Customers admire the Archer AX20 AX1800 Dual-Band Wi-Fi 6 Router for its overall performance, ease of use, and fast speeds. Many find the setup process to be simple, and are impressed with its range and signal strength. While the vast majority of customers are happy with the product, a few customers wished it was more compact and reported compatibility issues with certain smart TVs.
Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
Good
Bought two routers, one as primary in the house and a second as a WAP in the garage via a gigabit fiber link. Use the website page to configure, not the phone app! Have separate 2G and 5G SSIDs on both routers so I can pick whatever works best around the property. 5G caps at 300 Mbps (ISP limit) and 150' range, 2G 150 Mbps and 250' range. 2G and 5G both run 100+ Mbps within 100' of either router. 3X 5G devices running speed test simultaneously = 250 Mbps total bandwidth
Posted by Shawn
- Rated 5 out of 5 stars
Reliable Wi-Fi 6 Performance
The TP-Link Archer AX20 AX1800 Dual-Band Wi-Fi 6 router has been a significant upgrade from my previous router (a Netgear). I'm consistently getting the speeds I pay for, and I no longer have to reboot the router frequently. While the router's performance is excellent, I do have a couple of suggestions for improvement: Usage Log: It would be great to see a detailed usage log in the app. This would help me monitor data consumption and identify any potential issues. User-Friendly App: The app could be more user-friendly. A more intuitive interface would make it easier to manage network settings and access important information.
Posted by ChrisA
- Rated 5 out of 5 stars
Excellent router no problems at all.
Excellent router best decesion ever in comparison to spectrums router which is 10$ a month don’t give away your money and save with this great router and works great with xbox which gives it a 10 out of 10.
Posted by AlfredoV
