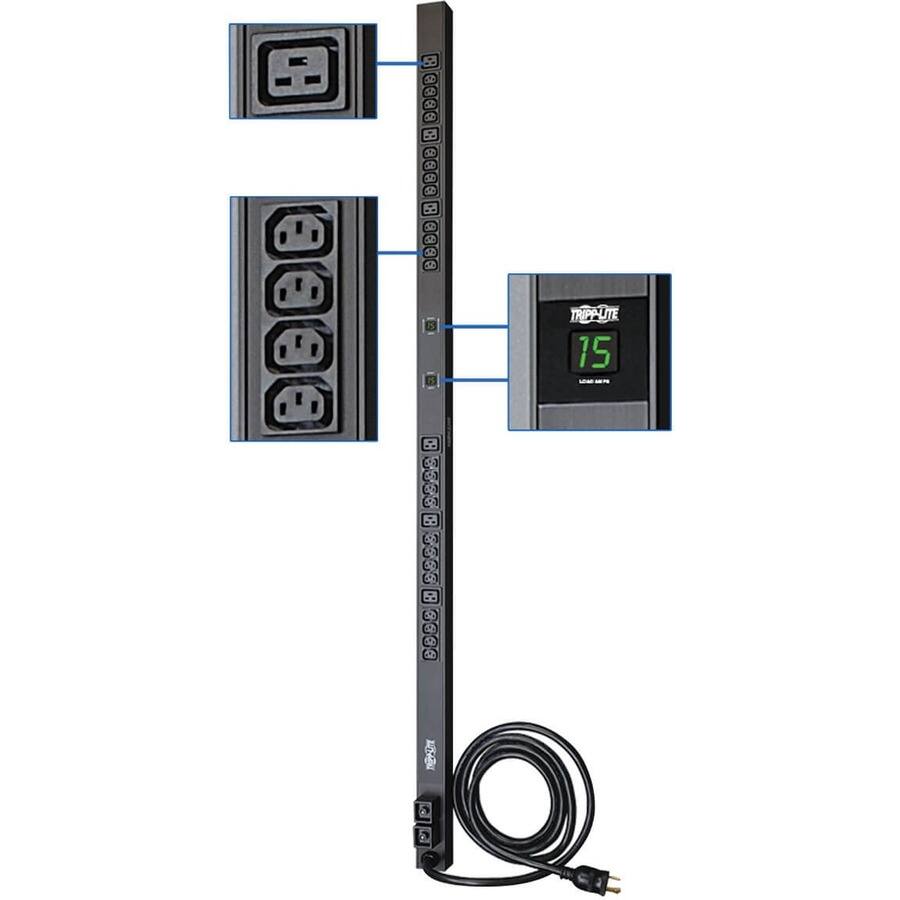

Tripp Lite - by Eaton PDU 5.5kW Single-Phase Local Metered PDU 208/230V Outlets (6-C19 & 24-C13) L6-30P 10 ft. (3.05 m) - Black

Model: None
SKU: 12250808
Sold & shipped by

About this product

PDUMV30HV 63.75 in. vertical 0U metered rack PDU supports 30A maximum capacity at 208/240V. Includes 10 ft attached line cord with L6-30P input plug. 24 C13 and 6 C19 outlets support up to 30 directly connected pieces of networking equipment. Outlets are arranged in two separately metered and breakered 15A load banks (each with 3 C19 and 12 C13 outlets). Set of 2 built-in 2 character displays offer continuous information on PDU power consumption for each of the two built-in loading banks. Each built-in, easy to read, two-character LED display offers continuous PDU current monitoring data in one-amp increments. Tooless mounting enables simple installation in button-mount compatible racks. Included mounting brackets support vertical installation in standard 2 and 4 post racks or other surfaces, such as under-counter or wallmount configurations. Plug retention brackets keep vital equipment plugged in and continuously powered. More from the Manufacturer

Features

  • Tripp Lite by Eaton PDU 5.5kW Single-Phase Local Metered PDU

    PDUMV30HV 63.75 in. vertical 0U metered rack PDU supports 30A maximum capacity at 208/240V. Includes 10 ft attached line cord with L6-30P input plug. 24 C13 and 6 C19 outlets support up to 30 directly connected pieces of networking equipment. Outlets are arranged in two separately metered and breakered 15A load banks (each with 3 C19 and 12 C13 outlets). Set of 2 built-in 2 character displays offer continuous information on PDU power

Specifications

  • Brand Compatibility
    Not applicable
    Model Compatibility
    N/A
Sponsored

Reviews

This product doesn't have any reviews yet.

  • Customer reviews from tripplite.com

    Syndicated rating, 5 out of 5 stars with 3 reviews on tripplite.com.

    See all tripplite.com reviews
