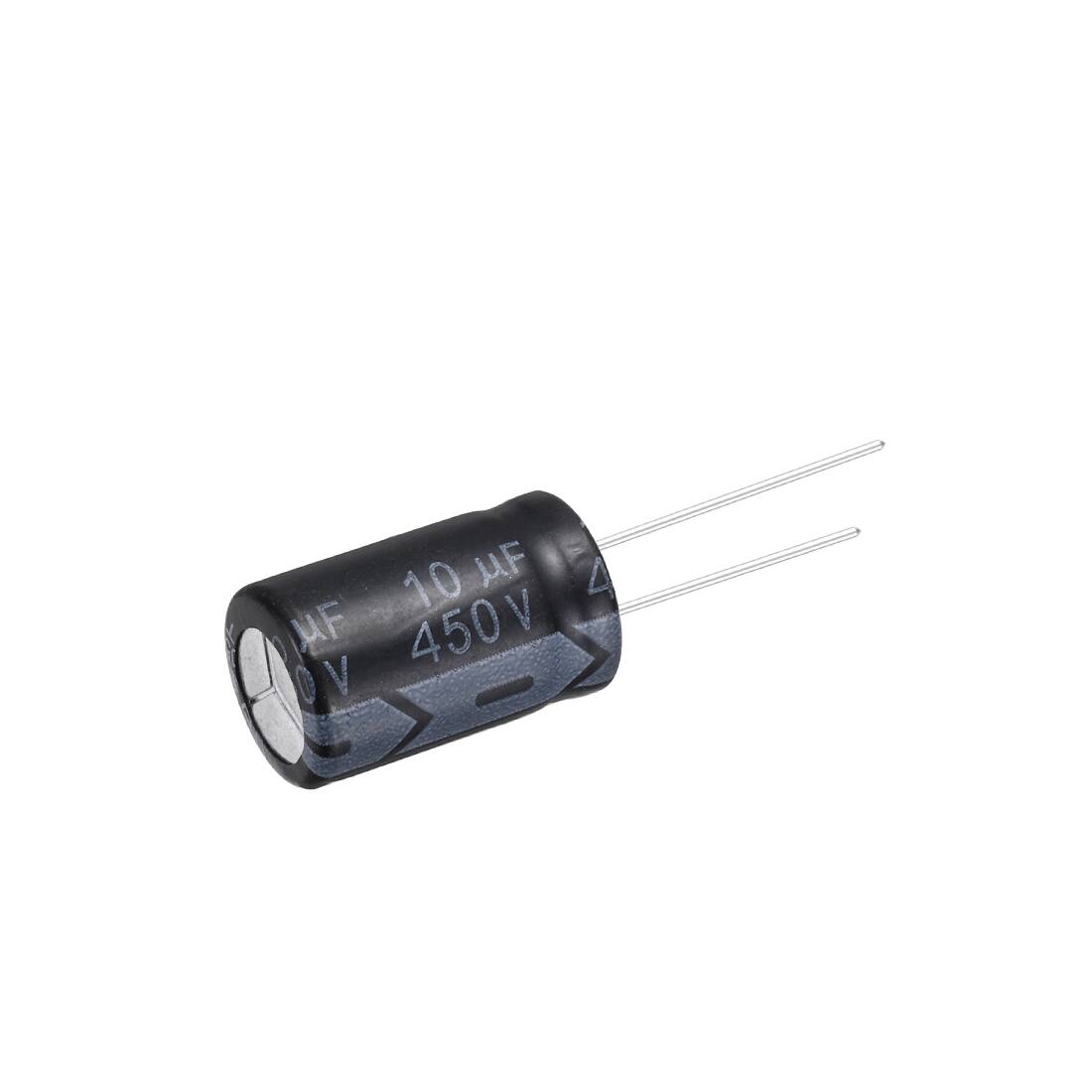

Unique Bargains - 10uF 450V 13x20mm Electrolytic Capacitor, Radial Leads Aluminum, 24pcs, for Power Supplies/Audio/Lighting - Black

10uF 450V 13x20mm Radial 24pcs

Specification: Capacitance: 10uF; Rated Voltage: 450V; Capacitance Tolerance: +/-20%; Operating Temperature Range: -40℃ to +105℃; Body Size: 13 x 20 mm / 0.51 x 0.79 inch(W x H); Package Content: 24 x Electrolytic Capacitors

DO NOT move the capacitor after soldering to PC board. DO NOT pick up the PC board by holding the soldered capacitor. DO NOT insert capacitor on the PC board with a hole space different to specified lead space. Take the position of the safety vent into consideration when designing the PC board layout.

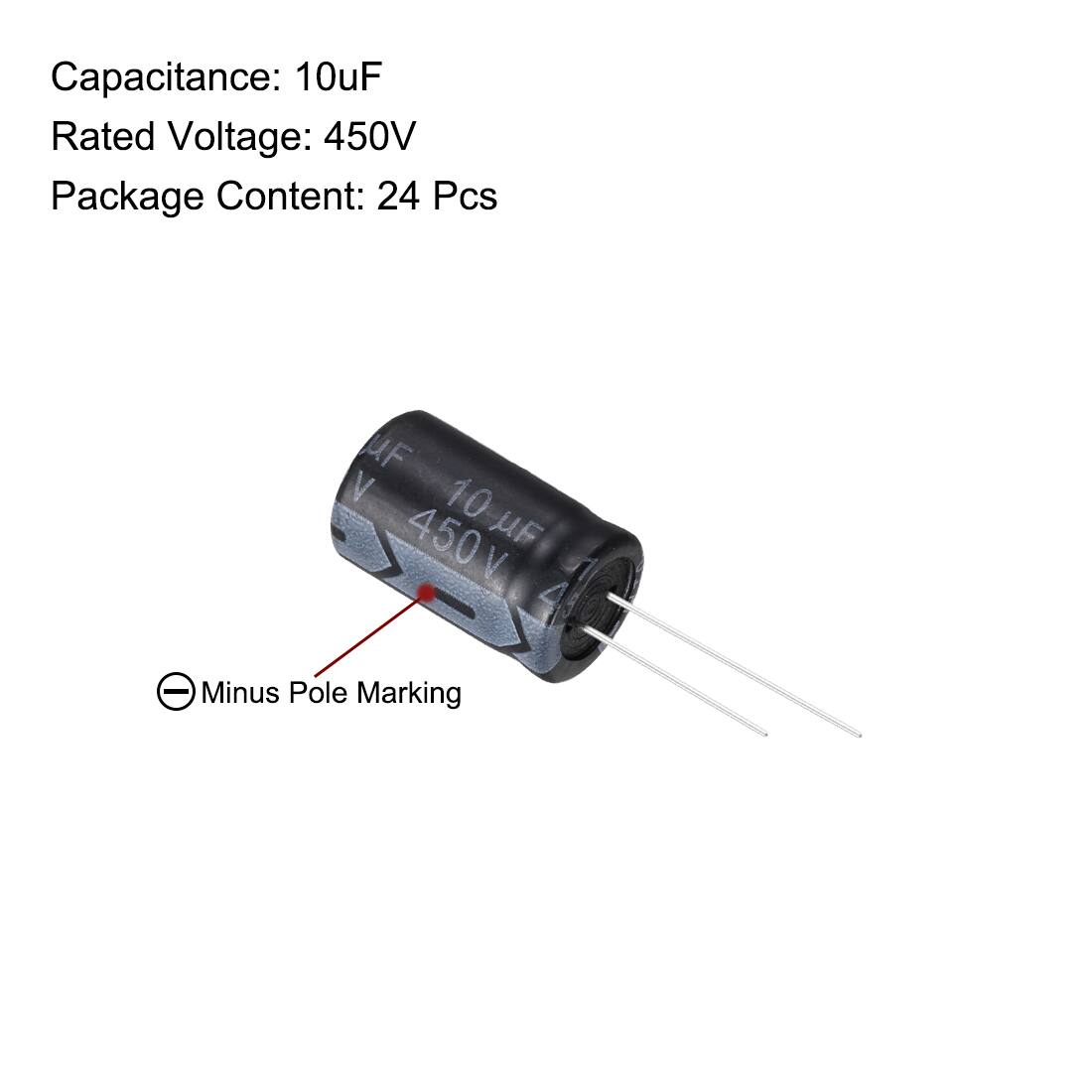

Excessive soldering time or temperature excessive mounting force can negatively affect the capacitor's characteristics. Long lead is positive end and the shorter one is the negative end.

How to select the proper capacitor for your design? Step 1: Determine the capacitance required by the design. Step 2: Define the expected ambient operating temperature. Step 3: Define the DC operating voltage to be applied to the capacitor. Step 4: Bound the space available for the capacitor (if available space is a concern).

Electrolytic capacitors are used in household appliances, power supplies, audio amplifiers, lighting systems and various electronic products, and are also very suitable for DIY circuit boards, TV, VCD, speaker, digital camera, dishwasher, refrigerator, etc. Please confirm the capacitance, voltage and volume before purchasing.
