Unique Bargains - 2pcs KSD301 Thermostat 250°C/482°F 25A Normally Closed N.C Adjust Snap Disc Temp Switch with Terminal Wire Ceramic - Silver

Model: s26060900ux2810
SKU: 12758754

Reviews coming soon

Sold & shipped by

About this product

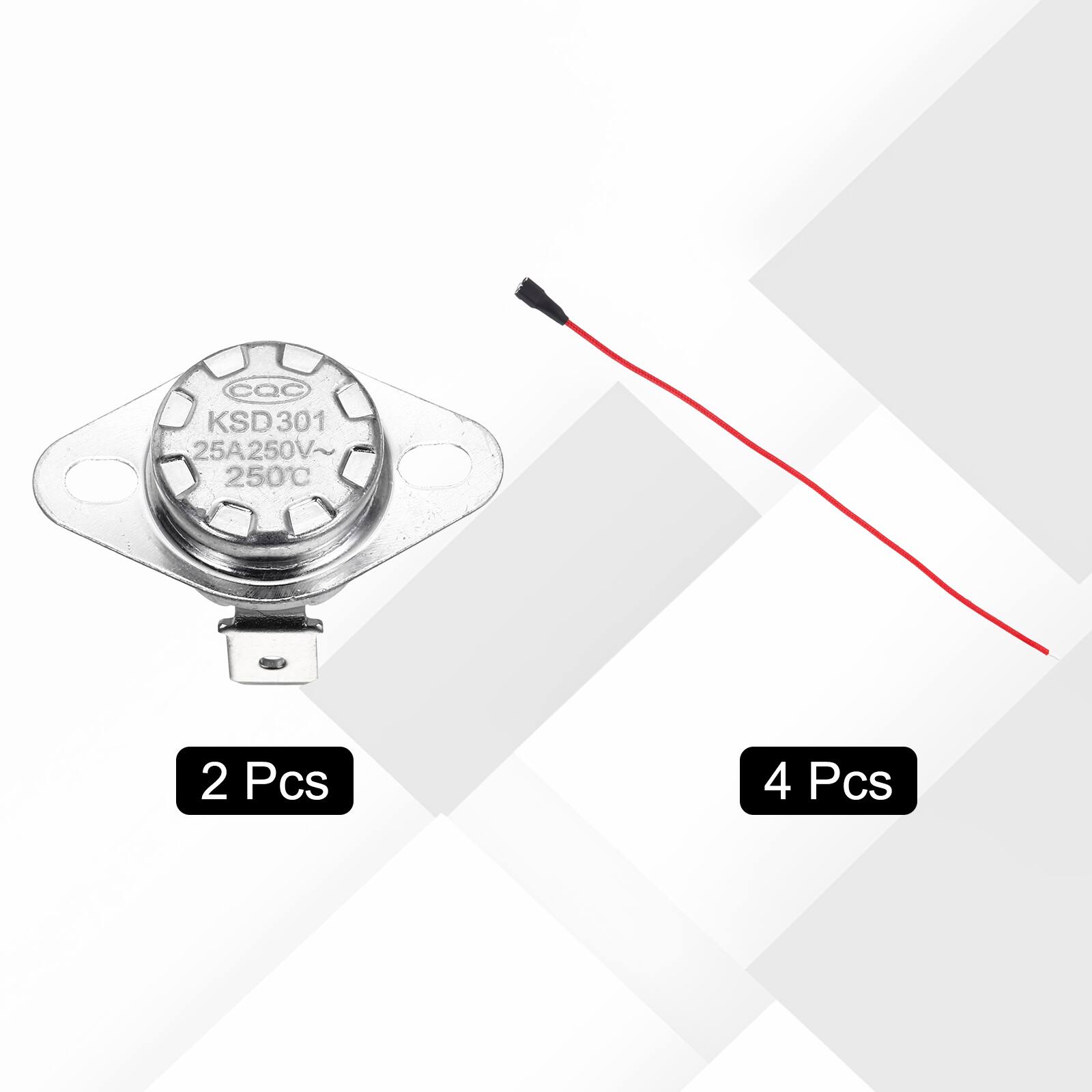

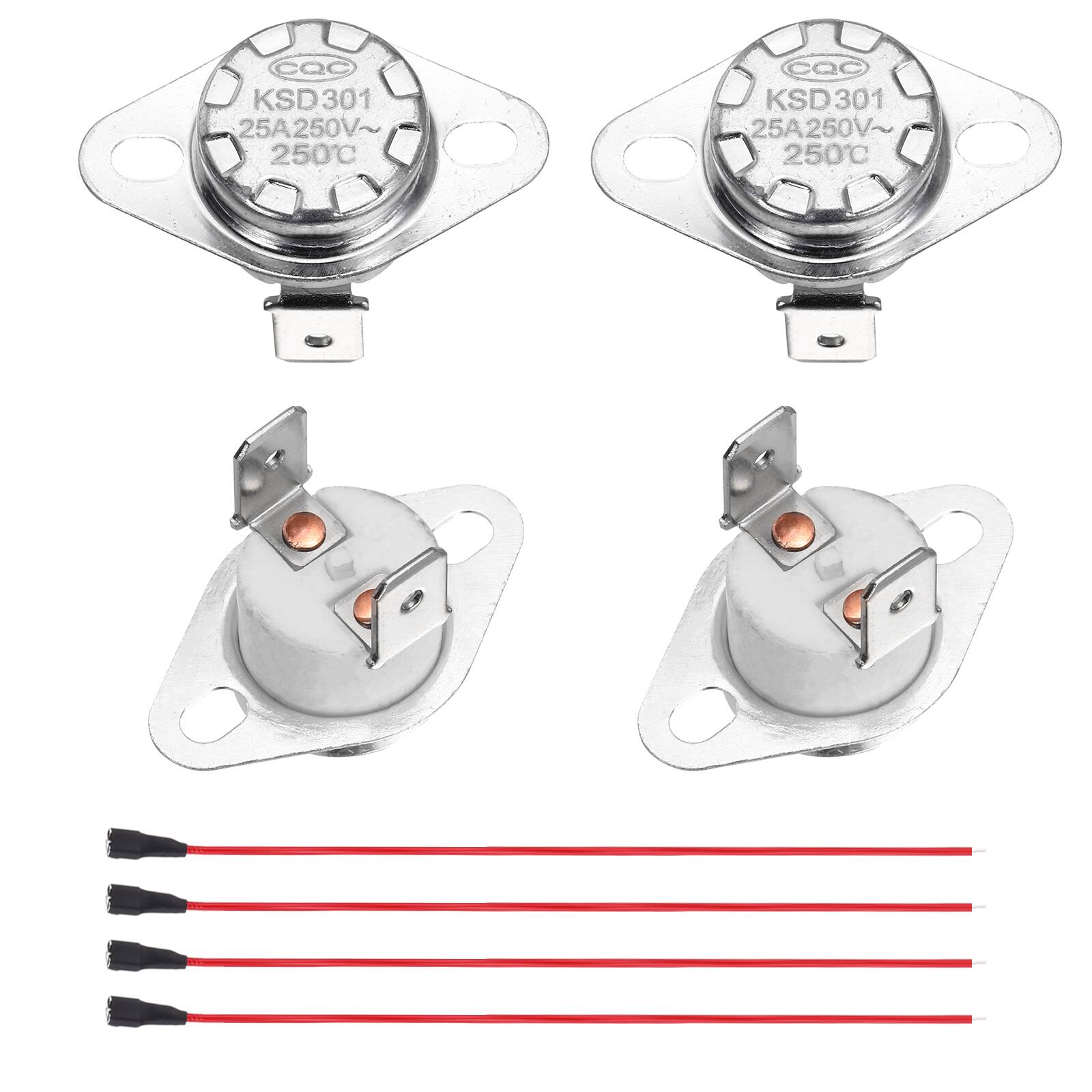

Specification: Product Name : Temperature Control Switch; Model: KSD301; Action Temperature: 250°C/482°F; Action Type: N.C (Normally Closed); Pin Type : Bent Pin; Rated Voltage/Current : 250V/25A; Length x Diameter x Height:32x16x22mm/1.26x0.63x0.87inch; Contact Life: More than 50,000 times (action times); Electrical Strength: AC50Hz, 2000V/min no breakdown and arc phenomenon; Package Content : 2 Pcs x Temperature Control Switch; 4 Pcs x Terminal Wire(length: 26cm/10.24inch)

Number Of Switches

1
Features

  • 2Pcs KSD301 250°C NC 25A Thermostat w/ Wire

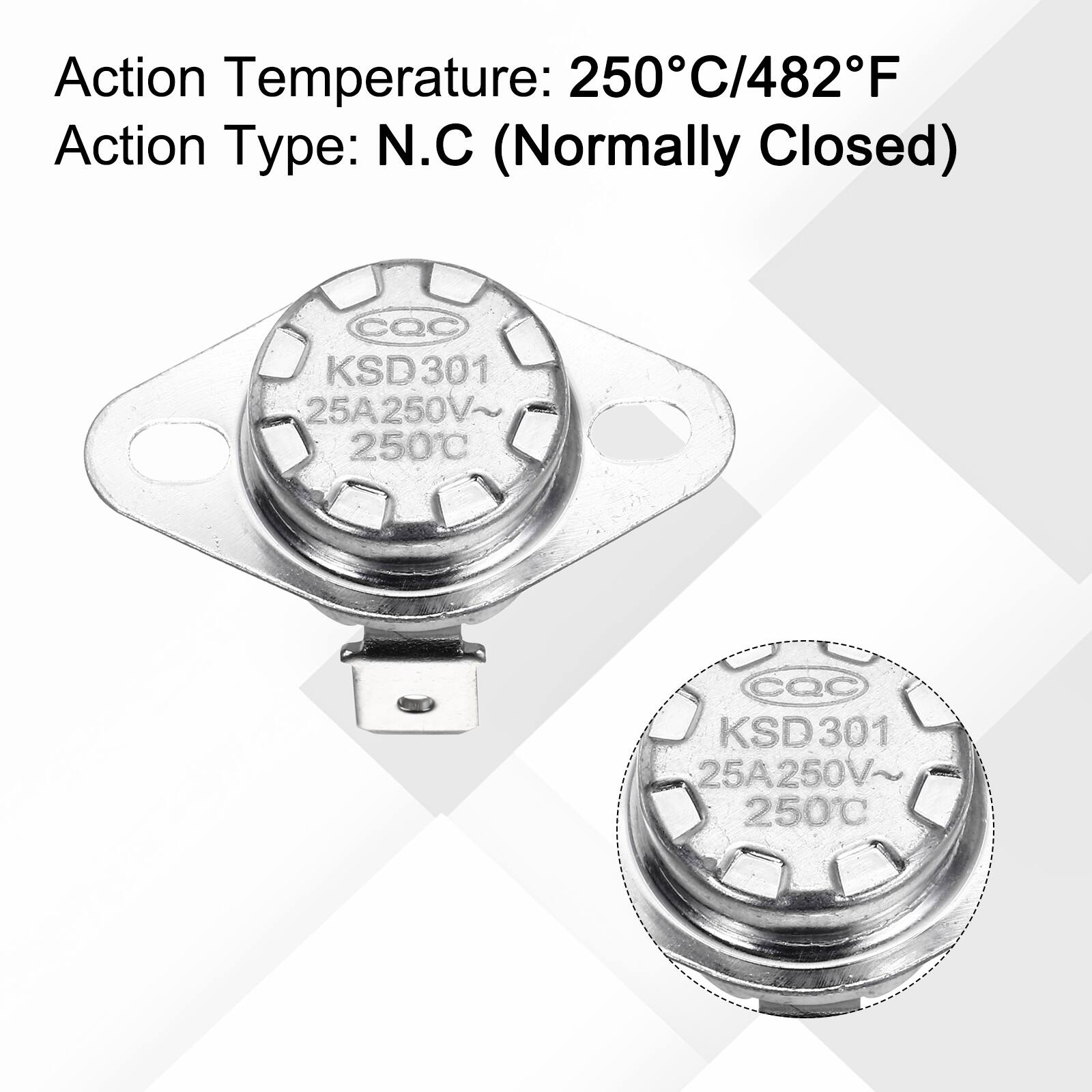

    Type: KSD301;250°C/482°F;Thermal Control Switch 250V/25A N.C (Normally Closed)

  • Normally Closed: The original state of temperature control switch contact is closed, and open when the temperature sensing exceeds the rated temperature.

  • Advantage: Double metal chip, speed dynamic type, sensitive, reliable, stable action temperature, long service life, no arc phenomenon. General purpose, automatic reset, low cost, large capacity, minute current thermostats.

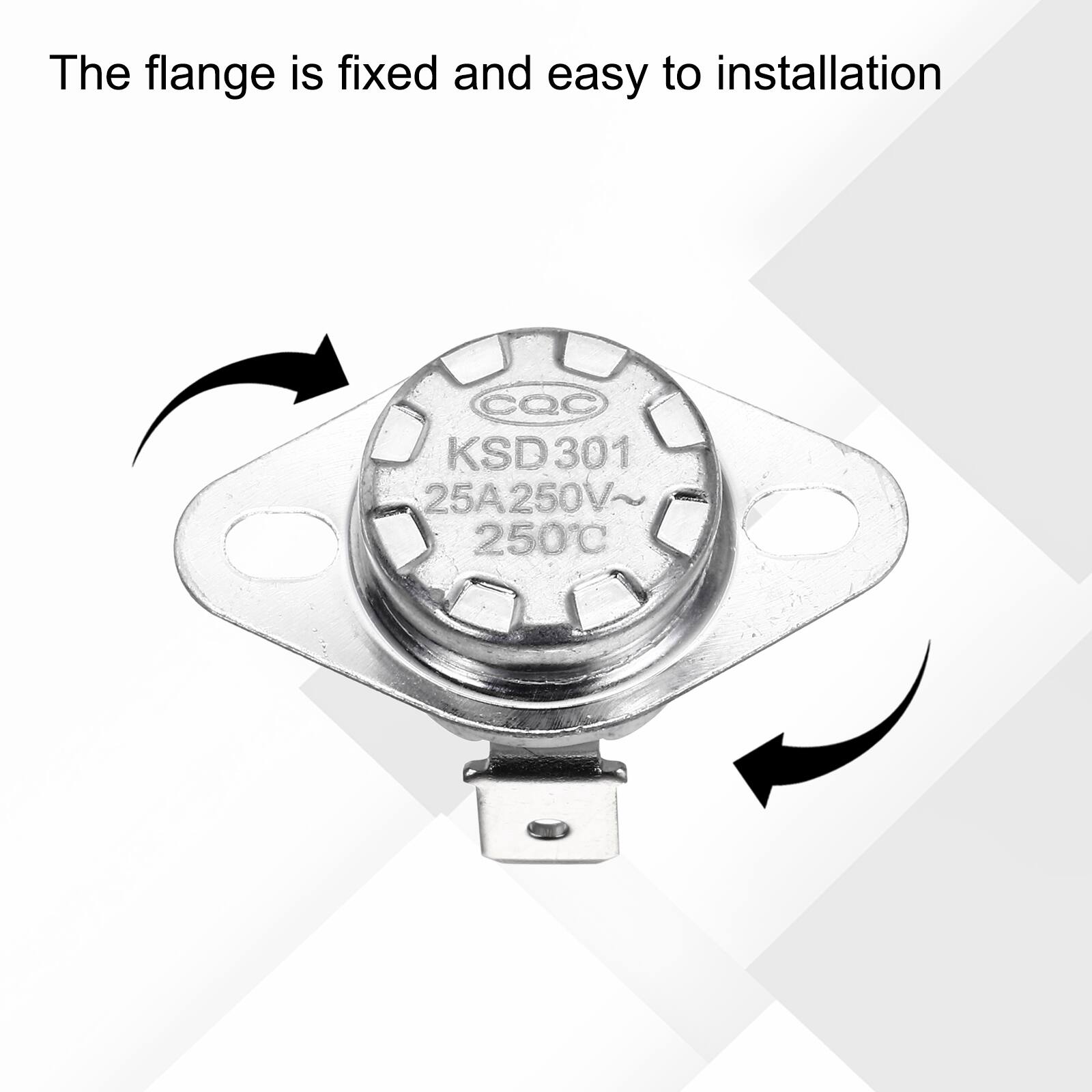

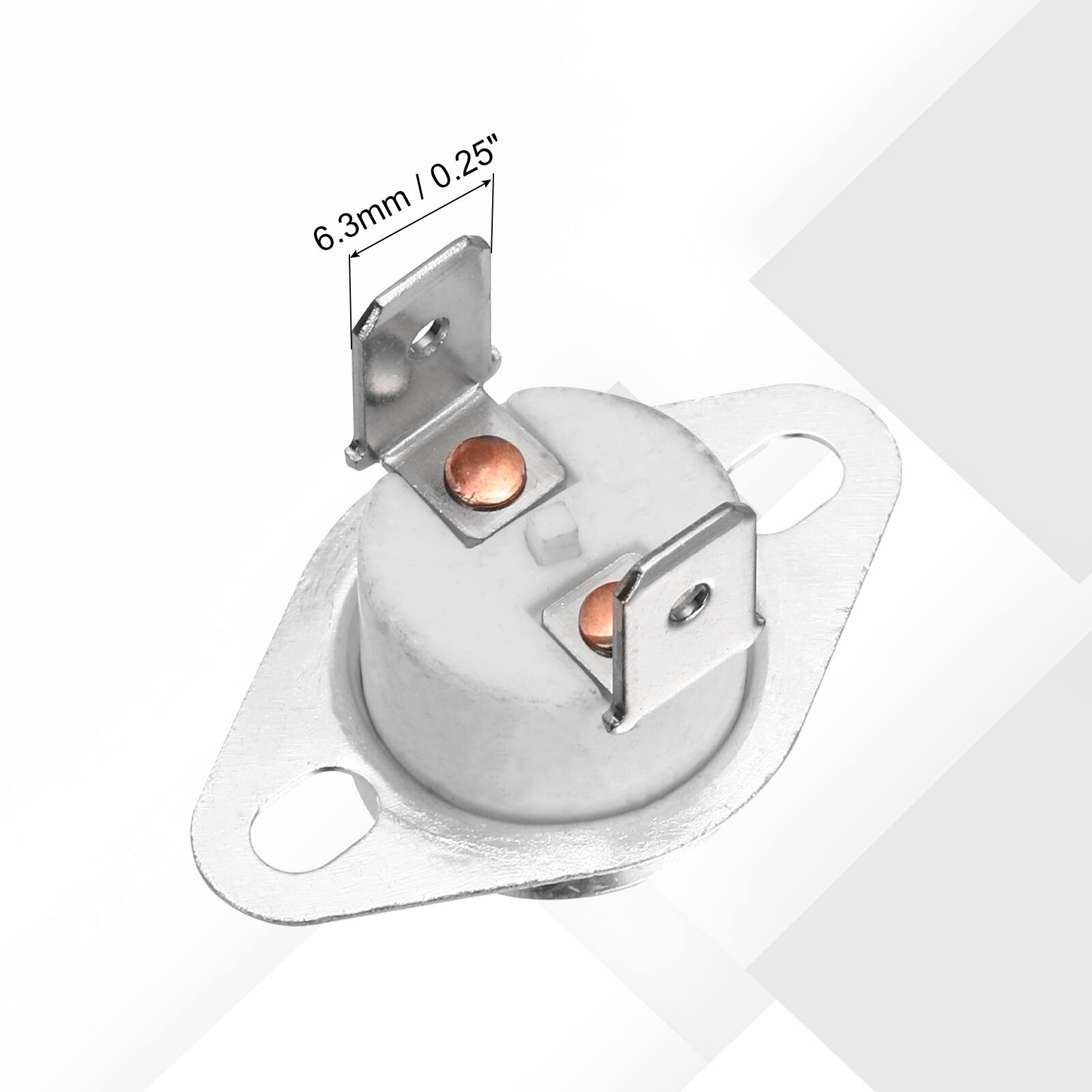

  • Easy to installation : The flange on the switch is fixed and easy to installation.The pin width is 6.3mm

  • Application: Mainly used for microwave,oven,coffee maker,Speed Cook oven,heater,Dryer,gas furnace,Bath Vent/Heater,wall heater,motor electric heating water dispenser, water bottles, coffee shell, electric iron, dryer, air conditioning, water heater, electronic cooker, heater, motor cleaner

Specifications
  • Brand
    Unique Bargains
    Model Number
    s26060900ux2810
    Product Name
    2pcs KSD301 Thermostat 250°C/482°F 25A Normally Closed N.C Adjust Snap Disc Temp Switch with Terminal Wire Ceramic
    Color
    Silver
    Switch Type
    Toggle
    Voltage
    250 volts
