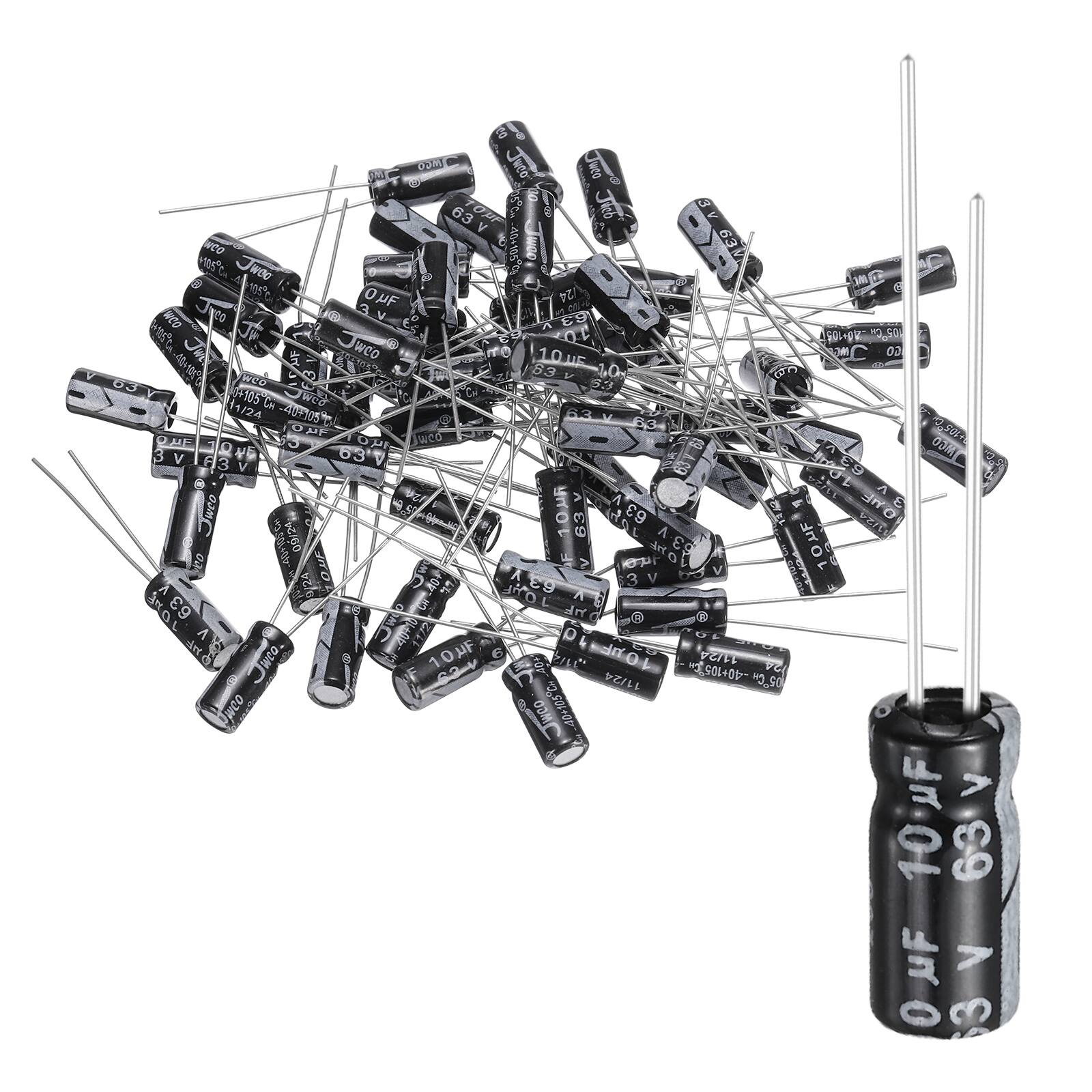

Unique Bargains - 60pcs 10uF 63V 5x11mm 105C Radial Aluminum Electrolytic Capacitor for TVs LCD Monitor VCD - Black

60Pcs 10uF 63V 5x11mm Electrolytic Capacitor

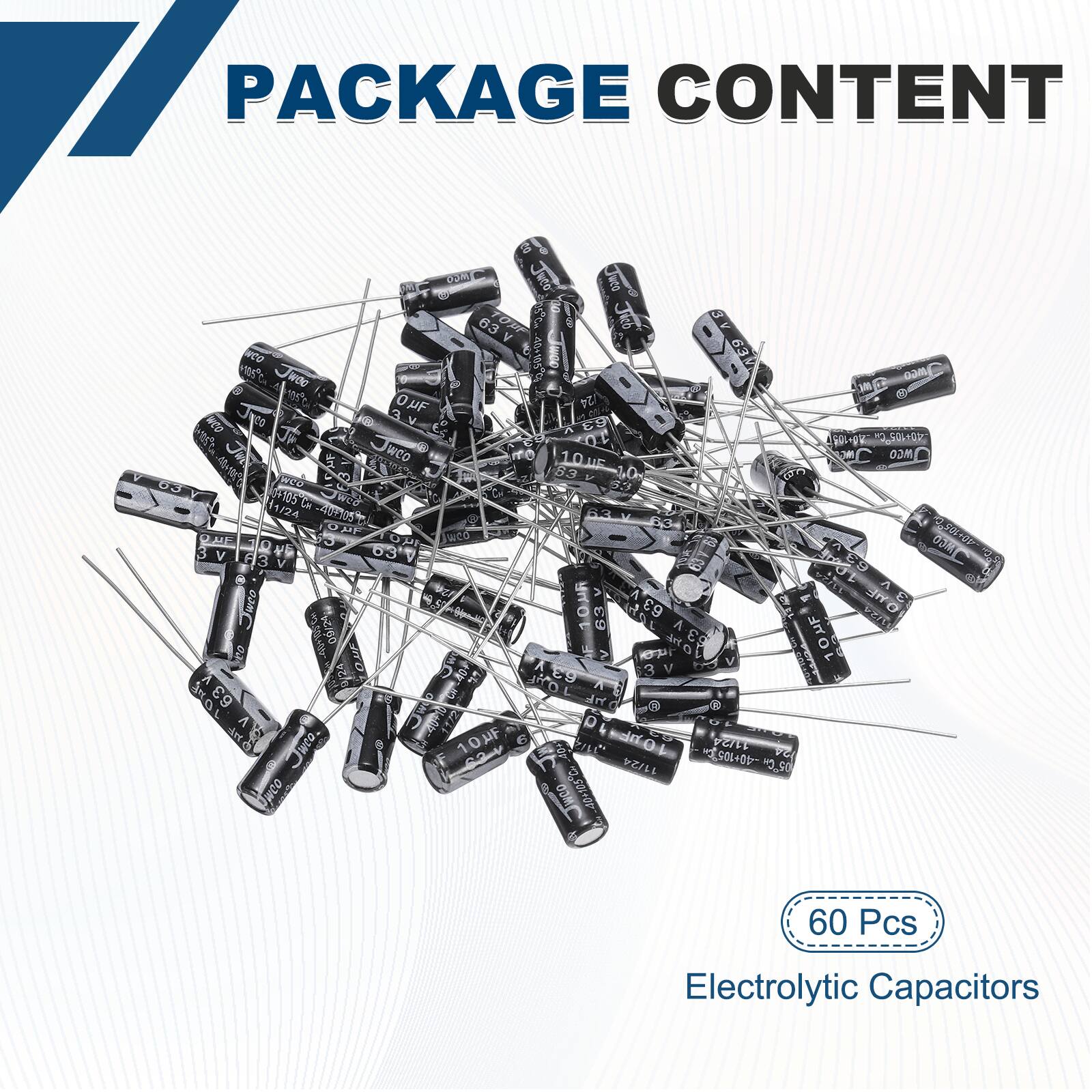

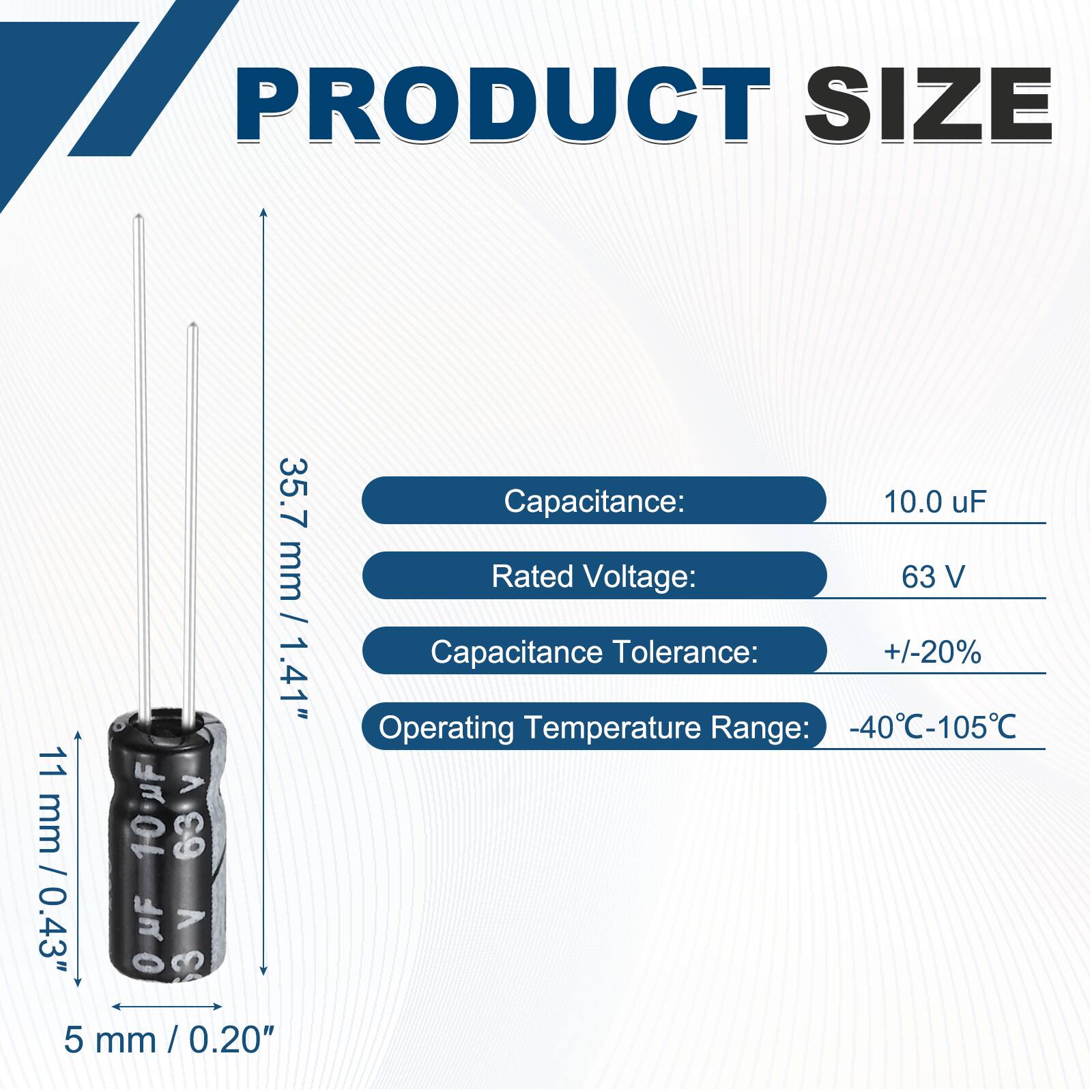

Capacitance: 10uF; Rated Voltage: 63V; Capacitance Tolerance: +/-20%; Operating Temperature Range: -40℃-105℃; Body Size: 5 x 11 mm/0.2 x 0.43 inch(W x H); Total Length: 35.7 mm/1.41 inch; Package Content: 60Pcs x Electrolytic Capacitors

Large capacity, small size: It features ripple current control, small loss dielectric, low leakage current, low internal resistance, and low ripple.

Metal leads provide high conductivity and a smooth surface that is resistant to rust. Aluminum electrolytic capacitors can be used when large capacitance is required and leakage current is not a primary concern; suitable for power supplies and computer motherboards.

Determine the capacitance required by the design; Define the expected ambient operating temperature; Define the DC operating voltage to be applied to the capacitor; Bound the space available for the capacitor (if available space is a concern). Long lead is positive end and the shorter one is the negative end.

Do not move the capacitor after soldering to PC board. Do not pick up the PC board by holding the soldered capacitor. Do not insert a capacitor on the PC board with a hole space different to specified lead space. Take the position of the safety vent into consideration when designing the PC board layout. Excessive soldering time or temperature excessive mounting force can negatively affect the capacitor's characteristics.
