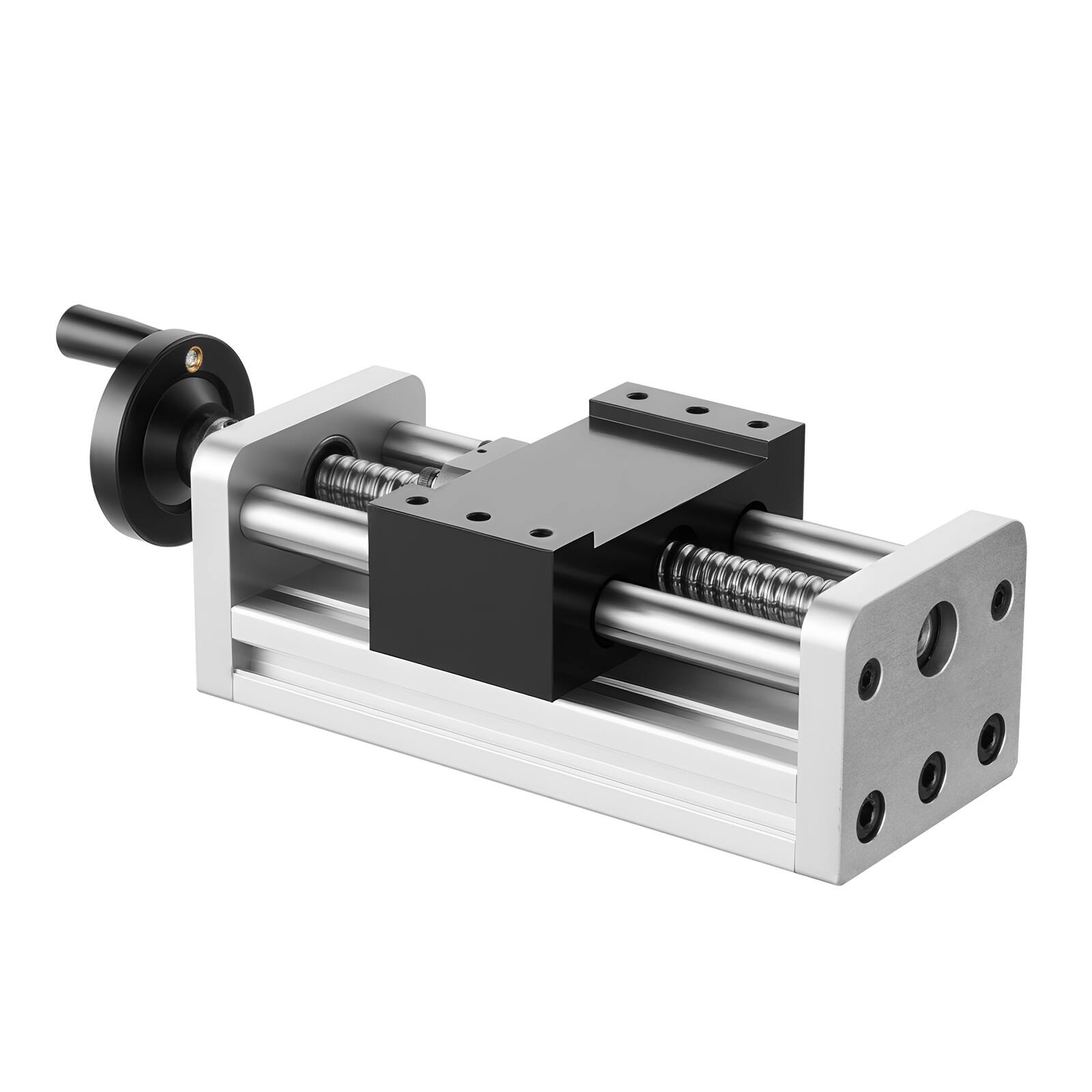

VEVOR - Linear Stage Actuator, 100 mm Effective Stroke, Ball Screw CNC Linear Motion Guide Rail, Double Optical Axis - Silver
Model: CFJY90-1605-C-100-SL
SKU: 12147337
Reviews coming soon
Sold & shipped by
$209.90
Save $24.00
The comparable value is $233.99
or
Availability
FREE shipping to
Sold & shipped by
4.21(551)
Related Item
SponsoredVEVOR - Adjustable Workbench, 2000 lbs Capacity, 61 x 20-inch Heavy Duty Work Bench with 27.1-36 Inches Height Adjustment - Burlywood
Reviews coming soon
$169.90
About This Item
With a 100 mm stroke and a handwheel, this linear actuator is ideal for industrial automation needs. It features a high-precision ball screw, precise mounting holes and spacing, and a low-noise ball-bearing slide block that minimizes vibration. The stepper motor provides jam-free movement.
- Key Specs
- Product Height: 2.95 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Depth: 9.65 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- General
- Brand: VEVOR
- Model Number: CFJY90-1605-C-100-SL
- Product Name: Linear Stage Actuator, 100 mm Effective Stroke, Ball Screw CNC Linear Motion Guide Rail, Double Optical Axis
- Color: Silver
- Warranty
- Warranty - Parts: None
- Warranty - Labor: None
- Other
- Product Width: 4.72 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 6.02 pounds (The out of box weight of the item.)
- Product Type: Linear Stage Actuator
- UPC: 199412097774
With a 100 mm stroke and a handwheel, this linear actuator is ideal for industrial automation needs. It features a high-precision ball screw, precise mounting holes and spacing, and a low-noise ball-bearing slide block that minimizes vibration. The stepper motor provides jam-free movement.

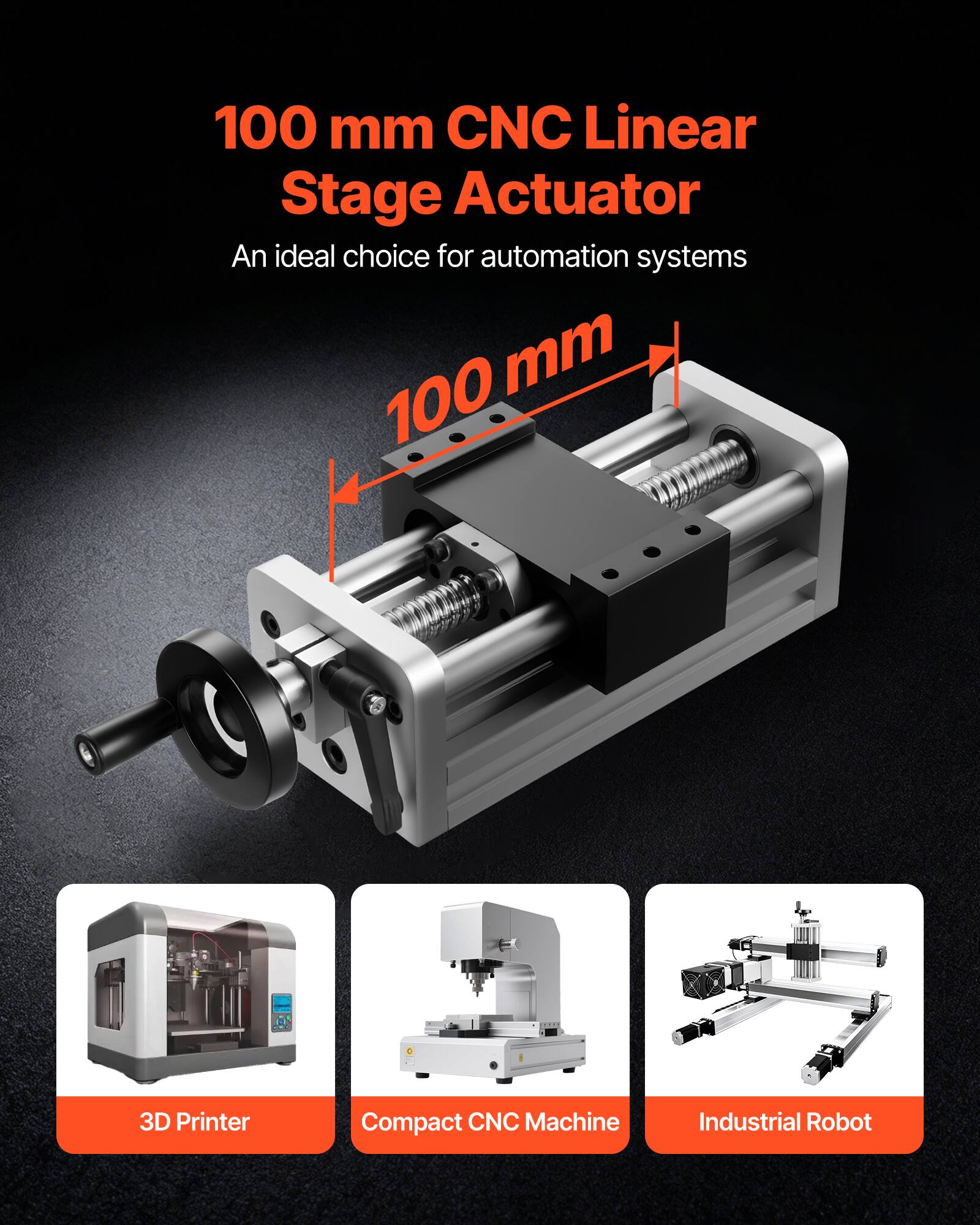

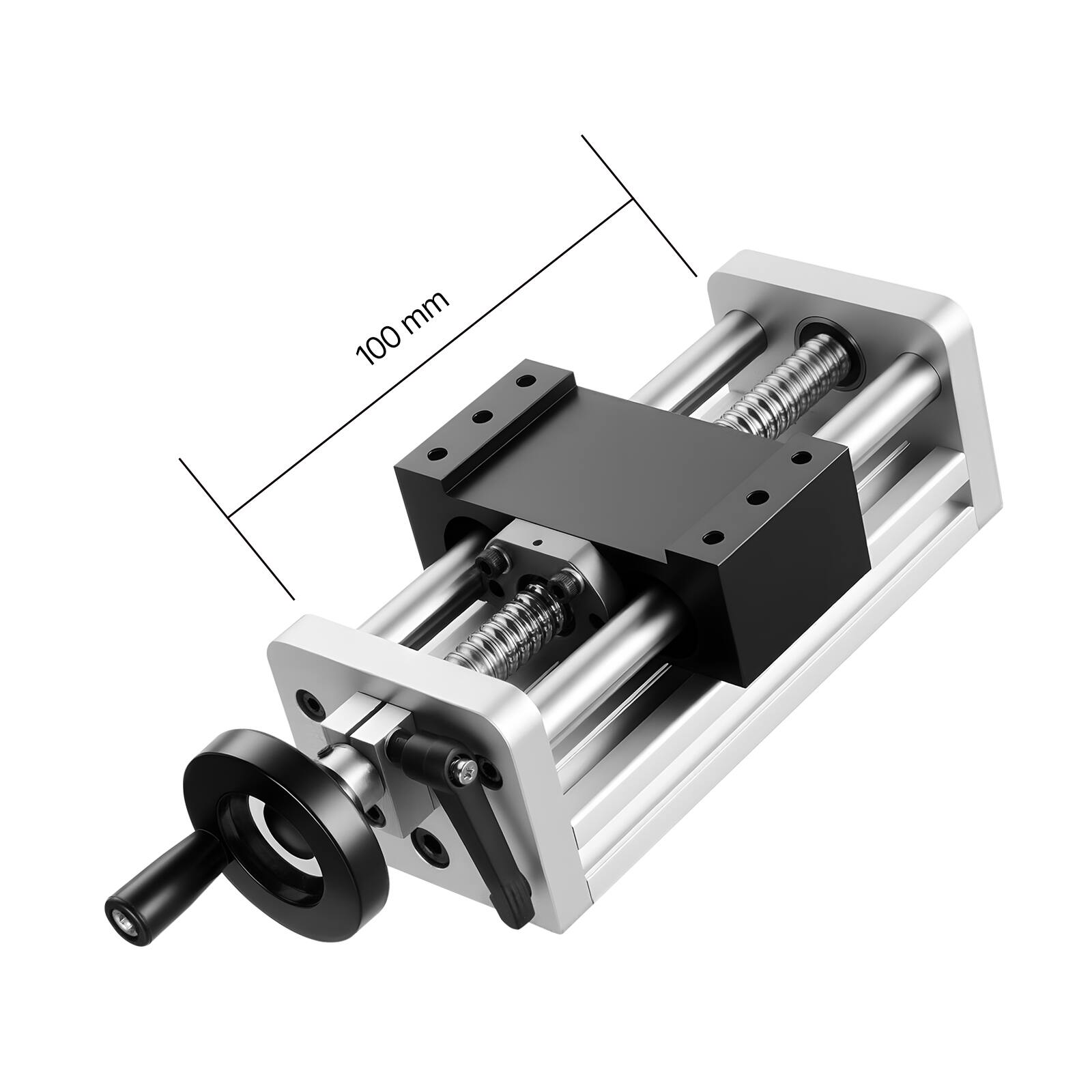

- CNC Linear Stage Actuator: This set includes one linear stage actuator with a 100 mm effective stroke and one handwheel. Compatible with 3D printers, compact CNC machines, and industrial robots

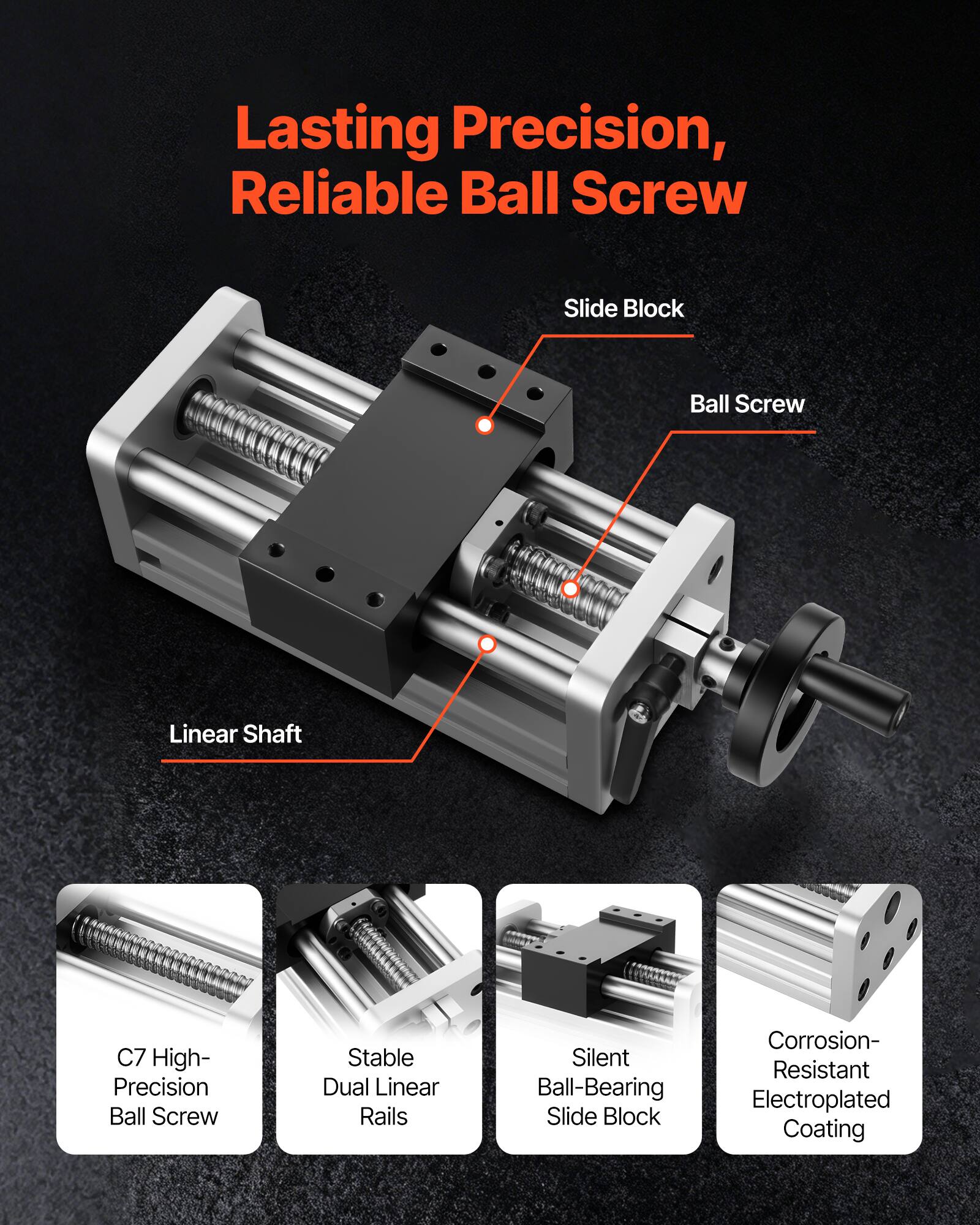

- High-Precision Ball Screw: Features a premium ball screw, dual linear guide rails, and a ball-bearing slide block. Electroplated coating enhances long-term accuracy and durability

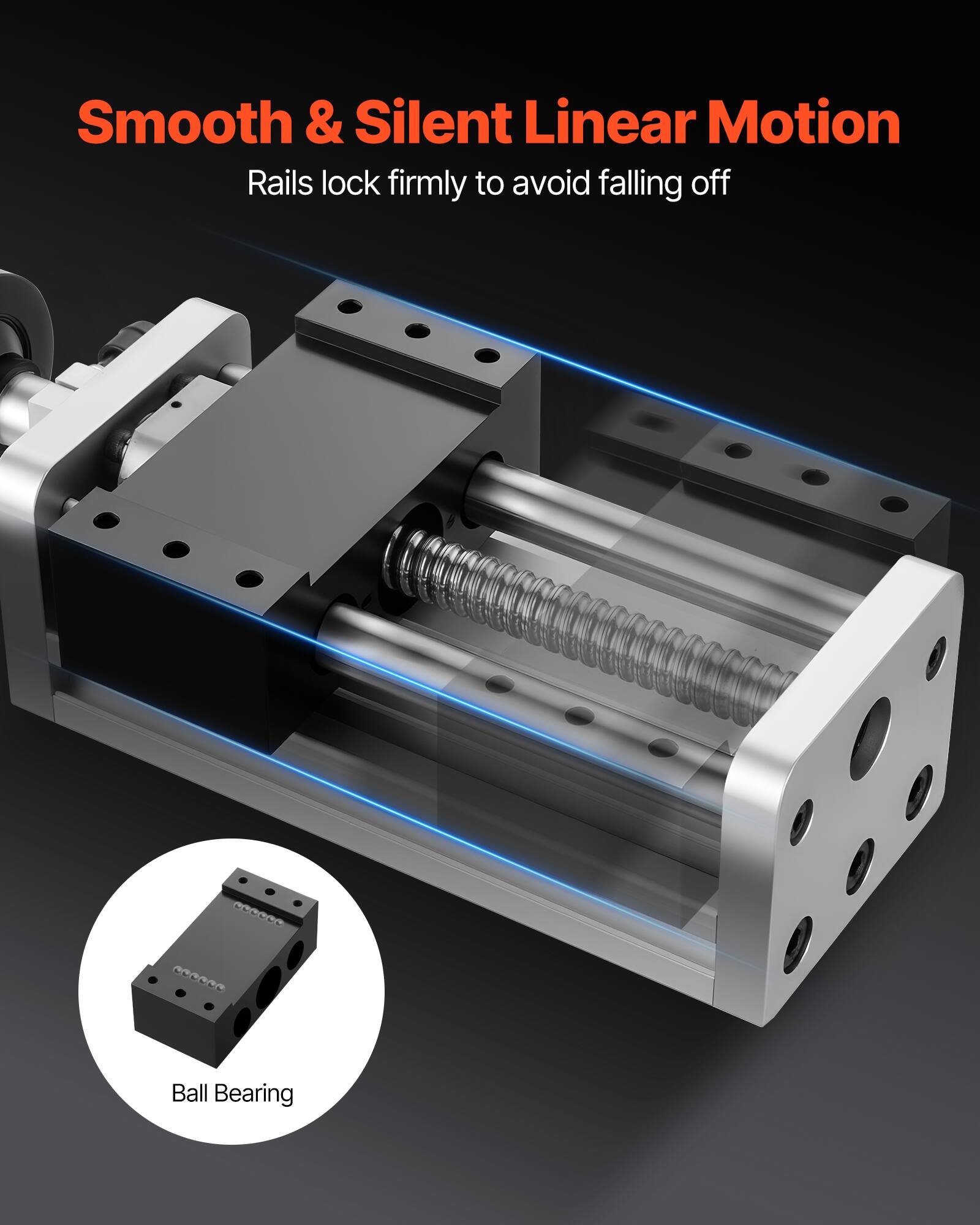

- Silent & Smooth Sliding: Built-in ball-bearing slide blocks deliver quiet, low-friction motion while gripping the shaft tightly for stable linear travel. Less noise, less wear, more precision—every time you move

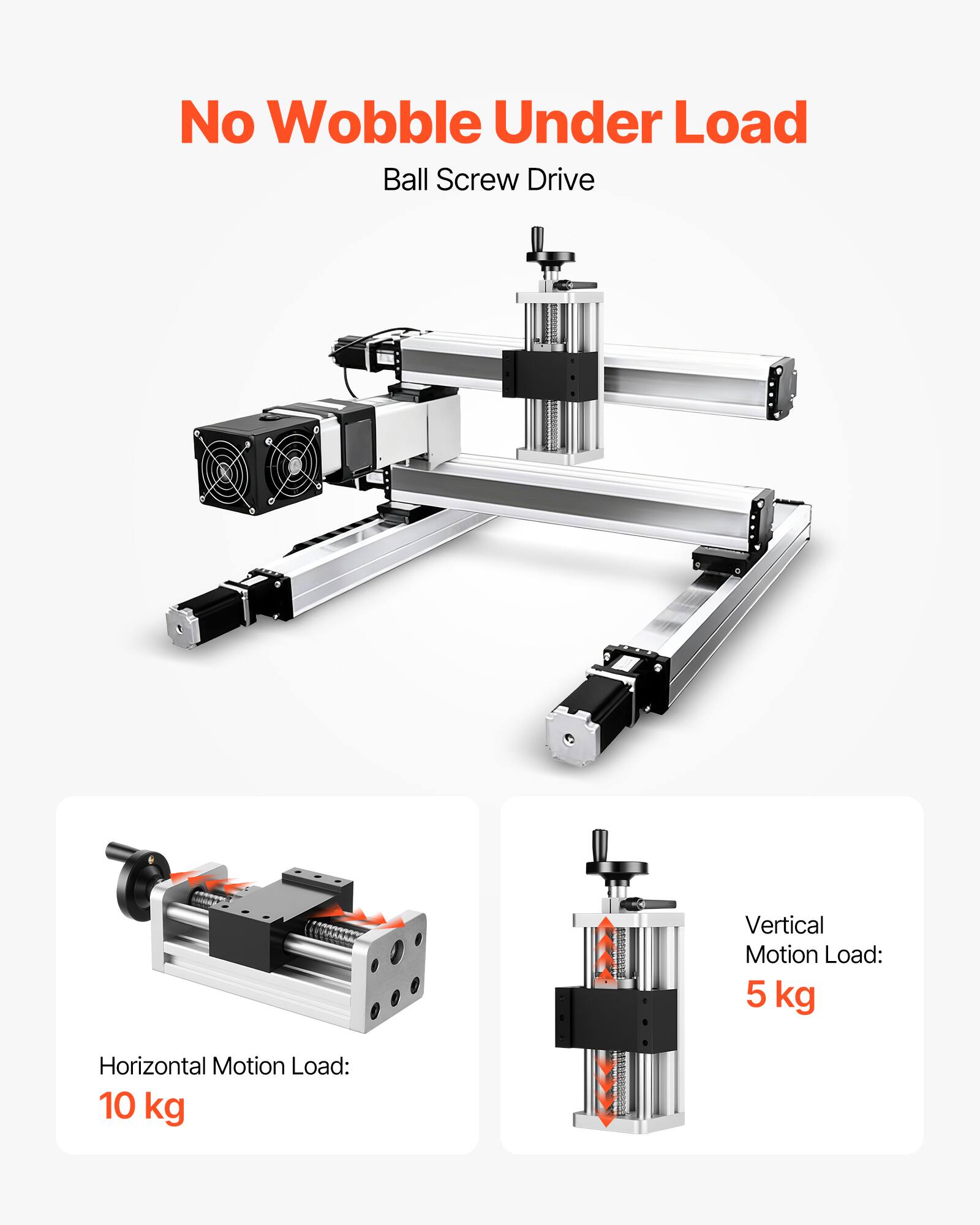

- Reliable Load Capacity: Our CNC linear stage actuator handles both horizontal and vertical motion with ease. Supports up to 10 kg horizontally and 5 kg vertically without wobble

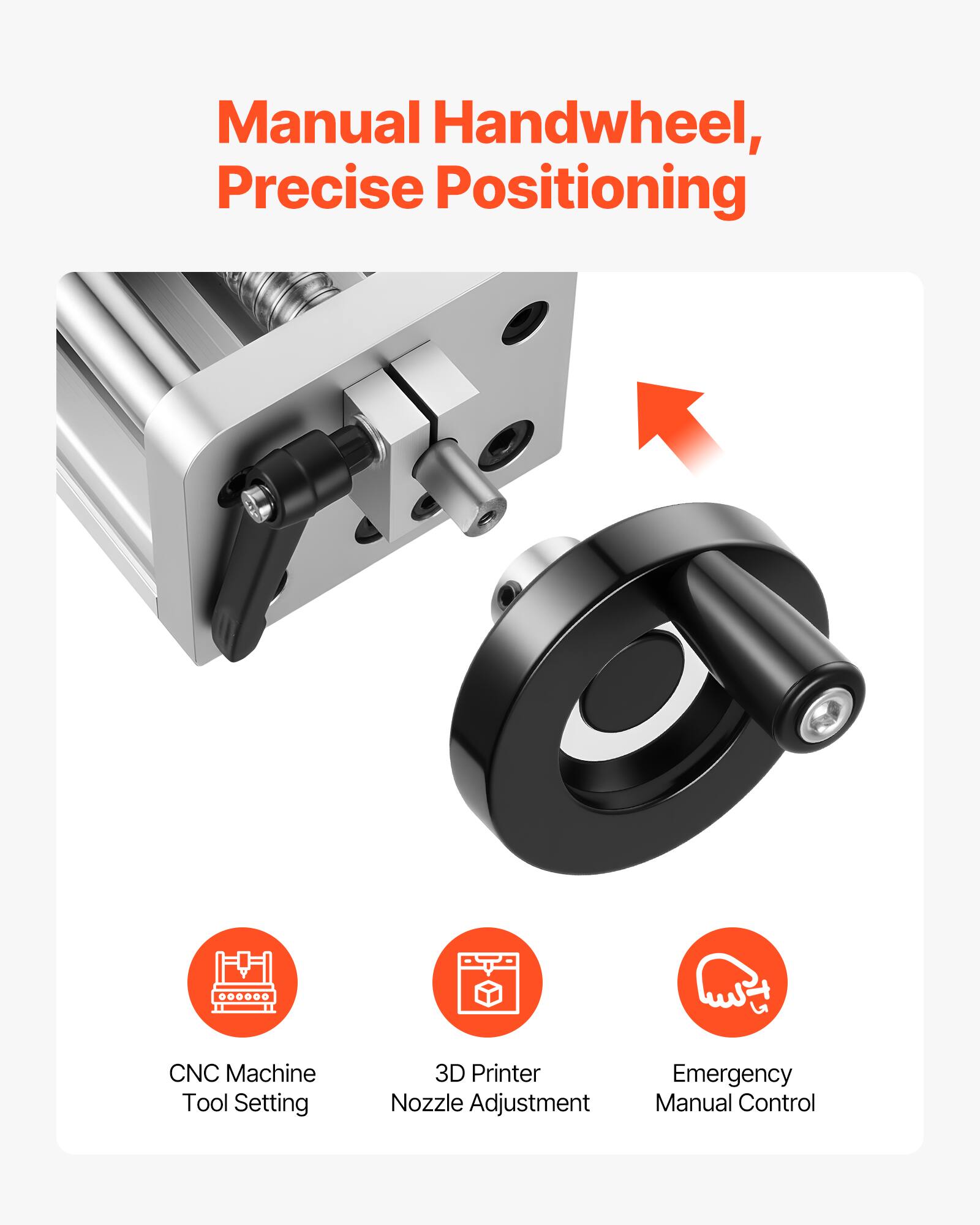

- Handwheel Included: Our CNC linear guide rail comes with an additional handwheel, allowing you to manual fine-tune the position
Whats Included
- 1 x Linear Stage Actuator Kit
