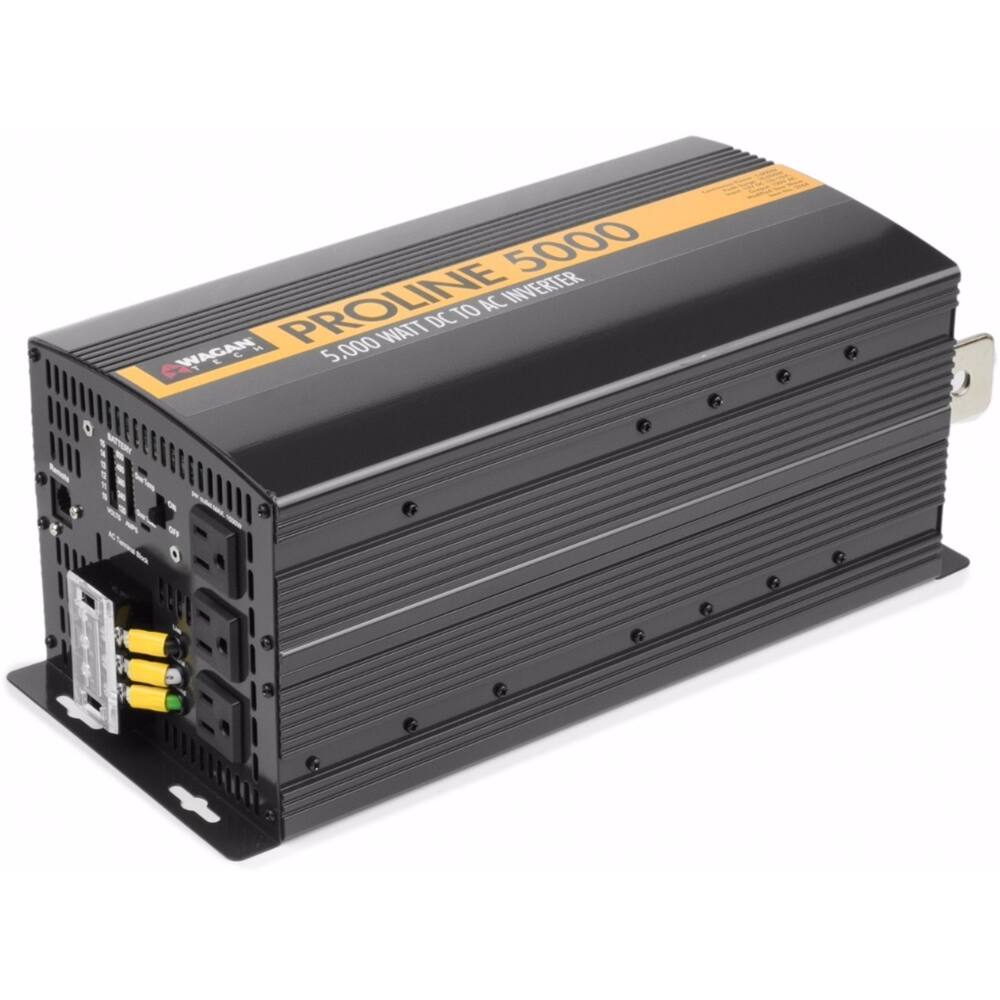

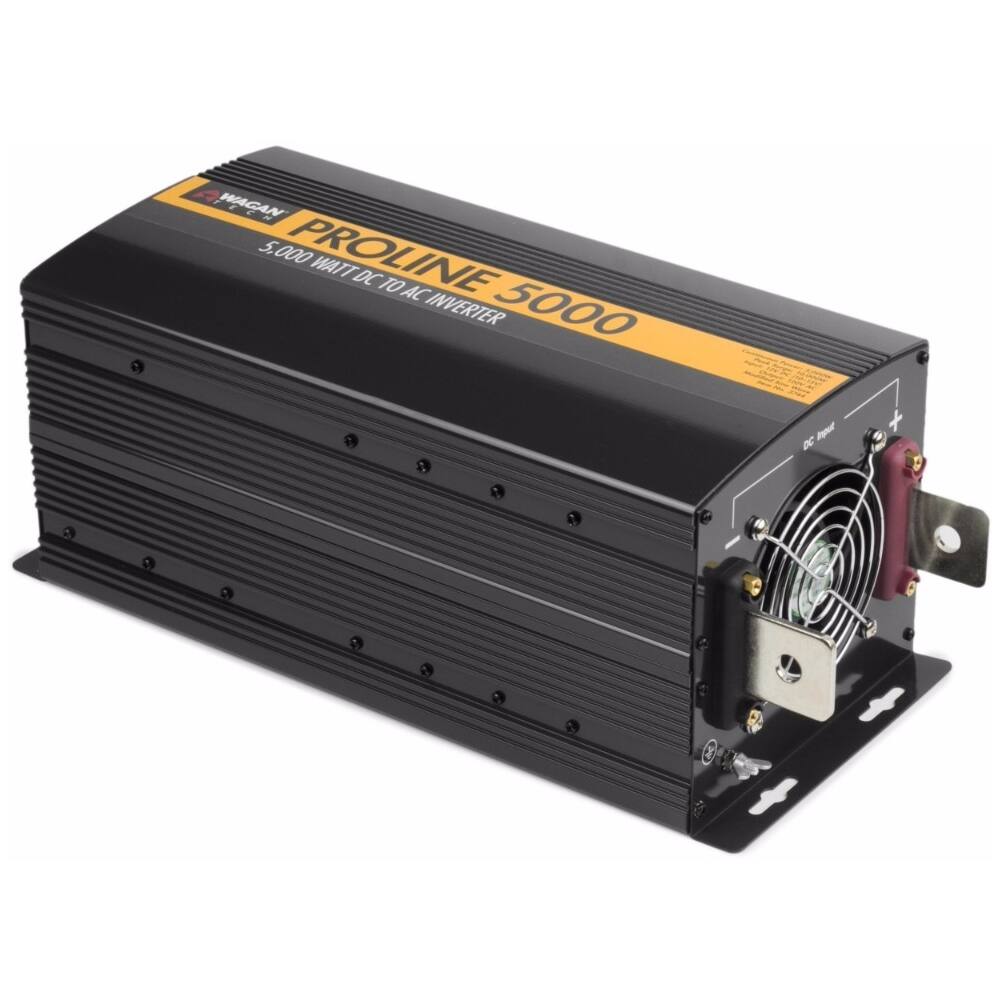

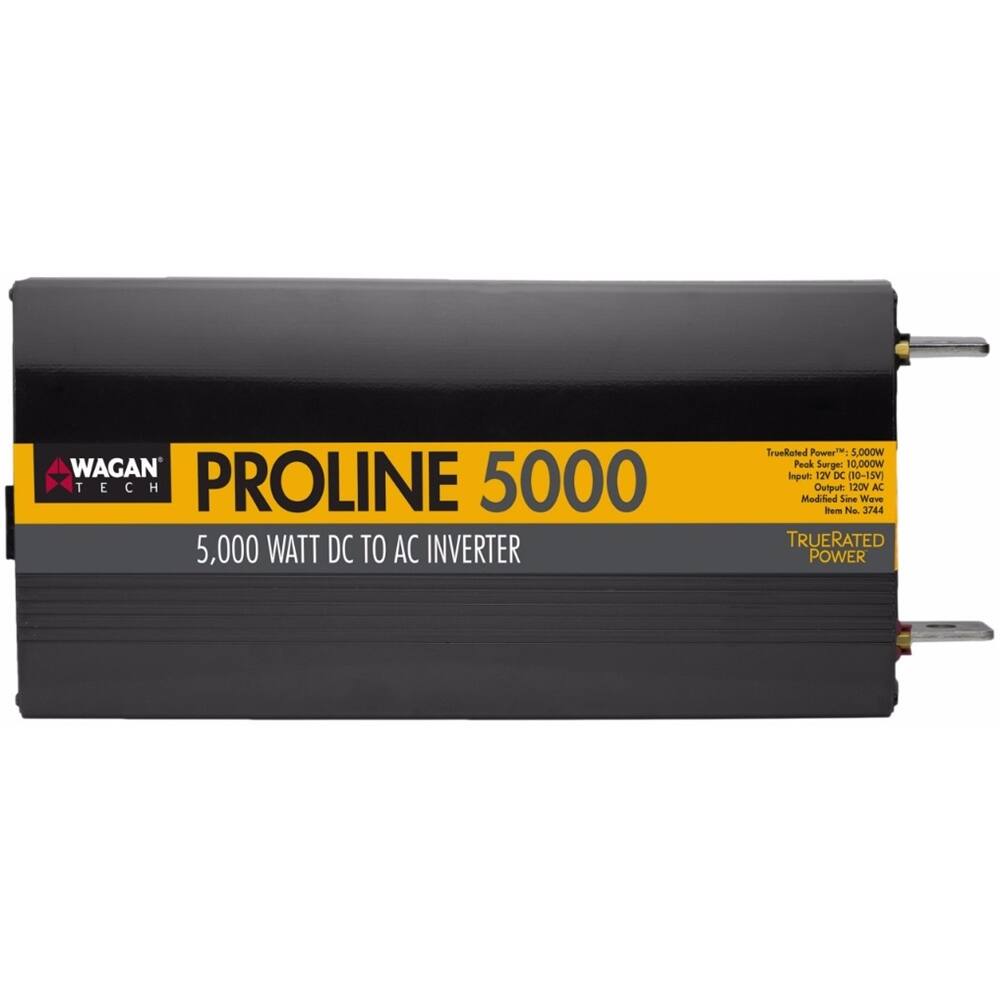

Wagan Tech - ProLine 5000W Power Inverter - Black
- General
- Brand: Wagan Tech
- Model Number: 3744
- Product Name: ProLine 5000W Power Inverter
- Color: Black
- Power
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Integrated Surge Protection: true
- Integrated Overload Protection: true
- Continuous Power: 5000 watts
- Peak Power Handling: 10000 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Features
- Number Of Devices Charged Simultaneously: 3
- Remote On/Off Capable: true
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Connectivity
- USB Port(s): false
- Dimensions
- Product Height: 6 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 6.5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 15.25 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 11.05 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Other
- UPC: 084367037442
Enjoy creature comforts on the road with this 5000W Wagan ProLine inverter. It includes a remote, installs easily and adds three grounded power outlets to your RV, big rig or truck. Equipped with Surface Mount Technology, this Wagan ProLine inverter provides an efficient and reliable way to run small appliances while traveling.
- 10000W peak power (5000W continuous): Provides sufficient power for operating devices while traveling by vehicle.
- Three AC power outlets: The 120V AC outlets provide 1500W each and let you plug in a wide range of electronics.
- Overload, overheating and high voltage protection: Ensures reliable and safe operation. The inverter features short circuit and reverse polarity protection as well.
- Surface-mount technology circuit boards: Offer greater reliability, better efficiency, and fewer stray RF emissions than from older PCB (printed circuit boards) and through-hole boards.
- Remote power switch (included): You can quickly and easily switch on/off the power inverter from any place in your vehicle.
- LED warning lights, voltage and amperage level indicators: Show you the operating status of the inverter.
- 10000W peak power (5000W continuous): Provides sufficient power for operating devices while traveling by vehicle.
- Three AC power outlets: The 120V AC outlets provide 1500W each and let you plug in a wide range of electronics.
- Overload, overheating and high voltage protection: Ensures reliable and safe operation. The inverter features short circuit and reverse polarity protection as well.
- Surface-mount technology circuit boards: Offer greater reliability, better efficiency, and fewer stray RF emissions than from older PCB (printed circuit boards) and through-hole boards.
- Remote power switch (included): You can quickly and easily switch on/off the power inverter from any place in your vehicle.
- LED warning lights, voltage and amperage level indicators: Show you the operating status of the inverter.
Whats Included
- Wagan ProLine 5000W Power Inverter
- Remote switch
- Owner's manual
- Wagan ProLine 5000W Power Inverter
- Remote switch
- Owner's manual
Q: Will this work on a window air conditioner?
A: Hello JMLee, The Proline 5,000W Power Inverter can provide up to 5,000W worth of power, so as long as the Air Conditioner requires less than 5,000W of power then it should work with this inverter. Please also check to see if the Air Conditioner requires a specific input in order to check for compatibility with this inverter (this is a modified sine wave inverter)
Q: Is this a pure sine wave inverter?
A: Hello Seniday, Thank you for your interest in our Proline 5,000W Power Inverter (Item No. 3744), in regards to your inquiry, this is a Modified Sine Wave Inverter. If you are interested in a Pure Sine Wave Inverter, please feel free to check out our PURE LINE Model type Power Inverter or the ELITE PRO line of inverters that we produce that would be able to provide a Pure Sine Wave Output.
Q: 12 or 24 v
A: This unit connects to 12VDC and inverts it to 120VAC.
Q: would this run a rv. trailer
A: Hello Rich, As long as the power required by your RV Trailer is less than 5,000 Watts, Yes it should. We would recommend you take a quick look through our blogs and read over some of the informative articles that describe and explain some of the more general concerns that you will have when installing an inverter system. The first thing you would want to do is make sure to estimate and size up your power requirement for your devices by adding up the total Wattages of all the devices you are intending on plugging into the inverter. Then in order to correctly choose an Inverter, we would recommend slightly going over your requirement (approx. 20%) to provide some leeway with the power draw in case your devices draw more than is stated on their specs (sometimes things fluctuate when in use and draw more power than is stated). Please read over these blogs for more detailed information: http://wagan.com/blog/Inverter-tech/ http://wagan.com/blog/battery-specs-inverter/ http://wagan.com/blog/inverter-connecting/
A: Hello David You would first want to find out how much power your Air Compressor requires. As long as the power required by your Air Compressor is less than 5,000 Watts, Yes it should. We would recommend you take a quick look through our blogs and read over some of the informative articles that describe and explain some of the more general concerns that you will have when installing an inverter system. The first thing you would want to do is make sure to estimate and size up your power requirement for your devices by adding up the total Wattages of all the devices you are intending on plugging into the inverter. Then in order to correctly choose an Inverter, we would recommend slightly going over your requirement (approx. 20%) to provide some leeway with the power draw in case your devices draw more than is stated on their specs (sometimes things fluctuate when in use and draw more power than is stated). Please read over these blogs for more detailed information: http://wagan.com/blog/Inverter-tech/ http://wagan.com/blog/battery-specs-inverter/ http://wagan.com/blog/inverter-connecting/
