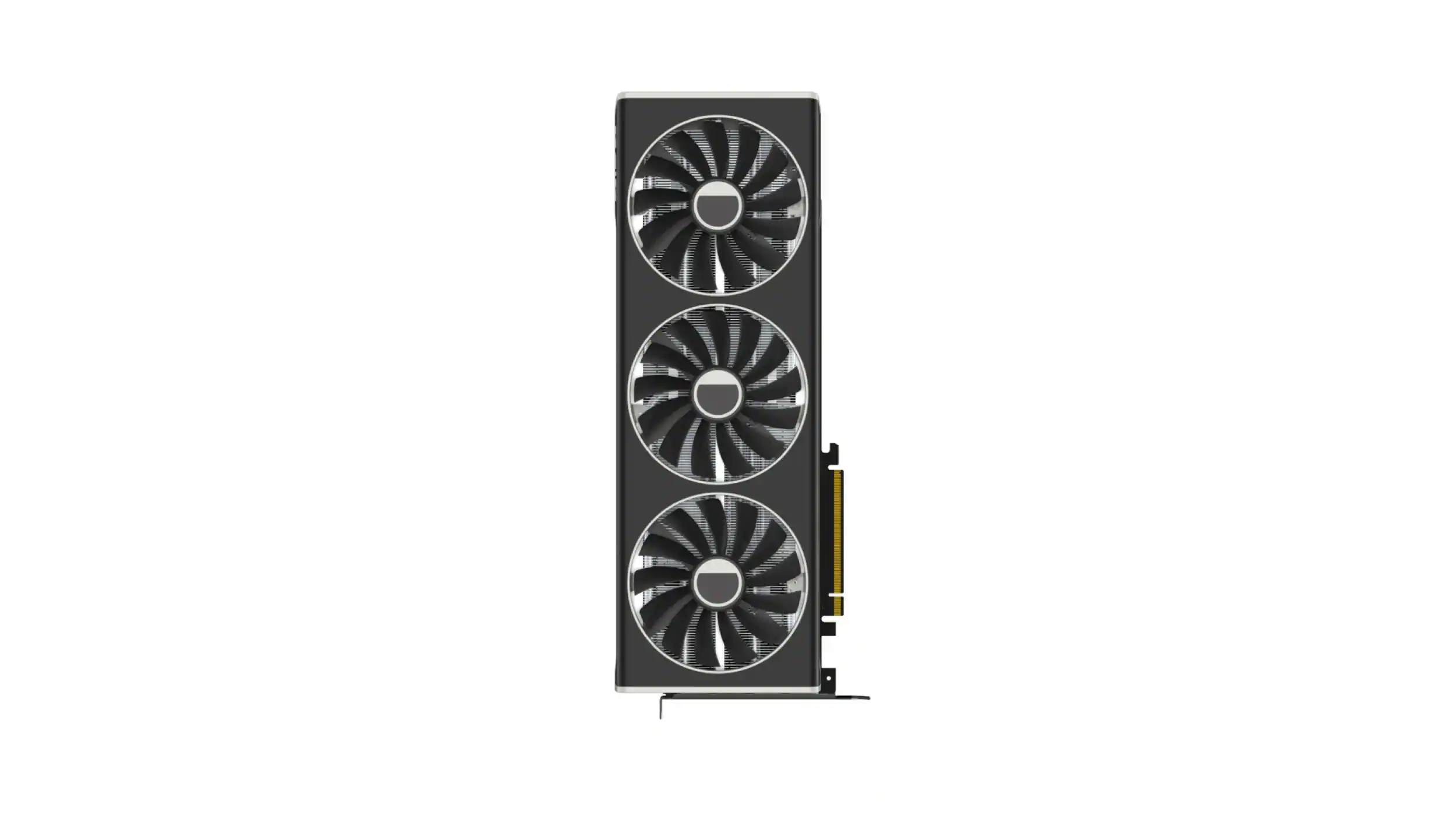

XFX - Speedster MERC310 AMD Radeon RX 7900XT 20GB GDDR6 PCI Express 4.0 Gaming Graphics Card - Black

Name: XFX - Speedster MERC310 AMD Radeon RX 7900XT 20GB GDDR6 PCI Express 4.0 Gaming Graphics Card - Black
Brand: XFX
SKU: 6562528
Rating: 4.8 (271 reviews)

Model: RX-79TMERCUR

SKU: 6562528

This item is no longer available in new condition. See similar items below

Key Specs
- GPU Base Clock Frequency: 1.775 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.535 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- DisplayPort Ports: 3 x DisplayPort 2.1 (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI 2.1 (The number and type of HDMI outputs the product has.)
- Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): Ray tracing (Imaging technology designed to improve graphics rendering.)
- GPU Video Memory (RAM): 20 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR6 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- Slot Size: 2.7-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- PCI Express Version: PCI Express 4.0
- Product Height: 128.02 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 342.9 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 55.12 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Graphics Processing Unit (GPU): AMD Radeon RX 7900 XT (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
General
- Brand: XFX
- Model Number: RX-79TMERCUR
- Product Name: Speedster MERC310 AMD Radeon RX 7900XT 20GB GDDR6 PCI Express 4.0 Gaming Graphics Card
- Color: Black
- GPU Chipset Manufacturer: AMD
- Graphics Processing Unit (GPU): AMD Radeon RX 7900 XT (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- Year of Release: 2023
Performance
- GPU Base Clock Frequency: 1.775 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.535 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- Cooling System: Fan (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
Connectivity
- DisplayPort Ports: 3 x DisplayPort 2.1 (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI 2.1 (The number and type of HDMI outputs the product has.)
- Power Connector: 2x 8pin (The configuration of the connector as it connects the motherboard to a power supply unit.)
Display
- Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): Ray tracing (Imaging technology designed to improve graphics rendering.)
Memory
- GPU Video Memory (RAM): 20 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR6 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- GPU Video Memory Base Clock Frequency (RAM): 20 gigahertz
Compatibility
- Slot Size: 2.7-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- System Requirements: Windows 10, Windows 11, Linux, PCI-E x16 capable motherboard. (The software that a product must have for it to be able to integrate with another product.)
- PCI Express Version: PCI Express 4.0
- Operating System Compatibility: Windows, Linux
Features
- Multi-GPU Support: None
- Technology Support: Direct X 12,Vulkan RT,Open GL 4.6,AMD Mantle API
- Included Software: AMD Adrenalin 2023 Software Download
Power
- Total Graphics Power: 282 watts
- Recommended Power Supply: 800 watts
Dimensions
- Product Height: 128.02 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 342.9 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 55.12 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 5.3 pounds (The out of box weight of the item.)
Other
- UPC: 840191502552

The AMD Radeon RX 7900 graphics card, powered by AMD RDNA 2 architecture, featuring 84 powerful enhanced Compute Units, the all new AMD Infinity Cache and 20GB of dedicated GDDR6 memory, is engineered to deliver ultra-high frame rates and powerhouse resolution gaming.

Powered by the AMD Radeon RX 7900 graphics processing unit (GPU): With a 2535MHz boost clock speed and base clock speed up to 1810MHz, you are able to elevate and unify visuals and gameplay across multi-gaming platforms.
20GB GDDR6 on-board memory: Provides the memory needed to create striking visual realism.
PCI Express 4.0 interface: Offers compatibility with a range of systems.
Technologies: AMD FidelityFX Super Resolution, AMD Link, AMD Noise Suppression, AMD Smart Access Memory, VSR (4K), AMD Privacy View, AMD Radeon Boost, AMD Radeon Anti-Lag, AMD Enhanced Sync Technology, AMD FreeSync Technology.
Supported video formats: 4k H264, H265/HEVC and AV1
API (Application Programming Interface) Support: Direct X 12, Vulkan, Open GL 4.6, and AMD Mantle API helps to enhances gameplay by delivering ultrarealistic images, detail and texture and improved lighting effects that create lifelike interactivity.
Audio support: True Audio Next and HDMI Audio Passthrough
Supported operating systems: Include Linux, Windows 7/10/11.2 with a 64-bit operating system.
Virtual Reality Ready: Provides a powerful next-generation platform for the ultimate immersive virtual reality experience.
AMD RDNA 2 architecture: Engineered to deliver powerhouse performance for all gamers.
HDMI and DisplayPort outputs: Enable flexible connectivity.

Whats Included

Speedster MERC310 AMD Radeon RX 7900XT 20GB GDDR6 PCI Express 4.0 Gaming Graphics Card

Q: How many displays does this graphics card support?

A: It can support a maximum of 4 displays.

Q: What is the recommended power supply for this graphics card?

A: The recommended power supply for this graphics card is 800 watts.

Q: What type of memory does this graphics card use?

A: This graphics card uses 20GB of GDDR6 memory.

Q: What kind of cooling system does this graphics card have?

A: It uses a fan cooling system.

Q: Does this graphics card have USB ports?

A: No, this graphics card does not have any USB ports.

Q: Which operating systems are compatible with this graphics card?

A: It is compatible with Linux, Windows 7, Windows 10, and Windows 11 (64-bit versions).

Q: would this work as an external GPU (eGPU) with Oculink port in a minisforum mini-PC, specifically this one - MINISFORUM UM890 Pro Mini PC AMD Ryzen 9 8945HS

A: undefined

Q: I have a new Dell XPS 8960. Will this card fit?

A: This card is 13.5 inches long. So measure your PC's Internal space... from its back plane to the front of the PC case. You'll need 13.5 in. of clearance.

Customers are saying

Customers are impressed with the Speedster MERC310's performance and the large amount of VRAM, finding it offers great value for the price. While some users note the card's large size may be incompatible with smaller PC cases, and that ray tracing performance is not as strong as competing products, many appreciate its generally cool and quiet operation. The build quality is also frequently praised.

This summary was generated by AI based on customer reviews.

Customer Images

The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.

Rated 5 out of 5 stars
XFX 7900 XT 20GB Powerhouse
7900 XTX XFX is a great card for its price to performance ratio. On Direct X 12 games or most modern titles, ultra settings, 1080p 240hz, you’re looking at 160-200 fps generally. On Cyberpunk 2077, 89 fps with ray-tracing on, 220 with ray-tracing off, still with max settings. 30 fps with ray and path tracing. 75 Celsius max temps for both, which is extremely cool for that work load. On 4k monitor, frames back down to 67 fps but that’s expected since it’s a high resolution. Pair with any AMD 3D cache cpu and you’re going to get a real work horse when it comes to high resolution gaming or high frames for 1080p if you’re not into 1440p or 4k. Pretty gaming aside now we dip into competitive gaming which is generally in the 1080p/240hz realm with most comp player setups. 20GBs is no joke with ultra settings on, with it off you’re there’s zero issue on DX12. It’s like asking a race horse if it can walk down the road. In Fortnite it is most stable using DirectX 12, however pay attention to what AMD reddit is saying whenever a new driver releases they will tell you if it’s unstable and not to update the card. But don’t be confused with shader cache, anytime your card updates there will be stutters as the GPU reloads the cache, within a day you’ll be back to stable frames. My only concern with this card any DX11 applications specifically FN performance mode. AMD has stability fix for 6000 series card, just google, but 7000 series you can’t do the workaround to fix microstutters on DX11 apps or FN performance mode, I tested it recently and got less than 5% microstutters which looks like 5 events during a nights gaming session online. For some it’s negligible, but for others it’s an eyesore for a 20GB current gen card. I’d say this card is great for high res or 1080p gaming, you’ll get some of the current graphics features in games like Ray-tracing, only downside is DX11 stability and driver updates. Will fit in a NR200 mini itx case.
Posted 10 months ago by AdrianB
Rated 5 out of 5 stars
Great Value and Performance
I have been impressed with the performance of this card. The price on this card was perfect for my budget and was much better than what I would have paid for the same performance on the Nvidia line. Getting the card installed and working was as basic as any video card, and it works fine with Windows 11 PRO. The software has a steeper learning curve than the competition. It's also not as intuitive to work with, and you will need to watch some videos to understand how the features work.
Posted 1 year ago by JDBulldog
Rated 5 out of 5 stars
The 7900XT is a great deal
This gpu can run the latest games at 4k and 1440p and it's been a blast ever since I picked one up. I can play Fortnite at 4k with over 144fps and Marvels Spider Man Remastered at 1440p high settings with smooth high fps. If your looking for a high end gpu that's excellent for the price i definitely recommend this.
Posted 9 months ago by EricTarperson
