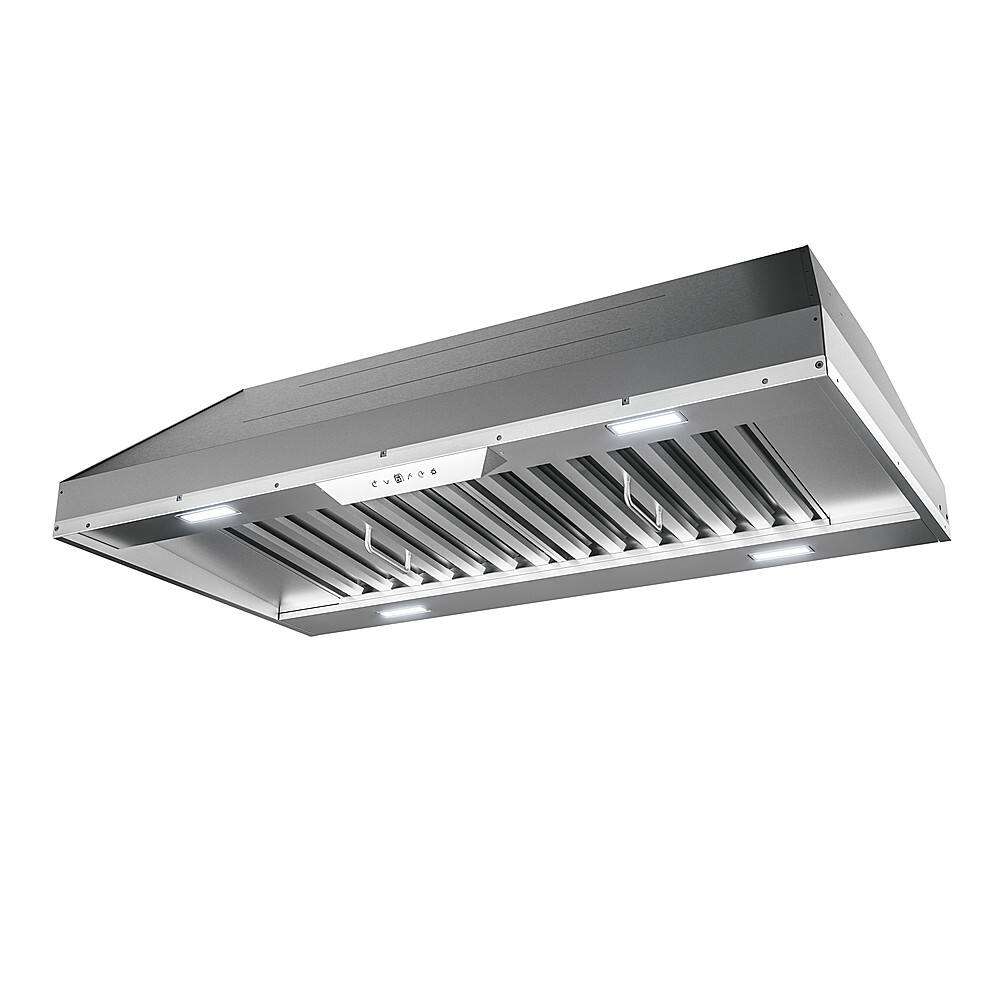

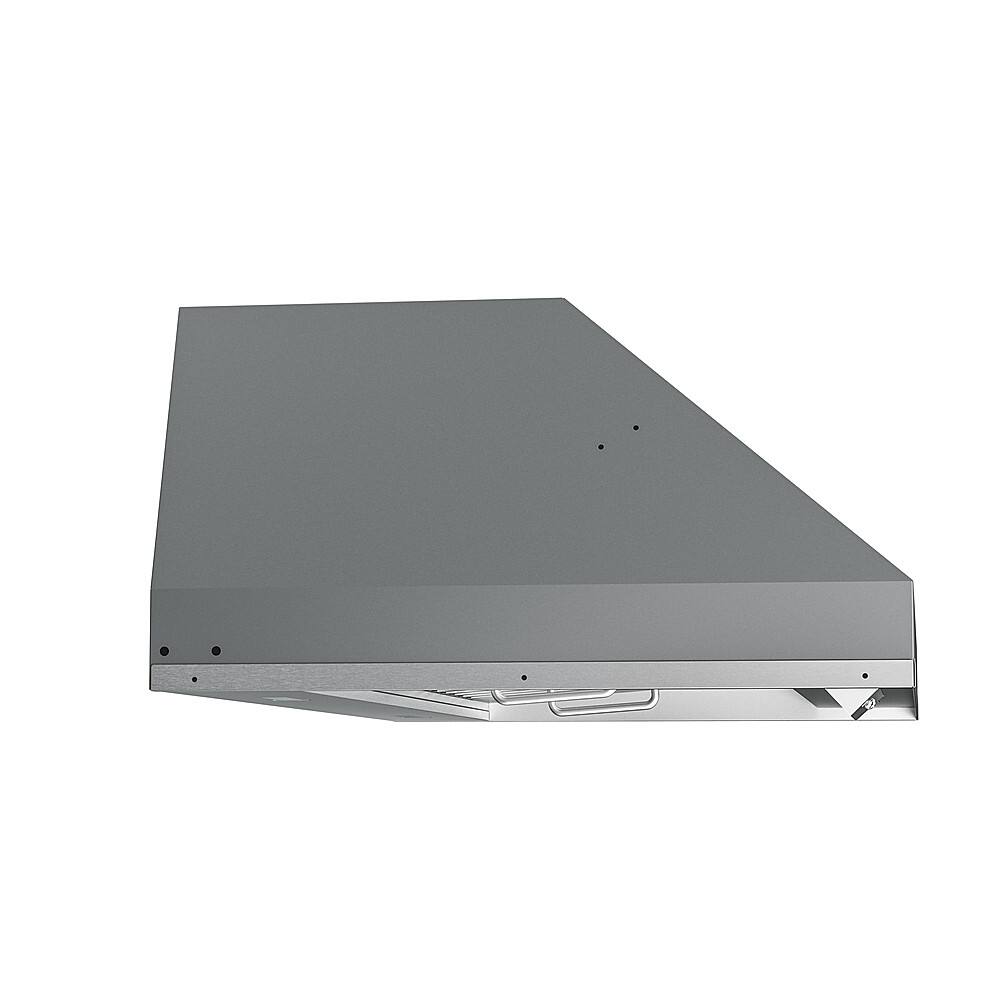

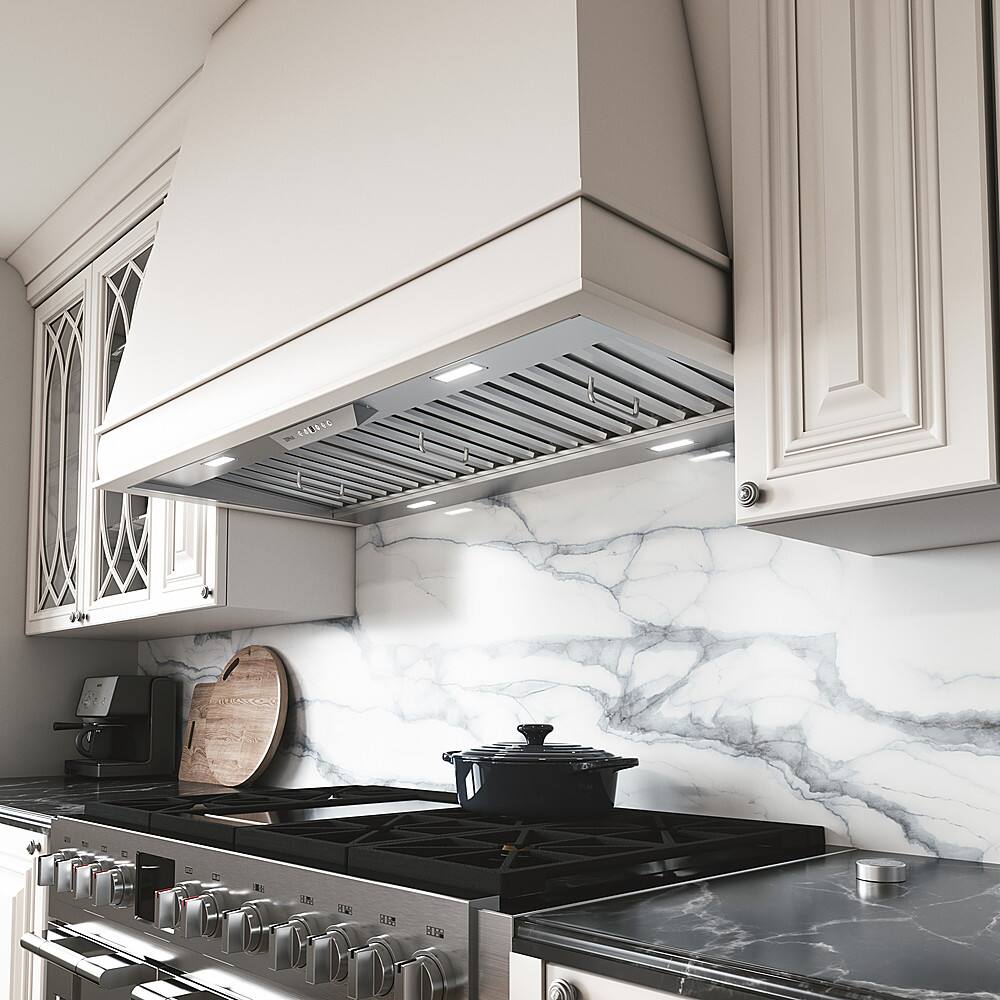

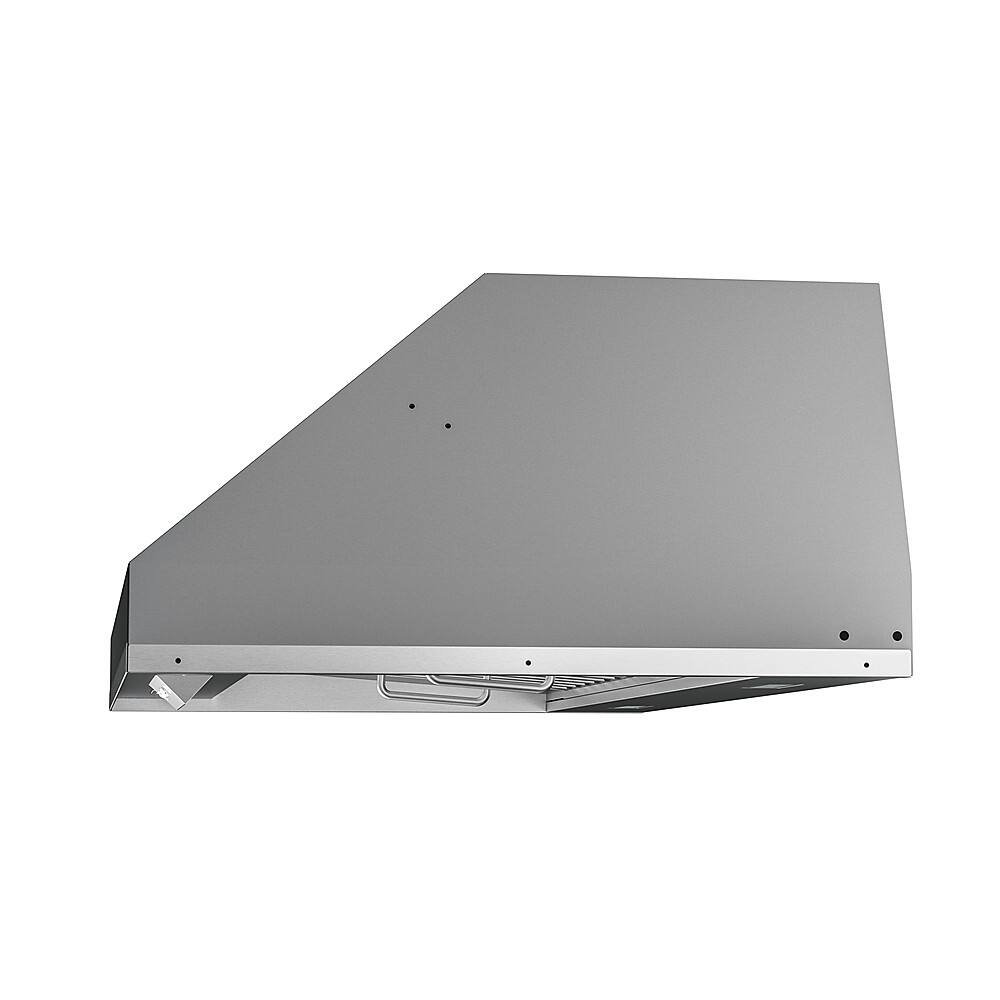

Zephyr - 48 inches - Externally Vented - Range Hood Insert - Stainless Steel
Model: AK9346BS
SKU: 6438853
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: Stainless steel
- Product Height: 12 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 46 3/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 22 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Zephyr
- Model Number: AK9346BS
- Product Name: Monsoon II 48 in. 1200 CFM Insert Mount Range Hood with LED Light
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 12 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 26 inches
- Maximum Installation Height Above Cooktop: 36 inches
- Product Width: 46 3/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 22 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 48 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 64.9 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Cut-Out Dimensions
- Cut-Out Width: 46 5/8 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 22 3/4 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Insert
- Number of Fan Speeds: 6
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Button
- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: true
- Remote Control: false
- Integrated Light(s): true
- Number of Lights: 4
- Number of Light Levels: 2
- Bulb Type Required: LED
- Bulb(s) Included: true
- Maximum Bulb Wattage: 6 watts
- Performance
- Maximum Air Flow Capacity: 1200 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 450 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Maximum Operating Sound Level: 9 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Minimum Operating Sound Level: 3.5 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Filter Material: Pro baffle
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Electrical
- Amperage: 7 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 1 year
- Other
- UPC: 646328008337
Now available with LumiLight LED lighting and our exclusive ACT technology, Monsoon II delivers and then more. Designed using universally-recognized, conventional installation dimensions, Monsoon II is a great option for custom cabinetry or enclosure. Its stainless steel baffle filters with removable grease tray make it easy to maintain its pro-style look while the 6-speed electronic controls and wireless remote control give the homeowner more than they expected.
- Airflow Control Technology (ACT): Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
- LumiLight LED Lighting: LumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours. The tri-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- Includes Wireless Remote Control: Our wireless remote control places the hoods operations at your fingertips from anywhere in the kitchen.
- Professional Baffle Filters: High-airflow baffle filters that are dishwasher safe and ensure a lifetime of exceptional performance. (Part # 50210033)
- Electronic Touch Controls: Electronic touch controls adjust the range hood blower and LED light levels, and enable the auto delay-off function.
- Powerful 1200 CFM Blowers: The range hood performance is measured in Cubic Feet per Minute (CFM). This is a measure of how much air can be removed from a given space in a single minute.
- CleanAir Function: The CleanAir Function powers the hood on every four hours for 10 minutes to refresh the cooking area.
Q: What type of lighting does this range hood use?
A: This range hood uses LumiLight LED lighting.
Q: Does this range hood come with a remote?
A: Yes, it includes a wireless remote control to operate it from anywhere in the kitchen.
Q: What is the minimum and maximum height this range hood can be installed above the cooktop?
A: The minimum installation height is 26 inches and the maximum is 36 inches.
Q: Are the baffle filters on this range hood dishwasher safe?
A: Yes, the professional baffle filters are dishwasher safe.
Q: How often does the CleanAir function run?
A: The CleanAir function will run every four hours for 10 minutes.
A: Hello, The recommended diameter is 10" round (metal rigid ducting). Thank you for your inquiry! - Zephyr
