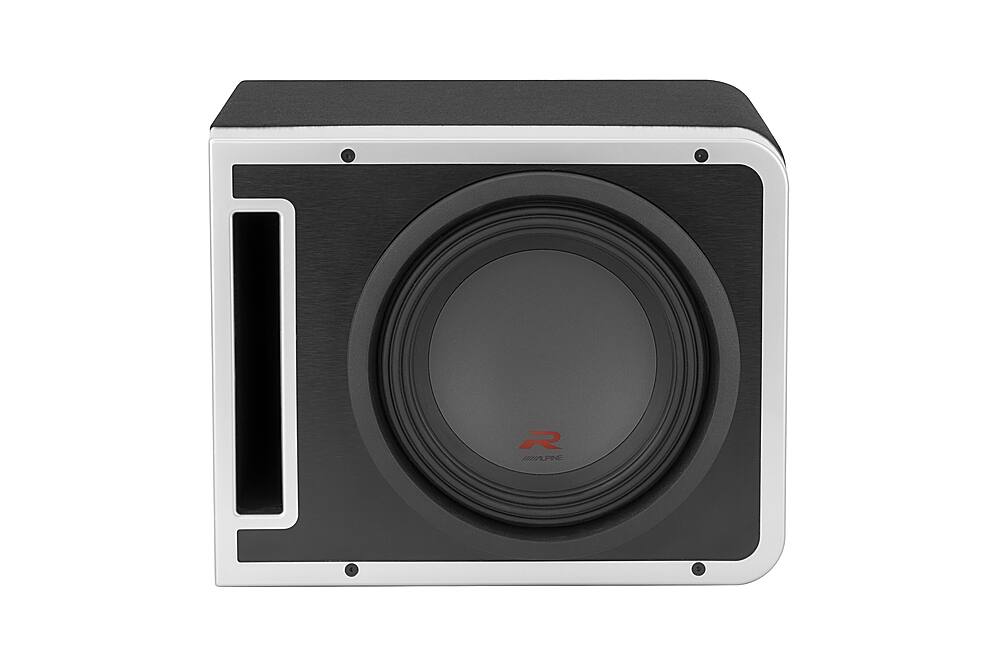

Alpine - R-Series Dual-Voice-Coil 10" 2-ohm Pre-Loaded Linkable Subwoofer Enclosure - Black
- Key Specs
- RMS Power: 600 watts (The maximum amount of continuous power the device is able to handle.)
- Woofer Size: 10"
- General
- Brand: Alpine
- Model Number: R-SB10V
- Product Name: R-Series Dual-Voice-Coil 10" 2-ohm Pre-Loaded Linkable Subwoofer Enclosure
- Color: Black
- Number of Subwoofers Included: 1
- Audio Power
- RMS Power: 600 watts (The maximum amount of continuous power the device is able to handle.)
- Integrated Amplifier: false
- Dimensions
- Woofer Size: 10"
- Product Height: 12.68 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 14.5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 20 pounds (The out of box weight of the item.)
- Enclosure
- Enclosed: true
- Enclosure Type: Ported
- Box Material: MDF
- Box Covering Material: Carpet
- Other
- UPC: 793276084132
Alpine has been pumping out great sound for over 40 years, and now their Halo Series subwoofer enclosures make it easier to add more bass to your system. You'll get the low end you're looking for from one box, but when you want to expand your system, you can add a second enclosure and the optional linking kit to create a single two-speaker system with double the impact. Dishing it out The R-SB10V comes loaded with Alpine's R-W10D4 subwoofer wired for 2-ohm impedance. The sub's Kevlar-reinforced cone and Santoprene surround give you solid bass response at power levels up to 750 watts RMS. The ported enclosure is tuned to 36 Hz to maximize performance. Getting it together Two R-SB10V enclosures can be linked using Alpine's KTX-H10 linking kit (sold separately). Heavy-duty steel front and rear linking brackets connect the enclosures for a compact, sturdy dual-subwoofer solution. The silver linking brackets match the enclosure trim for a neat, coordinated look.
- ProLink ported enclosure design: Alpine's unique ProLink technology allows you to link 2 R-SB10V enclosoures together with the optional KTX-H10 linking kit (sold separately)
- Groundbreaking Alpine Halo design: The Alpine Halo platform has a reputation for accessible, premium technology that modernizes the look and feel of any vehicle.
- 10" ported subwoofer enclosure: Loaded with Alpine's R-W10D4 subwoofer, wired for 2-ohm impedence
- Kevlar-reinforced pulp cone with Santoprene rubber surround: Gives you solid bass response at power levels up to 750 watts RMS
- Built from premium construction materials: Made from 3/4-inch MDF with internal edge bracing, making it sturdy with a rugged, yet stylish black carpet cover and brushed aluminum finish on the metallic front baffle.
- Optimized performance: Dual 4 ohm voice coils are wired in parallel for a 2 ohm load that's compatible with the R-Series R-A75M Mono Power amplifier.
- Gold-plated binding post terminals: Allow for speaker wire, ring terminal, or quick disconnect banana plug connections from your amplifier's output
